Here you will find all available parts and drawings of the 'Makita DSP600'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

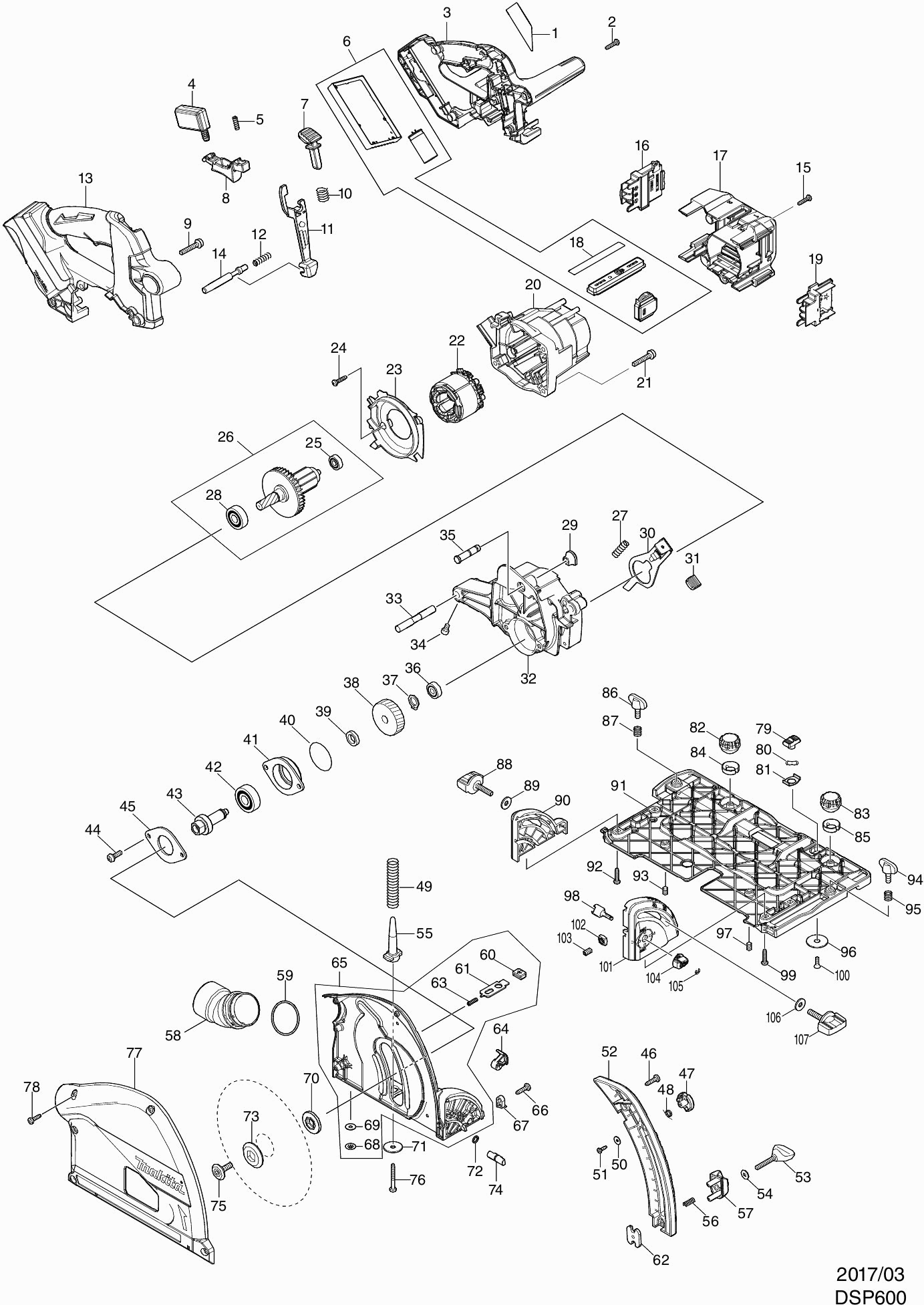

Technical drawing of model Makita DSP600
Spare parts list of model Makita DSP600
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Nameplate Dsp600 | ||||
| 001 | 853K64-7 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 002 | 265A48-7 | 1.00 | 1.21 | |
| Handle Cover Dsp600 | ||||
| 003 | 183H46-0 | 39.60 | 47.92 | |
| Rubber pen 6 | ||||
| 003C10 | 263005-3 | 1.00 | 1.21 | |
| Switch C3Xa-1Pspm Dsp600 | ||||
| 004 | 651083-9 | 19.80 | 23.96 | |
| Compression Spring 4 Dsp600 | ||||
| 005 | 234173-9 | 1.20 | 1.45 | |
| Controller compleet DSP600 P | ||||
| 006 | 135973-9 | 132.82 | 160.71 | |
| CONTROLLER COMPLEET DSP600 A | ||||
| 006-1 | 136856-6 | 152.90 | 185.01 | |
| Sub Controller DSP600 | ||||
| 006C10 | 620691-7 | 22.00 | 26.62 | |
| Safety Lock Button | ||||
| 007 | 419629-5 | 1.20 | 1.45 | |
| Switch handle | ||||
| 008 | 457748-9 | 2.40 | 2.90 | |
| Screw 5x30 | ||||
| 009 | 911253-5 | 1.00 | 1.21 | |
| Compression spring 12 | ||||
| 010 | 233089-5 | 1.00 | 1.21 | |
| Blocking Plate | ||||
| 011 | 457749-7 | 2.40 | 2.90 | |
| Compression Spring 7 | ||||
| 012 | 233267-7 | 1.20 | 1.45 | |
| Handle Cover Dsp600 | ||||
| 013 | 183H46-0 | 39.60 | 47.92 | |
| Rubber pen 6 | ||||
| 013C10 | 263005-3 | 1.00 | 1.21 | |
| Lock Pin 8 | ||||
| 014 | 324709-3 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 015 | 265A48-7 | 1.00 | 1.21 | |
| Connection unit | ||||
| 016 | 643874-2 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 016-1 | 654940-0 | |||
| Handle Cover Dsp600 | ||||
| 017 | 183H46-0 | 39.60 | 47.92 | |
| Rubber pen 6 | ||||
| 017C10 | 263005-3 | 1.00 | 1.21 | |
| Indication label Dsp600 | ||||
| 018 | 813D03-7 | 2.40 | 2.90 | |
| Connection unit | ||||
| 019 | 643874-2 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 019-1 | 654940-0 | |||
| Motor Housing | ||||
| 020 | 457750-2 | 8.40 | 10.16 | |
| Screw 5x30 | ||||
| 021 | 911253-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 022 | 629275-8 | |||
| VELD DSP600 A | ||||
| 022-1 | 629B69-3 | 12.10 | 14.64 | |
| Spacer plate | ||||
| 023 | 457751-0 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 024 | 265A48-7 | 1.00 | 1.21 | |
| Ball bearing 626zz | ||||
| 025 | 210143-2 | 3.60 | 4.36 | |
| Armature Dsp600 | ||||
| 026 | 519448-0 | 30.80 | 37.27 | |
| Compression Spring 6 5903R | ||||
| 027 | 233084-5 | 1.00 | 1.21 | |
| Ball Bearing 6001dw | ||||
| 028 | 211131-2 | 9.60 | 11.62 | |
| Baffle | ||||
| 029 | 286040-4 | 1.20 | 1.45 | |
| Axle Lock | ||||
| 030 | 345742-2 | 4.80 | 5.81 | |
| Baffle | ||||
| 031 | 286039-9 | 1.00 | 1.21 | |
| Gear box Sp6000 A | ||||
| 032 | 144586-5 | 39.60 | 47.92 | |
| Rubber Pin 4 | ||||
| 032C10 | 263002-9 | 1.00 | 1.21 | |
| Pen 8 | ||||
| 033 | 327B66-0 | 2.40 | 2.90 | |
| Inbusbout 5x10 | ||||
| 034 | 265907-9 | 1.00 | 1.21 | |
| Pen 8 | ||||
| 035 | 324708-5 | 2.40 | 2.90 | |
| Ball bearing 607llb | ||||
| 036 | 211021-9 | 4.80 | 5.81 | |
| Lock washer S-12 | ||||
| 037 | 961052-5 | 1.00 | 1.21 | |
| Gear 41 | ||||
| 038 | 221548-1 | 4.80 | 5.81 | |
| Washer 12 | ||||
| 039 | 257010-0 | 1.20 | 1.45 | |
| O-ring 39 | ||||
| 040 | 213512-6 | 2.40 | 2.90 | |
| Bearing Housing | ||||
| 041 | 318088-9 | 3.60 | 4.36 | |
| Ball Bearing 6201dw1 | ||||
| 042 | 211129-9 | 8.40 | 10.16 | |
| Spindle Ass'y | ||||
| 043 | 324707-7 | 16.50 | 19.96 | |
| Screw 5x16 | ||||
| 044 | 911221-8 | 1.00 | 1.21 | |
| Bearing Lock 55 | ||||
| 045 | 285689-7 | 2.40 | 2.90 | |
| Tapping Screw Ct4x16 | ||||
| 046 | 266034-5 | 1.00 | 1.21 | |
| Locking Button | ||||
| 047 | 419630-0 | 1.20 | 1.45 | |
| Compression Spring 7 | ||||
| 048 | 231665-9 | 1.00 | 1.21 | |
| Compression Spring 11 | ||||
| 049 | 233479-2 | 1.20 | 1.45 | |
| Rivet 3 | ||||
| 050 | 253821-1 | 1.00 | 1.21 | |
| Tapping screw Pt3x10 | ||||
| 051 | 266007-8 | 1.00 | 1.21 | |
| Depth stop TSF 55 EBQ | ||||
| 052 | 457756-0 | 6.00 | 7.26 | |
| Clamping screw 3700B/Sp6000 A | ||||
| 053 | 251867-1 | 2.40 | 2.90 | |
| Washer 5mm DSP601 A | ||||
| 054 | 253414-4 | 1.00 | 1.21 | |
| Spring Holder | ||||
| 055 | 419624-5 | 2.40 | 2.90 | |
| Compression Spring 5 | ||||
| 056 | 231372-4 | 1.00 | 1.21 | |
| End stop | ||||
| 057 | 419623-7 | 2.40 | 2.90 | |
| DUST EXTRACTION ADAPTER | ||||
| 058 | 457752-8 | 2.40 | 2.90 | |
| O-ring 35 | ||||
| 059 | 213460-9 | 1.20 | 1.45 | |
| Kap 14 Dsp600 | ||||
| 060 | 286041-2 | 1.20 | 1.45 | |
| Spacer plate | ||||
| 061 | 345747-2 | 2.40 | 2.90 | |
| Mounting Plate | ||||
| 062 | 345744-8 | 1.20 | 1.45 | |
| Pressure Spring 2 | ||||
| 063 | 233025-1 | 1.00 | 1.21 | |
| Blocking Handle 20 Cmpl Dsp600 | ||||
| 064 | 144867-7 | 1.20 | 1.45 | |
| Rubber Pin 4 | ||||
| 064C10 | 263002-9 | 1.00 | 1.21 | |
| Fixed Protective Cover Dsp600 A | ||||
| 065 | 140D56-6 | 60.50 | 73.20 | |
| Tapping Screw Ct4x16 | ||||
| 066 | 266034-5 | 1.00 | 1.21 | |
| Identification plate Sp6000 | ||||
| 067 | 419632-6 | 1.20 | 1.45 | |
| Pressure nut M4 | ||||
| 068 | 259008-3 | 1.00 | 1.21 | |
| 4 Washer | ||||
| 069 | 253874-0 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 070 | 224473-5 | |||
| Washer 6 | ||||
| 071 | 253010-8 | 1.00 | 1.21 | |
| O-ring 5 | ||||
| 072 | 213021-5 | 1.00 | 1.21 | |
| Outer flange 35mm | ||||
| 073 | 224409-4 | 2.40 | 2.90 | |
| Pen 8 | ||||
| 074 | 324710-8 | 1.20 | 1.45 | |
| Hex socket head screw M6 | ||||
| 075 | 266403-0 | 2.40 | 2.90 | |
| Screw 4x35 | ||||
| 076 | 266351-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 077 | 319605-8 | |||
| Tapping Screw Ct4x16 | ||||
| 078 | 266034-5 | 1.00 | 1.21 | |
| Slide plate Dsp600 | ||||
| 079 | 458092-7 | 2.40 | 2.90 | |
| Spring Washer 10 | ||||
| 080 | 253932-2 | 1.00 | 1.21 | |
| Closing Plate | ||||
| 081 | 345977-5 | 1.00 | 1.21 | |
| Screw M4x3 | ||||
| 082 | 265775-0 | 2.40 | 2.90 | |
| Screw M4x3 | ||||
| 083 | 265775-0 | 2.40 | 2.90 | |
| Holder | ||||
| 084 | 419627-9 | 1.20 | 1.45 | |
| Holder | ||||
| 085 | 419627-9 | 1.20 | 1.45 | |
| Wing Bolt 6x15 | ||||
| 086 | 265726-3 | 1.20 | 1.45 | |
| Compression Spring 7 | ||||
| 087 | 231316-4 | 1.00 | 1.21 | |
| Compression Spring 7 | ||||
| 087-1 | 231240-1 | 1.00 | 1.21 | |
| Screw M6x26 | ||||
| 088 | 265776-8 | 1.20 | 1.45 | |
| Washer 6 | ||||
| 089 | 253111-2 | 1.00 | 1.21 | |
| Gradation guide | ||||
| 090 | 419596-4 | 4.80 | 5.81 | |
| VOETPLAAT DSP600 A | ||||
| 091 | 312B95-6 | 40.70 | 49.25 | |
| Tap screw 4x18 | ||||
| 092 | 265A48-7 | 1.00 | 1.21 | |
| Hexagonal Bolt M6 | ||||
| 093 | 266225-8 | 1.00 | 1.21 | |
| Wing Bolt 6x15 | ||||
| 094 | 265726-3 | 1.20 | 1.45 | |
| Compression Spring 7 | ||||
| 095 | 231316-4 | 1.00 | 1.21 | |
| Compression Spring 7 | ||||
| 095-1 | 231240-1 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 096 | 345748-0 | 1.20 | 1.45 | |
| Hexagonal Bolt M6 | ||||
| 097 | 266225-8 | 1.00 | 1.21 | |
| Stopper Pin 8 Sp6000 | ||||
| 098 | 324731-0 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 099 | 265A48-7 | 1.00 | 1.21 | |
| Countersunk screw 4x10 | ||||
| 100 | 912112-6 | 1.00 | 1.21 | |
| Gradation guide | ||||
| 101 | 419595-6 | 5.09 | 6.16 | |
| Angle Guide SP001G | ||||
| 101 | 413A11-6 | 4.80 | 5.81 | |
| Hex nut M6 | ||||
| 102 | 252159-1 | 2.40 | 2.90 | |
| Hexagonal Bolt M6 | ||||
| 103 | 266225-8 | 1.00 | 1.21 | |
| Button Dsp600 | ||||
| 104 | 457963-5 | 1.00 | 1.21 | |
| Stopring E-3 | ||||
| 105 | 961017-7 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 106 | 253111-2 | 1.00 | 1.21 | |
| Screw M6x26 | ||||
| 107 | 265776-8 | 1.20 | 1.45 | |
| CONTROLLER DSP600/601 | ||||
| 109 | 620L68-8 | 17.60 | 21.30 | |
| MET.SCHR M2X6MM | ||||
| 110 | 652119-7 | 1.00 | 1.21 | |
