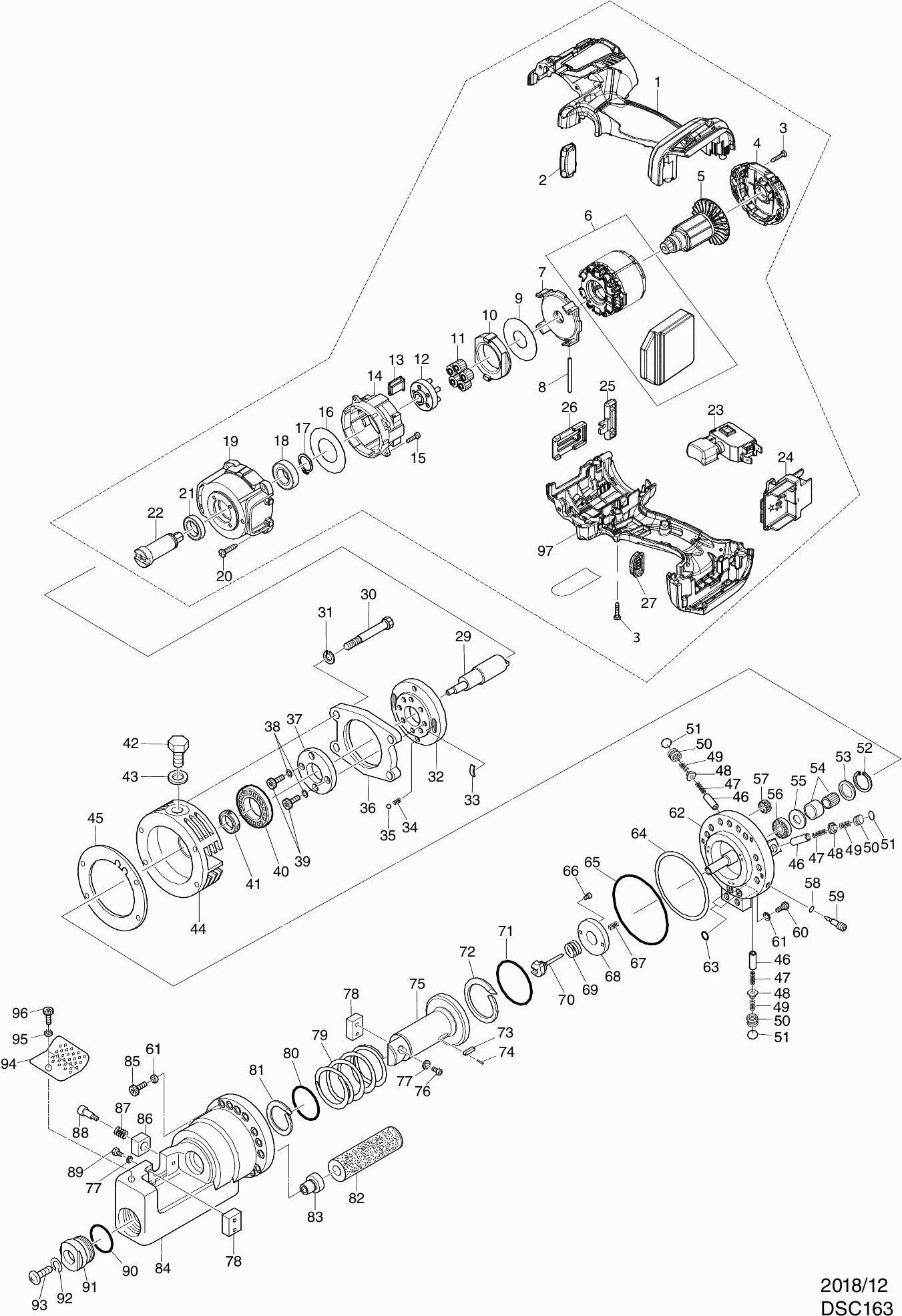

Technical drawing of model Makita DSC163
Spare parts list of model Makita DSC163
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing Set DSC163 | ||||
| 001 | 183C36-3 | 13.20 | 15.97 | |
| Rubber pen 6 | ||||
| 001C10 | 263005-3 | 1.00 | 1.21 | |
| Light circuit | ||||
| 002 | 620283-2 | 9.60 | 11.62 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 1.00 | 1.21 | |
| Tail Cover | ||||
| 004 | 455011-4 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 005 | 619336-2 | |||
| Field | ||||
| 006 | 629116-8 | 112.20 | 135.76 | |
| Motor mount DSC163 | ||||
| 007 | 455005-9 | 1.20 | 1.45 | |
| Pin 3 DSC163 | ||||
| 008 | 256375-7 | 1.00 | 1.21 | |
| Lock Washer 18 DSC163 | ||||
| 009 | 253401-3 | 1.00 | 1.21 | |
| Gear 41 DSC163 | ||||
| 010 | 221558-8 | 4.80 | 5.81 | |
| Gear 13 DSC163 | ||||
| 011 | 226193-7 | 2.40 | 2.90 | |
| Gear carrier DSC163 | ||||
| 012 | 144591-2 | 7.20 | 8.71 | |
| Rubber Gasket DSC163 | ||||
| 013 | 422168-6 | 3.60 | 4.36 | |
| Gearbox Housing DSC163 | ||||
| 014 | 455006-7 | 2.40 | 2.90 | |
| Screw 3X12 | ||||
| 015 | 911017-7 | 1.00 | 1.21 | |
| Washer 25 | ||||
| 016 | 253888-9 | 1.20 | 1.45 | |
| Lock washer S-15 | ||||
| 017 | 961055-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 018 | 211234-2 | |||
| Gearbox Housing DSC163 | ||||
| 019 | 319616-3 | 19.80 | 23.96 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 020 | 265B67-9 | 1.00 | 1.21 | |
| Ball bearing 6802llb | ||||
| 021 | 211246-5 | 9.60 | 11.62 | |
| Axle DSC163 | ||||
| 022 | 326996-0 | 4.80 | 5.81 | |
| Switch C3jw-4b | ||||
| 023 | 650006-4 | 12.10 | 14.64 | |
| Connection unit | ||||
| 024 | 643874-2 | 3.60 | 4.36 | |
| Lock Lever | ||||
| 025 | 451162-1 | 3.60 | 4.36 | |
| LOCK LEVER DSC121 | ||||
| 025-1 | 413R94-8 | 3.60 | 4.36 | |
| Cover Cap DSC163 | ||||
| 026 | 457799-2 | 8.40 | 10.16 | |
| Indicator Plate | ||||
| 027 | 142263-3 | 1.20 | 1.45 | |
| Eccentric Shaft DSC163 | ||||
| 029 | SC03501140 | 99.00 | 119.79 | |
| Bolt HB5X50 DSC163 | ||||
| 030 | SC07512110 | 2.40 | 2.90 | |
| Washer 5mm DSC163 | ||||
| 031 | SC07610030 | 1.20 | 1.45 | |
| Flange Plate DSC163 | ||||
| 032 | SC03222700 | 63.80 | 77.20 | |
| Leaf spring DSC163 | ||||
| 033 | SC04007620 | 14.30 | 17.30 | |
| Pressure spring DSC163 | ||||
| 034 | SC04007430 | 8.40 | 10.16 | |
| Steel ball S4 | ||||
| 035 | SC07900010 | 1.20 | 1.45 | |
| Intermediate Housing DSC163 | ||||
| 036 | SC03221200 | 63.80 | 77.20 | |
| Flange DSC163 | ||||
| 037 | SC03251180 | 56.10 | 67.88 | |
| Washer 4 DSC163 | ||||
| 038 | SC00000068 | 1.20 | 1.45 | |
| Bolt HB4X22 DSC163 | ||||
| 039 | SC07511060 | 1.20 | 1.45 | |
| Ball Bearing 6002ru | ||||
| 040 | SC00000050 | 23.10 | 27.95 | |
| No information available, not orderable | ||||
| 041 | SC06504000 | |||
| Allen Bolt 10X15 DSC163 | ||||
| 042 | SC00000061 | 2.40 | 2.90 | |
| SEALING WASHER | ||||
| 043 | SC00000489 | 6.00 | 7.26 | |
| Bearings housing DSC163 | ||||
| 044 | SC03212300 | 312.40 | 378.00 | |
| Intermediate plate DSC163 | ||||
| 045 | SC04601440 | 8.40 | 10.16 | |
| Ram | ||||
| 046 | SC03500390 | 36.30 | 43.92 | |
| Plunger return ring | ||||
| 047 | SC04003020 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 048 | SC03500460 | |||
| Control Valve Spring DSC163 | ||||
| 049 | SC00000021 | 3.60 | 4.36 | |
| Gasket DSC163 | ||||
| 050 | SC03500540 | 11.00 | 13.31 | |
| O-Ring S-8 DSC163 | ||||
| 051 | SC06505590 | 3.60 | 4.36 | |
| Lockring H19 | ||||
| 052 | SC00000487 | 2.40 | 2.90 | |
| Needle bearing holder A | ||||
| 053 | SC00000465 | 6.00 | 7.26 | |
| Needle bearing Rnaf81510 | ||||
| 054 | SC00000466 | 36.30 | 43.92 | |
| Needle bearing holder B | ||||
| 055 | SC00000467 | 6.00 | 7.26 | |
| Ball bearing 625 | ||||
| 056 | SC07100030 | 11.00 | 13.31 | |
| Magnet | ||||
| 057 | SC00000020 | 6.00 | 7.26 | |
| O-Ring S4 DSC163 | ||||
| 058 | SC06505300 | 3.60 | 4.36 | |
| Valve DSC163 | ||||
| 059 | SC03501420 | 19.80 | 23.96 | |
| Hexagonal Screw 6X20 DSC163 | ||||
| 060 | SC00000097 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 061 | SC00000066 | |||
| Cylinder DSC163 | ||||
| 062 | SC03206510 | 809.60 | 979.62 | |
| Ram | ||||
| 062D10 | SC03500390 | 36.30 | 43.92 | |
| Ball bearing 625 | ||||
| 062D10 | SC07100030 | 11.00 | 13.31 | |
| O-ring P6 DSC163 | ||||
| 063 | SC06505010 | 3.60 | 4.36 | |
| Support Ring G55 DSC163 | ||||
| 064 | SC06503240 | 26.40 | 31.94 | |
| O-ring G55 DSC163 | ||||
| 065 | SC06505180 | 4.80 | 5.81 | |
| Allen Screw 4X6 DSC163 | ||||
| 066 | SC00000060 | 2.40 | 2.90 | |
| Spring for vent valve | ||||
| 067 | SC00000023 | 6.00 | 7.26 | |
| Stop Plate | ||||
| 068 | SC00000481 | 46.20 | 55.90 | |
| Valve Spring DSC163 | ||||
| 069 | SC00000032 | 6.00 | 7.26 | |
| Release plunger | ||||
| 070 | SC00000462 | 56.10 | 67.88 | |
| O-Ring P46 DSC163 | ||||
| 071 | SC06505280 | 4.80 | 5.81 | |
| Support Ring P46 DSC163 | ||||
| 072 | SC06503230 | 17.60 | 21.30 | |
| Key DSC121 | ||||
| 073 | SC03700080 | 8.40 | 10.16 | |
| Holding Pin | ||||
| 074 | SC00000070 | 1.20 | 1.45 | |
| Cutting axis DSC163 | ||||
| 075 | SC03113600 | 440.00 | 532.40 | |
| Allen screw m5x12 | ||||
| 076 | SC00000059 | 2.40 | 2.90 | |
| Washer 5 DSC163 | ||||
| 077 | SC00000067 | 1.20 | 1.45 | |
| Cutting Knife | ||||
| 078 | SC09002470 | 140.00 | 169.40 | |
| Pressure spring DSC163 | ||||
| 079 | SC04000320 | 39.60 | 47.92 | |
| O-Ring 26 DSC163 | ||||
| 080 | SC06505320 | 11.00 | 13.31 | |
| Support Ring P26 | ||||
| 081 | SC06503190 | 7.20 | 8.71 | |
| Oil bag DSC163 | ||||
| 082 | SC09004930 | 22.00 | 26.62 | |
| Bush DSC163 | ||||
| 083 | SC00000029 | 22.00 | 26.62 | |
| Cutting head housing DSC163 | ||||
| 084 | SC03104000 | 809.60 | 979.62 | |
| Hex Bolt M6x25mm | ||||
| 085 | 266087-4 | 1.00 | 1.21 | |
| Retaining sheet | ||||
| 086 | SC03503890 | 34.10 | 41.26 | |
| Spring T45470 | ||||
| 087 | SC00000469 | 3.60 | 4.36 | |
| Bolt DSC163 | ||||
| 088 | SC03500990 | 13.20 | 15.97 | |
| Hexagonal bolt M5x15mm DSC163 | ||||
| 089 | SC00000098 | 2.40 | 2.90 | |
| O-Ring 22 DSC163 | ||||
| 090 | SC06505310 | 3.60 | 4.36 | |
| Brush Holder DSC163 | ||||
| 091 | SC03501400 | 46.20 | 55.90 | |
| Spring Washer 8mm DSC163 | ||||
| 092 | SC00000065 | 1.20 | 1.45 | |
| Screw 5x60 | ||||
| 093 | SC00000034 | 9.60 | 11.62 | |
| Protective cap DSC163 | ||||
| 094 | SC03505780 | 26.40 | 31.94 | |
| Washer 5mm DSC163 | ||||
| 095 | SC07610030 | 1.20 | 1.45 | |
| Bolt Hb5x5 | ||||
| 096 | SC07512010 | 1.20 | 1.45 | |
| Motor Housing Set DSC163 | ||||
| 097 | 183C36-3 | 13.20 | 15.97 | |
| Rubber pen 6 | ||||
| 097C10 | 263005-3 | 1.00 | 1.21 | |
