Here you will find all available parts and drawings of the 'Makita DSC102'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

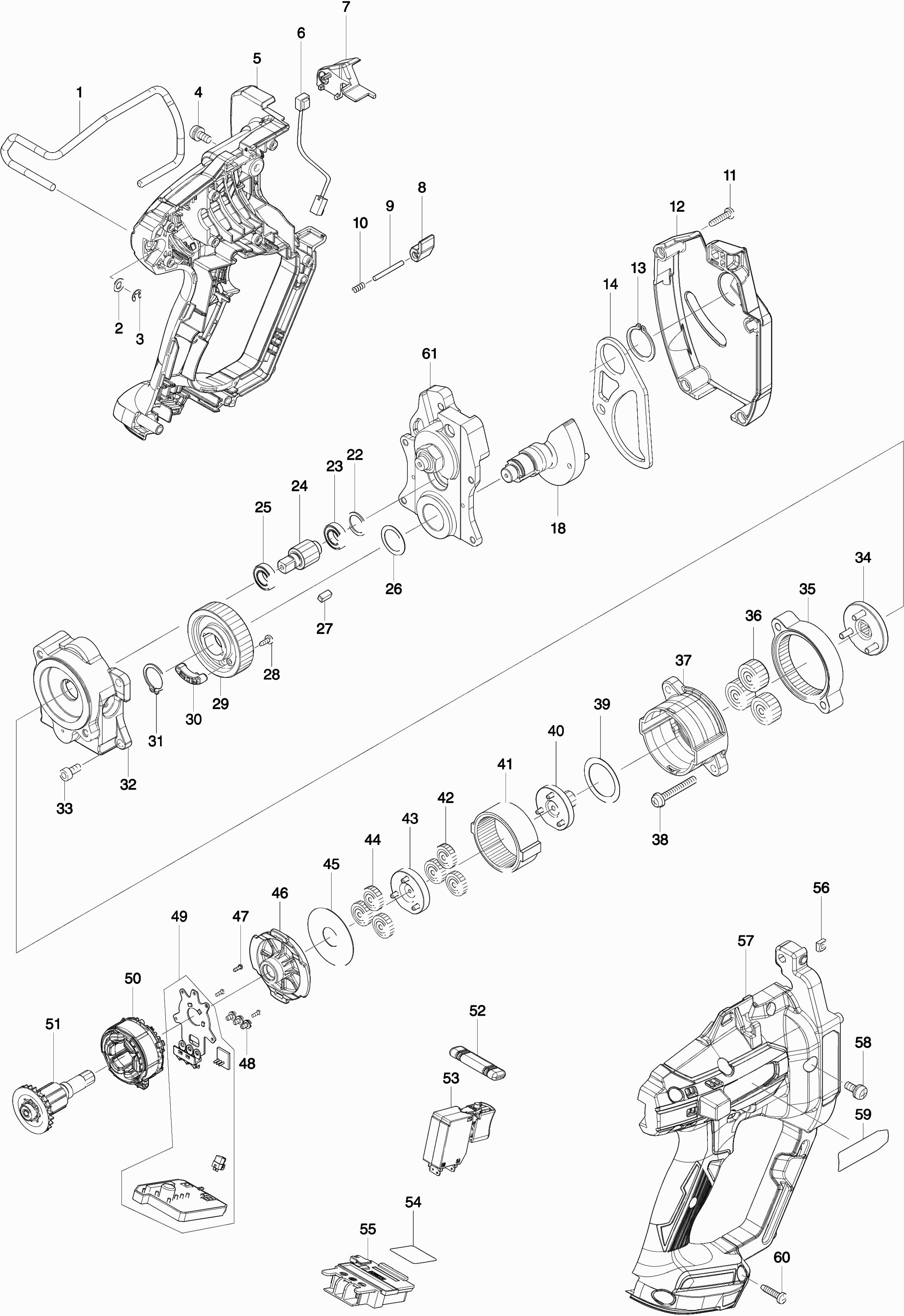

Technical drawing of model Makita DSC102
Spare parts list of model Makita DSC102
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Carry Hook | ||||
| 001 | 281019-0 | 6.00 | 7.26 | |
| Lock washer 5 | ||||
| 002 | 941102-2 | 1.00 | 1.21 | |
| Retaining Ring E-4 | ||||
| 003 | 961011-9 | 1.00 | 1.21 | |
| Screw 5x12 | ||||
| 004 | 911213-7 | 1.00 | 1.21 | |
| Machine housing SC102D | ||||
| 005 | 183J34-9 | 34.10 | 41.26 | |
| Rubber Pin 4 | ||||
| 005C10 | 263002-9 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| 005C20 | 263005-3 | 1.00 | 1.21 | |
| Indication label DSC102 | ||||
| 005C30 | 816U42-8 | 2.40 | 2.90 | |
| Warning Label DSC102 | ||||
| 005C40 | 816V02-6 | 2.40 | 2.90 | |
| LED Circuit SC102D | ||||
| 006 | 620821-0 | 6.00 | 7.26 | |
| LED holder SC102D | ||||
| 007 | 458373-9 | 2.40 | 2.90 | |
| Screw guide SC102D | ||||
| 008 | 458379-7 | 1.20 | 1.45 | |
| Pen 3 SC102D | ||||
| 009 | 256267-0 | 1.00 | 1.21 | |
| Compression Spring 3 | ||||
| 010 | 231403-9 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 011 | 265A48-7 | 1.00 | 1.21 | |
| Gearbox Cover Sc102D | ||||
| 012 | 140B24-7 | 8.40 | 10.16 | |
| Warning Label DSC102 | ||||
| 012C10 | 816U44-4 | 2.40 | 2.90 | |
| Lock Ring S-24 * | ||||
| 013 | 961104-2 | 1.00 | 1.21 | |
| Plate SC102D | ||||
| 014 | 347350-5 | 2.40 | 2.90 | |
| Complete cam disc SC102D | ||||
| 018 | 144986-9 | 78.10 | 94.50 | |
| Sluitring 14mm | ||||
| 022 | 267447-3 | 1.00 | 1.21 | |
| Ball bearing 6800LLU | ||||
| 023 | 211485-7 | 6.00 | 7.26 | |
| Gear 10C SC102D | ||||
| 024 | 226168-6 | 6.00 | 7.26 | |
| Ball bearing 6800LLU | ||||
| 025 | 211485-7 | 6.00 | 7.26 | |
| Washer 17 | ||||
| 026 | 253409-7 | 1.00 | 1.21 | |
| Feather Key 4 | ||||
| 027 | 254202-2 | 1.00 | 1.21 | |
| Self-tapping Screw Pt3X8 | ||||
| 028 | 265954-0 | 1.00 | 1.21 | |
| Gear 39 SC102D | ||||
| 029 | 226169-4 | 9.60 | 11.62 | |
| Magnetic holder SC102D | ||||
| 030 | 144990-8 | 4.80 | 5.81 | |
| Lock ring S-17 | ||||
| 031 | 961057-5 | 1.00 | 1.21 | |
| Gearbox cover SC102D | ||||
| 032 | 144992-4 | 22.00 | 26.62 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 033 | 922212-4 | 1.00 | 1.21 | |
| Complete gear carrier SC102D | ||||
| 034 | 144989-3 | 22.00 | 26.62 | |
| Internal gear 48 SC102D | ||||
| 035 | 226166-0 | 7.20 | 8.71 | |
| Gear 19 SC102D | ||||
| 036 | 226165-2 | 1.20 | 1.45 | |
| Gear housing SC102D | ||||
| 037 | 458374-7 | 4.80 | 5.81 | |
| Screw 5x36 | ||||
| 038 | 911258-5 | 1.00 | 1.21 | |
| Washer 26 | ||||
| 039 | 253792-2 | 1.00 | 1.21 | |
| Complete gear 9 SC102D | ||||
| 040 | 144988-5 | 8.40 | 10.16 | |
| Internal gear 53 SC102D | ||||
| 041 | 226164-4 | 3.60 | 4.36 | |
| Gear 21 Dsc102 | ||||
| 042 | 226163-6 | 1.00 | 1.21 | |
| Complete gear 10B SC102D | ||||
| 043 | 144987-7 | 8.40 | 10.16 | |
| Gear 21 Dsc102 | ||||
| 044 | 226163-6 | 1.00 | 1.21 | |
| Washer 15 | ||||
| 045 | 253410-2 | 1.00 | 1.21 | |
| Gearbox Cover Sc102D | ||||
| 046 | 458375-5 | 2.40 | 2.90 | |
| Parker Ck 2x6mm | ||||
| 047 | 266490-9 | 1.00 | 1.21 | |
| Phillips Head Screw M3X6 | ||||
| 048 | 652069-6 | 1.00 | 1.21 | |
| Controller SC102D | ||||
| 049 | 620820-2 | 69.30 | 83.85 | |
| Armature SC102D | ||||
| 050 | 629339-8 | 26.40 | 31.94 | |
| Armature SC102D | ||||
| 051 | 619512-8 | 41.80 | 50.58 | |
| Adjustment button F/R SC102D | ||||
| 052 | 458378-9 | 1.20 | 1.45 | |
| Switch SC102D | ||||
| 053 | 651367-5 | 26.40 | 31.94 | |
| Serial number label DSC102 | ||||
| 054 | 854H32-5 | 2.40 | 2.90 | |
| Connection unit | ||||
| 055 | 643874-2 | 3.60 | 4.36 | |
| Nut M6 4-K Btd123F * | ||||
| 056 | 252173-7 | 1.00 | 1.21 | |
| Machine housing SC102D | ||||
| 057 | 183J34-9 | 34.10 | 41.26 | |
| Rubber Pin 4 | ||||
| 057C10 | 263002-9 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| 057C20 | 263005-3 | 1.00 | 1.21 | |
| Indication label DSC102 | ||||
| 057C30 | 816U42-8 | 2.40 | 2.90 | |
| Warning Label DSC102 | ||||
| 057C40 | 816V02-6 | 2.40 | 2.90 | |
| Screw 5x12 | ||||
| 058 | 911213-7 | 1.00 | 1.21 | |
| Nameplate DSC102 | ||||
| 059 | 854H30-9 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 060 | 265A48-7 | 1.00 | 1.21 | |
| Grinding arm DSC102 | ||||
| 061 | 126984-5 | 375.10 | 453.87 | |
