Here you will find all available parts and drawings of the 'Makita DS4011'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

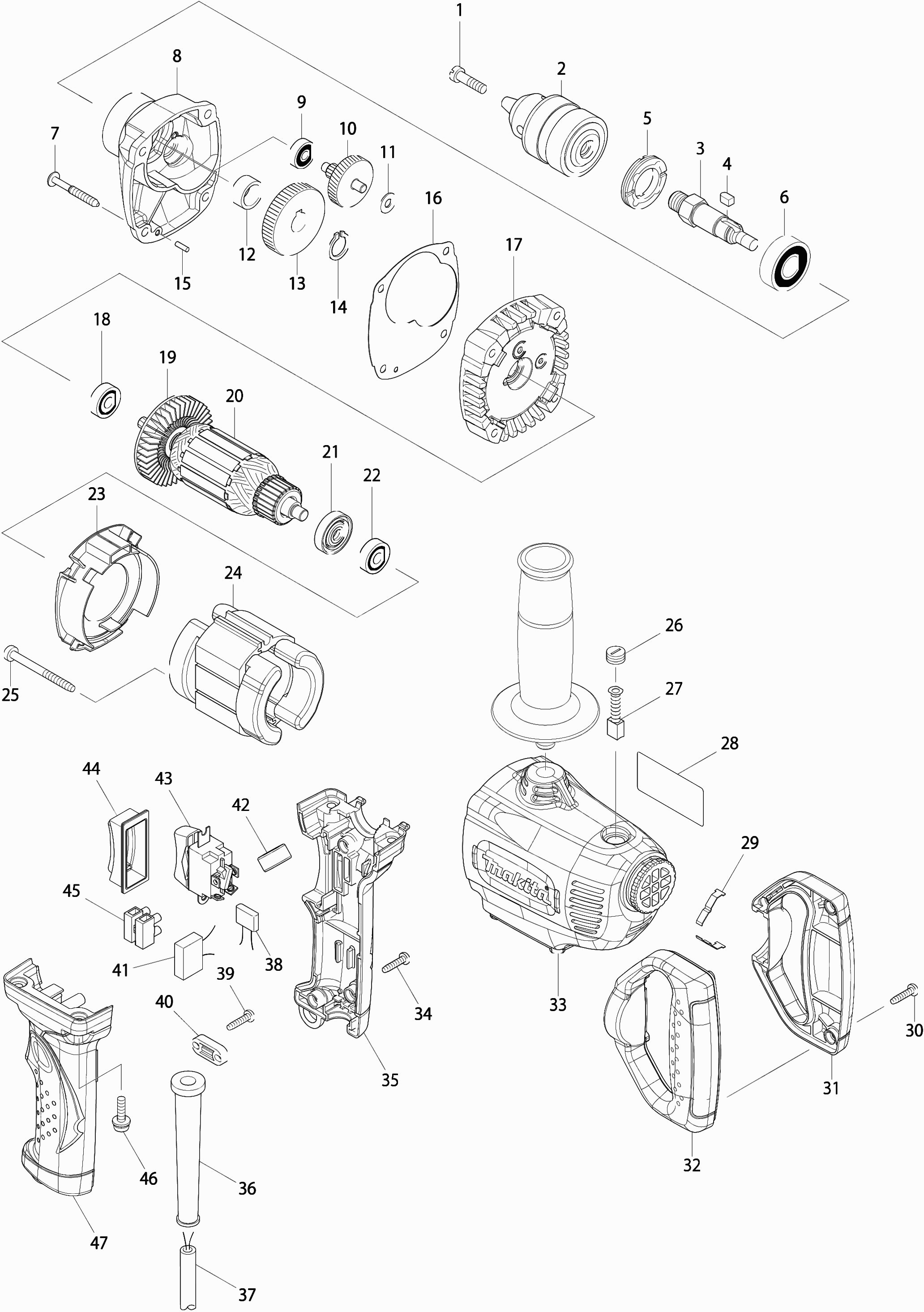

Technical drawing of model Makita DS4011
Spare parts list of model Makita DS4011
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ZIJHANDGREEP KUNSTSTOF M12 | ||||
| A01 | 152492-0 | 3.00 | 3.63 | |
| SIDE HANDLE | ||||
| A01-1 | 152892-4 | 6.00 | 7.26 | |
| BOORKOPSLEUTEL | ||||
| A02 | 763430-3 | 3.00 | 3.63 | |
| BOORKOPSLEUTEL | ||||
| C10 | 763430-3 | 3.00 | 3.63 | |
| Stator spring | ||||
| C10 | 654100-4 | 2.40 | 2.90 | |
| Brush Holder | ||||
| C10 | 643455-2 | 2.40 | 2.90 | |
| Carbon brush holder Mt191 A | ||||
| C11 | 643509-5 | 1.02 | 1.23 | |
| Plug | ||||
| C20 | 654555-3 | 1.00 | 1.21 | |
| Screw M6 | ||||
| 001 | 251441-5 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 002 | 193822-6 | |||
| Drill Spindle | ||||
| 003 | 325494-1 | 17.60 | 21.30 | |
| Inlegspie 5 | ||||
| 004 | 254211-1 | 1.20 | 1.45 | |
| Bearing Lock 22-36 | ||||
| 005 | 285807-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 006 | 211206-7 | |||
| No information available, not orderable | ||||
| 006-1 | 210306-0 | |||
| Self-tapping screw 5x40 | ||||
| 007 | 266211-9 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 008 | 140620-9 | 14.30 | 17.30 | |
| Ball bearing 626llb | ||||
| 009 | 211016-2 | 6.00 | 7.26 | |
| Gear 7-41 | ||||
| 010 | 226028-2 | 20.90 | 25.29 | |
| No information available, not orderable | ||||
| 010-1 | 227A81-7 | |||
| Plastic Washer 6 | ||||
| 011 | 261008-1 | 1.00 | 1.21 | |
| Washer 15 | ||||
| 012 | 257018-4 | 2.40 | 2.90 | |
| Gear 47 | ||||
| 013 | 221261-1 | 12.10 | 14.64 | |
| Lock ring S-14 | ||||
| 014 | 961054-1 | 1.00 | 1.21 | |
| Pen 3 | ||||
| 015 | 256180-2 | 1.00 | 1.21 | |
| Gasket | ||||
| 016 | 452066-0 | 2.40 | 2.90 | |
| Gear Cover | ||||
| 017 | 140619-4 | 24.20 | 29.28 | |
| No information available, not orderable | ||||
| 017-1 | 141R16-5 | |||
| No information available, not orderable | ||||
| 018 | 211031-6 | |||
| Fan 60 | ||||
| 019 | 241850-6 | 8.40 | 10.16 | |
| Armature 220-240v | ||||
| 020 | 513809-6 | 58.30 | 70.54 | |
| Insulating ring Kp0810 | ||||
| 021 | 681659-8 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 022 | 211031-6 | |||
| Intermediate Plate | ||||
| 023 | 452063-6 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 024 | 520075-8 | |||
| Self-tapping screw Pt 5x55 Hr5001C A | ||||
| 025 | 266095-5 | 1.20 | 1.45 | |
| Self-tapping Screw 5x55mm | ||||
| 025-1 | 266418-7 | 1.00 | 1.21 | |
| Brush holder cap | ||||
| 026 | 643550-8 | 1.20 | 1.45 | |
| Brush Set CB411 RT0702C | ||||
| 027 | 195010-1 | 4.80 | 5.81 | |
| Brush Set CB411 RT0702C | ||||
| 027-1 | 195010-1 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 028 | 868446-4 | |||
| Leaf Spring | ||||
| 029 | 232260-8 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 030 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 030-1 | 265A48-7 | 1.00 | 1.21 | |
| Rear Handle Set | ||||
| 031 | 188921-7 | 9.60 | 11.62 | |
| Rear Handle Set | ||||
| 032 | 188921-7 | 9.60 | 11.62 | |
| Motor Housing | ||||
| 033 | 140621-7 | 20.90 | 25.29 | |
| Tap screw 4x18 | ||||
| 034 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 034-1 | 265A48-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 035 | 188920-9 | |||
| Cable gland 10 | ||||
| 036 | 682566-8 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 037 | 665865-3 | |||
| Starting resistance | ||||
| 038 | 646755-9 | 2.40 | 2.90 | |
| Starting resistance | ||||
| 038-1 | 646755-9 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 039 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 039-1 | 265A48-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 040 | 687052-4 | |||
| No information available, not orderable | ||||
| 041 | 645200-1 | |||
| Line filter | ||||
| 042 | 688131-1 | 1.00 | 1.21 | |
| Line filter | ||||
| 042-1 | 688131-1 | 1.00 | 1.21 | |
| Switch Sw-07 | ||||
| 043 | 651564-3 | 26.40 | 31.94 | |
| Switch Sw-07 | ||||
| 043-1 | 651564-3 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| 044 | 421297-2 | |||
| Terminal block | ||||
| 045 | 654531-7 | 2.10 | 2.54 | |
| Screw Vk 20mm | ||||
| 046 | 911233-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 047 | 188920-9 | |||
