Here you will find all available parts and drawings of the 'Makita DRC300'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

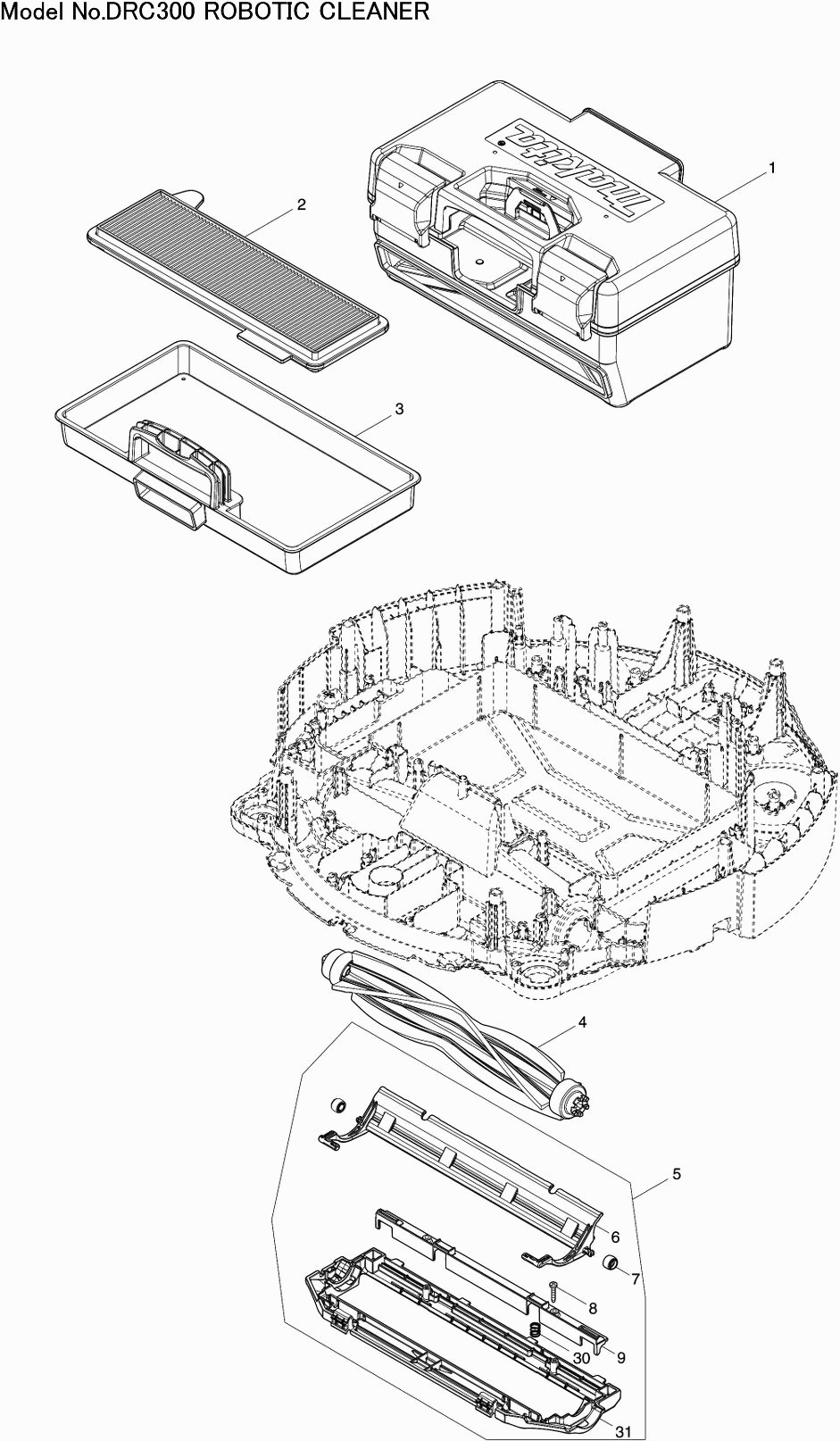

Technical drawing of model Makita DRC300
Spare parts list of model Makita DRC300
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Dust box assembly DRC300 | ||||
| 001 | 141A46-4 | 30.80 | 37.27 | |
| Seal Ring DRC300 | ||||
| 001C10 | 422690-3 | 1.20 | 1.45 | |
| HEPA FIJNSTOFFILTER ROBOCLEANER | ||||
| 002 | 191P31-7 | 8.00 | 9.68 | |
| Upper Tank DRC300 | ||||
| 003 | 413500-5 | 8.40 | 10.16 | |
| BORSTEL STANDAARD | ||||
| 004 | 191P22-8 | 23.00 | 27.83 | |
| HOUDER DRC300 | ||||
| 004C10 | 413581-9 | 2.40 | 2.90 | |
| Mounting set base plate DRC300 | ||||
| 005 | 191P24-4 | 28.60 | 34.61 | |
| Brush C DRC300 | ||||
| 006 | 136530-6 | 10.80 | 13.07 | |
| Wheel 11 DRC300 | ||||
| 007 | 413585-1 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 008 | 266130-9 | 1.00 | 1.21 | |
| Base Cap DRC300 | ||||
| 009 | 413586-9 | 4.80 | 5.81 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 010 | 265B67-9 | 1.00 | 1.21 | |
| Fall sensor repair set DRC300 | ||||
| 011 | 1910L6-4 | 30.80 | 37.27 | |
| Cover cap right DRC300 | ||||
| 013 | 141B82-6 | 8.40 | 10.16 | |
| Rubber pen 6 | ||||
| 013C10 | 263005-3 | 1.00 | 1.21 | |
| LABEL SERIENR. DRC300 | ||||
| 014 | 811U06-7 | 2.40 | 2.90 | |
| Connection unit Bcl182D(3 Cont) A | ||||
| 015 | 643523-1 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 015-1 | 654950-7 | |||
| Connection base DRC300 | ||||
| 017 | 413478-2 | 6.00 | 7.26 | |
| Ferrite core DRC300 | ||||
| 018 | 688234-1 | 1.20 | 1.45 | |
| Gasket A DRC300 | ||||
| 019 | 413554-2 | 3.60 | 4.36 | |
| Cover cap left DRC300 | ||||
| 020 | 141B81-8 | 8.40 | 10.16 | |
| Filter sensor holder DRC300 | ||||
| 021 | 413555-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 022-1 | 654950-7 | |||
| Photo sensor DRC300 | ||||
| 023 | 1910J8-6 | 8.40 | 10.16 | |
| Bottom housing complete DRC300 | ||||
| 025 | 141J98-9 | 62.70 | 75.87 | |
| BUFFER DRC300 | ||||
| 025C10 | 422530-5 | 1.00 | 1.21 | |
| Tapping screw Pf 4x55 | ||||
| 026 | 266147-2 | 1.20 | 1.45 | |
| Compression spring 7 DRC300 | ||||
| 030 | 232690-3 | 2.40 | 2.90 | |
| Base Plate DRC300 | ||||
| 031 | 413583-5 | 8.40 | 10.16 | |
| Washer 12 | ||||
| 034 | 253084-9 | 1.00 | 1.21 | |
| Compression Spring 18 DRC300 | ||||
| 035 | 232685-6 | 1.20 | 1.45 | |
| Front roller 18 DRC300 | ||||
| 036 | 413552-6 | 8.40 | 10.16 | |
| Pin 4mm DRC300 | ||||
| 037 | 256989-2 | 2.40 | 2.90 | |
| Front side DRC300 | ||||
| 038 | 413553-4 | 4.80 | 5.81 | |
| Screw 4X18 | ||||
| 039 | 251599-0 | 1.20 | 1.45 | |
| Retaining Ring E-5 | ||||
| 040 | 961018-5 | 1.00 | 1.21 | |
| Washer 22 DRC300 | ||||
| 041 | 261167-1 | 2.40 | 2.90 | |
| Rear roller 28 DRC300 | ||||
| 042 | 413551-8 | 8.40 | 10.16 | |
| Rear swivel wheel DRC300 | ||||
| 043 | 413550-0 | 6.00 | 7.26 | |
| Collar Pin 7 DRC300 | ||||
| 044 | 256988-4 | 4.80 | 5.81 | |
| Screw 4X18 | ||||
| 045 | 251599-0 | 1.20 | 1.45 | |
| Tapping screw 3x14mm HR005G | ||||
| 046 | 263046-9 | 1.00 | 1.21 | |
| RF-module repair set DRC300 | ||||
| 048 | 1910J9-4 | 26.40 | 31.94 | |
| Rf holder DRC300 | ||||
| 049 | 413561-5 | 2.40 | 2.90 | |
| Control circuit board DRC300 | ||||
| 050 | 1910K0-9 | 474.10 | 573.66 | |
| Bumper arm DRC300 | ||||
| 051 | 413560-7 | 2.40 | 2.90 | |
| Compression Spring 8 DRC300 | ||||
| 052 | 232700-6 | 1.00 | 1.21 | |
| Leaf spring DRC300 | ||||
| 054 | 232687-2 | 8.40 | 10.16 | |
| Controller Holder DRC300 | ||||
| 055 | 413418-0 | 22.00 | 26.62 | |
| Ferrite core DRC300 | ||||
| 056 | 688234-1 | 1.20 | 1.45 | |
| Space sensor DRC300 | ||||
| 057 | 1910K1-7 | 12.10 | 14.64 | |
| Compression Spring 11 DRC300 | ||||
| 060 | 232686-4 | 2.40 | 2.90 | |
| Wheel R repair set DRC300 | ||||
| 062 | 1910L3-0 | 140.80 | 170.37 | |
| Connection unit G DRC300 | ||||
| 062C10 | 638A06-0 | 8.40 | 10.16 | |
| Wheel L repair set DRC300 | ||||
| 065 | 1910L2-2 | 140.80 | 170.37 | |
| Thermal circuit DRC300 | ||||
| 067 | 632S56-5 | 8.40 | 10.16 | |
| Main brush motor A DRC300 | ||||
| 069 | 1910L1-4 | 96.80 | 117.13 | |
| BUS DRC300 | ||||
| 069C10 | 413536-4 | 2.40 | 2.90 | |
| Thermal circuit DRC300 | ||||
| 070 | 632S55-7 | 7.20 | 8.71 | |
| Thermal circuit DRC300 | ||||
| 072 | 632S55-7 | 7.20 | 8.71 | |
| Side brush R DRC300 | ||||
| 073 | 1910L5-6 | 58.30 | 70.54 | |
| Side brush L DRC300 | ||||
| 075 | 1910L4-8 | 58.30 | 70.54 | |
| Air duct cover DRC300 | ||||
| 077 | 413559-2 | 10.80 | 13.07 | |
| Exhaust Filter DRC300 | ||||
| 079 | 422698-7 | 1.20 | 1.45 | |
| Air duct housing DRC300 | ||||
| 080 | 413557-6 | 13.20 | 15.97 | |
| Sponge Sheet 24-110 DRC300 | ||||
| 081 | 422697-9 | 1.00 | 1.21 | |
| Seal B DRC300 | ||||
| 082 | 413558-4 | 4.80 | 5.81 | |
| Fan Cover DRC300 | ||||
| 083 | 413535-6 | 2.40 | 2.90 | |
| Rubber Ring DRC300 | ||||
| 084 | 422696-1 | 4.80 | 5.81 | |
| Fan motor DRC300 | ||||
| 085 | 1910L0-6 | 62.70 | 75.87 | |
| USS subcircuit DRC300 | ||||
| 086 | 1910K3-3 | 62.70 | 75.87 | |
| USS cover R DRC300 | ||||
| 087 | 413482-1 | 3.60 | 4.36 | |
| Bumper cap DRC300 | ||||
| 090 | 413572-0 | 6.00 | 7.26 | |
| USS cover C DRC300 | ||||
| 092 | 413480-5 | 4.80 | 5.81 | |
| Cover cap DRC300 | ||||
| 095 | 413481-3 | 3.60 | 4.36 | |
| Main circuit USS DRC300 | ||||
| 096 | 1910K2-5 | 62.70 | 75.87 | |
| Bumper cover r DRC300 | ||||
| 100 | 413579-6 | 3.60 | 4.36 | |
| Bumper DRC300 | ||||
| 102 | 413427-9 | 47.30 | 57.23 | |
| Bumper cover c DRC300 | ||||
| 103 | 413575-4 | 6.00 | 7.26 | |
| Bumper cover l DRC300 | ||||
| 104 | 413578-8 | 3.60 | 4.36 | |
| Rubber cap DRC300 | ||||
| 110 | 422820-6 | 2.40 | 2.90 | |
| Mounting Upper Lid DRC300 | ||||
| 111 | 127838-9 | 66.00 | 79.86 | |
| Switch button DRC300 | ||||
| 112 | 413570-4 | 3.60 | 4.36 | |
| Torsion Spring 14 DRC300 | ||||
| 113 | 232689-8 | 1.20 | 1.45 | |
| Upper Cover Case DRC300 | ||||
| 114 | 312B42-7 | 6.00 | 7.26 | |
| UI circuit reo.set DRC300 | ||||
| 115 | 1910K4-1 | 214.50 | 259.54 | |
| Main circuit USS DRC300 | ||||
| 116 | 1910K7-5 | 13.20 | 15.97 | |
| Top cover cpl DRC300 | ||||
| 117 | 141B97-3 | 17.60 | 21.30 | |
| LABEL INDICATIE DRC300 | ||||
| 117C10 | 8032K4-8 | 7.20 | 8.71 | |
| USS cover DRC300 | ||||
| 119 | 413543-7 | 3.60 | 4.36 | |
| Inner Front Cover DRC300 | ||||
| 121 | 413537-2 | 4.80 | 5.81 | |
| Buzzer repair set DRC300 | ||||
| 124 | 1910K9-1 | 12.10 | 14.64 | |
| NAAMPLAAT DRC300 | ||||
| 125 | 811U01-7 | 1.20 | 1.45 | |
| Upper house cpl DRC300 | ||||
| 126 | 141B86-8 | 66.00 | 79.86 | |
| LABEL WAARSCHUWING DRC300 | ||||
| 126C20 | 8032J5-9 | 2.40 | 2.90 | |
| LABEL WAARSCHUWING DRC300 | ||||
| 126C30 | 8032J6-7 | 2.40 | 2.90 | |
| Button DRC300 | ||||
| 127 | 413568-1 | 3.60 | 4.36 | |
| Protector DRC300 | ||||
| 128 | 422701-4 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 129 | 231297-2 | |||
| Filter knob DRC300 | ||||
| 130 | 413540-3 | 2.40 | 2.90 | |
| Pressure Spring 6 DRC300 | ||||
| 131 | 232688-0 | 1.00 | 1.21 | |
| Lidar cover cpl DRC300 | ||||
| 132 | 141B90-7 | 10.80 | 13.07 | |
| LABEL INDICATIE DRC300 | ||||
| 132C10 | 8032J8-3 | 3.60 | 4.36 | |
| Spring holder DRC300 | ||||
| 133 | 413541-1 | 2.40 | 2.90 | |
| Lidar Module DRC300 | ||||
| 135 | 620B66-2 | 705.10 | 853.17 | |
| No information available, not orderable | ||||
| 135-1 | 620U06-4 | |||
| Lidar holder DRC300 | ||||
| 136 | 413567-3 | 4.80 | 5.81 | |
| Led Lens R DRC300 | ||||
| 137 | 413547-9 | 4.80 | 5.81 | |
| Packing Ring S DRC300 | ||||
| 139 | 422703-0 | 1.20 | 1.45 | |
| Met.Screw M3x16 DRC300 | ||||
| 141 | 911029-0 | 1.00 | 1.21 | |
| Led Reflector R DRC300 | ||||
| 142 | 413548-7 | 3.60 | 4.36 | |
| Ledcircuit repair set DRC300 | ||||
| 143 | 1910K5-9 | 10.80 | 13.07 | |
| LED Lens L DRC300 | ||||
| 144 | 413544-5 | 4.80 | 5.81 | |
| Led Cover R DRC300 | ||||
| 145 | 413549-5 | 4.80 | 5.81 | |
| Led Reflector L DRC300 | ||||
| 147 | 413545-3 | 3.60 | 4.36 | |
| Led Cover L DRC300 | ||||
| 148 | 413546-1 | 4.80 | 5.81 | |
| Handle DRC300 | ||||
| 151 | 413562-3 | 11.00 | 13.31 | |
| Handle cover DRC300 | ||||
| 154 | 413422-9 | 17.60 | 21.30 | |
| Vision camera lens DRC300 | ||||
| 155 | 413542-9 | 2.40 | 2.90 | |
| Gasket Ring T DRC300 | ||||
| 156 | 422700-6 | 1.20 | 1.45 | |
| COMPLETE CAMERA REPAIR SET DRC300 A | ||||
| 157A | 1911A5-5 | 451.00 | 545.71 | |
| No information available, not orderable | ||||
| 157B | 620K66-6 | |||
| Handle cap DRC300 | ||||
| 160 | 413565-7 | 10.80 | 13.07 | |
| Clamp | ||||
| 162 | 421468-1 | 1.00 | 1.21 | |
| Ground wire 70 DRC300 | ||||
| 163 | 649152-8 | 2.40 | 2.90 | |
