Here you will find all available parts and drawings of the 'Makita DRC200'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

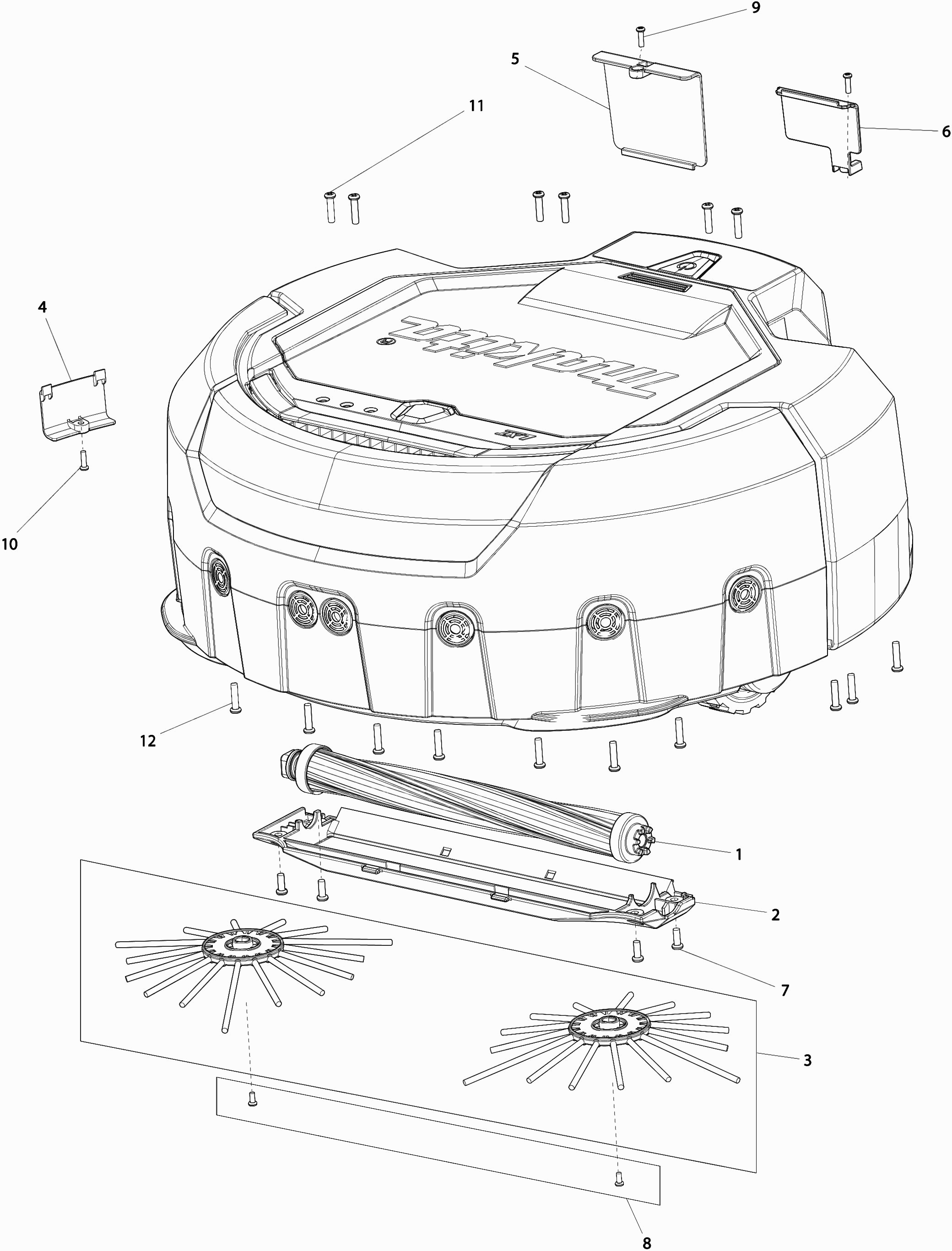

Technical drawing of model Makita DRC200

Spare parts list of model Makita DRC200

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No information available, not orderable
001 SH00000313
No information available, not orderable
002 SH00000064
Brush set MXP 1000
003 SH00000065 30.00 36.30
Covering hood
004 SH00000066 8.27 10.01
Cover cap R
005 SH00000067 5.70 6.90
Cover Cap L
006 SH00000068 5.70 6.90
Screw M4x8
007 SH00000069 1.20 1.45
Screw Sb (2 pieces)
008 SH00000070 3.11 3.76
Screw M3x10
009 SH00000071 2.71 3.28
Screw M3x10
010 SH00000071 2.71 3.28
Screw M4x16
011 SH00000221 1.99 2.41
Screw M4x16
012 SH00000221 1.99 2.41
Base Plate
013 SH00000072 68.13 82.44
Operator Panel
014 SH00000291 349.27 422.62
Connection unit
015 SH00000241 48.40 58.56
Connection unit
016 SH00000075 5.70 6.90
Controller Holder
017 SH00000076 27.90 33.76
Operator Panel
018 SH00000078 33.36 40.37
Battery Pwd Drc200
019 SH00000079 41.84 50.63
Insulation plate
020 SH00000080 3.96 4.79
Contact retainer
021 SH00000081 13.83 16.73
Contact retainer
022 SH00000082 10.52 12.73
Rubber pin
023 SH00000083 4.45 5.38
Rubber pin
024 SH00000083 4.45 5.38
Front Axle
025 SH00000084 12.19 14.75
Front axle complete
026 SH00000085 9.26 11.20
Ir sensor
027 SH00000086 63.68 77.05
Self-tapping Screw DRC200
027C10 SH00000307 3.54 4.28
IR Holder CK DRC200
027C20 SH00000308 13.82 16.72
Ir sensor
028 SH00000086 63.68 77.05
Self-tapping Screw DRC200
028C10 SH00000307 3.54 4.28
IR Holder CK DRC200
028C20 SH00000308 13.82 16.72
Ir sensor
029 SH00000304 68.53 82.92
Self-tapping Screw DRC200
029C10 SH00000307 3.54 4.28
IR Holder SK DRC200
029C20 SH00000309 13.82 16.72
Ir sensor
030 SH00000304 68.53 82.92
Self-tapping Screw DRC200
030C10 SH00000307 3.54 4.28
IR Holder SK DRC200
030C20 SH00000309 13.82 16.72
Bl Sensor Complete Drc200 A
031 SH00000280 22.99 27.82
Ir Sensor C Complete Drc200 A
032 SH00000303 68.53 82.92
Ir Sensor C Complete Drc200 A
033 SH00000303 68.53 82.92
Ir Sensor C Complete Drc200 A
035 SH00000303 68.53 82.92
Ir Sensor C Complete Drc200 A
036 SH00000303 68.53 82.92
Ir Sensor C Complete Drc200 A
037 SH00000303 68.53 82.92
Weight plate
038 SH00000089 12.22 14.79
Left bumper rubber
039 SH00000090 7.21 8.72
Right bumper rubber
040 SH00000091 7.21 8.72
Shock rubber spring
041 SH00000092 3.96 4.79
Shock rubber spring
042 SH00000092 3.96 4.79
steering unit L
043 SH00000093 45.48 55.03
steering unit R
044 SH00000094 45.48 55.03
No information available, not orderable
045 SH00000095
Left wheel
046 SH00000096 193.44 234.06
Wheel Right Complete Drc200 A.
047 SH00000288 184.34 223.05
Wheel spring
048 SH00000098 3.96 4.79
Wheel spring
049 SH00000098 3.96 4.79
Air Mover
050 SH00000099 139.47 168.76
bumper cable
051 SH00000101 5.06 6.12
bumper cable
052 SH00000101 5.06 6.12
Fan
053 SH00000223 33.36 40.37
Fan covering plate
054 SH00000224 1.67 2.02
Battery cable left
055 SH00000104 7.22 8.74
Battery cable right
056 SH00000105 7.22 8.74
Battery cable Ps
057 SH00000106 7.22 8.74
Battery signal cable
058 SH00000107 3.96 4.79
Battery earth cable
059 SH00000108 5.06 6.12
Axis Cable
060 SH00000109 5.06 6.12
Sensor cable L (safety)
061 SH00000242 7.22 8.74
Sensor cable R (safety)
062 SH00000243 3.54 4.28
Screw M3x8
063 SH00000110 1.18 1.43
Screw M3x8
064 SH00000110 1.18 1.43
Screw M3x8
065 SH00000110 1.18 1.43
Screw M4x10
066 SH00000111 1.20 1.45
Screw M4x10
067 SH00000111 1.20 1.45
Screw M4x10
068 SH00000111 1.20 1.45
Screw M4x10
069 SH00000111 1.20 1.45
Screw M4x10
070 SH00000111 1.20 1.45
Screw M4x10
071 SH00000111 1.20 1.45
Screw M4x10
072 SH00000111 1.20 1.45
Screw M4x10
073 SH00000111 1.20 1.45
Screw M4x10
074 SH00000111 1.20 1.45
Screw M4x10
075 SH00000111 1.20 1.45
Screw M4x10
076 SH00000111 1.20 1.45
Screw M4x10
077 SH00000111 1.20 1.45
Screw M4x10
078 SH00000111 1.20 1.45
Screw M4x10
079 SH00000111 1.20 1.45
Screw M4x10
080 SH00000111 1.20 1.45
Screw M4x10
081 SH00000111 1.20 1.45
Screw M4x10
082 SH00000111 1.20 1.45
Screw M4x10
083 SH00000111 1.20 1.45
Screw 4.5x13xt1
084 SH00000112 2.36 2.86
Screw M5X10
085 SH00000113 2.71 3.28
Connection unit Bcl182D(3 Cont) A
086 643523-1 5.06 6.12
Connection unit Bcl182D(3 Cont) A
087 643523-1 5.06 6.12
Rivet
088 SH00000226 4.45 5.38
Sensor lens protection plate
089 SH00000236 2.71 3.28
Sensor lens protection plate
090 SH00000236 2.71 3.28
Sensor lens protection plate
091 SH00000236 2.71 3.28
Sensor lens protection plate
092 SH00000236 2.71 3.28
Sensor lens protection plate
093 SH00000236 2.71 3.28
Sensor lens protection plate
094 SH00000236 2.71 3.28
Ferrite core
095 SH00000244 8.27 10.01
Motor compl.
101 SH00000114 59.31 71.77
Motor Holder L
102 SH00000115 5.70 6.90
Motor cover
103 SH00000116 5.70 6.90
Motor Ring
104 SH00000117 8.21 9.93
Motor Gear Wheel 4
105 SH00000118 10.52 12.73
Motor Gear 3
106 SH00000119 6.41 7.76
Motor Gear 2
107 SH00000120 6.41 7.76
Shaft 1
108 SH00000121 3.96 4.79
Gear Shaft 1
109 SH00000122 5.06 6.12
Screw M2.6x4
110 SH00000123 0.98 1.19
Side brush cable
111 SH00000124 7.22 8.74
Screw M3x10
112 SH00000071 2.71 3.28
Motor cover cap
113 SH00000227 2.36 2.86
Motor compl.
114 SH00000114 59.31 71.77
Motor holder R
115 SH00000125 5.70 6.90
Motor cover
116 SH00000116 5.70 6.90
Motor Ring
117 SH00000117 8.21 9.93
Motor Gear 2
118 SH00000120 6.41 7.76
Motor Gear 3
119 SH00000119 6.41 7.76
Motor Gear Wheel 4
120 SH00000118 10.52 12.73
Shaft 1
121 SH00000121 3.96 4.79
Gear Shaft 1
122 SH00000122 5.06 6.12
Screw M2.6x4
123 SH00000123 0.98 1.19
Side brush cable
124 SH00000124 7.22 8.74
Screw M3x10
125 SH00000071 2.71 3.28
Motor cover cap
126 SH00000227 2.36 2.86
Motor D complete
127 SH00000126 146.74 177.56
Drive unit cover
128 SH00000127 12.19 14.75
Drive unit gear 2
129 SH00000129 8.27 10.01
Drive shaft
130 SH00000130 12.19 14.75
Drive unit gear wheel 3
131 SH00000131 10.52 12.73
Drive unit holder
132 SH00000132 10.50 12.70
Ball bearing
133 SH00000133 6.41 7.76
Ball bearing
134 SH00000133 6.41 7.76
Rivet
135 SH00000134 2.02 2.44
Rivet
136 SH00000134 2.02 2.44
Spring retaining ring
137 SH00000228 1.20 1.45
V-belt
138 SH00000136 6.38 7.72
Drive unit cable
139 SH00000137 9.26 11.20
Screw M3x10
140 SH00000071 2.71 3.28
Wheel unit L
141 SH00000139 169.78 205.43
Wheel Axle Drc200
142 SH00000152 7.22 8.74
Screw M3x10
143 SH00000071 2.71 3.28
Screw M3x10
144 SH00000229 1.67 2.02
Motor cover cap
145 SH00000227 2.36 2.86
Wheel L
146 SH00000150 9.24 11.18
Wheel gearbox casing L
147 SH00000140 5.70 6.90
Wheel gearbox casing cover
148 SH00000141 5.70 6.90
Mw motor
149 SH00000142 92.17 111.53
Ring
150 SH00000143 13.83 16.73
Wheel gear
151 SH00000144 10.52 12.73
Wheel gear
152 SH00000145 10.52 12.73
Wheel gear
153 SH00000146 10.52 12.73
Wheel gear
154 SH00000147 10.52 12.73
Wheel gear housing axle 1
155 SH00000148 5.06 6.12
Wheel L unit cover
156 SH00000151 11.84 14.33
Wheel cable
157 SH00000153 12.19 14.75
Screw M2.6x4
158 SH00000123 0.98 1.19
Right wheel
160 SH00000154 169.36 204.93
Wheel Axle Drc200
161 SH00000152 7.22 8.74
Screw M3x10
162 SH00000071 2.71 3.28
Screw M3x10
163 SH00000229 1.67 2.02
Motor cover cap
164 SH00000227 2.36 2.86
Wheel R
165 SH00000157 10.52 12.73
Wheel gear housing R
166 SH00000155 5.70 6.90
Wheel gear housing cover R
167 SH00000156 5.09 6.16
Mw motor
168 SH00000142 92.17 111.53
Ring
169 SH00000143 13.83 16.73
Wheel gear
170 SH00000144 10.52 12.73
Wheel gear
171 SH00000145 10.52 12.73
Wheel gear
172 SH00000146 10.52 12.73
Wheel gear
173 SH00000147 10.52 12.73
Wheel gear housing axle 1
174 SH00000148 5.06 6.12
Wheel R unit cover
175 SH00000158 11.84 14.33
Wheel cable
176 SH00000153 12.19 14.75
Screw M2.6x4
177 SH00000123 0.98 1.19
Front air guide
178 SH00000159 10.52 12.73
Rear air guide
179 SH00000160 8.27 10.01
Engine for fan
180 SH00000161 112.06 135.59
Fan Protection
181 SH00000162 9.26 11.20
photo sensor
182 SH00000077 5.70 6.90
Air guide seal
183 SH00000163 5.70 6.90
Covering hood
184 SH00000164 3.54 4.28
Fan engine cable
185 SH00000165 9.26 11.20
Screw M4x10
186 SH00000111 1.20 1.45
Swivel wheel frame
187 SH00000166 9.26 11.20
Swivel wheel axle
188 SH00000167 12.22 14.79
Spring retaining ring
189 SH00000135 6.38 7.72
Guide roll
190 SH00000168 5.71 6.91
Bumper (a)
191 SH00000169 27.90 33.76
Impact edge cap
192 SH00000170 11.84 14.33
Sensor holder
193 SH00000171 117.63 142.33
Sensor holder
194 SH00000172 45.48 55.03
Sensor holder
195 SH00000173 38.75 46.89
Sensor holder
196 SH00000174 38.75 46.89
Sensor holder
197 SH00000175 45.48 55.03
Sensor Holder R2 Cmpl Drc200 A
198 SH00000300 30.70 37.15
Sensor holder
199 SH00000177 38.75 46.89
Sensor cable
200 SH00000245 10.52 12.73
Sensor cable
201 SH00000179 8.21 9.93
Sensor cable
202 SH00000179 8.21 9.93
Sensor cable
203 SH00000180 4.45 5.38
Sensor cable
204 SH00000180 4.45 5.38
Sensor cable
205 SH00000181 4.44 5.37
Sensor cable
206 SH00000181 4.44 5.37
Ground sensor cable
207 SH00000182 5.06 6.12
Rivet
208 SH00000183 3.11 3.76
Screw M4x10
209 SH00000111 1.20 1.45
Screw M3X6
210 SH00000184 1.67 2.02
Screw M3X6
211 SH00000184 1.67 2.02
Screw M3X6
212 SH00000184 1.67 2.02
Screw M3X6
213 SH00000184 1.67 2.02
Screw M3X6
214 SH00000184 1.67 2.02
Screw M3X6
215 SH00000184 1.67 2.02
Screw M3X6
216 SH00000184 1.67 2.02
Screw M3X6
217 SH00000184 1.67 2.02
Upper house
218 SH00000185 43.75 52.94
Lid K
219 SH00000247 37.75 45.68
Handle
220 SH00000187 13.83 16.73
Handle Cover
221 SH00000188 17.40 21.05
Pushing Button
222 SH00000189 7.21 8.72
No information available, not orderable
223 SH00000190
Printed circuit board holder
224 SH00000191 5.70 6.90
LED lens
225 SH00000192 5.09 6.16
LED lens gasket
226 SH00000193 3.96 4.79
LED reflector
227 SH00000194 8.27 10.01
LED circuit board
228 SH00000195 33.35 40.35
Printed Circuit Board
229 SH00000196 13.82 16.72
filter switch
230 SH00000197 5.70 6.90
filter switch spring
231 SH00000198 3.96 4.79
Filter Switch Holder A
232 SH00000271 4.38 5.30
Sealing ring air guide
233 SH00000200 10.52 12.73
Suction nozzle sealing ring
234 SH00000201 8.27 10.01
Suction nozzle gasket
235 SH00000202 5.70 6.90
Button cover
236 SH00000248 9.26 11.20
Led lens S
237 SH00000204 6.41 7.76
Exhaust Filter
238 SH00000205 5.70 6.90
Locking closure
239 SH00000206 11.84 14.33
Circuit board cable
240 SH00000249 9.26 11.20
LED circuit board cable
241 SH00000208 12.19 14.75
Screw M3x8
242 SH00000110 1.18 1.43
Screw M3x8
243 SH00000110 1.18 1.43
Screw M3x8
244 SH00000110 1.18 1.43
Screw M3X6
245 SH00000184 1.67 2.02
Screw M3x10
246 SH00000071 2.71 3.28
Screw M3x10
247 SH00000071 2.71 3.28
Screw M3x10
248 SH00000071 2.71 3.28
Screw M4x10
249 SH00000111 1.20 1.45
Dust box
250 SH00000209 23.05 27.89
Dust Cap
251 SH00000210 19.29 23.34
Dust cap sealing ring
252 SH00000211 11.84 14.33
Dust box
253 SH00000212 14.48 17.52
Dust filter
254 SH00000213 51.00 61.71
Dust box top cover
255 SH00000214 17.40 21.05
Slide Button
256 SH00000215 7.21 8.72
Pivot Pin
257 SH00000216 12.19 14.75
Label, Waarschuwings-
258 SH00000252 3.54 4.28
Label, robopro-
259 SH00000253 3.54 4.28
Ferrite core
260 SH00000244 8.27 10.01
Ferrite core
261 SH00000244 8.27 10.01
Afstandbediening DRC200
300 SH00000219 87.00 105.27
Sensortape 15 mtr DRC200
301 SH00000231 35.00 42.35
Sensor Protection Plate
302 SH00000281 2.02 2.44
Tap screw 4x16
304 SH00000407 2.83 3.42

There are 0 items in your shopping basket.
