Here you will find all available parts and drawings of the 'Makita DPV300'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

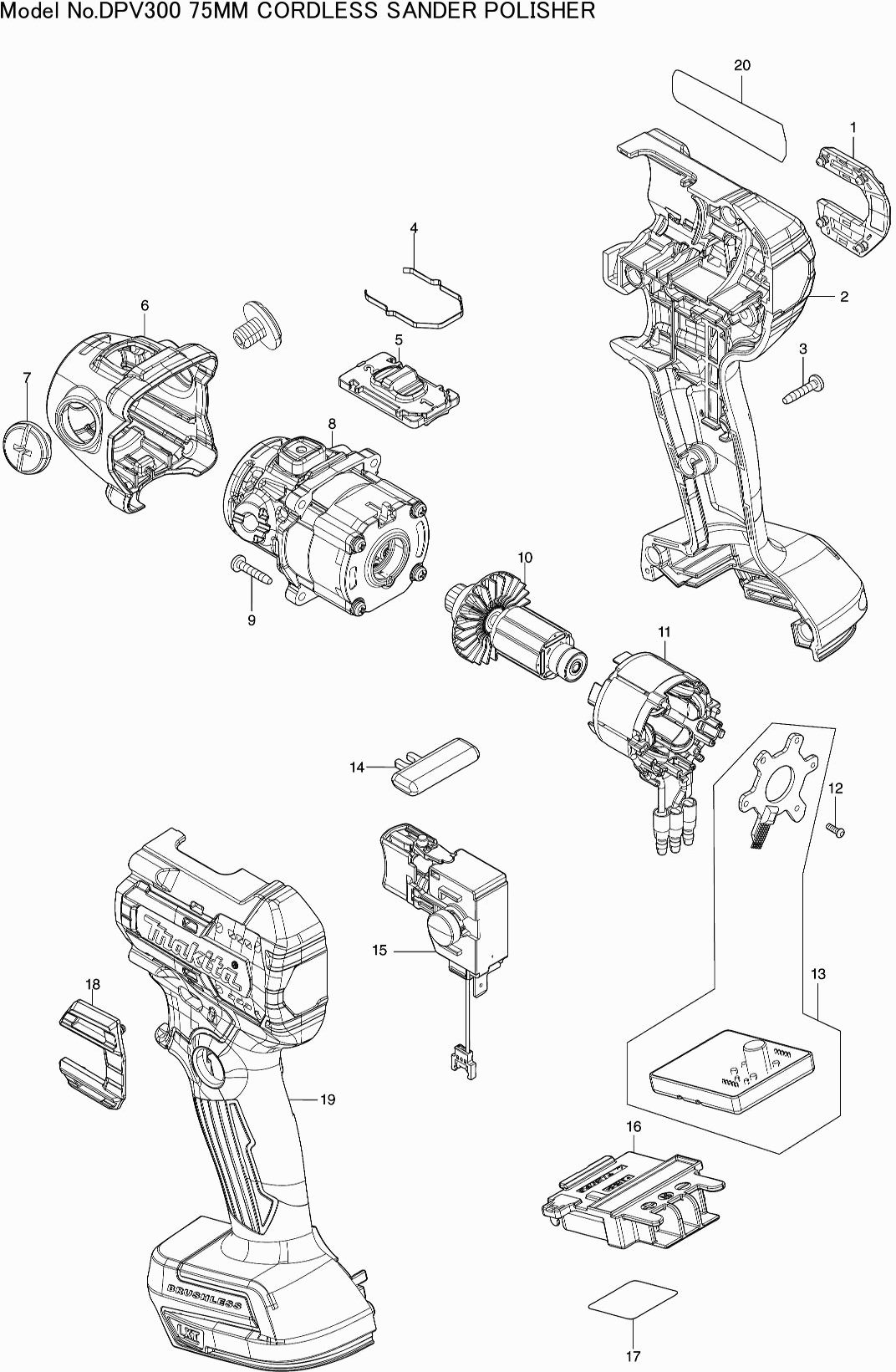

Technical drawing of model Makita DPV300
Spare parts list of model Makita DPV300
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Dust Cap DVP300/301 | ||||
| 001 | 422613-1 | 4.80 | 5.81 | |
| Motor house DVP300 | ||||
| 002 | 191P12-1 | 23.10 | 27.95 | |
| Indicator label DPV300 | ||||
| 002C10 | 8028C3-7 | 2.40 | 2.90 | |
| Rubber pen 6 | ||||
| 002C20 | 263005-3 | 1.00 | 1.21 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 1.00 | 1.21 | |
| Leaf spring DVP300/301 | ||||
| 004 | 232659-7 | 4.80 | 5.81 | |
| Speed Control Knob DVP300/301 | ||||
| 005 | 127720-2 | 3.60 | 4.36 | |
| DRUKVEER 3 DPV300 | ||||
| 005C10 | 232636-9 | 1.00 | 1.21 | |
| Cover cap DVP300/301 | ||||
| 006 | 413228-5 | 6.00 | 7.26 | |
| Met.screw M8x10mm DVP300 | ||||
| 007 | 413229-3 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 008 | 127721-0 | |||
| Tapping Screw 3x16 | ||||
| 009 | 266130-9 | 1.00 | 1.21 | |
| Armature DVP300/301 | ||||
| 010 | 619663-7 | 39.60 | 47.92 | |
| Field | ||||
| 011 | 629A36-2 | 10.80 | 13.07 | |
| Parker Ck 2x6mm | ||||
| 012 | 266490-9 | 1.00 | 1.21 | |
| Controller DVP300 | ||||
| 013 | 620D22-4 | 78.10 | 94.50 | |
| A/U button DVP300/301 | ||||
| 014 | 412697-7 | 1.20 | 1.45 | |
| Switch DVP300/301 | ||||
| 015 | 651489-1 | 26.40 | 31.94 | |
| Connection unit | ||||
| 016 | 643874-2 | 3.60 | 4.36 | |
| Label serial no. DPV300 | ||||
| 017 | 858B92-3 | 2.40 | 2.90 | |
| Dust Cap DVP300/301 | ||||
| 018 | 422613-1 | 4.80 | 5.81 | |
| Motor house DVP300 | ||||
| 019 | 191P12-1 | 23.10 | 27.95 | |
| Indicator label DPV300 | ||||
| 019C10 | 8028C3-7 | 2.40 | 2.90 | |
| Rubber pen 6 | ||||
| 019C20 | 263005-3 | 1.00 | 1.21 | |
| Nameplate DPV300 | ||||
| 020 | 858B84-2 | 3.60 | 4.36 | |
