Here you will find all available parts and drawings of the 'Makita DPT350'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

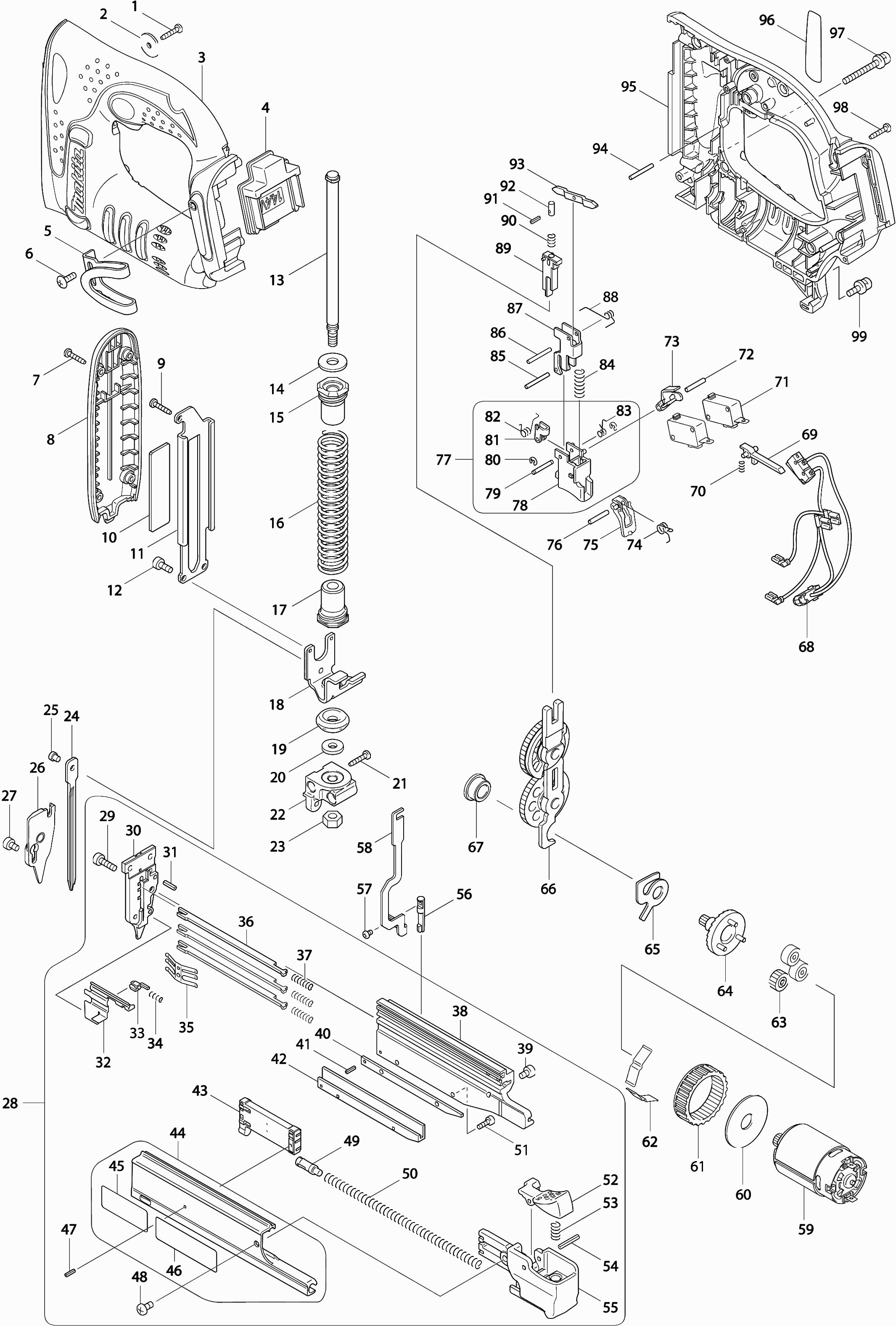

Technical drawing of model Makita DPT350
Spare parts list of model Makita DPT350
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw 3x16 | ||||
| 001 | 266130-9 | 0.83 | 1.00 | |
| 4 Washer | ||||
| 002 | 267071-2 | 0.83 | 1.00 | |
| Motor Housing Set | ||||
| 003 | 187888-6 | 48.40 | 58.56 | |
| Connection Unit (2 contacts) | ||||
| 004 | 643828-9 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 005 | 194654-4 | |||
| Screw,M4x12 | ||||
| 006 | 251314-2 | 0.83 | 1.00 | |
| Tapping Screw 3x16 | ||||
| 007 | 266130-9 | 0.83 | 1.00 | |
| Cover | ||||
| 008 | 419450-2 | 8.59 | 10.39 | |
| Tapping Screw 3x16 | ||||
| 009 | 266130-9 | 0.83 | 1.00 | |
| Sliding Plate | ||||
| 010 | 345704-0 | 1.67 | 2.02 | |
| Nail guide | ||||
| 011 | 345703-2 | 20.15 | 24.38 | |
| Allen bolt M4x10 | ||||
| 012 | 922112-8 | 0.83 | 1.00 | |
| Guide Bolt | ||||
| 013 | 324683-5 | 21.23 | 25.69 | |
| Washer 8 | ||||
| 014 | 253762-1 | 0.98 | 1.19 | |
| Spring Holder | ||||
| 015 | 421962-3 | 6.41 | 7.76 | |
| Spring | ||||
| 016 | 233472-6 | 3.72 | 4.50 | |
| Spring Holder | ||||
| 017 | 421962-3 | 6.41 | 7.76 | |
| Hammer | ||||
| 018 | 345701-6 | 12.80 | 15.49 | |
| Damper | ||||
| 019 | 421956-8 | 1.39 | 1.68 | |
| Washer 6 | ||||
| 020 | 253804-1 | 0.83 | 1.00 | |
| Tapping Screw 3x16 | ||||
| 021 | 266130-9 | 0.83 | 1.00 | |
| Damper Holder | ||||
| 022 | 318025-3 | 11.84 | 14.33 | |
| Hex Nut M6 | ||||
| 023 | 931302-2 | 0.83 | 1.00 | |
| Striking pin | ||||
| 024 | 345702-4 | 15.65 | 18.94 | |
| Locking Pin 4 | ||||
| 025 | 268157-5 | 2.02 | 2.44 | |
| Impact plate | ||||
| 026 | 168430-2 | 24.16 | 29.23 | |
| Hexagonal bolt 4x6 | ||||
| 027 | 922102-1 | 0.83 | 1.00 | |
| Magazine assembly | ||||
| 028 | 135372-5 | 197.37 | 238.82 | |
| Hexagon socket bolt M4x14 | ||||
| 029 | 922122-5 | 0.83 | 1.00 | |
| Strike pin guide | ||||
| 030 | 310173-4 | 50.69 | 61.33 | |
| Spring pin 3-10 | ||||
| 031 | 951054-9 | 0.83 | 1.00 | |
| Pressure Plate Bpt350 | ||||
| 032 | 345699-7 | 9.67 | 11.70 | |
| Output Bpt350 | ||||
| 033 | 310176-8 | 3.12 | 3.78 | |
| Compression Spring 3 | ||||
| 034 | 233018-8 | 0.83 | 1.00 | |
| Leaf Spring | ||||
| 035 | 232229-2 | 4.67 | 5.65 | |
| Nail knockout | ||||
| 036 | 346239-4 | 2.36 | 2.86 | |
| Compression Spring 4 | ||||
| 037 | 233476-8 | 0.83 | 1.00 | |
| Magazine | ||||
| 038 | 318024-5 | 48.40 | 58.56 | |
| Hexagonal bolt 4x6 | ||||
| 039 | 922102-1 | 0.83 | 1.00 | |
| Filling Plate | ||||
| 040 | 345696-3 | 2.71 | 3.28 | |
| Cotter pin 2-8 | ||||
| 041 | 951001-0 | 0.83 | 1.00 | |
| Bottom rail | ||||
| 042 | 318023-7 | 15.60 | 18.88 | |
| Nail Guide Holder | ||||
| 043 | 452877-3 | 4.67 | 5.65 | |
| Upper rail | ||||
| 044 | 140412-6 | 36.05 | 43.62 | |
| Warning Label | ||||
| 045 | 813728-9 | 2.71 | 3.28 | |
| Cotter pin 2-8 | ||||
| 047A | 951001-0 | 0.83 | 1.00 | |
| Screw 4X10 | ||||
| 048 | 911113-1 | 0.83 | 1.00 | |
| Collar pin 5-7 | ||||
| 049 | 419443-9 | 2.84 | 3.44 | |
| Compression Spring 5 | ||||
| 050 | 233470-0 | 2.10 | 2.54 | |
| Allen Bolt M3x10 | ||||
| 051 | 266177-3 | 0.83 | 1.00 | |
| Rail knob | ||||
| 052 | 419446-3 | 5.30 | 6.41 | |
| Compression Spring 6x29mm | ||||
| 053 | 233117-6 | 0.83 | 1.00 | |
| Expansion pin 3-18 | ||||
| 054 | 951066-2 | 0.83 | 1.00 | |
| Rail Button Cap | ||||
| 055 | 419444-7 | 7.57 | 9.16 | |
| Pin 5 | ||||
| 056 | 268158-3 | 6.38 | 7.72 | |
| Crosshead screw 3x4 | ||||
| 057 | 265040-7 | 0.83 | 1.00 | |
| Locking arm | ||||
| 058 | 345705-8 | 4.45 | 5.38 | |
| Motor 14.4V | ||||
| 059 | 629129-9 | 10.99 | 13.30 | |
| Washer 12 | ||||
| 060 | 267053-4 | 0.83 | 1.00 | |
| Gear 69 | ||||
| 061 | 227166-3 | 2.84 | 3.44 | |
| Leaf Spring | ||||
| 062 | 232230-7 | 3.12 | 3.78 | |
| Gear 27 | ||||
| 063 | 221961-3 | 3.12 | 3.78 | |
| Complete 7-gear wheel | ||||
| 064 | 154973-0 | 5.71 | 6.91 | |
| Anti-return plate | ||||
| 065 | 345773-1 | 3.12 | 3.78 | |
| Gear 55 cpl | ||||
| 066 | 154972-2 | 41.77 | 50.54 | |
| Slide Bearing 10 | ||||
| 067 | 214060-8 | 1.18 | 1.43 | |
| LED Circuit | ||||
| 068 | 631704-9 | 15.60 | 18.88 | |
| Rotary knob ABB OHYS2AJ | ||||
| 069 | 419452-8 | 3.54 | 4.28 | |
| Pressure Spring 2 | ||||
| 070 | 233032-4 | 0.83 | 1.00 | |
| Switch D3V-16-3C26 A | ||||
| 071 | 650744-8 | 1.67 | 2.02 | |
| Pen 3 | ||||
| 072 | 256299-7 | 0.83 | 1.00 | |
| Connection Plate | ||||
| 073 | 419453-6 | 3.12 | 3.78 | |
| Rotational spring 4 | ||||
| 074 | 231693-4 | 0.98 | 1.19 | |
| Safety Switch | ||||
| 075 | 419454-4 | 4.45 | 5.38 | |
| Pen 3 | ||||
| 076 | 256299-7 | 0.83 | 1.00 | |
| Switch button set | ||||
| 077 | 188168-3 | 14.48 | 17.52 | |
| No information available, not orderable | ||||
| 078 | 419451-0 | |||
| No information available, not orderable | ||||
| 079 | 256771-9 | |||
| No information available, not orderable | ||||
| 080 | 257926-9 | |||
| No information available, not orderable | ||||
| 081 | 345707-4 | |||
| No information available, not orderable | ||||
| 082 | 231694-2 | |||
| No information available, not orderable | ||||
| 083 | 231695-0 | |||
| Compression Spring 4 | ||||
| 084 | 233360-7 | 0.83 | 1.00 | |
| Pen 2,5 | ||||
| 085 | 256176-3 | 0.83 | 1.00 | |
| Pen 2,5 | ||||
| 086 | 256176-3 | 0.83 | 1.00 | |
| Guide Plate | ||||
| 087 | 345706-6 | 4.45 | 5.38 | |
| Rotational spring 4 | ||||
| 088 | 231692-6 | 0.83 | 1.00 | |
| Switch block Bpt350 A | ||||
| 089 | 168489-9 | 1.82 | 2.20 | |
| Compression Spring 2.4 | ||||
| 090 | 233188-3 | 0.83 | 1.00 | |
| Cotter pin 2-8 | ||||
| 091 | 951001-0 | 0.83 | 1.00 | |
| Push Pin | ||||
| 092 | 324684-3 | 3.11 | 3.76 | |
| Reversing arm | ||||
| 093 | 345708-2 | 3.12 | 3.78 | |
| Pen 2,5 | ||||
| 094 | 256176-3 | 0.83 | 1.00 | |
| Motor Housing Set | ||||
| 095 | 187888-6 | 48.40 | 58.56 | |
| No information available, not orderable | ||||
| 096 | 815X79-0 | |||
| Screw 4x35 | ||||
| 097 | 911163-6 | 0.83 | 1.00 | |
| Tapping Screw 3x16 | ||||
| 098 | 266130-9 | 0.83 | 1.00 | |
| Screw 4x14 | ||||
| 099 | 911123-8 | 0.83 | 1.00 | |
| Compression Spring 3x40mm | ||||
| 100 | 233459-8 | 0.83 | 1.00 | |
| Spring pin 3-10 | ||||
| 101 | 951054-9 | 0.83 | 1.00 | |
