Here you will find all available parts and drawings of the 'Makita DPC7331'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

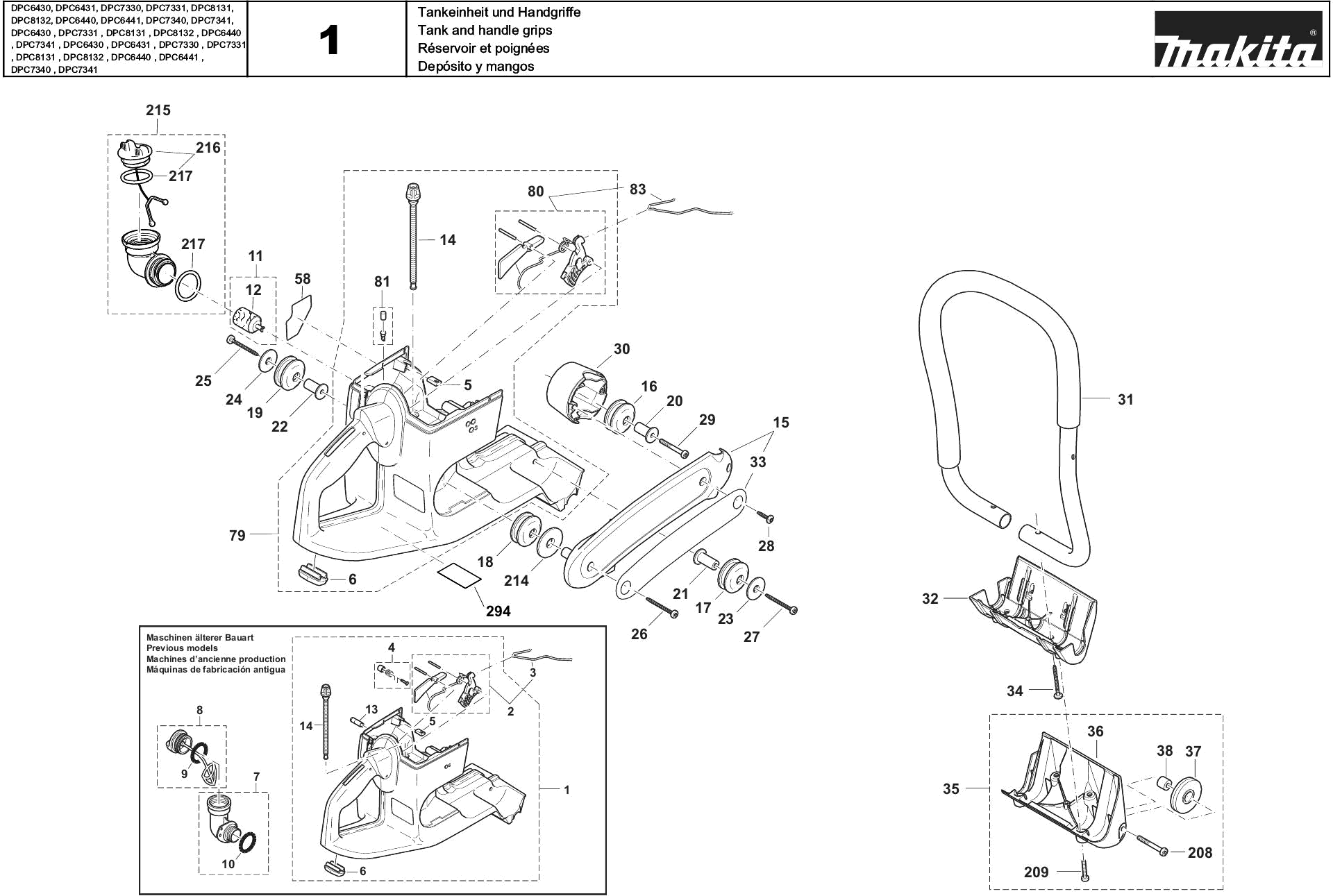

Technical drawing of model Makita DPC7331
Spare parts list of model Makita DPC7331
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Complete tank | ||||
| 001 | 394114605 | 88.00 | 106.48 | |
| No longer available, no replacement | ||||
| 002 | 957117020 | |||
| Gas Rod | ||||
| 003 | 394117011 | 6.00 | 7.26 | |
| Partial throttle control Dpc7301 * | ||||
| 004 | 957117030 | 4.80 | 5.81 | |
| Screw insert | ||||
| 005 | 394114101 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 006 | 394114070 | |||
| Right-angle fill cap Dpc7301 * | ||||
| 007 | 010114081 | 17.60 | 21.30 | |
| Gas cap Dbc340 A | ||||
| 008 | 010114091 | 7.20 | 8.71 | |
| O-RING 30X3,0 DPC67301 A | ||||
| 009 | 963230031 | 1.20 | 1.45 | |
| O-RING 30X3,0 DPC67301 A | ||||
| 010 | 963230031 | 1.20 | 1.45 | |
| Filter | ||||
| 011 | 163499-1 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 012 | 963601240 | |||
| No information available, not orderable | ||||
| 013 | 010175050 | |||
| No information available, not orderable | ||||
| 014 | 965404911 | |||
| ZIJSTEUN, GRIJS DCP6430/31 * | ||||
| 015 | 394114661 | 14.30 | 17.30 | |
| Vibration damper A | ||||
| 016 | 424695-9 | 3.60 | 4.36 | |
| Vibration damper A | ||||
| 017 | 424695-9 | 3.60 | 4.36 | |
| Vibration damper A | ||||
| 018 | 424695-9 | 3.60 | 4.36 | |
| Vibration damper A | ||||
| 019 | 424695-9 | 3.60 | 4.36 | |
| Axis vibration damper | ||||
| 020 | 319268-0 | 3.60 | 4.36 | |
| Axis vibration damper | ||||
| 021 | 319268-0 | 3.60 | 4.36 | |
| Axis vibration damper | ||||
| 022 | 319268-0 | 3.60 | 4.36 | |
| Ring 5.8X26X2 | ||||
| 023 | 346870-6 | 1.00 | 1.21 | |
| Ring 5.8X26X2 | ||||
| 024 | 346870-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 025 | 913455454 | |||
| No information available, not orderable | ||||
| 026 | 913455454 | |||
| No information available, not orderable | ||||
| 027 | 913455454 | |||
| No information available, not orderable | ||||
| 028 | 913455204 | |||
| Inbusschroef m5x40 | ||||
| 029 | 266943-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 030 | 394114050 | |||
| Bracket handle Ek8100 A | ||||
| 031 | 143097-7 | 48.40 | 58.56 | |
| No information available, not orderable | ||||
| 032 | 394114190 | |||
| No information available, not orderable | ||||
| 033 | 980115215 | |||
| No information available, not orderable | ||||
| 034 | 913455454 | |||
| No information available, not orderable | ||||
| 035 | 394114271 | |||
| No information available, not orderable | ||||
| 036 | 394114251 | |||
| Wheel for foot m/rol | ||||
| 037 | 394114230 | 13.20 | 15.97 | |
| Plain bearing | ||||
| 038 | 394114240 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 039 | 395118610 | |||
| Fastening Button P | ||||
| 041 | 395118010 | 6.00 | 7.26 | |
| Safety label pc-series | ||||
| 044 | 980115400 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 045 | 395118050 | |||
| No information available, not orderable | ||||
| 047 | 395173081 | |||
| Washer | ||||
| 048 | 395118020 | 2.40 | 2.90 | |
| Air Filter A | ||||
| 049 | 424701-0 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 050 | 424705-2 | |||
| No information available, not orderable | ||||
| 051 | 395118090 | |||
| Cylinder screw 5x50 | ||||
| 054 | 908605505 | 1.39 | 1.68 | |
| No information available, not orderable | ||||
| 056 | 980114999 | |||
| INTAKE MANIFOLD EK7300 A | ||||
| 059 | 127098-3 | 27.50 | 33.28 | |
| Guide Ring | ||||
| 060 | 346867-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 061 | 394131200 | |||
| Hose clamp IAS 3 | ||||
| 062 | 965603050 | 6.00 | 7.26 | |
| Uitlaatpakking Ek8100 A | ||||
| 063 | 346874-8 | 1.20 | 1.45 | |
| Cylinder screw M4x55 | ||||
| 064 | 908204555 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 065 | 970502050 | |||
| Choke Handle | ||||
| 066 | 394150030 | 6.00 | 7.26 | |
| Chokestang | ||||
| 067 | 326496-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 068 | 965452382 | |||
| Guiding ring A | ||||
| 069 | 965401016 | 2.40 | 2.90 | |
| Muffler | ||||
| 070 | 161339-7 | 82.76 | 100.14 | |
| No information available, not orderable | ||||
| 072 | 965531131 | |||
| HEATSHIELD | ||||
| 073 | 346868-3 | 1.20 | 1.45 | |
| Metal screw M5x20mm | ||||
| 074 | 266960-8 | 1.00 | 1.21 | |
| Must 4k M5 A | ||||
| 076 | 264108-6 | 1.00 | 1.21 | |
| Screw 3,5 | ||||
| 078 | 915035120 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 079 | 395114103 | |||
| No information available, not orderable | ||||
| 080 | 957117040 | |||
| Aeration valve Ea3201S A | ||||
| 081 | 195762-4 | 4.80 | 5.81 | |
| Gasstang Ek8100 A | ||||
| 083 | 326497-8 | 3.60 | 4.36 | |
| Contact Spring | ||||
| 084 | 395146011 | 1.20 | 1.45 | |
| Cable cpl | ||||
| 085 | 965605511 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 086 | 395150011 | |||
| No longer available, no replacement | ||||
| 111 | 123357-3 | |||
| Flywheel Housing | ||||
| 112 | 394112621 | 36.30 | 43.92 | |
| Rewinding Spring | ||||
| 113 | 394163020 | 9.60 | 11.62 | |
| Screw 3,5x10 | ||||
| 114 | 915735100 | 1.20 | 1.45 | |
| Cord drum | ||||
| 115 | 394162040 | 19.80 | 23.96 | |
| Lock Ring 14x1 | ||||
| 116 | 929314100 | 1.20 | 1.45 | |
| Start cord Pc-Series A | ||||
| 117 | 394164020 | 8.40 | 10.16 | |
| Starter handle Dpc64/73/10/11 A | ||||
| 119 | 001161020 | 4.80 | 5.81 | |
| Clamping Ring | ||||
| 120 | 267821-5 | 1.00 | 1.21 | |
| Air Guide Plate | ||||
| 121 | 394112141 | 4.80 | 5.81 | |
| Label "makita" | ||||
| 122 | 980115214 | 2.40 | 2.90 | |
| Metal Screw Ck M5x20mm | ||||
| 123 | 266607-4 | 1.00 | 1.21 | |
| STARTER PAWL SET * | ||||
| 125 | 031166010 | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| 126 | 920208024 | |||
| Washer 8mm EA3201S A | ||||
| 127 | 267822-3 | 1.00 | 1.21 | |
| Spark plug lead 100cm | ||||
| 129 | 970310200 | 7.20 | 8.71 | |
| Metal Screw Ck M5x20mm | ||||
| 130 | 266607-4 | 1.00 | 1.21 | |
| Guiding ring A | ||||
| 132 | 965401016 | 2.40 | 2.90 | |
| Contact spring Dpc64/7310/11 A | ||||
| 133 | 394146013 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 134 | 957604260 | |||
| No information available, not orderable | ||||
| 135 | 965603021 | |||
| Cover Ek8100 A | ||||
| 136 | 455819-6 | 6.00 | 7.26 | |
| No longer available, no replacement | ||||
| 137 | 908605145 | |||
| Cylinder Set Cpl Pc7314D A | ||||
| 138 | 183H03-8 | 193.60 | 234.26 | |
| No information available, not orderable | ||||
| 139 | 395132050 | |||
| No information available, not orderable | ||||
| 140 | 394132020 | |||
| Locking ring C12x1 | ||||
| 141 | 119132060 | 1.20 | 1.45 | |
| De-Komp.Valve Ek8100 A | ||||
| 142 | 455804-9 | 17.60 | 21.30 | |
| Gasket | ||||
| 143 | 346873-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 144 | 908805235 | |||
| No information available, not orderable | ||||
| 145 | 394120011 | |||
| No information available, not orderable | ||||
| 146 | 962210015 | |||
| Inlegspie 3 A | ||||
| 147 | 254042-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 148 | 962900052 | |||
| No information available, not orderable | ||||
| 149 | 962900052 | |||
| Lock washer A | ||||
| 150 | 234366-8 | 1.00 | 1.21 | |
| Stopring A | ||||
| 151 | 346872-2 | 3.60 | 4.36 | |
| Guide Disk Ek8100 A | ||||
| 152 | 346866-7 | 1.20 | 1.45 | |
| Crankcase magn. side black | ||||
| 153 | 326111731 | 95.70 | 115.80 | |
| Crankcase driving side | ||||
| 154 | 326111740 | 154.02 | 186.36 | |
| Crankcase gasket Ek8100 A | ||||
| 155 | 346877-2 | 2.40 | 2.90 | |
| Tension pin 3x16 | ||||
| 156 | 936430160 | 1.20 | 1.45 | |
| Torx screw 5x30 | ||||
| 157 | 908005305 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 158 | 960102159 | |||
| No information available, not orderable | ||||
| 159 | 960102159 | |||
| Clutch Drum Dpc7301 P | ||||
| 160 | 161317A7 | 26.40 | 31.94 | |
| No longer available, no replacement | ||||
| 161 | 908605145 | |||
| Washer 12 | ||||
| 162 | 267389-1 | 2.40 | 2.90 | |
| Coupling assembly | ||||
| 163 | 123305-2 | 26.40 | 31.94 | |
| Coupling spring EK7301 A | ||||
| 164 | 232352-3 | 2.40 | 2.90 | |
| Clutch Housing Ek8100 A | ||||
| 165 | 455832-4 | 19.80 | 23.96 | |
| V Belt Dpc7301 | ||||
| 166 | 424712A5 | 23.06 | 27.90 | |
| Rubber protector plate | ||||
| 168 | 965402870 | 23.10 | 27.95 | |
| Protective Cover 350mm | ||||
| 169 | 143792-9 | 147.40 | 178.35 | |
| Mounting for hood | ||||
| 170 | 957342011 | 13.20 | 15.97 | |
| Guide Bowl | ||||
| 171 | 442169-8 | 3.60 | 4.36 | |
| Guide Bowl | ||||
| 172 | 442169-8 | 3.60 | 4.36 | |
| Rubber ring "inner" | ||||
| 173 | 424427-4 | 6.00 | 7.26 | |
| Rubber ring inner Ek7650 A | ||||
| 174 | 424426-6 | 6.00 | 7.26 | |
| Plate | ||||
| 175 | 346455-8 | 8.40 | 10.16 | |
| Pressure Ring | ||||
| 176 | 318746-7 | 38.50 | 46.58 | |
| Grinding arm Dpc64/7311 A | ||||
| 177 | 319286-8 | 23.10 | 27.95 | |
| Stop Screw Complete Ek8100 A | ||||
| 178 | 123307-8 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 179 | 394211091 | |||
| Axis 25,4mm | ||||
| 180 | 394228111 | 23.10 | 27.95 | |
| Shaft 22.2mm | ||||
| 180 | 394228130 | 20.90 | 25.29 | |
| As Ek8100 A | ||||
| 180 | 326502-1 | 13.20 | 15.97 | |
| O-Ring 9Mm Ek7650H A | ||||
| 182 | 213625-3 | 1.00 | 1.21 | |
| Ball Bearing 6203llu | ||||
| 183 | 211490-4 | 8.40 | 10.16 | |
| Ball Bearing 6203llu | ||||
| 184 | 211490-4 | 8.40 | 10.16 | |
| Inner flange 102 Ek7650H A | ||||
| 185 | 224478-5 | 17.60 | 21.30 | |
| Inner flange 102 Ek7650H A | ||||
| 186 | 224478-5 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 187 | 994290250 | |||
| No information available, not orderable | ||||
| 188 | 994290250 | |||
| SPACER DPC7301 A | ||||
| 189 | 394228022 | 3.60 | 4.36 | |
| SPACER DPC7301 A | ||||
| 190 | 394228022 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 193 | 929240180 | |||
| No information available, not orderable | ||||
| 194 | 929240180 | |||
| No information available, not orderable | ||||
| 197 | 394213033 | |||
| Pressure Spring 6mm Ek7650H A | ||||
| 198 | 234215-9 | 2.40 | 2.90 | |
| Nut M6 A | ||||
| 199 | 264112-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 200 | 923208004 | |||
| Safety Label | ||||
| 201 | 980114974 | 3.60 | 4.36 | |
| Screw 3,5x10 | ||||
| 203 | 915735100 | 1.20 | 1.45 | |
| Needle Bearing 15x21x16 A | ||||
| 204 | 212134-9 | 11.00 | 13.31 | |
| Clamping Ring | ||||
| 205 | 267821-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 206 | 326341300 | |||
| Cross Screw M5X16 | ||||
| 207 | 0043105160 | 1.00 | 1.21 | |
| Allen Bolt M6X35Mm Pc-6114 A | ||||
| 208 | 266990-9 | 1.20 | 1.45 | |
| Screw | ||||
| 209 | 908905165 | 1.20 | 1.45 | |
| Flywheel Ek8100 A | ||||
| 210 | 394141101 | 30.80 | 37.27 | |
| No information available, not orderable | ||||
| 211 | 394143030 | |||
| No information available, not orderable | ||||
| 212 | 965605510 | |||
| No information available, not orderable | ||||
| 213 | 908005125 | |||
| Revet A | ||||
| 214 | 346871-4 | 1.20 | 1.45 | |
| HAAKSE TANKAANSLUITING | ||||
| 215 | 395114300 | 10.00 | 12.10 | |
| TANK LID ASSY EA3201S A | ||||
| 216 | 168823-3 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 217 | 963229036 | |||
| No information available, not orderable | ||||
| 218 | 395211640 | |||
| Cover Cap, Blue Dpc6430/31 A | ||||
| 219 | 455956-6 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 221 | 394221050 | |||
| No information available, not orderable | ||||
| 230 | 395151012 | |||
| Pump cover Wj-105 | ||||
| 232 | 394151160 | 23.10 | 27.95 | |
| Screw Wj-105 | ||||
| 233 | 144150170 | 2.40 | 2.90 | |
| Membrane cover | ||||
| 234 | 395151120 | 9.60 | 11.62 | |
| Screw | ||||
| 235 | 378151220 | 1.20 | 1.45 | |
| Membrane set Wj-105 | ||||
| 236 | 957151180 | 23.10 | 27.95 | |
| Diaphragm Wj-105 | ||||
| 237 | 394151150 | 6.00 | 7.26 | |
| Throttle valve shaft Wj-105 | ||||
| 238 | 394151300 | 17.60 | 21.30 | |
| Spring Wj-105 | ||||
| 239 | 394151310 | 8.40 | 10.16 | |
| Bush Wj-105 | ||||
| 240 | 394151315 | 3.60 | 4.36 | |
| Bush Wj-105 | ||||
| 241 | 394151315 | 3.60 | 4.36 | |
| Seal Wj-105 | ||||
| 242 | 394151330 | 8.40 | 10.16 | |
| Throttle valve Wj-105 | ||||
| 243 | 394151320 | 3.60 | 4.36 | |
| Screw | ||||
| 244 | 394151650 | 2.40 | 2.90 | |
| Screw | ||||
| 245 | 394151660 | 2.40 | 2.90 | |
| Seal Wj-105 | ||||
| 246 | 394151330 | 8.40 | 10.16 | |
| Disc Wj-105 | ||||
| 247 | 394151400 | 2.40 | 2.90 | |
| Locking plate Wj-105 | ||||
| 248 | 108151350 | 3.60 | 4.36 | |
| Choke shaft Wj-105 | ||||
| 249 | 394151250 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 250 | 394151260 | |||
| Spring H * | ||||
| 251 | 118151160 | 3.60 | 4.36 | |
| Ball * | ||||
| 252 | 118151170 | 3.60 | 4.36 | |
| Idle adjustment screw Wj-105 | ||||
| 253 | 394151570 | 7.20 | 8.71 | |
| Adjusting screw L Wj-105 | ||||
| 254 | 394151470 | 8.40 | 10.16 | |
| Spring L | ||||
| 255 | 021151480 | 3.60 | 4.36 | |
| Revision set Wj-105 | ||||
| 256 | 957151191 | 12.10 | 14.64 | |
| Filter | ||||
| 257 | 021151180 | 2.40 | 2.90 | |
| Closing disc large Wj-105 | ||||
| 258 | 394151040 | 2.40 | 2.90 | |
| Ball | ||||
| 259 | 394151510 | 3.60 | 4.36 | |
| Adjusting Screw H Pc-Series | ||||
| 260 | 001151450 | 18.70 | 22.63 | |
| Spring L | ||||
| 261 | 021151480 | 3.60 | 4.36 | |
| Heat foil | ||||
| 265 | 326118060 | 4.80 | 5.81 | |
| Screw | ||||
| 267 | 378151220 | 1.20 | 1.45 | |
| Hose | ||||
| 268 | 395171022 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 273 | 395151012 | |||
| Gas rod for 395151012 | ||||
| 274 | 395151130 | 14.30 | 17.30 | |
| Choke rod for 395151012 | ||||
| 275 | 395151170 | 14.30 | 17.30 | |
| Stationary plate for 395151012 | ||||
| 276 | 395151110 | 6.00 | 7.26 | |
| Turn spring for 395151012 | ||||
| 277 | 395151190 | 4.80 | 5.81 | |
| Spring retaining ring | ||||
| 278 | 119151350 | 3.60 | 4.36 | |
| Choke controller for 395151012 | ||||
| 279 | 395151180 | 3.60 | 4.36 | |
| Screw | ||||
| 280 | 394151660 | 2.40 | 2.90 | |
| Adjusting screw for 395151012 | ||||
| 281 | 395151140 | 16.50 | 19.96 | |
| Turn spring for 395151012 | ||||
| 282 | 395151150 | 4.80 | 5.81 | |
| Screw for 395151012 | ||||
| 283 | 395151160 | 1.20 | 1.45 | |
| Revet for 395151012 | ||||
| 284 | 170151290 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 300 | 957004006 | |||
| No information available, not orderable | ||||
| 302 | 950004002 | |||
| Combo wrench 13/19 | ||||
| 303 | 941719140 | 4.80 | 5.81 | |
| HAAKSE TORXSLEUTEL T27 | ||||
| 304 | 782025-3 | 3.00 | 3.63 | |
| SCHROEVENDRAAIER CARBURATEUR | ||||
| 305 | 783012-5 | 2.00 | 2.42 | |
| No information available, not orderable | ||||
| 350 | 966144150 | |||
| DIAMANTSCHIJF 350X25,4X3,0MM ORANJE | ||||
| 360 | B-54053 | 67.00 | 81.07 | |
| No information available, not orderable | ||||
| 400 | 394365102 | |||
| No information available, not orderable | ||||
| 401 | 964802271 | |||
| Hose connector | ||||
| 402 | 964802282 | 8.40 | 10.16 | |
| No longer available, no replacement | ||||
| 403 | 964802291 | |||
| Holding Device | ||||
| 404 | 394365163 | 12.10 | 14.64 | |
| Torx screw M6X14 A | ||||
| 405 | 908006145 | 1.20 | 1.45 | |
| Nut M6 A | ||||
| 406 | 264112-5 | 1.00 | 1.21 | |
| Water connection kit | ||||
| 407 | 123369-6 | 45.44 | 54.98 | |
| Hose, pc-water set | ||||
| 408 | 964802322 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 409 | 964802332 | |||
| Hose, pc-water set | ||||
| 410 | 964802322 | 6.00 | 7.26 | |
| Compression fitting "L" | ||||
| 411 | 964802342 | 7.20 | 8.71 | |
| Countersink Screw | ||||
| 412 | 266949-6 | 3.60 | 4.36 | |
| Countersink Screw | ||||
| 413 | 266949-6 | 3.60 | 4.36 | |
| Cover nut Ek8100 A | ||||
| 414 | 264109-4 | 2.40 | 2.90 | |
| Cover nut Ek8100 A | ||||
| 415 | 264109-4 | 2.40 | 2.90 | |
| WATERDRUKTANK METAAL 10LTR | ||||
| 420 | 957802600 | 284.00 | 343.64 | |
| Reducer piece | ||||
| 421 | 394365180 | 13.20 | 15.97 | |
| Hose clamp IAS 3 | ||||
| 422 | 964802250 | 4.80 | 5.81 | |
| Hose clamp IAS 3 | ||||
| 423 | 964802250 | 4.80 | 5.81 | |
| Sealing kit | ||||
| 424 | 957963200 | 16.50 | 19.96 | |
