Here you will find all available parts and drawings of the 'Makita DPC6401'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

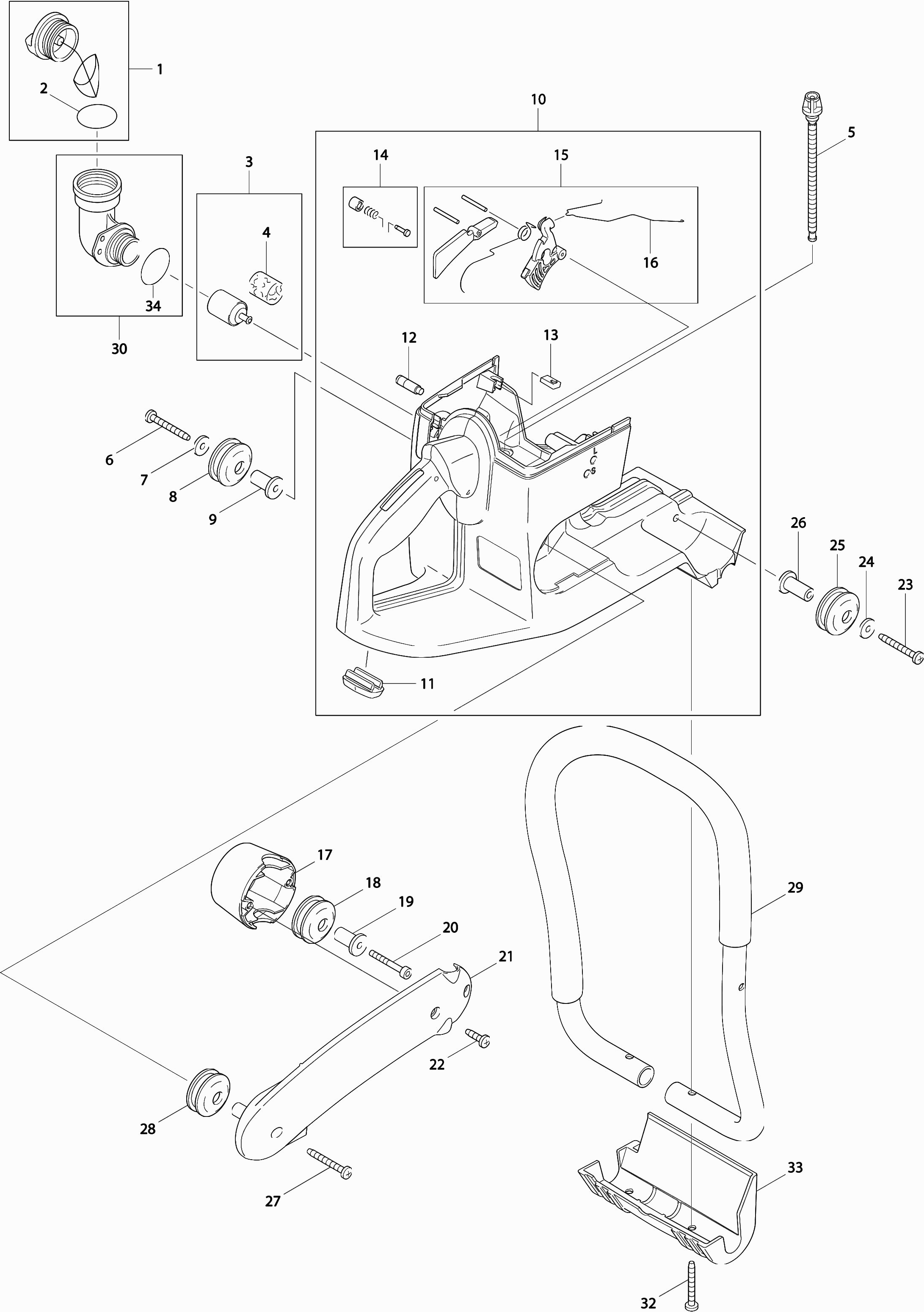

Technical drawing of model Makita DPC6401
Spare parts list of model Makita DPC6401
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gas cap Dbc340 A | ||||
| 001 | 010114091 | 7.20 | 8.71 | |
| O-RING 30X3,0 DPC67301 A | ||||
| 002 | 963230031 | 1.20 | 1.45 | |
| Filter | ||||
| 003 | 163499-1 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 004 | 963601240 | |||
| No information available, not orderable | ||||
| 005 | 965404911 | |||
| No information available, not orderable | ||||
| 006 | 913455454 | |||
| Ring 5.8X26X2 | ||||
| 007 | 346870-6 | 1.00 | 1.21 | |
| Vibration damper A | ||||
| 008 | 424695-9 | 3.60 | 4.36 | |
| Axis vibration damper | ||||
| 009 | 319268-0 | 3.60 | 4.36 | |
| Complete tank | ||||
| 010 | 394114605 | 88.00 | 106.48 | |
| No information available, not orderable | ||||
| 011 | 394114070 | |||
| No information available, not orderable | ||||
| 012 | 010175050 | |||
| Screw insert | ||||
| 013 | 394114101 | 2.40 | 2.90 | |
| Partial throttle control Dpc7301 * | ||||
| 014 | 957117030 | 4.80 | 5.81 | |
| No longer available, no replacement | ||||
| 015 | 957117020 | |||
| Gas Rod | ||||
| 016 | 394117011 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 017 | 394114050 | |||
| Vibration damper A | ||||
| 018 | 424695-9 | 3.60 | 4.36 | |
| Axis vibration damper | ||||
| 019 | 319268-0 | 3.60 | 4.36 | |
| Inbusschroef m5x40 | ||||
| 020 | 266943-8 | 1.00 | 1.21 | |
| Side support Dcp7301 * | ||||
| 021 | 394114640 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 022 | 913455204 | |||
| No information available, not orderable | ||||
| 023 | 913455454 | |||
| Ring 5.8X26X2 | ||||
| 024 | 346870-6 | 1.00 | 1.21 | |
| Vibration damper A | ||||
| 025 | 424695-9 | 3.60 | 4.36 | |
| Axis vibration damper | ||||
| 026 | 319268-0 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 027 | 913455454 | |||
| Vibration damper A | ||||
| 028 | 424695-9 | 3.60 | 4.36 | |
| Bracket handle Ek8100 A | ||||
| 029 | 143097-7 | 48.40 | 58.56 | |
| Right-angle fill cap Dpc7301 * | ||||
| 030 | 010114081 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 032 | 913455454 | |||
| No information available, not orderable | ||||
| 033 | 394114190 | |||
| O-RING 30X3,0 DPC67301 A | ||||
| 034 | 963230031 | 1.20 | 1.45 | |
| Air filter lid Dpc7401 * | ||||
| 035 | 394118110 | 30.80 | 37.27 | |
| Safety Label | ||||
| 036 | 980114599 | 3.60 | 4.36 | |
| Torx screw 5x30 | ||||
| 037 | 908005305 | 1.20 | 1.45 | |
| Insert plate | ||||
| 038 | 394118060 | 2.40 | 2.90 | |
| Prefilter Dpc7301 A | ||||
| 039 | 394173031 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 040 | 394118020 | |||
| Label Dpc6401 | ||||
| 041 | 980114794 | 6.00 | 7.26 | |
| Cover cap Dpc6401 * | ||||
| 042 | 394118080 | 27.50 | 33.28 | |
| No information available, not orderable | ||||
| 043 | 908505555 | |||
| Air Filter | ||||
| 044 | 394173010 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 045 | 394173020 | |||
| HEATSHIELD | ||||
| 046 | 346868-3 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 047 | 395174120 | |||
| Muffler | ||||
| 048 | 161339-7 | 82.76 | 100.14 | |
| Metal screw M5x20mm | ||||
| 049 | 266960-8 | 1.00 | 1.21 | |
| Torx Screw M5X9 Pc-6114 A | ||||
| 050 | 266474-7 | 1.00 | 1.21 | |
| M5 square nut | ||||
| 051 | 921905004 | 1.20 | 1.45 | |
| Hose clamp IAS 3 | ||||
| 052 | 965603050 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 053 | 394131200 | |||
| Guide Ring | ||||
| 054 | 346867-5 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 055 | 394171052 | |||
| Guiding ring A | ||||
| 056 | 965401016 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 057 | 965452382 | |||
| Uitlaatpakking Ek8100 A | ||||
| 058 | 346874-8 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 059 | 970502050 | |||
| Chokestang | ||||
| 060 | 326496-0 | 2.40 | 2.90 | |
| Choke Handle | ||||
| 061 | 394150030 | 6.00 | 7.26 | |
| Cylinder screw M4x55 | ||||
| 062 | 908204555 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 063 | 394151052 | |||
| Screw Dpc Hs-273A * | ||||
| 064 | 394150170 | 4.80 | 5.81 | |
| Pump cover Hs-273a | ||||
| 065 | 394150160 | 23.10 | 27.95 | |
| Membrane set Hs-273a | ||||
| 066 | 957150100 | 22.00 | 26.62 | |
| Membrane Dpc Hs-273A | ||||
| 067 | 113150150 | 6.70 | 8.11 | |
| Filter Hs-273a | ||||
| 068 | 394150180 | 4.80 | 5.81 | |
| Disc Dpc Hs-273A * | ||||
| 069 | 122151400 | 3.60 | 4.36 | |
| Lock Ring * | ||||
| 070 | 100150350 | 4.80 | 5.81 | |
| Choke As Dpc Hs-273A * | ||||
| 071 | 394150250 | 16.50 | 19.96 | |
| Screw * | ||||
| 072 | 001150650 | 3.60 | 4.36 | |
| Choke Valve HS-273A * | ||||
| 073 | 113150261 | 3.60 | 4.36 | |
| Ball * | ||||
| 074 | 113150380 | 2.40 | 2.90 | |
| Spring * | ||||
| 075 | 101150080 | 4.80 | 5.81 | |
| Revision set Hs-273a | ||||
| 076 | 957150160 | 16.50 | 19.96 | |
| Throttle valve Dpc Hs-273A * | ||||
| 077 | 144151320 | 6.00 | 7.26 | |
| Screw * | ||||
| 078 | 001150650 | 3.60 | 4.36 | |
| Bush Dpc Hs-273A * | ||||
| 079 | 144151315 | 3.60 | 4.36 | |
| Spring Dpc Hs-273A * | ||||
| 080 | 394150310 | 23.10 | 27.95 | |
| Bush Dpc Hs-273A * | ||||
| 081 | 144151315 | 3.60 | 4.36 | |
| Throttle shaft Dpc Hs-273A * | ||||
| 082 | 394150300 | 23.10 | 27.95 | |
| Ball | ||||
| 083 | 001150510 | 3.60 | 4.36 | |
| Idle Set Screw Hs-273a | ||||
| 084 | 394150570 | 6.00 | 7.26 | |
| O-ring Hs-273a | ||||
| 085 | 394150500 | 3.60 | 4.36 | |
| Spring * | ||||
| 086 | 144151480 | 3.60 | 4.36 | |
| Setting Screw L Hs-273a | ||||
| 087 | 394150470 | 17.60 | 21.30 | |
| Setting Screw H Hs-273a | ||||
| 088 | 394150510 | 17.60 | 21.30 | |
| Spring * | ||||
| 089 | 144151480 | 3.60 | 4.36 | |
| O-ring Hs-273a | ||||
| 090 | 394150500 | 3.60 | 4.36 | |
| Closing disk large Hs-273a | ||||
| 091 | 113150040 | 2.40 | 2.90 | |
| Diaphragm cover Dpc Hs-273A * | ||||
| 093 | 394150120 | 8.40 | 10.16 | |
| Gasket Hs-273a | ||||
| 094 | 965402970 | 2.40 | 2.90 | |
| Screw * | ||||
| 095 | 001150520 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 096 | 123357-3 | |||
| Met.screw Ck M5x16mm | ||||
| 097 | 266605-8 | 1.20 | 1.45 | |
| Clamping Ring | ||||
| 098 | 267821-5 | 1.00 | 1.21 | |
| Starter handle Dpc64/73/10/11 A | ||||
| 099 | 001161020 | 4.80 | 5.81 | |
| Makita Label Dpc7301 A | ||||
| 100 | 980115975 | 2.40 | 2.90 | |
| Rewinding Spring | ||||
| 101 | 394163020 | 9.60 | 11.62 | |
| Screw 3,5x10 | ||||
| 102 | 915735100 | 1.20 | 1.45 | |
| Cord drum | ||||
| 103 | 394162040 | 19.80 | 23.96 | |
| Lock Ring 14x1 | ||||
| 104 | 929314100 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 105 | 394112140 | |||
| No information available, not orderable | ||||
| 106 | 122164010 | |||
| No information available, not orderable | ||||
| 107 | 965605433 | |||
| Guiding ring A | ||||
| 108 | 965401016 | 2.40 | 2.90 | |
| Contact Spring | ||||
| 109 | 394146011 | 3.60 | 4.36 | |
| Spark plug cap cpl. | ||||
| 110 | 957604240 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 111 | 965603021 | |||
| Spark plug lead 100cm | ||||
| 112 | 970310200 | 7.20 | 8.71 | |
| No longer available, no replacement | ||||
| 113 | 394143013 | |||
| Metal Screw Ck M5x20mm | ||||
| 114 | 266607-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 115 | 394140010 | |||
| STARTPAL SET * | ||||
| 116 | 031166010 | 10.20 | 12.34 | |
| Washer 8mm EA3201S A | ||||
| 117 | 267822-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 118 | 920208024 | |||
| Cylinder cover cap | ||||
| 119 | 394131042 | 9.60 | 11.62 | |
| Met.screw Ck M5x16mm | ||||
| 120 | 266605-8 | 1.20 | 1.45 | |
| Torx screw 5x30 | ||||
| 121 | 908005305 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 122 | 962900052 | |||
| Decompression valve | ||||
| 123 | 001131150 | 20.90 | 25.29 | |
| No information available, not orderable | ||||
| 124 | 266476-3 | |||
| Crankcase magn. side black | ||||
| 125 | 326111731 | 95.70 | 115.80 | |
| Tension pin 3x16 | ||||
| 126 | 936430160 | 1.20 | 1.45 | |
| Crankcase gasket Ek8100 A | ||||
| 127 | 346877-2 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 128 | 960102159 | |||
| No information available, not orderable | ||||
| 129 | 325130034 | |||
| Piston D=47mm cpl. | ||||
| 130 | 325132035 | 100.10 | 121.12 | |
| Piston set PC-6114 A | ||||
| 131 | 183K15-9 | 92.40 | 111.80 | |
| Locking ring C12x1 | ||||
| 132 | 119132060 | 1.20 | 1.45 | |
| Gasket | ||||
| 133 | 346873-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 134 | 962210015 | |||
| Crankshaft Dpc7301 | ||||
| 135 | 394120200 | 68.20 | 82.52 | |
| Inlegspie 3 A | ||||
| 136 | 254042-8 | 1.00 | 1.21 | |
| Crankcase driving side | ||||
| 137 | 326111740 | 154.02 | 186.36 | |
| No information available, not orderable | ||||
| 138 | 960102159 | |||
| No information available, not orderable | ||||
| 139 | 962900052 | |||
| Lock washer A | ||||
| 140 | 234366-8 | 1.00 | 1.21 | |
| Stopring A | ||||
| 141 | 346872-2 | 3.60 | 4.36 | |
| Guide Disk Ek8100 A | ||||
| 142 | 346866-7 | 1.20 | 1.45 | |
| Clutch Drum Dpc7301 P | ||||
| 143 | 161317A7 | 26.40 | 31.94 | |
| Guide Disc A | ||||
| 144 | 001182062 | 3.54 | 4.28 | |
| Coupling assembly | ||||
| 145 | 123305-2 | 26.40 | 31.94 | |
| Coupling spring EK7301 A | ||||
| 146 | 232352-3 | 2.40 | 2.90 | |
| V Belt Dpc7301 | ||||
| 147 | 424712A5 | 23.06 | 27.90 | |
| No information available, not orderable | ||||
| 148 | 394213040 | |||
| No longer available, no replacement | ||||
| 149 | 908605145 | |||
| No information available, not orderable | ||||
| 150 | 980600130 | |||
| Protective Cover 350mm | ||||
| 151 | 143792-9 | 147.40 | 178.35 | |
| No information available, not orderable | ||||
| 152 | 394342011 | |||
| Mounting for hood | ||||
| 153 | 957342011 | 13.20 | 15.97 | |
| Inner flange 102 Ek7650H A | ||||
| 154 | 224478-5 | 17.60 | 21.30 | |
| As Ek8100 A | ||||
| 155 | 326502-1 | 13.20 | 15.97 | |
| Inner flange 102 Ek7650H A | ||||
| 156 | 224478-5 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 157 | 994290250 | |||
| SPACER DPC7301 A | ||||
| 158 | 394228022 | 3.60 | 4.36 | |
| Pressure Ring | ||||
| 159 | 318746-7 | 38.50 | 46.58 | |
| Grinding arm Dpc64/7311 A | ||||
| 160 | 319286-8 | 23.10 | 27.95 | |
| No information available, not orderable | ||||
| 161 | 929240180 | |||
| Ball Bearing 6203llu | ||||
| 162 | 211490-4 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 163 | 929240180 | |||
| No information available, not orderable | ||||
| 164 | 394211090 | |||
| Centering bolt cpl | ||||
| 165 | 957211020 | 9.60 | 11.62 | |
| SPACER DPC7301 A | ||||
| 166 | 394228022 | 3.60 | 4.36 | |
| Ball Bearing 6203llu | ||||
| 167 | 211490-4 | 8.40 | 10.16 | |
| Shim ring | ||||
| 168 | 900006179 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 169 | 394221050 | |||
| No information available, not orderable | ||||
| 170 | 994290250 | |||
| No information available, not orderable | ||||
| 171 | 394211100 | |||
| No information available, not orderable | ||||
| 172 | 394213033 | |||
| Pressure Spring 6mm Ek7650H A | ||||
| 173 | 234215-9 | 2.40 | 2.90 | |
| Nut M6 A | ||||
| 174 | 264112-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 175 | 923208004 | |||
| No information available, not orderable | ||||
| 176 | 980114999 | |||
| Bayonet closure clip | ||||
| 177 | 394118050 | 1.20 | 1.45 | |
| Rubber protector plate | ||||
| 178 | 965402870 | 23.10 | 27.95 | |
