Here you will find all available parts and drawings of the 'Makita DPB180'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

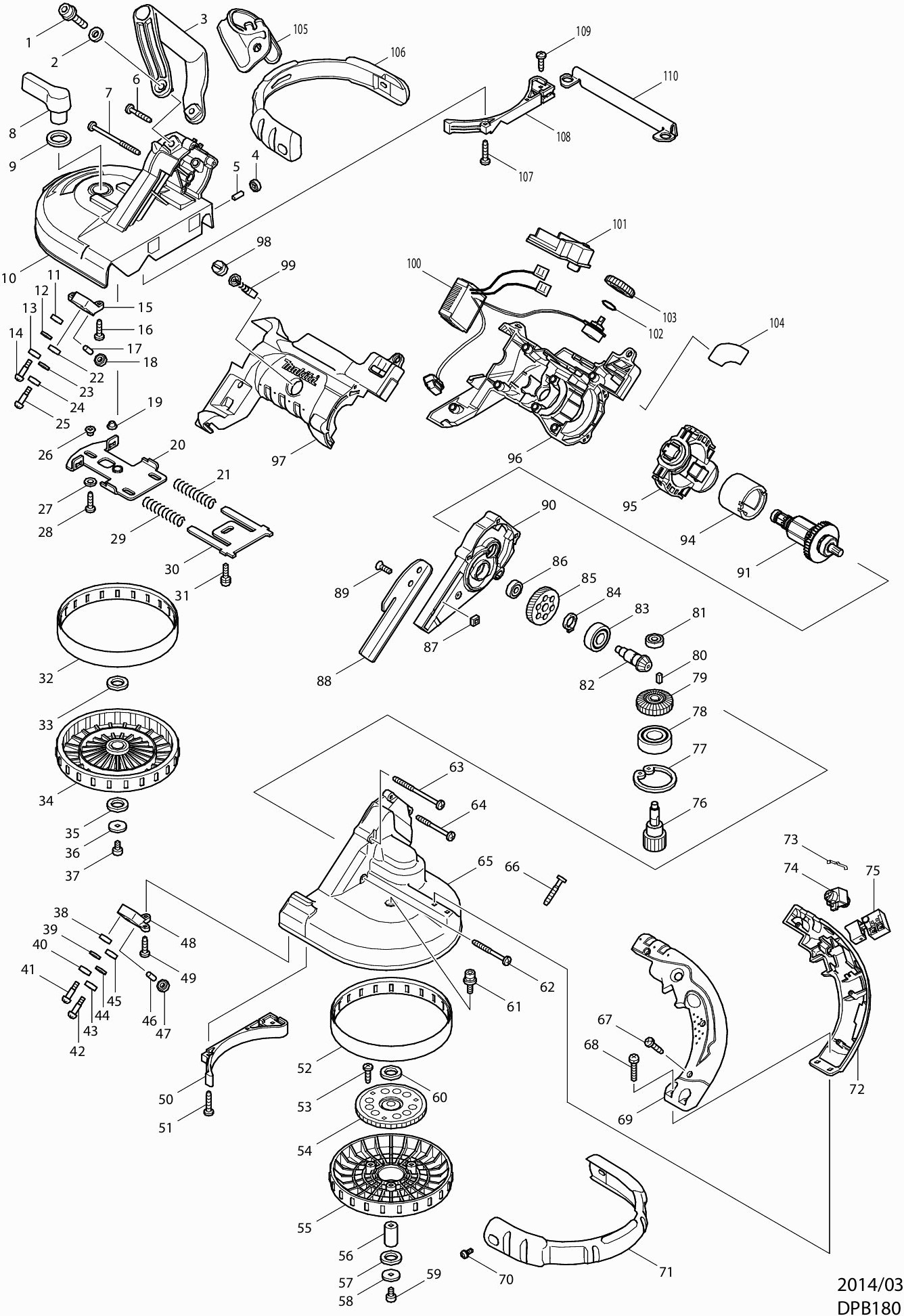

Technical drawing of model Makita DPB180
Spare parts list of model Makita DPB180
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex Socket Head Cap Screw | ||||
| 001 | 922456-6 | 1.00 | 1.21 | |
| Socket Head Cap Screw M8X35 with Wr | ||||
| 001 | 922458-2 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 002 | 941202-8 | 1.00 | 1.21 | |
| Handle DPB180 | ||||
| 003 | 273525-9 | 11.00 | 13.31 | |
| Ball bearing 696ZZ A | ||||
| 004 | 210026-6 | 2.40 | 2.90 | |
| Bandsaw guide DPB180 | ||||
| 004A1 | 143517-1 | 11.00 | 13.31 | |
| Pin 6 | ||||
| 005 | 256033-5 | 1.20 | 1.45 | |
| Pen 5 | ||||
| 005-1 | 268225-4 | 1.00 | 1.21 | |
| Pen 5 | ||||
| 005A1 | 268225-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 006 | 265999-8 | |||
| Tapping screw Pf 4x55 | ||||
| 007 | 266147-2 | 1.20 | 1.45 | |
| Fixing handle 2106W * | ||||
| 008 | 272223-2 | 9.60 | 11.62 | |
| Washer 20 | ||||
| 009 | 267041-1 | 1.00 | 1.21 | |
| Cover DPB180 | ||||
| 010 | 158703-1 | 53.90 | 65.22 | |
| DPB180 Indicator Label | ||||
| 010C10 | 816212-3 | 2.40 | 2.90 | |
| Ball bearing 696ZZ A | ||||
| 011 | 210026-6 | 2.40 | 2.90 | |
| Washer 6mm A | ||||
| 012 | 267214-6 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 013 | 210026-6 | 2.40 | 2.90 | |
| Screw M5 | ||||
| 014 | 251337-0 | 1.20 | 1.45 | |
| Houder B DPB180 | ||||
| 015 | 317824-0 | 6.00 | 7.26 | |
| Tapping Screw Ct4x16 | ||||
| 016 | 266034-5 | 1.00 | 1.21 | |
| Pin 6 | ||||
| 017 | 256033-5 | 1.20 | 1.45 | |
| Ball bearing 696ZZ A | ||||
| 018 | 210026-6 | 2.40 | 2.90 | |
| Bus 5 | ||||
| 019 | 343494-9 | 1.20 | 1.45 | |
| Clamp plate DBP180 | ||||
| 020 | 163276-1 | 12.10 | 14.64 | |
| COMPRESSION SPRING 11 DBP180 | ||||
| 021 | 231449-5 | 1.20 | 1.45 | |
| Ball bearing 696ZZ A | ||||
| 022 | 210026-6 | 2.40 | 2.90 | |
| Washer 6mm A | ||||
| 023 | 267214-6 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 024 | 210026-6 | 2.40 | 2.90 | |
| Screw M5 | ||||
| 025 | 251337-0 | 1.20 | 1.45 | |
| Bus 5 | ||||
| 026 | 343494-9 | 1.20 | 1.45 | |
| 4 Washer | ||||
| 027 | 941051-3 | 1.00 | 1.21 | |
| Tapping Screw Ct4x16 | ||||
| 028 | 266034-5 | 1.00 | 1.21 | |
| COMPRESSION SPRING 11 DBP180 | ||||
| 029 | 231449-5 | 1.20 | 1.45 | |
| Spring Plate 2106W * | ||||
| 030 | 343489-2 | 3.60 | 4.36 | |
| Screw 5x16 | ||||
| 031 | 911221-8 | 1.00 | 1.21 | |
| Rubber Ring 2106W * | ||||
| 032 | 421333-4 | 8.40 | 10.16 | |
| 16 * Washer | ||||
| 033 | 253749-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 034 | 152325-9 | |||
| Belt Wheel DPB180 | ||||
| 034-1 | 140B58-0 | 16.50 | 19.96 | |
| 16 * Washer | ||||
| 035 | 253749-3 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 036 | 253010-8 | 1.00 | 1.21 | |
| Hex socket head screw M6x12 | ||||
| 037 | 922312-0 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 038 | 210026-6 | 2.40 | 2.90 | |
| Washer 6mm A | ||||
| 039 | 267214-6 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 040 | 210026-6 | 2.40 | 2.90 | |
| Screw M5 | ||||
| 041 | 251337-0 | 1.20 | 1.45 | |
| Screw M5 | ||||
| 042 | 251337-0 | 1.20 | 1.45 | |
| Ball bearing 696ZZ A | ||||
| 043 | 210026-6 | 2.40 | 2.90 | |
| Washer 6mm A | ||||
| 044 | 267214-6 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 045 | 210026-6 | 2.40 | 2.90 | |
| Pin 6 | ||||
| 046 | 256033-5 | 1.20 | 1.45 | |
| Ball bearing 696ZZ A | ||||
| 047 | 210026-6 | 2.40 | 2.90 | |
| Houder A DPB180 | ||||
| 048 | 317823-2 | 6.00 | 7.26 | |
| Tapping Screw Ct4x16 | ||||
| 049 | 266034-5 | 1.00 | 1.21 | |
| Guide plate holder DPB180 | ||||
| 050 | 418784-0 | 3.60 | 4.36 | |
| Self-tapping screw 4x20 | ||||
| 051 | 266042-6 | 1.00 | 1.21 | |
| Rubber Ring 2106W * | ||||
| 052 | 421333-4 | 8.40 | 10.16 | |
| Tapschroef 5x20 | ||||
| 053 | 266021-4 | 1.20 | 1.45 | |
| Gear DPB180 | ||||
| 054 | 154949-7 | 16.50 | 19.96 | |
| Drive wheel DPB180 | ||||
| 055 | 419506-1 | 9.60 | 11.62 | |
| As A DBP180 | ||||
| 056 | 324513-0 | 7.20 | 8.71 | |
| 16 * Washer | ||||
| 057 | 253749-3 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 058 | 253010-8 | 1.00 | 1.21 | |
| Hex socket head screw M6x12 | ||||
| 059 | 922312-0 | 1.00 | 1.21 | |
| 16 * Washer | ||||
| 060 | 253749-3 | 1.00 | 1.21 | |
| Hex bolt M6x16 | ||||
| 061 | 922323-5 | 1.00 | 1.21 | |
| Self-tapping screw 4x40 | ||||
| 062 | 266203-8 | 1.00 | 1.21 | |
| Tapping screw Pf 4x55 | ||||
| 063 | 266147-2 | 1.20 | 1.45 | |
| Self-tapping screw 4x40 | ||||
| 064 | 266048-4 | 1.00 | 1.21 | |
| Cover wheel DPB180 | ||||
| 065 | 317947-4 | 53.90 | 65.22 | |
| Tap screw 4x18 | ||||
| 066 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 067 | 265A48-7 | 1.00 | 1.21 | |
| Screw 5x25 | ||||
| 068 | 911243-8 | 1.00 | 1.21 | |
| Handle set DPB180 | ||||
| 069 | 188108-1 | 23.10 | 27.95 | |
| Screw 5x12 | ||||
| 070 | 911213-7 | 1.00 | 1.21 | |
| Bumper A DPB180 | ||||
| 071 | 168412-4 | 16.50 | 19.96 | |
| Handle set DPB180 | ||||
| 072 | 188108-1 | 23.10 | 27.95 | |
| Leaf Spring | ||||
| 073 | 232201-4 | 2.40 | 2.90 | |
| Lock button | ||||
| 074 | 419504-5 | 4.80 | 5.81 | |
| Switch DPB180 | ||||
| 075 | 650229-4 | 7.20 | 8.71 | |
| Gear 12mm DBP180 | ||||
| 076 | 227170-2 | 23.10 | 27.95 | |
| Lock ring R-47 | ||||
| 077 | 962203-3 | 1.20 | 1.45 | |
| Ball Bearing 6204 | ||||
| 078 | 211306-3 | 10.80 | 13.07 | |
| Gear 29mm DPB180 | ||||
| 079 | 227470-0 | 8.40 | 10.16 | |
| Feather Key 4 | ||||
| 080 | 254202-2 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 081 | 210046-0 | 1.20 | 1.45 | |
| Gear 11mm DPB180 | ||||
| 082 | 227481-5 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 083 | 211241-5 | |||
| Lock washer S-15 | ||||
| 084 | 961055-9 | 1.00 | 1.21 | |
| Gear 45mm DPB180 | ||||
| 085 | 226626-2 | 8.40 | 10.16 | |
| Ball Bearing 608Zz A | ||||
| 086 | 210046-0 | 1.20 | 1.45 | |
| Hex nut M6 5621Rd | ||||
| 087 | 252157-5 | 1.20 | 1.45 | |
| Stop Plate DPB180 | ||||
| 088 | 345467-8 | 2.40 | 2.90 | |
| Countersunk screw M6X16 | ||||
| 089 | 251981-3 | 1.00 | 1.21 | |
| Gear Housing DPB180 | ||||
| 090 | 154475-6 | 19.80 | 23.96 | |
| Armature 18V DPB180 | ||||
| 091 | 619187-3 | 36.30 | 43.92 | |
| Magnet holder | ||||
| 094 | 638420-4 | 26.40 | 31.94 | |
| Brush holder set DPB180 | ||||
| 095 | 638919-9 | 3.60 | 4.36 | |
| Motor Housing Set DBP180 | ||||
| 096 | 187801-4 | 30.80 | 37.27 | |
| Motor Housing Set DBP180 | ||||
| 097 | 187801-4 | 30.80 | 37.27 | |
| Brush Cap | ||||
| 098 | 643929-3 | 1.00 | 1.21 | |
| Carbon brush set Cb-430 | ||||
| 099 | 191971-3 | 3.60 | 4.36 | |
| Controller DBP180 | ||||
| 100 | 632B82-2 | 59.40 | 71.87 | |
| Connection unit (3 contacts) | ||||
| 101 | 644808-8 | 3.60 | 4.36 | |
| O-ring 17 | ||||
| 102 | 213261-5 | 2.40 | 2.90 | |
| Adjustment knob DPB180 | ||||
| 103 | 419505-3 | 2.40 | 2.90 | |
| Nameplate DPB180 | ||||
| 104 | 815T13-6 | 3.60 | 4.36 | |
| Bumper B DPB180 | ||||
| 106 | 168413-2 | 16.50 | 19.96 | |
| Self-tapping screw 4x20 | ||||
| 107 | 266042-6 | 1.00 | 1.21 | |
| Guide plate holder DPB180 | ||||
| 108 | 418784-0 | 3.60 | 4.36 | |
| Tapping Screw Ct4x16 | ||||
| 109 | 266034-5 | 1.00 | 1.21 | |
| Saw blade guide plate DPB180 | ||||
| 110 | 346669-9 | 2.40 | 2.90 | |
