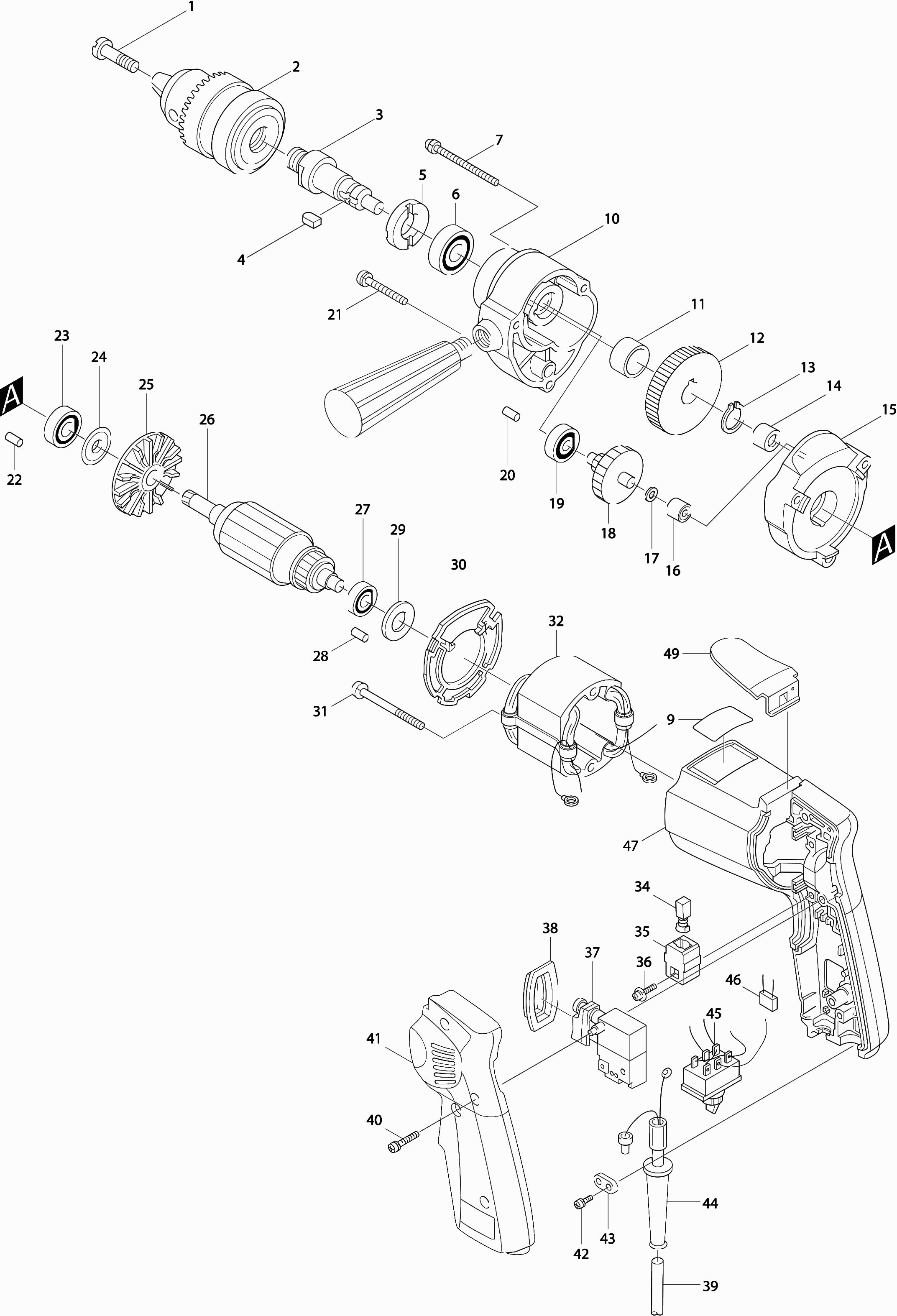

Technical drawing of model Makita DP4700
Spare parts list of model Makita DP4700
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw M6x22 | ||||
| 001 | 251469-3 | 1.20 | 1.45 | |
| BOORKOP SNELSPAN 1,5-13MM | ||||
| 002 | 193616-9 | 29.00 | 35.09 | |
| Chuck Key | ||||
| 002A | 763432-9 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 002B | 192541-1 | |||
| Drill Spindle | ||||
| 003 | 321082-2 | 38.50 | 46.58 | |
| Inlegspie 5 | ||||
| 004 | 254211-1 | 1.20 | 1.45 | |
| Bearing Lock 22-36 | ||||
| 005 | 285807-7 | 2.40 | 2.90 | |
| Ball bearing 6202llb | ||||
| 006 | 211228-7 | 8.40 | 10.16 | |
| Screw 5x65 | ||||
| 007 | 911290-9 | 1.20 | 1.45 | |
| Gear Cover | ||||
| 010 | 153551-3 | 8.40 | 10.16 | |
| Washer 15 | ||||
| 011 | 257018-4 | 2.40 | 2.90 | |
| Gear 47 | ||||
| 012 | 221261-1 | 12.10 | 14.64 | |
| Lock ring S-14 | ||||
| 013 | 961054-1 | 1.00 | 1.21 | |
| Needle Bearing 810 | ||||
| 014 | 212004-2 | 4.80 | 5.81 | |
| Gearbox Cover | ||||
| 015 | 153552-1 | 8.40 | 10.16 | |
| NAALDLAGER 609 A | ||||
| 016 | 212268-8 | 4.80 | 5.81 | |
| Washer 6 | ||||
| 017 | 253715-0 | 1.20 | 1.45 | |
| Gear 7-46 | ||||
| 018 | 226044-4 | 18.70 | 22.63 | |
| Ball bearing 626llb | ||||
| 019 | 211016-2 | 6.00 | 7.26 | |
| Rubber Pin 4 | ||||
| 020 | 263002-9 | 1.00 | 1.21 | |
| SCREW 5X50 | ||||
| 021 | 911273-9 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 022 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 608llb | ||||
| 023 | 210043-6 | 2.40 | 2.90 | |
| Dust seal 8 | ||||
| 024 | 213002-9 | 1.20 | 1.45 | |
| Armature | ||||
| 026 | 518139-0 | 58.30 | 70.54 | |
| Ball bearing 627llb | ||||
| 027 | 210025-8 | 3.60 | 4.36 | |
| Rubber Pin 4 | ||||
| 028 | 263002-9 | 1.00 | 1.21 | |
| Washer 14 | ||||
| 029 | 253192-6 | 1.00 | 1.21 | |
| Intermediate Plate | ||||
| 030 | 411528-7 | 1.20 | 1.45 | |
| Screw 4X55 | ||||
| 031 | 911586-8 | 1.20 | 1.45 | |
| Field | ||||
| 032 | 628171-7 | 40.70 | 49.25 | |
| KOOLBORSTEL SET CB-64 A | ||||
| 034 | 194968-1 | 4.80 | 5.81 | |
| Brush Holder | ||||
| 035 | 643552-4 | 1.20 | 1.45 | |
| Screw 4x14 | ||||
| 036 | 911123-8 | 1.00 | 1.21 | |
| Switch | ||||
| 037 | 650226-0 | 26.40 | 31.94 | |
| Switch Sw-121 | ||||
| 037A | 651256-4 | 28.60 | 34.61 | |
| Dust cover for switch | ||||
| 038 | 421145-5 | 11.00 | 13.31 | |
| Power cord 2x1.00 2.2mtr | ||||
| 039 | 665383-1 | 10.80 | 13.07 | |
| Screw 4x28 | ||||
| 040 | 911151-3 | 1.00 | 1.21 | |
| Handle Cover | ||||
| 041 | 154951-0 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 041A | 155283-8 | |||
| Screw 4X18 | ||||
| 042 | 911131-9 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 043 | 687001-1 | 1.00 | 1.21 | |
| Cable grommet 10-85 | ||||
| 044 | 682504-0 | 2.40 | 2.90 | |
| Switch Sw-78 | ||||
| 045 | 651478-6 | 11.00 | 13.31 | |
| Motor Housing | ||||
| 047 | 154952-8 | 18.70 | 22.63 | |
| No information available, not orderable | ||||
| 047A | 156879-8 | |||
| Leaf Spring | ||||
| 048 | 232034-7 | 1.00 | 1.21 | |
| Carrying bracket | ||||
| 049 | 343693-3 | 2.40 | 2.90 | |
