Here you will find all available parts and drawings of the 'Makita DP4021'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

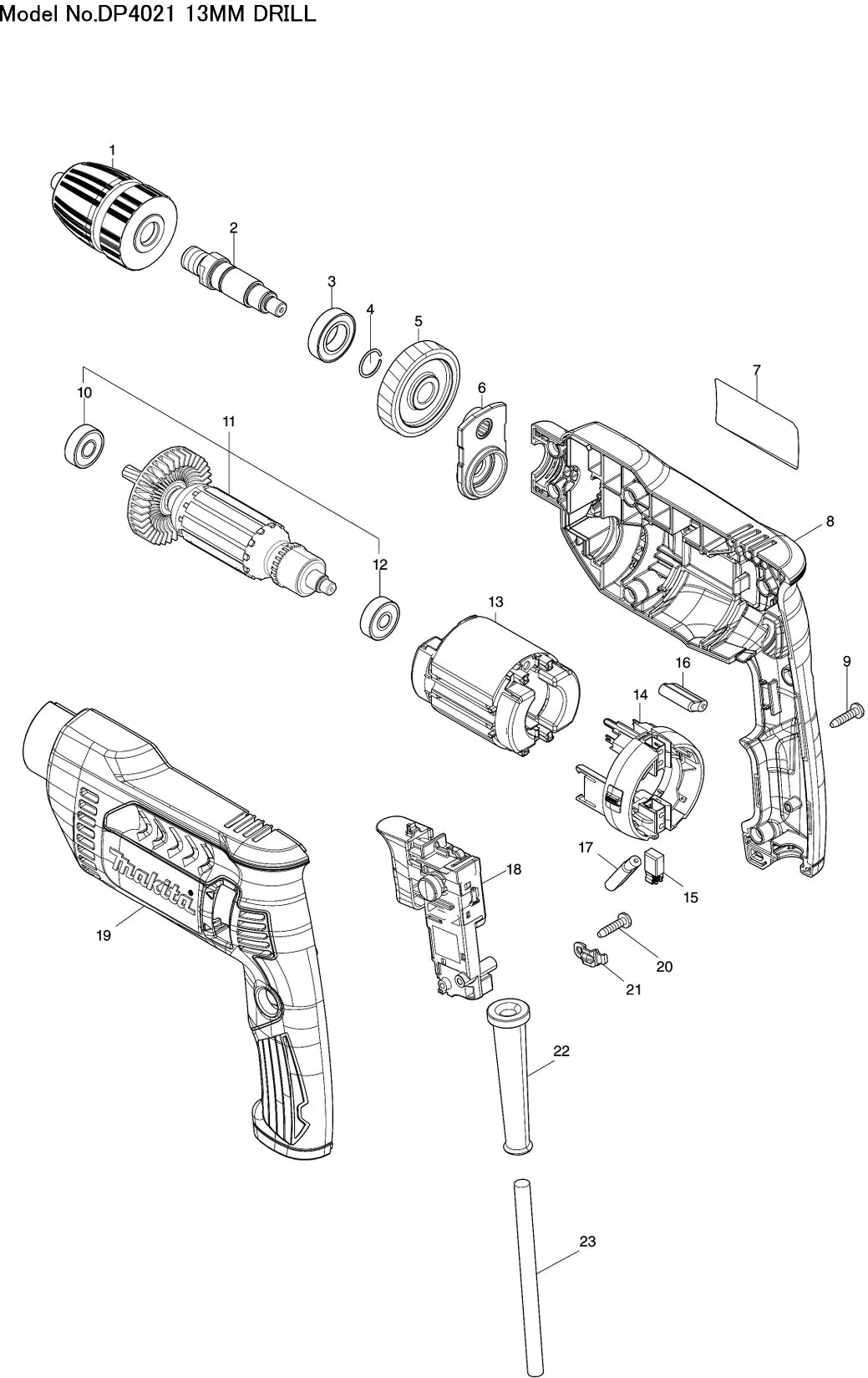

Technical drawing of model Makita DP4021
Spare parts list of model Makita DP4021
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 763267-8 | |||
| AS DP4020_21 | ||||
| 002 | 327D32-9 | 2.40 | 2.90 | |
| Ball bearing 6902Zz A | ||||
| 003 | 210153-9 | 1.20 | 1.45 | |
| Locking washer 13 | ||||
| 004 | 233925-5 | 1.00 | 1.21 | |
| TANDWIEL 45 DP4020_21 | ||||
| 005 | 227B42-3 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 006 | 141V10-1 | |||
| LABEL DP4021 | ||||
| 007 | 8147D0-2 | 1.00 | 1.21 | |
| MOTORHUIS DP4020_21 | ||||
| 008 | 1830U0-3 | 9.60 | 11.62 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 009 | 265B67-9 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 010 | 210046-0 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 011 | 511B13-3 | |||
| Fan 52 | ||||
| 011C10 | 241881-5 | 2.40 | 2.90 | |
| Ball Bearing 627Zz A | ||||
| 012 | 210050-9 | 1.20 | 1.45 | |
| VELD DS4020_21 | ||||
| 013 | 634859-9 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 014 | 632S42-6 | |||
| No information available, not orderable | ||||
| 015 | 1914L5-0 | |||
| No information available, not orderable | ||||
| 016 | 632V45-8 | |||
| No information available, not orderable | ||||
| 017 | 632V46-6 | |||
| No information available, not orderable | ||||
| 018 | 650054-3 | |||
| MOTORHUIS DP4020_21 | ||||
| 019 | 1830U0-3 | 9.60 | 11.62 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 020 | 265B67-9 | 1.00 | 1.21 | |
| Strain reliever | ||||
| 021 | 687681-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 022 | 682569-2 | |||
| Power cord 2x1.00 2.2mtr | ||||
| 023 | 665383-1 | 10.80 | 13.07 | |
