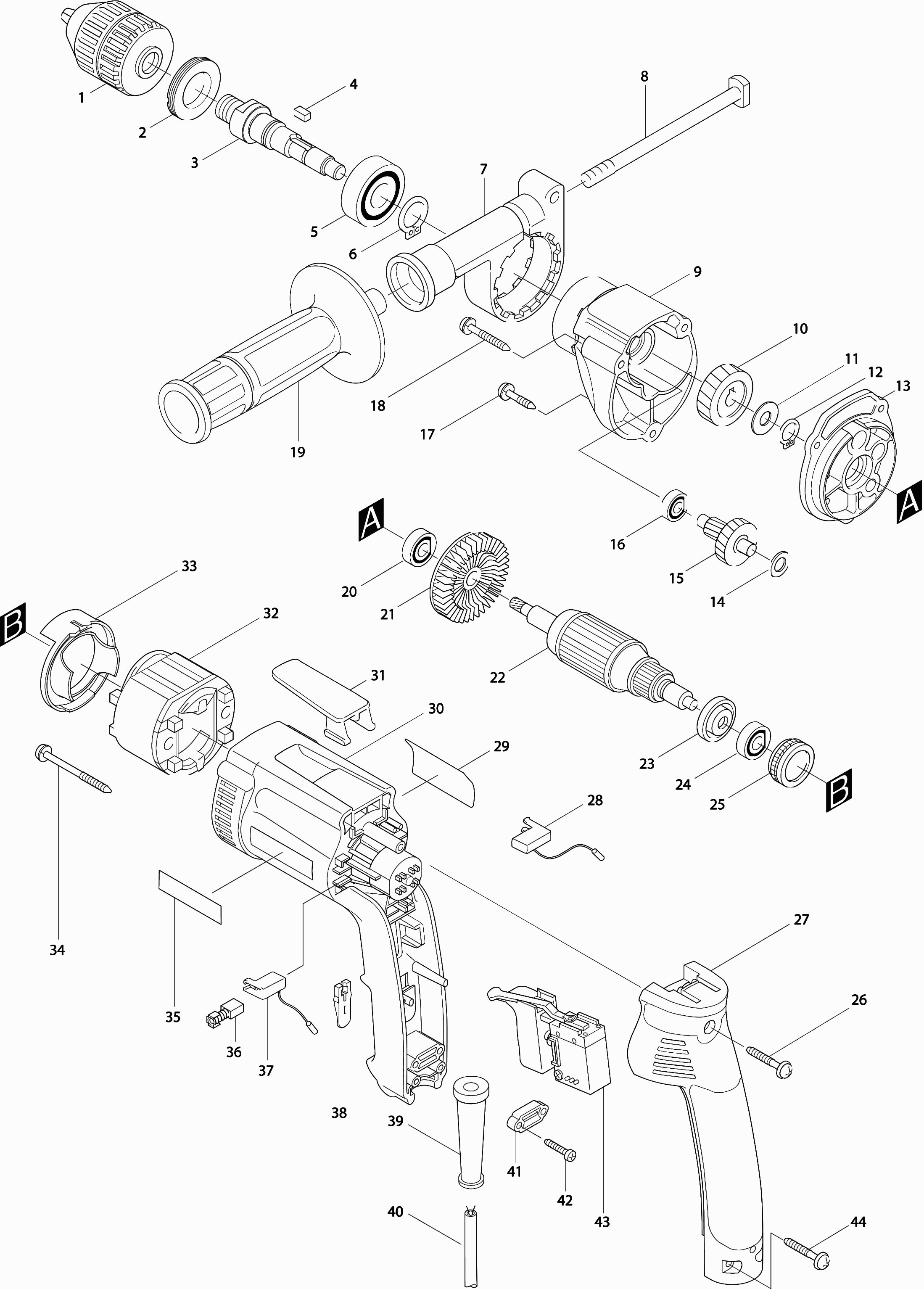

Technical drawing of model Makita DP3003
Spare parts list of model Makita DP3003
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Boorkop snelspan 1-10mm | ||||
| 001 | 193615-1 | 27.00 | 32.67 | |
| Bearing Lock 22-36 | ||||
| 002 | 285807-7 | 1.67 | 2.02 | |
| Drill Spindle | ||||
| 003 | 324040-7 | 34.95 | 42.29 | |
| Feather Key 4 | ||||
| 004 | 254202-2 | 0.83 | 1.00 | |
| Ball bearing 6202llb | ||||
| 005 | 211228-7 | 7.22 | 8.74 | |
| Lock washer S-15 | ||||
| 006 | 961055-9 | 0.83 | 1.00 | |
| Handle Bracket | ||||
| 007 | 317401-8 | 11.34 | 13.72 | |
| Bolt M8X130 Dp4003 * | ||||
| 008 | 266261-4 | 2.71 | 3.28 | |
| Gear Cover | ||||
| 009 | 317398-1 | 38.75 | 46.89 | |
| Gear 32 | ||||
| 010 | 226530-5 | 21.97 | 26.58 | |
| Washer 10 | ||||
| 011 | 253180-3 | 0.98 | 1.19 | |
| Locking Ring S-10 | ||||
| 012 | 257408-1 | 0.83 | 1.00 | |
| Inner Cover | ||||
| 013 | 152640-1 | 26.55 | 32.13 | |
| Washer 6 | ||||
| 014 | 267217-0 | 0.83 | 1.00 | |
| Gear Unit 7-34 | ||||
| 015 | 226140-8 | 34.95 | 42.29 | |
| Ball bearing 626llb | ||||
| 016 | 211016-2 | 5.71 | 6.91 | |
| Self Tapping Screw Pt4x30 | ||||
| 017 | 266050-7 | 0.83 | 1.00 | |
| Tapschroef 4x45 | ||||
| 018 | 266069-6 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 019 | 152521-9 | |||
| Ball bearing 608llb | ||||
| 020 | 210043-6 | 1.67 | 2.02 | |
| Fan 55 | ||||
| 021 | 241873-4 | 2.84 | 3.44 | |
| Armature | ||||
| 022 | 517363-2 | 58.04 | 70.23 | |
| Insulation ring | ||||
| 023 | 681636-0 | 1.18 | 1.43 | |
| Ball bearing 607llb | ||||
| 024 | 211021-9 | 4.45 | 5.38 | |
| Rubber Ring for Bearing | ||||
| 025 | 421479-6 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 026 | 265999-8 | |||
| Handle Cover | ||||
| 027 | 152641-9 | 19.29 | 23.34 | |
| Brush holder Re | ||||
| 028 | 643953-6 | 2.02 | 2.44 | |
| Label | ||||
| 029 | 852497-7 | 2.71 | 3.28 | |
| Motorhuis set | ||||
| 030 | 183270-7 | 18.20 | 22.02 | |
| Hang Hook | ||||
| 031 | 417625-7 | 1.46 | 1.77 | |
| Field | ||||
| 032 | 633473-8 | 15.65 | 18.94 | |
| Intermediate Plate | ||||
| 033 | 417357-6 | 5.34 | 6.46 | |
| Self Tapping Screw Pt4X60 * | ||||
| 034 | 266052-3 | 0.83 | 1.00 | |
| Label "makita" | ||||
| 035 | 819197-2 | 2.71 | 3.28 | |
| Brush Set CB-419 | ||||
| 036 | 195015-1 | 4.45 | 5.38 | |
| Brush holder left | ||||
| 037 | 643952-8 | 2.02 | 2.44 | |
| Sliding Plate | ||||
| 038 | 417358-4 | 0.83 | 1.00 | |
| Cable gland 8-110 | ||||
| 039 | 682559-5 | 0.83 | 1.00 | |
| Power cord 2x1.00 2.2mtr | ||||
| 040 | 665383-1 | 10.50 | 12.70 | |
| Clamp Bracket | ||||
| 041 | 687053-2 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 042 | 265A48-7 | 0.83 | 1.00 | |
| Switch Dp4003 | ||||
| 043 | 651991-4 | 30.70 | 37.15 | |
| No information available, not orderable | ||||
| 044 | 265999-8 | |||
| Gasket | ||||
| 045 | 442135-5 | 2.36 | 2.86 | |
