Here you will find all available parts and drawings of the 'Makita DMR112'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

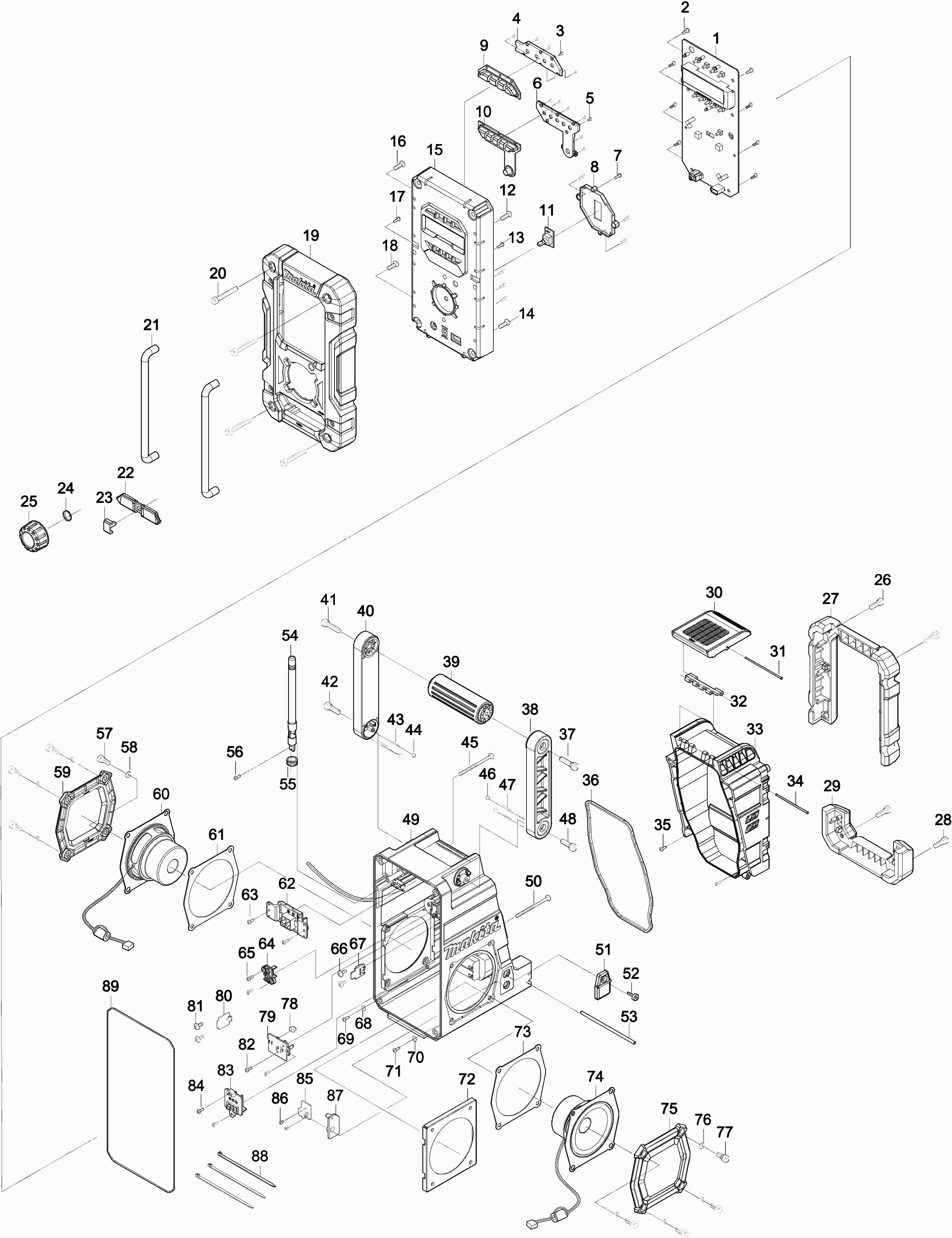

Technical drawing of model Makita DMR112
Spare parts list of model Makita DMR112
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Display circuit A DMR112 | ||||
| 001 | SE00000658 | 170.50 | 206.30 | |
| Screw 3 x 8mm | ||||
| 002 | SE00000325 | 1.00 | 1.21 | |
| Tapping screw 1.7 | ||||
| 003 | SE09090011 | 1.00 | 1.21 | |
| On/Off button holder DMR112 | ||||
| 004 | SE00000659 | 1.20 | 1.45 | |
| Tapping screw 1.7 | ||||
| 005 | SE09090011 | 1.00 | 1.21 | |
| Preset button holder DMR112 | ||||
| 006 | SE00000660 | 2.40 | 2.90 | |
| Screw 3 x 8mm | ||||
| 007 | SE00000325 | 1.00 | 1.21 | |
| Switch button holder MR103 A | ||||
| 008 | SE00000656 | 1.20 | 1.45 | |
| On/Off button DMR112 | ||||
| 009 | SE00000661 | 2.40 | 2.90 | |
| Preset button DMR112 | ||||
| 010 | SE00000662 | 2.40 | 2.90 | |
| Encoder circuit DMR112 | ||||
| 011 | SE00000663 | 9.60 | 11.62 | |
| Screw M4x16 | ||||
| 012 | SE09064161 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 013 | SE00000325 | 1.00 | 1.21 | |
| Screw M4x16 | ||||
| 014 | SE09064161 | 1.00 | 1.21 | |
| Front panel DMR112 | ||||
| 015 | SE00000664 | 19.80 | 23.96 | |
| Screw M4x16 | ||||
| 016 | SE09064161 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 017 | SE00000325 | 1.00 | 1.21 | |
| Screw M4x16 | ||||
| 018 | SE09064161 | 1.00 | 1.21 | |
| Bumper rubber DMR112 | ||||
| 019 | SE00000666 | 22.00 | 26.62 | |
| Point screw 6x47mm | ||||
| 020 | SE00000160 | 1.20 | 1.45 | |
| Impact handle | ||||
| 021 | SE0338PC5Z | 9.60 | 11.62 | |
| Rubber Cover Cap | ||||
| 022 | SE00000355 | 2.40 | 2.90 | |
| Covering hood | ||||
| 023 | SE00000356 | 2.40 | 2.90 | |
| Volume knob ring | ||||
| 024 | SE21B1110A | 1.00 | 1.21 | |
| Volume knob | ||||
| 025 | SE00000482 | 2.40 | 2.90 | |
| BOLT M6X16 | ||||
| 026 | SE09176166 | 1.00 | 1.21 | |
| Rear Bumper Rubber | ||||
| 027 | SE00000357 | 19.80 | 23.96 | |
| BOLT M6X16 | ||||
| 028 | SE09176166 | 1.00 | 1.21 | |
| Rear Bumper Rubber | ||||
| 029 | SE00000359 | 11.00 | 13.31 | |
| Lock | ||||
| 030 | SE00000362 | 6.00 | 7.26 | |
| Pin 73.5mm | ||||
| 031 | SE00000364 | 1.20 | 1.45 | |
| Closing Plate | ||||
| 032 | SE00000365 | 1.20 | 1.45 | |
| Battery Cover Cap | ||||
| 033 | SE00000483 | 16.50 | 19.96 | |
| Pin 64.5mm | ||||
| 034 | SE00000369 | 1.20 | 1.45 | |
| Screw 3 x 8mm | ||||
| 035 | SE00000325 | 1.00 | 1.21 | |
| Gasket | ||||
| 036 | SE00000371 | 8.40 | 10.16 | |
| Tap screw 6x20mm | ||||
| 037 | SE00000176 | 1.00 | 1.21 | |
| Handle holder "r" | ||||
| 038 | SE00000177 | 2.40 | 2.90 | |
| Handle | ||||
| 039 | SE00000179 | 4.80 | 5.81 | |
| Handle holder "l" | ||||
| 040 | SE00000180 | 2.40 | 2.90 | |
| Tap screw 6x20mm | ||||
| 041 | SE00000176 | 1.00 | 1.21 | |
| BOLT M6X16 | ||||
| 042 | SE09176166 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 043 | SE00000184 | 1.00 | 1.21 | |
| Ball | ||||
| 044 | SE09994007 | 1.00 | 1.21 | |
| Countersunk screw 3x45 (ni) | ||||
| 045 | SE00000445 | 1.00 | 1.21 | |
| Ball | ||||
| 046 | SE09994007 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 047 | SE00000184 | 1.00 | 1.21 | |
| BOLT M6X16 | ||||
| 048 | SE09176166 | 1.00 | 1.21 | |
| Rear panel DMR112 | ||||
| 049 | SE00000667 | 41.80 | 50.58 | |
| Countersunk screw 3x45 (ni) | ||||
| 050 | SE00000445 | 1.00 | 1.21 | |
| Covering hood | ||||
| 051 | SE00000403 | 2.40 | 2.90 | |
| Screw 3x14mm | ||||
| 052 | SE00000404 | 1.00 | 1.21 | |
| Hinge pin battery cover | ||||
| 053 | SE021PC030 | 1.20 | 1.45 | |
| Antenna 88-108 DMR112 | ||||
| 054 | SE00000669 | 9.60 | 11.62 | |
| Antenna Packing | ||||
| 055 | SE00000398 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 056 | SE00000325 | 1.00 | 1.21 | |
| Screw M6X14 | ||||
| 057 | SE9076146A | 1.00 | 1.21 | |
| Gasket | ||||
| 058 | SE024J9040 | 1.00 | 1.21 | |
| Speaker panel | ||||
| 059 | SE00000408 | 8.40 | 10.16 | |
| Speaker L+R DMR112 | ||||
| 060 | SE00000670 | 22.00 | 26.62 | |
| Speaker gasket | ||||
| 061 | SE00000406 | 2.40 | 2.90 | |
| Connection unit E | ||||
| 062 | SE00000416 | 4.80 | 5.81 | |
| Screw 3 x 8mm | ||||
| 063 | SE00000325 | 1.00 | 1.21 | |
| Connection unit "c" | ||||
| 064 | SE00000200 | 3.60 | 4.36 | |
| Screw 3 x 8mm | ||||
| 065 | SE00000325 | 1.00 | 1.21 | |
| Tap screw 3x10mm | ||||
| 066 | SE00000193 | 1.00 | 1.21 | |
| Circuit B Aux DMR112 | ||||
| 067 | SE00000671 | 8.40 | 10.16 | |
| Rivet | ||||
| 068 | SE00000199 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 069 | SE00000325 | 1.00 | 1.21 | |
| Rivet | ||||
| 070 | SE00000199 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 071 | SE00000325 | 1.00 | 1.21 | |
| Speaker holder | ||||
| 072 | SE00000422 | 2.40 | 2.90 | |
| Speaker gasket | ||||
| 073 | SE00000406 | 2.40 | 2.90 | |
| Speaker L+R DMR112 | ||||
| 074 | SE00000670 | 22.00 | 26.62 | |
| Speaker panel | ||||
| 075 | SE00000408 | 8.40 | 10.16 | |
| Gasket | ||||
| 076 | SE024J9040 | 1.00 | 1.21 | |
| Screw M6X14 | ||||
| 077 | SE9076146A | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 078 | SE00000430 | 1.20 | 1.45 | |
| Circuit D battery switch DMR112 | ||||
| 079 | SE00000673 | 11.00 | 13.31 | |
| Circuit G USB DMR112 | ||||
| 080 | SE00000674 | 8.40 | 10.16 | |
| Tap screw 3x10mm | ||||
| 081 | SE00000193 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 082 | SE00000325 | 1.00 | 1.21 | |
| Connection unit Dmr107 | ||||
| 083 | SE00000473 | 4.80 | 5.81 | |
| Screw 3 x 8mm | ||||
| 084 | SE00000325 | 1.00 | 1.21 | |
| Circuit F DC jack DMR112 | ||||
| 085 | SE00000675 | 9.60 | 11.62 | |
| Tapping screw 1.7 | ||||
| 086 | SE09090011 | 1.00 | 1.21 | |
| Holder "dc-jack" | ||||
| 087 | SE00000435 | 1.20 | 1.45 | |
| W/ties 100mm | ||||
| 088 | SE00000195 | 1.00 | 1.21 | |
| Gasket | ||||
| 089 | SE024PC040 | 2.40 | 2.90 | |
