Here you will find all available parts and drawings of the 'Makita DMR108'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

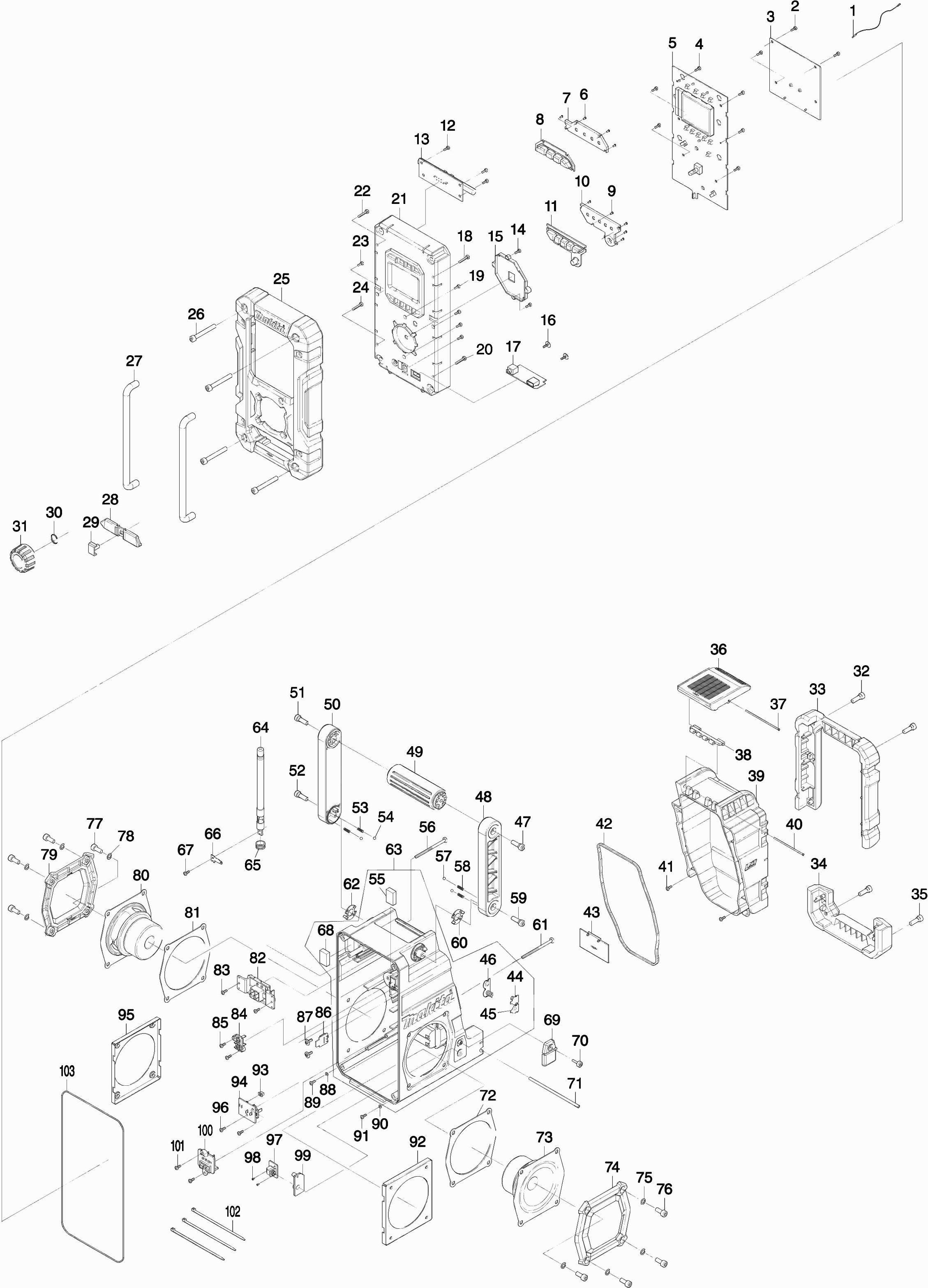

Technical drawing of model Makita DMR108
Spare parts list of model Makita DMR108
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Wire | ||||
| 001 | SE00000437 | 1.20 | 1.45 | |
| Screw 3 x 8mm | ||||
| 002 | SE00000325 | 1.00 | 1.21 | |
| CIRCUIT A DMR108 A | ||||
| 003 | SE00000595 | 78.10 | 94.50 | |
| CIRCUIT A DMR108 A | ||||
| 003-1 | SE00000595 | 78.10 | 94.50 | |
| Screw 3 x 8mm | ||||
| 004 | SE00000325 | 1.00 | 1.21 | |
| Circuit "c" | ||||
| 005 | SE00000480 | 48.40 | 58.56 | |
| Tapping screw 1.7 | ||||
| 006 | SE09090011 | 1.00 | 1.21 | |
| Holder | ||||
| 007 | SE00000333 | 2.40 | 2.90 | |
| Control Switch | ||||
| 008 | SE00000334 | 2.40 | 2.90 | |
| Tapping screw 1.7 | ||||
| 009 | SE09090011 | 1.00 | 1.21 | |
| Holder | ||||
| 010 | SE00000336 | 2.40 | 2.90 | |
| Preset button | ||||
| 011 | SE00000337 | 3.60 | 4.36 | |
| Screw 3 x 8mm | ||||
| 012 | SE00000325 | 1.00 | 1.21 | |
| Circuit PCB Ant | ||||
| 013 | SE00000339 | 10.80 | 13.07 | |
| Screw 3 x 8mm | ||||
| 014 | SE00000325 | 1.00 | 1.21 | |
| Switch button holder MR103 A | ||||
| 015 | SE00000656 | 1.20 | 1.45 | |
| Switch button holder MR103 A | ||||
| 015-1 | SE00000656 | 1.20 | 1.45 | |
| Tap screw 3x10mm | ||||
| 016 | SE00000193 | 1.00 | 1.21 | |
| Circuit PCB P USB | ||||
| 017 | SE00000343 | 10.80 | 13.07 | |
| Screw M4x16 | ||||
| 018 | SE09064161 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 019 | SE00000325 | 1.00 | 1.21 | |
| Screw M4x16 | ||||
| 020 | SE09064161 | 1.00 | 1.21 | |
| Front Panel | ||||
| 021 | SE00000347 | 22.00 | 26.62 | |
| Screw M4x16 | ||||
| 022 | SE09064161 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 023 | SE00000325 | 1.00 | 1.21 | |
| Screw M4x16 | ||||
| 024 | SE09064161 | 1.00 | 1.21 | |
| Leg | ||||
| 025 | SE00000351 | 30.80 | 37.27 | |
| Point screw 6x47mm | ||||
| 026 | SE00000160 | 1.20 | 1.45 | |
| Impact handle | ||||
| 027 | SE0338PC5Z | 9.60 | 11.62 | |
| Rubber Cover Cap | ||||
| 028 | SE00000355 | 2.40 | 2.90 | |
| Covering hood | ||||
| 029 | SE00000356 | 2.40 | 2.90 | |
| Volume knob ring | ||||
| 030 | SE21B1110A | 1.00 | 1.21 | |
| Volume knob | ||||
| 031 | SE00000482 | 2.40 | 2.90 | |
| BOLT M6X16 | ||||
| 032 | SE09176166 | 1.00 | 1.21 | |
| Rear Bumper Rubber | ||||
| 033 | SE00000357 | 19.80 | 23.96 | |
| Rear Bumper Rubber | ||||
| 034 | SE00000359 | 11.00 | 13.31 | |
| BOLT M6X16 | ||||
| 035 | SE09176166 | 1.00 | 1.21 | |
| Lock | ||||
| 036 | SE00000362 | 6.00 | 7.26 | |
| Pin 73.5mm | ||||
| 037 | SE00000364 | 1.20 | 1.45 | |
| Closing Plate | ||||
| 038 | SE00000365 | 1.20 | 1.45 | |
| Battery Cover Cap | ||||
| 039 | SE00000483 | 16.50 | 19.96 | |
| Pin 64.5mm | ||||
| 040 | SE00000369 | 1.20 | 1.45 | |
| Screw 3 x 8mm | ||||
| 041 | SE00000325 | 1.00 | 1.21 | |
| Gasket | ||||
| 042 | SE00000371 | 8.40 | 10.16 | |
| Battery Plate | ||||
| 043 | SE0307PC5Z | 1.20 | 1.45 | |
| Contact Strip (+) | ||||
| 044 | SE00000466 | 1.20 | 1.45 | |
| Contact strip (-) | ||||
| 045 | SE00000467 | 1.00 | 1.21 | |
| Contact strip +/- | ||||
| 046 | SE021E9030 | 1.20 | 1.45 | |
| Tap screw 6x20mm | ||||
| 047 | SE00000176 | 1.00 | 1.21 | |
| Handle holder "r" | ||||
| 048 | SE00000177 | 2.40 | 2.90 | |
| Handle | ||||
| 049 | SE00000179 | 4.80 | 5.81 | |
| Handle holder "l" | ||||
| 050 | SE00000180 | 2.40 | 2.90 | |
| Tap screw 6x20mm | ||||
| 051 | SE00000176 | 1.00 | 1.21 | |
| BOLT M6X16 | ||||
| 052 | SE09176166 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 053 | SE00000184 | 1.00 | 1.21 | |
| Ball | ||||
| 054 | SE09994007 | 1.00 | 1.21 | |
| Damper 25x18x5.5 | ||||
| 055 | SE023PC020 | 1.00 | 1.21 | |
| Countersunk screw 3x45 (ni) | ||||
| 056 | SE00000445 | 1.00 | 1.21 | |
| Ball | ||||
| 057 | SE09994007 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 058 | SE00000184 | 1.00 | 1.21 | |
| BOLT M6X16 | ||||
| 059 | SE09176166 | 1.00 | 1.21 | |
| Handle plate "r" | ||||
| 060 | SE00000187 | 1.20 | 1.45 | |
| Countersunk screw 3x45 (ni) | ||||
| 061 | SE00000445 | 1.00 | 1.21 | |
| Handle plate "l" | ||||
| 062 | SE00000192 | 1.20 | 1.45 | |
| Tail Cover | ||||
| 063 | SE00000485 | 30.80 | 37.27 | |
| Aerial | ||||
| 064 | SE00000395 | 9.60 | 11.62 | |
| Antenna Packing | ||||
| 065 | SE00000398 | 1.00 | 1.21 | |
| Antenna Connection | ||||
| 066 | SE00000396 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 067 | SE00000325 | 1.00 | 1.21 | |
| Damper 25x18x5.5 | ||||
| 068 | SE023PC020 | 1.00 | 1.21 | |
| Covering hood | ||||
| 069 | SE00000403 | 2.40 | 2.90 | |
| Screw 3x14mm | ||||
| 070 | SE00000404 | 1.00 | 1.21 | |
| Hinge pin battery cover | ||||
| 071 | SE021PC030 | 1.20 | 1.45 | |
| Speaker gasket | ||||
| 072 | SE00000406 | 2.40 | 2.90 | |
| Speaker "r" | ||||
| 073 | SE00000407 | 19.80 | 23.96 | |
| Speaker panel | ||||
| 074 | SE00000408 | 8.40 | 10.16 | |
| Gasket | ||||
| 075 | SE024J9040 | 1.00 | 1.21 | |
| Screw M6X14 | ||||
| 076 | SE9076146A | 1.00 | 1.21 | |
| Screw M6X14 | ||||
| 077 | SE9076146A | 1.00 | 1.21 | |
| Gasket | ||||
| 078 | SE024J9040 | 1.00 | 1.21 | |
| Speaker panel | ||||
| 079 | SE00000408 | 8.40 | 10.16 | |
| Speaker "r" | ||||
| 080 | SE00000407 | 19.80 | 23.96 | |
| Speaker gasket | ||||
| 081 | SE00000406 | 2.40 | 2.90 | |
| Connection unit E | ||||
| 082 | SE00000416 | 4.80 | 5.81 | |
| Screw 3 x 8mm | ||||
| 083 | SE00000325 | 1.00 | 1.21 | |
| Connection unit "c" | ||||
| 084 | SE00000200 | 3.60 | 4.36 | |
| Screw 3 x 8mm | ||||
| 085 | SE00000325 | 1.00 | 1.21 | |
| Circuit B aux-in | ||||
| 086 | SE00000423 | 9.60 | 11.62 | |
| Tap screw 3x10mm | ||||
| 087 | SE00000193 | 1.00 | 1.21 | |
| Rivet | ||||
| 088 | SE00000199 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 089 | SE00000325 | 1.00 | 1.21 | |
| Rivet | ||||
| 090 | SE00000199 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 091 | SE00000325 | 1.00 | 1.21 | |
| Speaker holder | ||||
| 092 | SE00000422 | 2.40 | 2.90 | |
| Rotary knob ABB OHYS2AJ | ||||
| 093 | SE00000430 | 1.20 | 1.45 | |
| Battery switch | ||||
| 094 | SE00000488 | 14.30 | 17.30 | |
| Speaker holder | ||||
| 095 | SE00000422 | 2.40 | 2.90 | |
| Screw 3 x 8mm | ||||
| 096 | SE00000325 | 1.00 | 1.21 | |
| DC jack circuit | ||||
| 097 | SE00000830 | 7.20 | 8.71 | |
| Tapping screw 1.7 | ||||
| 098 | SE09090011 | 1.00 | 1.21 | |
| Holder "dc-jack" | ||||
| 099 | SE00000435 | 1.20 | 1.45 | |
| Connection unit Dmr107 | ||||
| 100 | SE00000473 | 4.80 | 5.81 | |
| Screw 3 x 8mm | ||||
| 101 | SE00000325 | 1.00 | 1.21 | |
| W/ties 100mm | ||||
| 102 | SE00000195 | 1.00 | 1.21 | |
| Gasket | ||||
| 103 | SE024PC040 | 2.40 | 2.90 | |
