Here you will find all available parts and drawings of the 'Makita DMR107'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

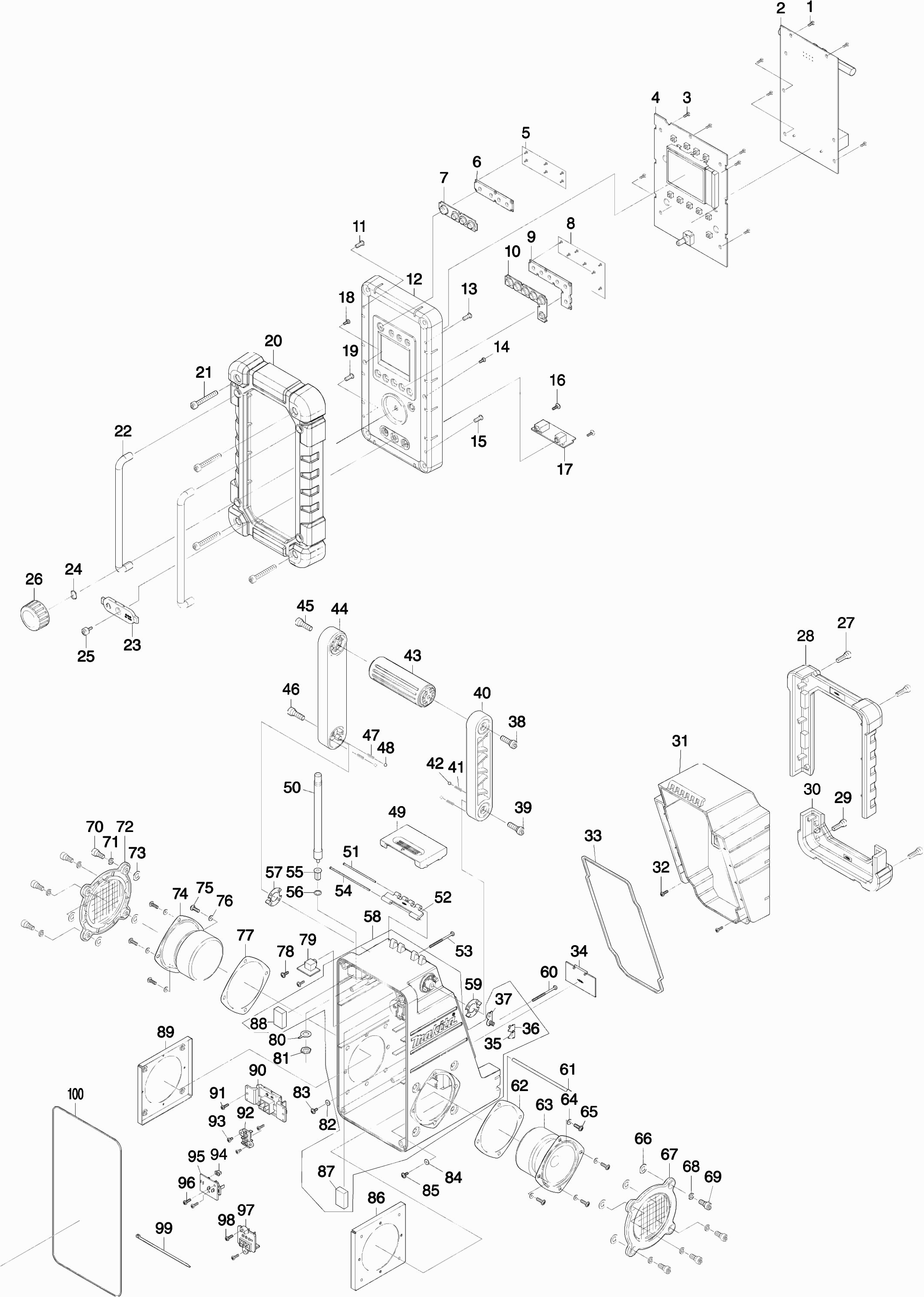

Technical drawing of model Makita DMR107
Spare parts list of model Makita DMR107
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw 3 x 8mm | ||||
| 001 | SE00000325 | 1.00 | 1.21 | |
| Circuit "a" | ||||
| 002 | SE00000459 | 82.50 | 99.82 | |
| Screw 3 x 8mm | ||||
| 003 | SE00000325 | 1.00 | 1.21 | |
| Circuit "c" | ||||
| 004 | SE00000462 | 63.80 | 77.20 | |
| Tapping screw 1.7 | ||||
| 005 | SE09090011 | 1.00 | 1.21 | |
| Control Switch | ||||
| 006 | SE020PC020 | 1.20 | 1.45 | |
| Control Switch | ||||
| 007 | SE00000157 | 2.40 | 2.90 | |
| Tapping screw 1.7 | ||||
| 008 | SE09090011 | 1.00 | 1.21 | |
| Belt button holder | ||||
| 009 | SE020PC030 | 1.20 | 1.45 | |
| Preset button | ||||
| 010 | SE00000158 | 2.40 | 2.90 | |
| Screw M4x16 | ||||
| 011 | SE09064161 | 1.00 | 1.21 | |
| Front plate BR 10 D | ||||
| 012 | SE00000204 | 15.40 | 18.63 | |
| Screw M4x16 | ||||
| 013 | SE09064161 | 1.00 | 1.21 | |
| Screw M3x10 | ||||
| 014 | SE09163102 | 1.00 | 1.21 | |
| Screw M4x16 | ||||
| 015 | SE09064161 | 1.00 | 1.21 | |
| Tap screw 3x10mm | ||||
| 016 | SE00000193 | 1.00 | 1.21 | |
| Holder "dc-jack" | ||||
| 017 | SE00000464 | 8.40 | 10.16 | |
| Screw M3x10 | ||||
| 018 | SE09163102 | 1.00 | 1.21 | |
| Screw M4x16 | ||||
| 019 | SE09064161 | 1.00 | 1.21 | |
| Leg | ||||
| 020 | SE00000159 | 28.60 | 34.61 | |
| Point screw 6x47mm | ||||
| 021 | SE00000160 | 1.20 | 1.45 | |
| Impact handle | ||||
| 022 | SE0338PC5Z | 9.60 | 11.62 | |
| Cover rubber Bmr100 (Mp3) | ||||
| 023 | SE00000042 | 2.40 | 2.90 | |
| Volume knob ring | ||||
| 024 | SE21B1110A | 1.00 | 1.21 | |
| Screw M3x10 | ||||
| 025 | SE09173106 | 1.00 | 1.21 | |
| Volume knob | ||||
| 026 | SE00000465 | 2.40 | 2.90 | |
| BOLT M6X16 | ||||
| 027 | SE09176166 | 1.00 | 1.21 | |
| Battery cover buffer | ||||
| 028 | SE00000162 | 14.30 | 17.30 | |
| BOLT M6X16 | ||||
| 029 | SE09176166 | 1.00 | 1.21 | |
| Shock rubber "back" | ||||
| 030 | SE00000165 | 11.00 | 13.31 | |
| Battery cover | ||||
| 031 | SE00000166 | 16.50 | 19.96 | |
| Screw 3 x 8mm | ||||
| 032 | SE00000325 | 1.00 | 1.21 | |
| Gasket | ||||
| 033 | SE00000168 | 8.40 | 10.16 | |
| Battery Plate | ||||
| 034 | SE0307PC5Z | 1.20 | 1.45 | |
| Contact Strip (+) | ||||
| 035 | SE00000466 | 1.20 | 1.45 | |
| Contact strip (-) | ||||
| 036 | SE00000467 | 1.00 | 1.21 | |
| Contact strip +/- | ||||
| 037 | SE021E9030 | 1.20 | 1.45 | |
| Tap screw 6x20mm | ||||
| 038 | SE00000176 | 1.00 | 1.21 | |
| BOLT M6X16 | ||||
| 039 | SE09176166 | 1.00 | 1.21 | |
| Handle holder "r" | ||||
| 040 | SE00000177 | 2.40 | 2.90 | |
| Compression Spring | ||||
| 041 | SE00000184 | 1.00 | 1.21 | |
| Ball | ||||
| 042 | SE09994007 | 1.00 | 1.21 | |
| Handle | ||||
| 043 | SE00000179 | 4.80 | 5.81 | |
| Handle holder "l" | ||||
| 044 | SE00000180 | 2.40 | 2.90 | |
| Tap screw 6x20mm | ||||
| 045 | SE00000176 | 1.00 | 1.21 | |
| BOLT M6X16 | ||||
| 046 | SE09176166 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 047 | SE00000184 | 1.00 | 1.21 | |
| Ball | ||||
| 048 | SE09994007 | 1.00 | 1.21 | |
| Battery cover lock | ||||
| 049 | SE00000190 | 1.20 | 1.45 | |
| Aerial | ||||
| 050 | SE00000191 | 6.00 | 7.26 | |
| Mounting Pin | ||||
| 051 | SE021PC050 | 1.00 | 1.21 | |
| Closing Plate | ||||
| 052 | SE00000067 | 1.20 | 1.45 | |
| Screw M3x45 | ||||
| 053 | SE09163452 | 1.00 | 1.21 | |
| Mounting Pin | ||||
| 054 | SE021PC040 | 1.00 | 1.21 | |
| Antenna holder | ||||
| 055 | SE021J9032 | 1.20 | 1.45 | |
| Gasket | ||||
| 056 | SE024J9050 | 1.00 | 1.21 | |
| Handle plate "l" | ||||
| 057 | SE00000192 | 1.20 | 1.45 | |
| Tail Cover | ||||
| 058 | SE00000468 | 26.40 | 31.94 | |
| Handle plate "r" | ||||
| 059 | SE00000187 | 1.20 | 1.45 | |
| Screw M3x45 | ||||
| 060 | SE09163452 | 1.00 | 1.21 | |
| Hinge pin battery cover | ||||
| 061 | SE021PC030 | 1.20 | 1.45 | |
| Gasket | ||||
| 062 | SE024J9030 | 2.40 | 2.90 | |
| SPEAKER | ||||
| 063 | SE01620771 | 17.60 | 21.30 | |
| Gasket | ||||
| 064 | SE024J9070 | 1.00 | 1.21 | |
| Screw,M4x12 | ||||
| 065 | SE09090023 | 1.00 | 1.21 | |
| Gasket | ||||
| 066 | SE024J9090 | 1.00 | 1.21 | |
| Speaker grille | ||||
| 067 | SE00000205 | 4.80 | 5.81 | |
| Gasket | ||||
| 068 | SE024J9040 | 1.00 | 1.21 | |
| Screw M6X14 | ||||
| 069 | SE9076146A | 1.00 | 1.21 | |
| Screw M6X14 | ||||
| 070 | SE9076146A | 1.00 | 1.21 | |
| Gasket | ||||
| 071 | SE024J9040 | 1.00 | 1.21 | |
| Speaker grille | ||||
| 072 | SE00000205 | 4.80 | 5.81 | |
| Gasket | ||||
| 073 | SE024J9090 | 1.00 | 1.21 | |
| SPEAKER | ||||
| 074 | SE01620771 | 17.60 | 21.30 | |
| Screw,M4x12 | ||||
| 075 | SE09090023 | 1.00 | 1.21 | |
| Gasket | ||||
| 076 | SE024J9070 | 1.00 | 1.21 | |
| Gasket | ||||
| 077 | SE024J9030 | 2.40 | 2.90 | |
| Tap screw 3x10mm | ||||
| 078 | SE00000193 | 1.00 | 1.21 | |
| Holder "aux" | ||||
| 079 | SE00000470 | 8.40 | 10.16 | |
| Antenna connection | ||||
| 080 | SE021PC100 | 1.20 | 1.45 | |
| Nut | ||||
| 081 | SE021P0020 | 1.00 | 1.21 | |
| Rivet | ||||
| 082 | SE00000199 | 1.00 | 1.21 | |
| Tap screw 3x10mm | ||||
| 083 | SE00000193 | 1.00 | 1.21 | |
| Rivet | ||||
| 084 | SE00000199 | 1.00 | 1.21 | |
| Tap screw 3x10mm | ||||
| 085 | SE00000193 | 1.00 | 1.21 | |
| Speaker holder | ||||
| 086 | SE021J9010 | 2.40 | 2.90 | |
| Damper 25x18x5.5 | ||||
| 087 | SE023PC020 | 1.00 | 1.21 | |
| Damper 25x18x5.5 | ||||
| 088 | SE023PC020 | 1.00 | 1.21 | |
| Speaker holder | ||||
| 089 | SE021J9010 | 2.40 | 2.90 | |
| Connection unit E | ||||
| 090 | SE00000416 | 4.80 | 5.81 | |
| Screw 3 x 8mm | ||||
| 091 | SE00000325 | 1.00 | 1.21 | |
| Connection unit "c" | ||||
| 092 | SE00000200 | 3.60 | 4.36 | |
| Screw 3 x 8mm | ||||
| 093 | SE00000325 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 094 | SE00000430 | 1.20 | 1.45 | |
| Battery switch | ||||
| 095 | SE00000472 | 14.30 | 17.30 | |
| Screw 3 x 8mm | ||||
| 096 | SE00000325 | 1.00 | 1.21 | |
| Connection unit Dmr107 | ||||
| 097 | SE00000473 | 4.80 | 5.81 | |
| Screw 3 x 8mm | ||||
| 098 | SE00000325 | 1.00 | 1.21 | |
| W/ties 100mm | ||||
| 099 | SE00000195 | 1.00 | 1.21 | |
| Gasket | ||||
| 100 | SE024PC040 | 2.40 | 2.90 | |
