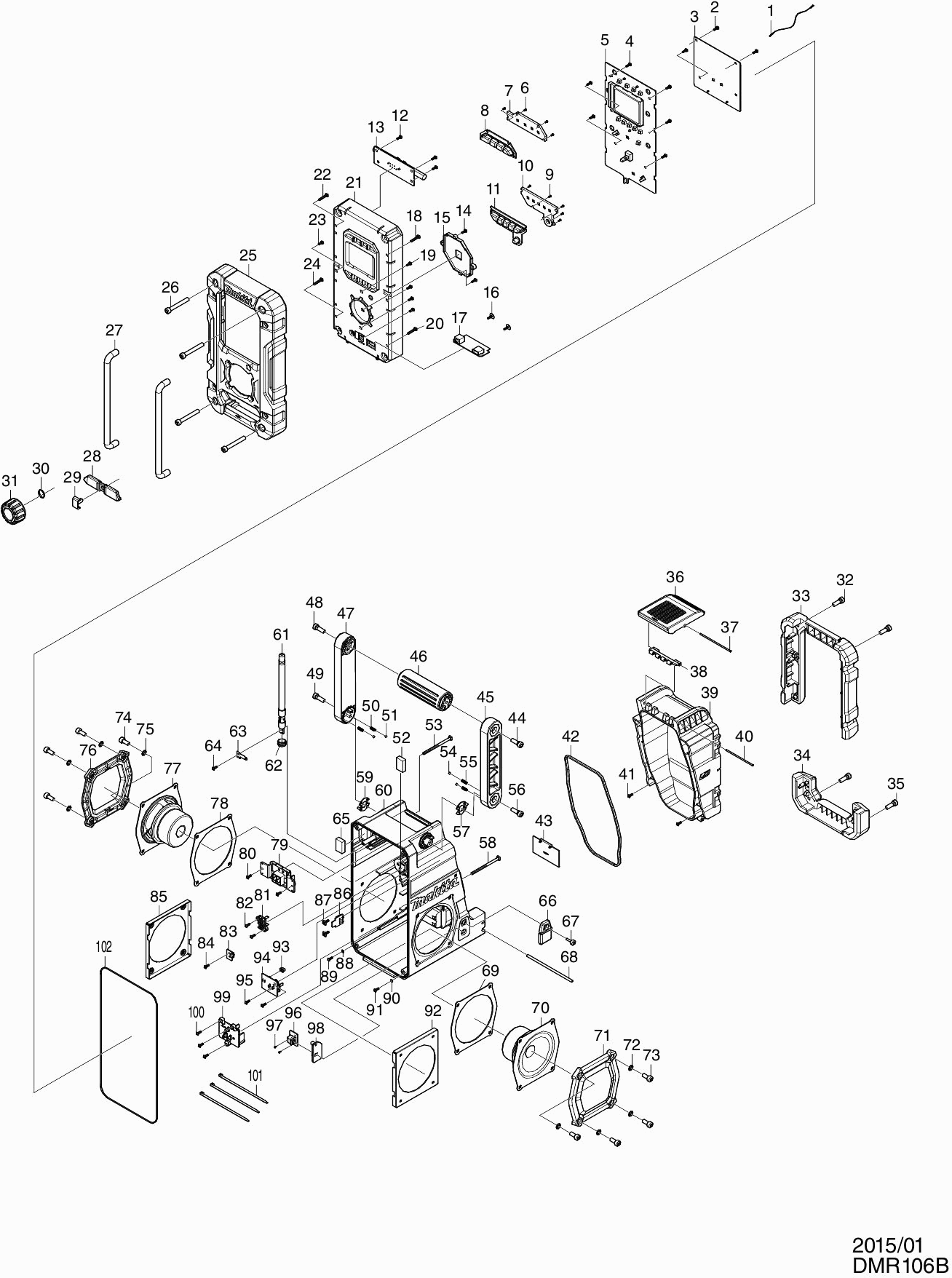

Technical drawing of model Makita DMR106B
Spare parts list of model Makita DMR106B
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Wire | ||||
| 001 | SE00000437 | 1.20 | 1.45 | |
| Screw 3 x 8mm | ||||
| 002 | SE00000325 | 1.00 | 1.21 | |
| Electric Circuit | ||||
| 003 | SE00000442 | 86.90 | 105.15 | |
| Screw 3 x 8mm | ||||
| 004 | SE00000325 | 1.00 | 1.21 | |
| Front Display Print "c" | ||||
| 005 | SE00000329 | 51.70 | 62.56 | |
| Tapping screw 1.7 | ||||
| 006 | SE09090011 | 1.00 | 1.21 | |
| Holder | ||||
| 007 | SE00000333 | 2.40 | 2.90 | |
| Control Switch | ||||
| 008 | SE00000334 | 2.40 | 2.90 | |
| Tapping screw 1.7 | ||||
| 009 | SE09090011 | 1.00 | 1.21 | |
| Holder | ||||
| 010 | SE00000336 | 2.40 | 2.90 | |
| Preset button | ||||
| 011 | SE00000337 | 3.60 | 4.36 | |
| Screw 3 x 8mm | ||||
| 012 | SE00000325 | 1.00 | 1.21 | |
| Circuit PCB Ant | ||||
| 013 | SE00000339 | 10.80 | 13.07 | |
| Screw 3 x 8mm | ||||
| 014 | SE00000325 | 1.00 | 1.21 | |
| Switch button holder MR103 A | ||||
| 015 | SE00000656 | 1.20 | 1.45 | |
| Tap screw 3x10mm | ||||
| 016 | SE00000193 | 1.00 | 1.21 | |
| Circuit PCB P USB | ||||
| 017 | SE00000343 | 10.80 | 13.07 | |
| Screw M4x16 | ||||
| 018 | SE09064161 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 019 | SE00000325 | 1.00 | 1.21 | |
| Screw M4x16 | ||||
| 020 | SE09064161 | 1.00 | 1.21 | |
| Front Panel | ||||
| 021 | SE00000347 | 22.00 | 26.62 | |
| Screw M4x16 | ||||
| 022 | SE09064161 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 023 | SE00000325 | 1.00 | 1.21 | |
| Screw M4x16 | ||||
| 024 | SE09064161 | 1.00 | 1.21 | |
| Leg | ||||
| 025 | SE00000352 | 30.80 | 37.27 | |
| Point screw 6x47mm | ||||
| 026 | SE00000160 | 1.20 | 1.45 | |
| Impact handle | ||||
| 027 | SE0338PC5Z | 9.60 | 11.62 | |
| Rubber Cover Cap | ||||
| 028 | SE00000355 | 2.40 | 2.90 | |
| Covering hood | ||||
| 029 | SE00000356 | 2.40 | 2.90 | |
| Volume knob ring | ||||
| 030 | SE21B1110A | 1.00 | 1.21 | |
| Volume knob | ||||
| 031 | SE00000243 | 3.60 | 4.36 | |
| BOLT M6X16 | ||||
| 032 | SE09176166 | 1.00 | 1.21 | |
| Rear Bumper Rubber | ||||
| 033 | SE00000358 | 16.50 | 19.96 | |
| Rear Bumper Rubber | ||||
| 034 | SE00000360 | 11.00 | 13.31 | |
| BOLT M6X16 | ||||
| 035 | SE09176166 | 1.00 | 1.21 | |
| Lock | ||||
| 036 | SE00000363 | 4.80 | 5.81 | |
| Pin 73.5mm | ||||
| 037 | SE00000364 | 1.20 | 1.45 | |
| Closing Plate | ||||
| 038 | SE00000366 | 1.20 | 1.45 | |
| Battery Cover Cap | ||||
| 039 | SE00000368 | 19.80 | 23.96 | |
| Pin 64.5mm | ||||
| 040 | SE00000369 | 1.20 | 1.45 | |
| Screw 3 x 8mm | ||||
| 041 | SE00000325 | 1.00 | 1.21 | |
| Gasket | ||||
| 042 | SE00000371 | 8.40 | 10.16 | |
| Battery Plate | ||||
| 043 | SE00000248 | 1.00 | 1.21 | |
| Tap screw 6x20mm | ||||
| 044 | SE00000176 | 1.00 | 1.21 | |
| Handle holder "r" | ||||
| 045 | SE00000249 | 3.60 | 4.36 | |
| Handle | ||||
| 046 | SE00000179 | 4.80 | 5.81 | |
| Handle holder "l" | ||||
| 047 | SE00000250 | 3.60 | 4.36 | |
| Tap screw 6x20mm | ||||
| 048 | SE00000176 | 1.00 | 1.21 | |
| BOLT M6X16 | ||||
| 049 | SE09176166 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 050 | SE00000184 | 1.00 | 1.21 | |
| Ball | ||||
| 051 | SE09994007 | 1.00 | 1.21 | |
| Damper 25x18x5.5 | ||||
| 052 | SE023PC020 | 1.00 | 1.21 | |
| Ball | ||||
| 054 | SE09994007 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 055 | SE00000184 | 1.00 | 1.21 | |
| BOLT M6X16 | ||||
| 056 | SE09176166 | 1.00 | 1.21 | |
| Handle plate "r" | ||||
| 057 | SE00000187 | 1.20 | 1.45 | |
| Handle plate "l" | ||||
| 059 | SE00000192 | 1.20 | 1.45 | |
| Housing | ||||
| 060 | SE00000393 | 23.10 | 27.95 | |
| Aerial | ||||
| 061 | SE00000395 | 9.60 | 11.62 | |
| Antenna Packing | ||||
| 062 | SE00000398 | 1.00 | 1.21 | |
| Antenna Connection | ||||
| 063 | SE00000396 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 064 | SE00000325 | 1.00 | 1.21 | |
| Damper 25x18x5.5 | ||||
| 065 | SE023PC020 | 1.00 | 1.21 | |
| Covering hood | ||||
| 066 | SE00000403 | 2.40 | 2.90 | |
| Screw 3x14mm | ||||
| 067 | SE00000404 | 1.00 | 1.21 | |
| Hinge pin battery cover | ||||
| 068 | SE021PC030 | 1.20 | 1.45 | |
| Speaker gasket | ||||
| 069 | SE00000406 | 2.40 | 2.90 | |
| Speaker "r" | ||||
| 070 | SE00000407 | 19.80 | 23.96 | |
| Speaker panel | ||||
| 071 | SE00000408 | 8.40 | 10.16 | |
| Gasket | ||||
| 072 | SE024J9040 | 1.00 | 1.21 | |
| Screw M6X14 | ||||
| 073 | SE9076146A | 1.00 | 1.21 | |
| Screw M6X14 | ||||
| 074 | SE9076146A | 1.00 | 1.21 | |
| Gasket | ||||
| 075 | SE024J9040 | 1.00 | 1.21 | |
| Speaker panel | ||||
| 076 | SE00000408 | 8.40 | 10.16 | |
| Speaker "r" | ||||
| 077 | SE00000407 | 19.80 | 23.96 | |
| Speaker gasket | ||||
| 078 | SE00000406 | 2.40 | 2.90 | |
| Connection unit E | ||||
| 079 | SE00000416 | 4.80 | 5.81 | |
| Screw 3 x 8mm | ||||
| 080 | SE00000325 | 1.00 | 1.21 | |
| Connection unit "c" | ||||
| 081 | SE00000200 | 3.60 | 4.36 | |
| Screw 3 x 8mm | ||||
| 082 | SE00000325 | 1.00 | 1.21 | |
| Circuit B "battery switch" | ||||
| 083 | SE00000420 | 8.40 | 10.16 | |
| Screw 3 x 8mm | ||||
| 084 | SE00000325 | 1.00 | 1.21 | |
| Speaker holder | ||||
| 085 | SE00000422 | 2.40 | 2.90 | |
| Circuit B aux-in | ||||
| 086 | SE00000423 | 9.60 | 11.62 | |
| Tap screw 3x10mm | ||||
| 087 | SE00000193 | 1.00 | 1.21 | |
| Rivet | ||||
| 088 | SE00000199 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 089 | SE00000325 | 1.00 | 1.21 | |
| Rivet | ||||
| 090 | SE00000199 | 1.00 | 1.21 | |
| Screw 3 x 8mm | ||||
| 091 | SE00000325 | 1.00 | 1.21 | |
| Speaker holder | ||||
| 092 | SE00000422 | 2.40 | 2.90 | |
| Rotary knob ABB OHYS2AJ | ||||
| 093 | SE00000430 | 1.20 | 1.45 | |
| Battery switch | ||||
| 094 | SE00000431 | 13.20 | 15.97 | |
| Screw 3 x 8mm | ||||
| 095 | SE00000325 | 1.00 | 1.21 | |
| DC jack circuit | ||||
| 096 | SE00000830 | 7.20 | 8.71 | |
| Tapping screw 1.7 | ||||
| 097 | SE09090011 | 1.00 | 1.21 | |
| Holder "dc-jack" | ||||
| 098 | SE00000435 | 1.20 | 1.45 | |
| Terminal "g" | ||||
| 099 | SE00000436 | 7.20 | 8.71 | |
| Screw 3 x 8mm | ||||
| 100 | SE00000325 | 1.00 | 1.21 | |
| W/ties 100mm | ||||
| 101 | SE00000195 | 1.00 | 1.21 | |
| Gasket | ||||
| 102 | SE024PC040 | 2.40 | 2.90 | |
