Here you will find all available parts and drawings of the 'Makita DML809'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

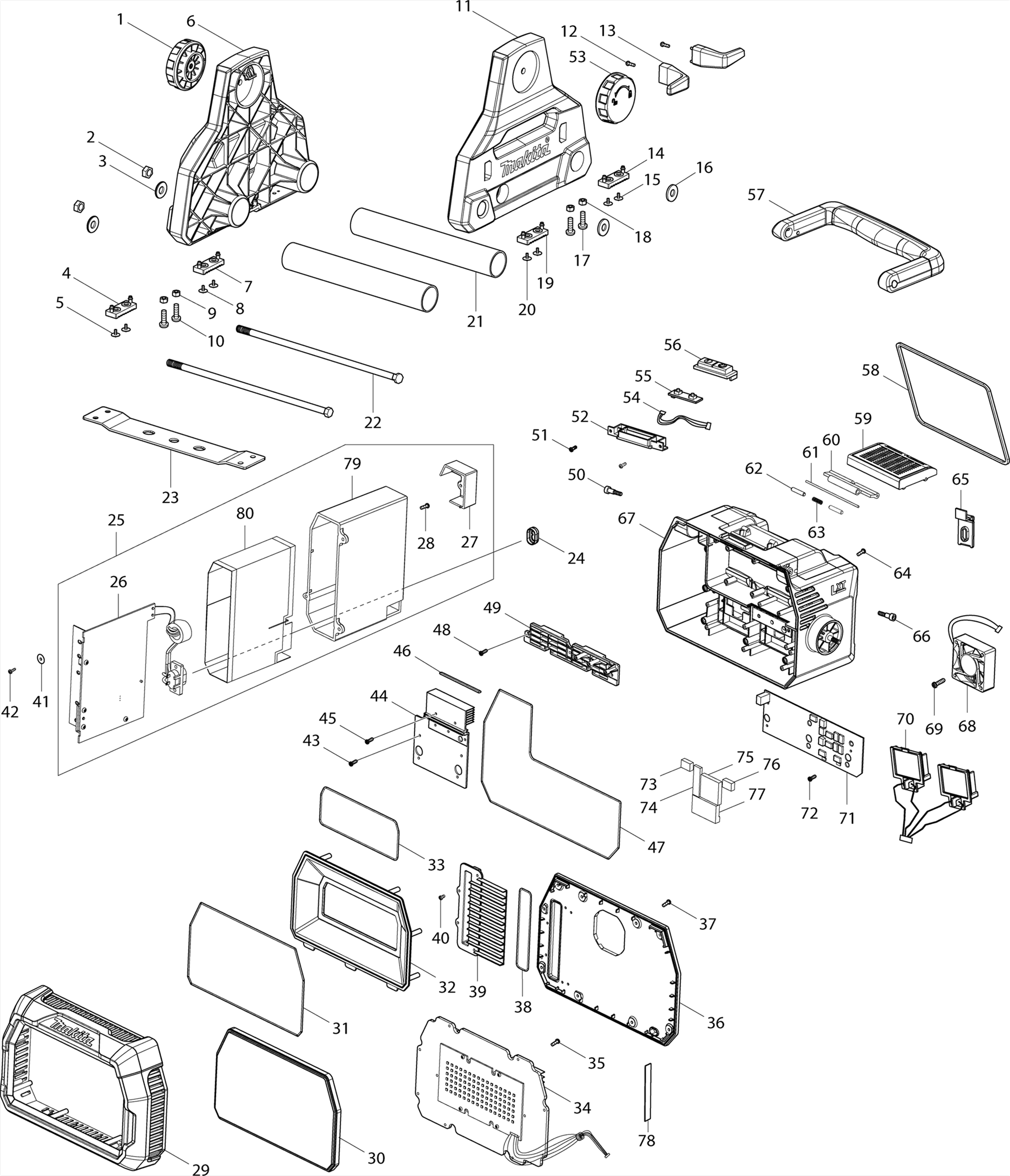

Technical drawing of model Makita DML809
Spare parts list of model Makita DML809
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| A01 | GM00002127 | |||
| STATIEF VOOR BOUWLAMP | ||||
| F01 | GM00002378 | 116.00 | 140.36 | |
| Light Cover Ass'y | ||||
| F04 | GM00002286 | 14.00 | 16.94 | |
| No information available, not orderable | ||||
| F05 | GM00002379 | |||
| Button DML811 | ||||
| 001 | GM00002160 | 4.80 | 5.81 | |
| Nut M8 DML811 | ||||
| 002 | GM00002158 | 1.20 | 1.45 | |
| Rivet 8mm DML811 | ||||
| 003 | GM00002157 | 1.20 | 1.45 | |
| Foot DML811 | ||||
| 004 | GM00002154 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 004-1 | GM00002572 | |||
| Screw 3x6mm DML811 | ||||
| 005 | GM00002164 | 1.00 | 1.21 | |
| Stand L DML811 | ||||
| 006 | GM00002162 | 14.30 | 17.30 | |
| Foot DML811 | ||||
| 007 | GM00002154 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 007-1 | GM00002572 | |||
| Screw 3x6mm DML811 | ||||
| 008 | GM00002164 | 1.00 | 1.21 | |
| Nut M5 DML811 | ||||
| 009 | GM00002155 | 1.00 | 1.21 | |
| Screw 5x15mm DML815DML811 | ||||
| 010 | GM00002156 | 1.00 | 1.21 | |
| Stand R DML811 | ||||
| 011 | GM00002161 | 14.30 | 17.30 | |
| Screw 3x18mm DML811 | ||||
| 012 | GM00002165 | 1.00 | 1.21 | |
| Cable hook DML811 | ||||
| 013 | GM00002159 | 2.40 | 2.90 | |
| Foot DML811 | ||||
| 014 | GM00002154 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 014-1 | GM00002572 | |||
| Screw 3x6mm DML811 | ||||
| 015 | GM00002164 | 1.00 | 1.21 | |
| Rivet 8mm DML811 | ||||
| 016 | GM00002157 | 1.20 | 1.45 | |
| Screw 5x15mm DML815DML811 | ||||
| 017 | GM00002156 | 1.00 | 1.21 | |
| Nut M5 DML811 | ||||
| 018 | GM00002155 | 1.00 | 1.21 | |
| Foot DML811 | ||||
| 019 | GM00002154 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 019-1 | GM00002572 | |||
| Screw 3x6mm DML811 | ||||
| 020 | GM00002164 | 1.00 | 1.21 | |
| Tube DML809 | ||||
| 021 | GM00002192 | 9.60 | 11.62 | |
| Bolt M8 DML809 | ||||
| 022 | GM00002191 | 7.20 | 8.71 | |
| Plate Holder DML809 | ||||
| 023 | GM00002190 | 14.30 | 17.30 | |
| Cable entry DML811 | ||||
| 024 | GM00002150 | 1.20 | 1.45 | |
| AC circuit DML809 assy | ||||
| 025 | GM00002264 | 127.60 | 154.40 | |
| No information available, not orderable | ||||
| 026 | GM00002262 | |||
| Ring holder DML809 | ||||
| 027 | GM00002187 | 1.20 | 1.45 | |
| Screw 3x8mm | ||||
| 028 | GM00001332 | 1.00 | 1.21 | |
| Edge DML809 | ||||
| 029 | GM00002167 | 19.80 | 23.96 | |
| Lens DML809 | ||||
| 030 | GM00002168 | 14.30 | 17.30 | |
| Gasket ring DML809 | ||||
| 031 | GM00002169 | 2.40 | 2.90 | |
| Reflector DML809 | ||||
| 032 | GM00002170 | 13.20 | 15.97 | |
| Heat shield DML809 | ||||
| 033 | GM00002171 | 2.40 | 2.90 | |
| LED circuit DML809 | ||||
| 034 | GM00002172 | 105.60 | 127.78 | |
| Screw 3x18mm DML811 | ||||
| 035 | GM00002165 | 1.00 | 1.21 | |
| Centre housing cover DML809 | ||||
| 036 | GM00002173 | 17.60 | 21.30 | |
| Screw 3x18mm DML811 | ||||
| 037 | GM00002165 | 1.00 | 1.21 | |
| Rubber heat shield DML809 | ||||
| 038 | GM00002175 | 2.40 | 2.90 | |
| AC heat shield DML809 | ||||
| 039 | GM00002174 | 10.80 | 13.07 | |
| Screw 3x8mm | ||||
| 040 | GM00001332 | 1.00 | 1.21 | |
| Washer DML809 | ||||
| 041 | GM00002254 | 1.00 | 1.21 | |
| Screw 3x13mm DML809 | ||||
| 042 | GM00002260 | 1.00 | 1.21 | |
| Screw 3x18mm DML811 | ||||
| 043 | GM00002165 | 1.00 | 1.21 | |
| Heat shield DML809 | ||||
| 044 | GM00002253 | 8.40 | 10.16 | |
| Screw 3x18mm DML811 | ||||
| 045 | GM00002165 | 1.00 | 1.21 | |
| Gasket A DML809 | ||||
| 046 | GM00002178 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 046-1 | GM00002571 | |||
| Gasket B DML809 | ||||
| 047 | GM00002176 | 1.20 | 1.45 | |
| Screw 3x18mm DML811 | ||||
| 048 | GM00002165 | 1.00 | 1.21 | |
| Circuit holder DML809 | ||||
| 049 | GM00002180 | 2.40 | 2.90 | |
| Allen bolt DML811 | ||||
| 050 | GM00002137 | 1.20 | 1.45 | |
| Screw 3x12mm | ||||
| 051 | GM00001333 | 1.00 | 1.21 | |
| Switch holder DML811 | ||||
| 052 | GM00002138 | 1.20 | 1.45 | |
| Button DML811 | ||||
| 053 | GM00002160 | 4.80 | 5.81 | |
| Wire harness DML809 | ||||
| 054 | GM00002181 | 2.40 | 2.90 | |
| Switch circuit DML809 | ||||
| 055 | GM00002182 | 3.60 | 4.36 | |
| Switch DML811 | ||||
| 056 | GM00002141 | 2.40 | 2.90 | |
| Handle DML809 | ||||
| 057 | GM00002185 | 11.00 | 13.31 | |
| O-ring DML809 | ||||
| 058 | GM00002183 | 2.40 | 2.90 | |
| Closure A DML809 | ||||
| 059 | GM00002258 | 2.40 | 2.90 | |
| Closure B DML809 | ||||
| 060 | GM00002257 | 1.20 | 1.45 | |
| Axis B DML809 | ||||
| 061 | GM00002256 | 1.20 | 1.45 | |
| Axis A DML809 | ||||
| 062 | GM00002255 | 1.20 | 1.45 | |
| Spring DML809 | ||||
| 063 | GM00002259 | 1.00 | 1.21 | |
| Screw 3x18mm DML811 | ||||
| 064 | GM00002165 | 1.00 | 1.21 | |
| AC Contact DML811 | ||||
| 065 | GM00002142 | 2.40 | 2.90 | |
| Allen bolt DML811 | ||||
| 066 | GM00002137 | 1.20 | 1.45 | |
| Middle house DML809 | ||||
| 067 | GM00002184 | 39.60 | 47.92 | |
| Fan DML809 | ||||
| 068 | GM00002194 | 39.60 | 47.92 | |
| Screw 4x30mm | ||||
| 069 | GM00002193 | 1.00 | 1.21 | |
| Battery holder DML809 | ||||
| 070 | GM00002200 | 16.50 | 19.96 | |
| Main circuit DML809 | ||||
| 071 | GM00002202 | 88.00 | 106.48 | |
| Screw 3x18mm DML811 | ||||
| 072 | GM00002165 | 1.00 | 1.21 | |
| Sealing rubber 15x10x5,7 DML809 | ||||
| 073 | GM00002195 | 1.20 | 1.45 | |
| Sealing rubber 38x10x3,5 DML809 | ||||
| 074 | GM00002196 | 2.40 | 2.90 | |
| Sealing rubber 30x30x5,7 DML809 | ||||
| 075 | GM00002197 | 3.60 | 4.36 | |
| Sealing rubber 15x10x5,7 DML809 | ||||
| 076 | GM00002195 | 1.20 | 1.45 | |
| Sealing rubber 40x23x7,1 DML809 | ||||
| 077 | GM00002198 | 3.60 | 4.36 | |
| Bump rubber 2 B DML811 | ||||
| 078 | GM00002134 | 1.00 | 1.21 | |
| Circuit box DML809 P | ||||
| 079 | GM00002186 | 9.60 | 11.62 | |
| Insulation box DML809 P | ||||
| 080 | GM00002201 | 4.80 | 5.81 | |
