Here you will find all available parts and drawings of the 'Makita DML802'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

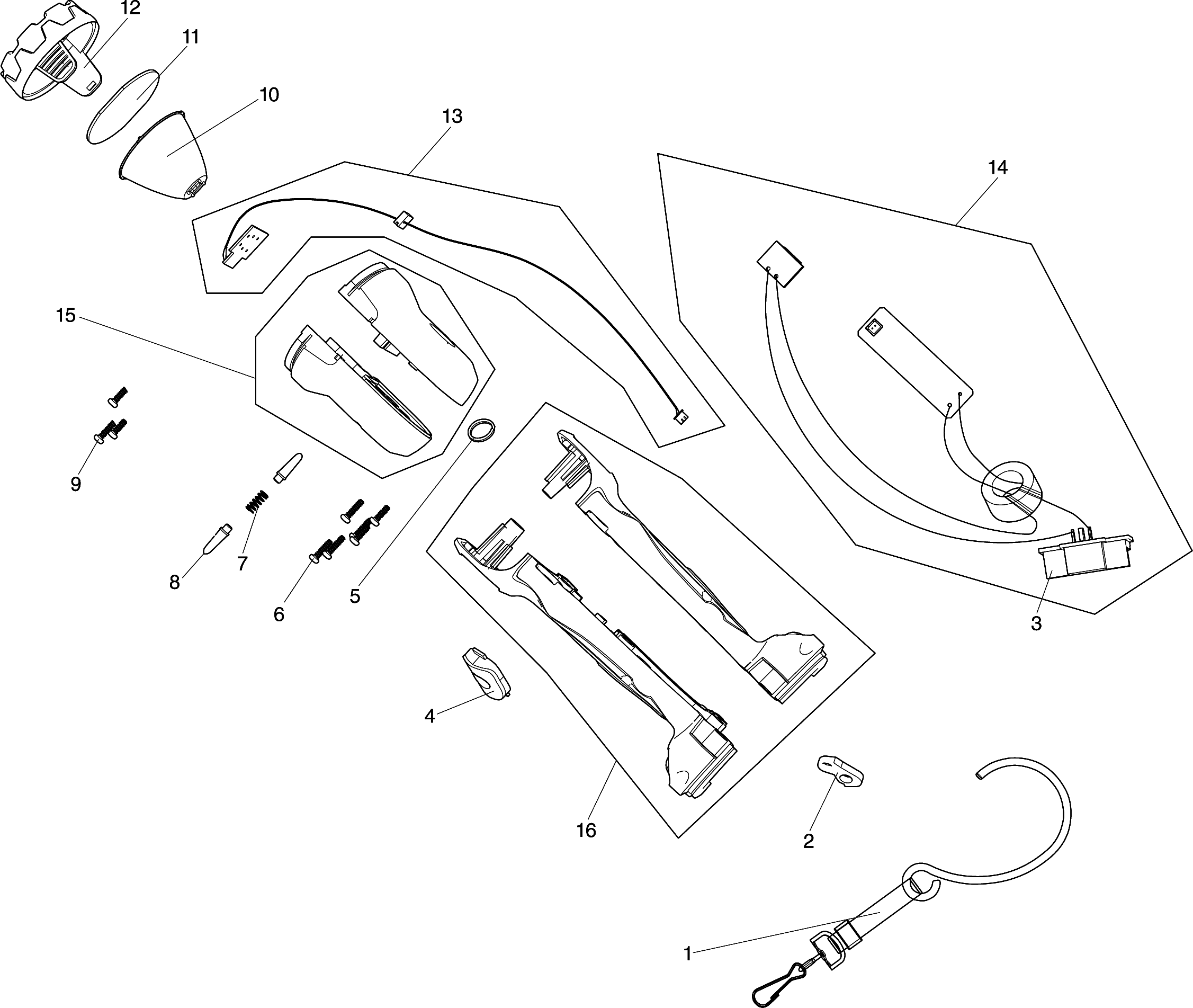

Technical drawing of model Makita DML802
Spare parts list of model Makita DML802
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Shoulder strap | ||||
| 001 | GM00001289 | 3.60 | 4.36 | |
| Band clip A ML001G A | ||||
| 002 | GM00002285 | 1.20 | 1.45 | |
| Battery Holder | ||||
| 003 | GM00001117 | 4.80 | 5.81 | |
| Switch Cap Bml802 | ||||
| 004 | GM00001291 | 1.20 | 1.45 | |
| Hinge Ring | ||||
| 005 | GM00001292 | 1.00 | 1.21 | |
| Screw 3X12 | ||||
| 006 | GM00001293 | 1.00 | 1.21 | |
| Hinge pin spring | ||||
| 007-1A | GM00001703 | 1.20 | 1.45 | |
| Hinge pin spring | ||||
| 007-1B | GM00001703 | 1.20 | 1.45 | |
| Compression Spring | ||||
| 007A | GM00001294 | 1.00 | 1.21 | |
| Pivot Pin | ||||
| 008-1A | GM00001704 | 3.60 | 4.36 | |
| Pivot Pin | ||||
| 008-1B | GM00001704 | 3.60 | 4.36 | |
| Pivot Pin | ||||
| 008A | GM00001295 | 1.00 | 1.21 | |
| Screw M3x8mm | ||||
| 009A | GM00001296 | 1.00 | 1.21 | |
| Reflector DUO 110 | ||||
| 010 | GM00001297 | 6.00 | 7.26 | |
| Lens | ||||
| 011 | GM00001298 | 1.20 | 1.45 | |
| Screw Ring+Lamp Holder | ||||
| 012 | GM00001299 | 2.40 | 2.90 | |
| LED LAMP + CIRCUIT BML802 A | ||||
| 013-1A | GM00001951 | 11.00 | 13.31 | |
| LED LAMP + CIRCUIT BML802 A | ||||
| 013-2A | GM00001951 | 11.00 | 13.31 | |
| LED LAMP + CIRCUIT BML802 A | ||||
| 013-2B | GM00001951 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 013A | GM00001300 | |||
| Circuit Bml802 | ||||
| 014 | GM00001301 | 13.20 | 15.97 | |
| Alu lamp housing | ||||
| 015-1A | GM00001702 | 16.50 | 19.96 | |
| Alu lamp housing | ||||
| 015-1B | GM00001702 | 16.50 | 19.96 | |
| Alu lamp housing | ||||
| 015A | GM00001302 | 16.50 | 19.96 | |
| Lamp housing set | ||||
| 016 | GM00001303 | 13.20 | 15.97 | |
| Screw M3x8mm | ||||
| 017A | GM00001296 | 1.00 | 1.21 | |
| Screw M3x8mm | ||||
| 017B | GM00001296 | 1.00 | 1.21 | |
| Wire clamp new | ||||
| 018A | GM00001701 | 1.20 | 1.45 | |
| Wire clamp new | ||||
| 018B | GM00001701 | 1.20 | 1.45 | |
