Here you will find all available parts and drawings of the 'Makita DLM538'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

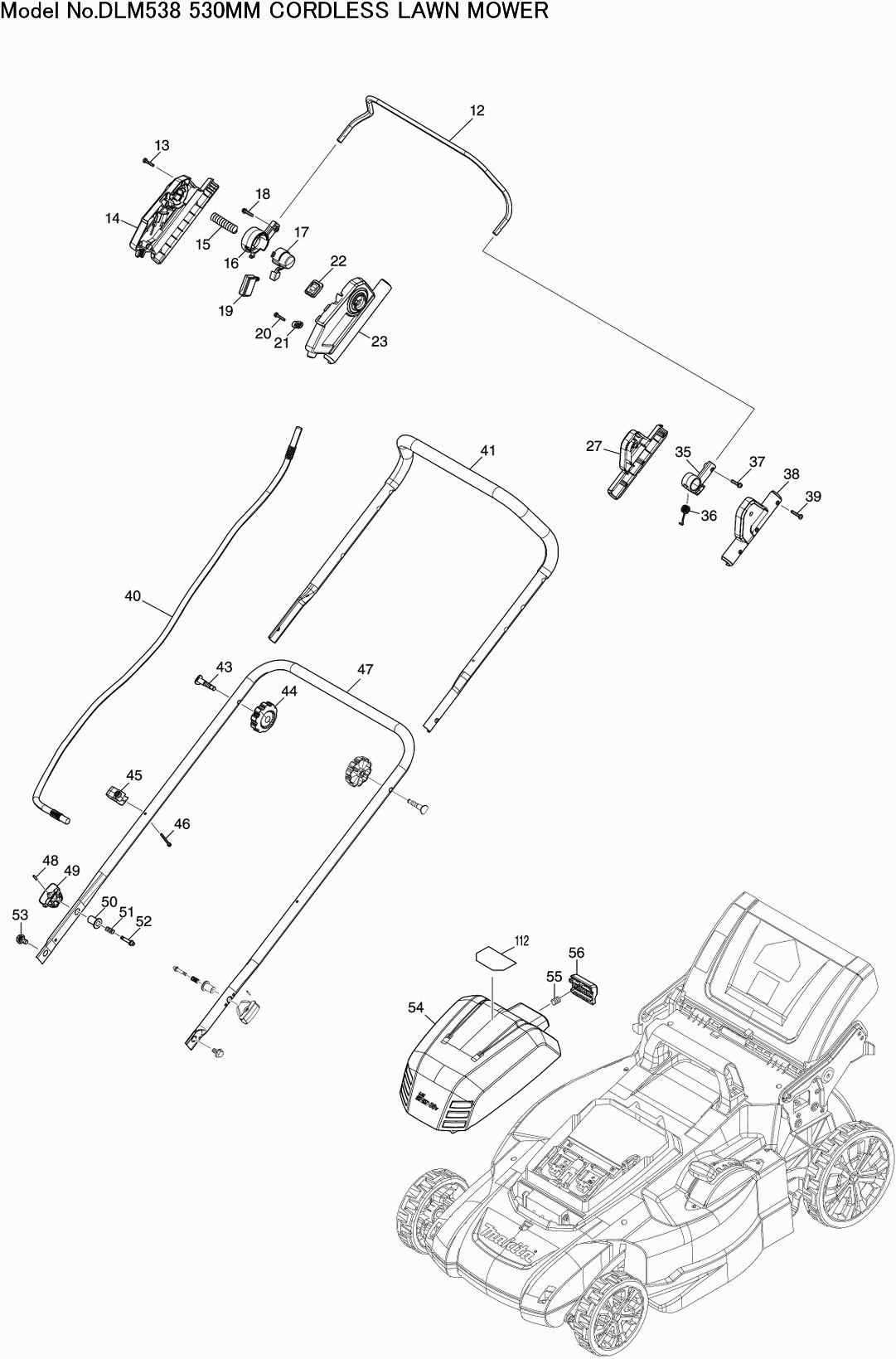

Technical drawing of model Makita DLM538
Spare parts list of model Makita DLM538
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch lever DLM532/533 | ||||
| 012 | 327424-8 | 8.40 | 10.16 | |
| Self-tapping screw 4x20 | ||||
| 013 | 266424-2 | 1.00 | 1.21 | |
| Switch Housing DLM480/538 | ||||
| 014 | 183V31-7 | 4.80 | 5.81 | |
| LABEL INDICATIE DLM480 | ||||
| 014C10 | 8045G7-5 | 2.40 | 2.90 | |
| Compression Spring 15 DLM460 | ||||
| 015 | 231227-3 | 1.00 | 1.21 | |
| Switch holder R DML481/539 | ||||
| 016 | 413A99-6 | 1.20 | 1.45 | |
| Hex nut M4 | ||||
| 016C10 | 931102-0 | 1.00 | 1.21 | |
| Unlock button DML481/539 | ||||
| 017 | 413B00-7 | 2.40 | 2.90 | |
| Screw 4x20 | ||||
| 018 | 911138-5 | 1.00 | 1.21 | |
| Switch C3Xa-1Pspm Dsp600 | ||||
| 019 | 651083-9 | 19.80 | 23.96 | |
| Self-tapping screw 4x20 | ||||
| 020 | 266424-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 021 | 687053-2 | 1.00 | 1.21 | |
| Switch Circuit CPL DML481/539 | ||||
| 022 | 141H35-1 | 10.80 | 13.07 | |
| Label A/U AS1925 | ||||
| 022C10 | 810D46-0 | 2.40 | 2.90 | |
| Switch Housing DLM480/538 | ||||
| 023 | 183V31-7 | 4.80 | 5.81 | |
| LABEL INDICATIE DLM480 | ||||
| 023C10 | 8045G7-5 | 2.40 | 2.90 | |
| Schakelhuis LM001/2J | ||||
| 027 | 183U21-4 | 2.40 | 2.90 | |
| Switch lever holder L DLM533 | ||||
| 035 | 459863-5 | 2.40 | 2.90 | |
| Hex nut M4 | ||||
| 035C10 | 931102-0 | 1.00 | 1.21 | |
| Torsion spring 12 DLM532/533 | ||||
| 036 | 232575-3 | 1.00 | 1.21 | |
| Screw 4x20 | ||||
| 037 | 911138-5 | 1.00 | 1.21 | |
| Schakelhuis LM001/2J | ||||
| 038 | 183U21-4 | 2.40 | 2.90 | |
| Self-tapping screw 4x20 | ||||
| 039 | 266424-2 | 1.00 | 1.21 | |
| Wire Harness DLM538 | ||||
| 040 | 699199-2 | 19.80 | 23.96 | |
| Upper lever LM001/2J | ||||
| 041 | 327871-3 | 17.60 | 21.30 | |
| Bolt M8x50 LM001/2J | ||||
| 043 | 265C08-1 | 1.20 | 1.45 | |
| Wing nut M8 LM001/2J | ||||
| 044 | 265C06-5 | 1.20 | 1.45 | |
| Wire clamp LM001/2J | ||||
| 045 | 413944-9 | 1.20 | 1.45 | |
| Screw 4x35 | ||||
| 046 | 911163-6 | 1.00 | 1.21 | |
| Lever assy LM002J | ||||
| 047 | 122A72-2 | 17.60 | 21.30 | |
| Tension Pin 2.5-16 | ||||
| 048 | 258004-8 | 1.00 | 1.21 | |
| Button LM001J | ||||
| 049 | 413943-1 | 1.20 | 1.45 | |
| Lock Holder LM001J | ||||
| 050 | 327877-1 | 2.40 | 2.90 | |
| Compression Spring 8 | ||||
| 051 | 234121-8 | 1.00 | 1.21 | |
| Locking Pin LM001J | ||||
| 052 | 327876-3 | 2.40 | 2.90 | |
| Nut bolt M8 LM001/2J | ||||
| 053 | 265C07-3 | 1.00 | 1.21 | |
| Complete Battery Lid DLM480/539 | ||||
| 054 | 141F56-1 | 13.20 | 15.97 | |
| "Warning" label | ||||
| 054C10 | 890380-0 | 2.40 | 2.90 | |
| Compression Spring 7 | ||||
| 055 | 231037-8 | 1.00 | 1.21 | |
| Spindle handle DML481/539 | ||||
| 056 | 413B03-1 | 1.20 | 1.45 | |
| Rear cover complete DLM538/539 | ||||
| 057 | 141J52-3 | 9.60 | 11.62 | |
| LABEL WAARSCHUWING DLM480 P | ||||
| 058 | 8047H5-8 | 2.40 | 2.90 | |
| Compression Spring 8mm LM001/2J | ||||
| 061 | 232721-8 | 1.20 | 1.45 | |
| Ejection cover axle 6mm DLM532 | ||||
| 062 | 327418-3 | 2.40 | 2.90 | |
| Right Handle Support LM001/2J | ||||
| 063 | 347867-8 | 10.80 | 13.07 | |
| Countersunk Screw 5x30mm | ||||
| 064 | 266553-1 | 1.00 | 1.21 | |
| Parker 5x20mm LM001/2J | ||||
| 065 | 265C05-7 | 1.00 | 1.21 | |
| Retaining Ring E-5 | ||||
| 066 | 961018-5 | 1.00 | 1.21 | |
| STOPRING E-5 | ||||
| 066-1 | 259084-7 | 1.00 | 1.21 | |
| Left Handle Support LM001/2J | ||||
| 067 | 347866-0 | 10.80 | 13.07 | |
| Self-tapping screw 4x20 | ||||
| 068 | 266424-2 | 1.00 | 1.21 | |
| Battery Housing DLM382/432 | ||||
| 069 | 183N35-1 | 7.20 | 8.71 | |
| Rubber pen 6 | ||||
| 069C10 | 263005-3 | 1.00 | 1.21 | |
| Connection unit (3 contacts) | ||||
| 070 | 644809-6 | 4.80 | 5.81 | |
| Battery Housing DLM382/432 | ||||
| 071 | 183N35-1 | 7.20 | 8.71 | |
| Self-tapping screw 4x20 | ||||
| 072 | 266424-2 | 1.00 | 1.21 | |
| Handle support R DLM538 | ||||
| 073 | 8114H0-3 | 2.40 | 2.90 | |
| Parker 5x30 DLM538 | ||||
| 074 | 8114G4-8 | 1.00 | 1.21 | |
| Self-tapping screw 4x20 | ||||
| 075 | 266424-2 | 1.00 | 1.21 | |
| Handle LM001/2J | ||||
| 076 | 413938-4 | 2.40 | 2.90 | |
| Self-tapping screw 4x20 | ||||
| 077 | 266424-2 | 1.00 | 1.21 | |
| Clutch DLM538 | ||||
| 078 | 141J50-7 | 26.40 | 31.94 | |
| Sealing ring DLM480 | ||||
| 078C10 | 422789-4 | 1.00 | 1.21 | |
| LABEL INDICATIE DLM480 | ||||
| 078C20 | 8031N0-1 | 2.40 | 2.90 | |
| Self-tapping screw 4x20 | ||||
| 079 | 266424-2 | 1.00 | 1.21 | |
| Height plate LM001/2J | ||||
| 080 | 162993-0 | 7.20 | 8.71 | |
| Safety key DLM460 | ||||
| 081 | 643535-4 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 082 | 265C97-6 | |||
| Height adjuster LM001/2J | ||||
| 083 | 413939-2 | 1.20 | 1.45 | |
| Self-tapping screw 4x20 | ||||
| 084 | 266424-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 085 | 687053-2 | 1.00 | 1.21 | |
| Terminal Strip * | ||||
| 086 | 687051-6 | 1.20 | 1.45 | |
| Rear cover LM002J | ||||
| 090 | 413920-3 | 3.60 | 4.36 | |
| Self-tapping screw 4x20 | ||||
| 091 | 266424-2 | 1.00 | 1.21 | |
| Controller DLM480/538 | ||||
| 092 | 620G78-5 | 90.20 | 109.14 | |
| Self-tapping screw 4x20 | ||||
| 093 | 266424-2 | 1.00 | 1.21 | |
| Self-tapping screw 4x20 | ||||
| 094 | 266424-2 | 1.00 | 1.21 | |
| Motor hood DML481/539 | ||||
| 095 | 413B05-7 | 8.40 | 10.16 | |
| DC Motor DML481/539 | ||||
| 096 | 629A90-6 | 214.50 | 259.54 | |
| Motor bracket cpl DML481/539 | ||||
| 097 | 141H61-0 | 13.20 | 15.97 | |
| Allen Bolt M8x16 | ||||
| 098 | 922422-3 | 1.00 | 1.21 | |
| Motor Intermediate Plate DLM532/533 | ||||
| 099 | 459853-8 | 2.40 | 2.90 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 100 | 265B74-2 | 1.00 | 1.21 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 100 | 266385-6 | 0.83 | 1.00 | |
| Allen bolt M8x30 LM001/2J | ||||
| 101 | 265C22-7 | 1.00 | 1.21 | |
| Fan 170 LM001/2J | ||||
| 102 | 240229-8 | 3.60 | 4.36 | |
| Mesh holder 53cm LM002J | ||||
| 103 | 313392-1 | 4.80 | 5.81 | |
| Self-tapping screw 4x20 | ||||
| 104 | 266424-2 | 1.00 | 1.21 | |
| CIRKELMES COMBI 53 CM | ||||
| 105 | 191V96-5 | 17.00 | 20.57 | |
| Maaimesbout M8x35mm DLM532 A | ||||
| 106 | 265A69-9 | 1.20 | 1.45 | |
| Mowing deck DLM538 | ||||
| 107 | 413A64-5 | 58.30 | 70.54 | |
| Self-tapping screw 4x20 | ||||
| 108 | 266424-2 | 1.00 | 1.21 | |
| Locking Plate LM001/2J | ||||
| 109 | 347870-9 | 1.00 | 1.21 | |
| Compression Spring 17 LM001/2J | ||||
| 110 | 232717-9 | 2.40 | 2.90 | |
| Lock nut M6 LM001/2J | ||||
| 111 | 252301-4 | 1.00 | 1.21 | |
| CONTROLLER DLM538 | ||||
| 112 | 8046H9-4 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 113 | 253731-2 | 1.00 | 1.21 | |
| Connecting rod R LM001/2J | ||||
| 114 | 347873-3 | 9.60 | 11.62 | |
| F Connection Rod LM002J | ||||
| 115 | 347871-7 | 7.20 | 8.71 | |
| Washer 8 | ||||
| 116 | 253731-2 | 1.00 | 1.21 | |
| STOPRING E-6 A | ||||
| 117 | 961012-7 | 1.00 | 1.21 | |
| STOPRING E-6 | ||||
| 117-1 | 259085-5 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 118 | 267281-1 | 1.00 | 1.21 | |
| Rod holder LM001/2J | ||||
| 119 | 313389-0 | 8.40 | 10.16 | |
| Height adjuster LM001/2J | ||||
| 120 | 327872-1 | 3.60 | 4.36 | |
| Compression Spring 9mm LM001/2J | ||||
| 121 | 232715-3 | 1.00 | 1.21 | |
| Rod 7mm LM001/2J | ||||
| 122 | 327873-9 | 1.20 | 1.45 | |
| Self-tapping screw 4x20 | ||||
| 123 | 266424-2 | 1.00 | 1.21 | |
| Plate LM001/2J | ||||
| 124 | 347869-4 | 1.00 | 1.21 | |
| Flange Bolt M8x12 | ||||
| 125 | 265324-3 | 1.20 | 1.45 | |
| Front wheel 180mm LM001/2J | ||||
| 126 | 141E34-5 | 12.10 | 14.64 | |
| Ball Bearing 6001Ddw A | ||||
| 127 | 210163-6 | 1.20 | 1.45 | |
| Front axle LM002J | ||||
| 128 | 162989-1 | 9.60 | 11.62 | |
| Plate LM001/2J | ||||
| 129 | 347869-4 | 1.00 | 1.21 | |
| Self-tapping screw 4x20 | ||||
| 130 | 266424-2 | 1.00 | 1.21 | |
| Lock nut M6 LM001/2J | ||||
| 131 | 252301-4 | 1.00 | 1.21 | |
| Flange Bolt M8x12 | ||||
| 132 | 265324-3 | 1.20 | 1.45 | |
| Ball Bearing 6001Ddw A | ||||
| 133 | 210163-6 | 1.20 | 1.45 | |
| Rear wheel 230mm LM001/2J | ||||
| 134 | 141E35-3 | 13.20 | 15.97 | |
| Screw 5x10 | ||||
| 141 | 251951-2 | 1.00 | 1.21 | |
| Rear axle holder LM001/2J | ||||
| 143 | 313390-5 | 2.40 | 2.90 | |
| Rear axle LM002J | ||||
| 144 | 162990-6 | 16.50 | 19.96 | |
| Lock nut M6 LM001/2J | ||||
| 145 | 252301-4 | 1.00 | 1.21 | |
| Wire Clamp 19 LM001/2J | ||||
| 146 | 347865-2 | 1.20 | 1.45 | |
| Countersunk Screw 5x30mm | ||||
| 147 | 266553-1 | 1.00 | 1.21 | |
| LM002J Grass Bag Bracket | ||||
| 153 | 162A27-5 | 12.53 | 15.16 | |
| Grass catch bag | ||||
| 154 | 162B25-5 | 16.00 | 19.36 | |
