Here you will find all available parts and drawings of the 'Makita DLM382'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

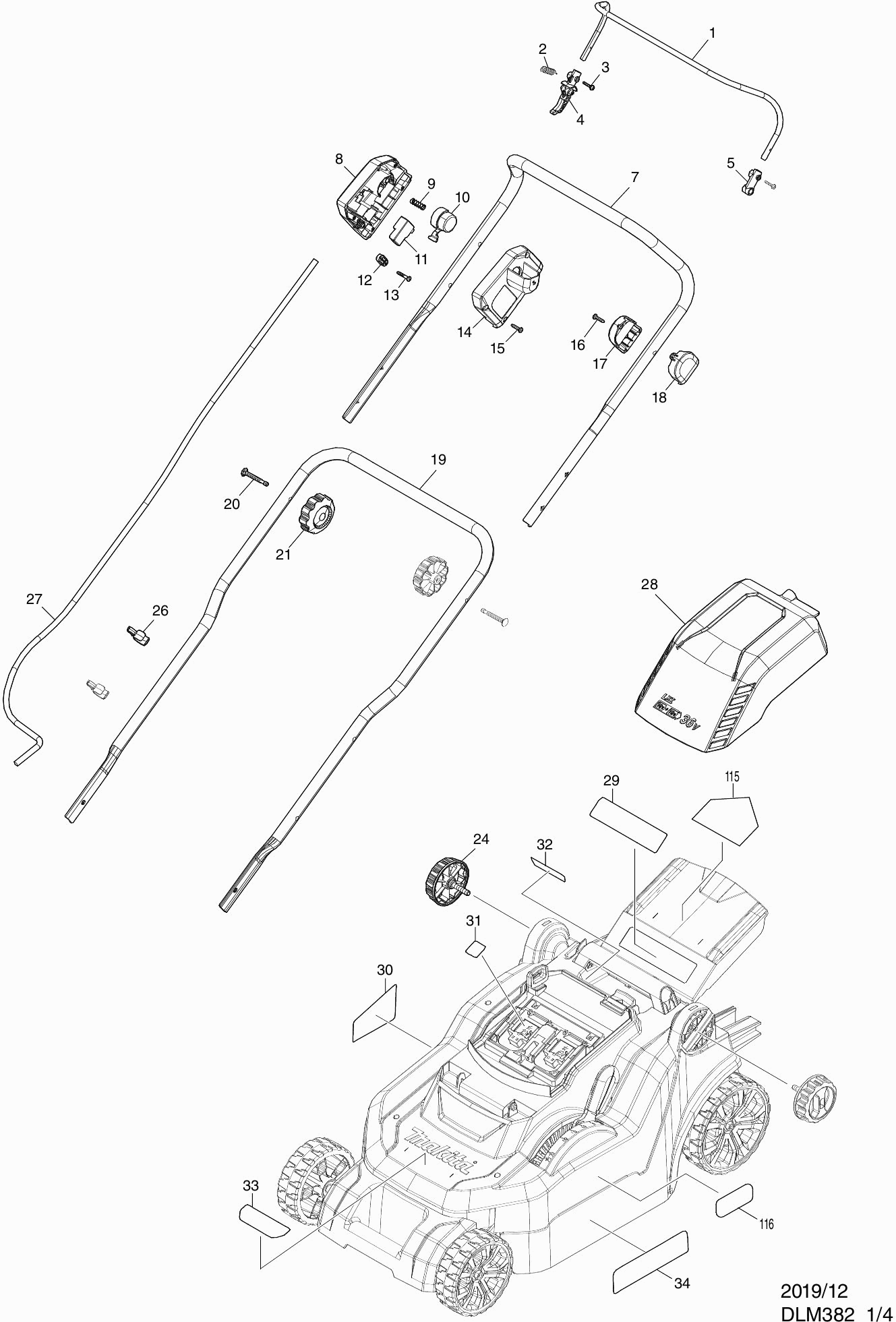

Technical drawing of model Makita DLM382
Spare parts list of model Makita DLM382
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch handle | ||||
| 001 | 326636-0 | 6.00 | 7.26 | |
| Pull spring 9mm | ||||
| 002 | 231876-6 | 1.00 | 1.21 | |
| Screw 4x20 | ||||
| 003 | 911138-5 | 1.00 | 1.21 | |
| Lever Dlm380 | ||||
| 004 | 455075-8 | 1.20 | 1.45 | |
| Switching Arm | ||||
| 005 | 455078-2 | 1.20 | 1.45 | |
| Push Rod (upper) | ||||
| 007 | 143510-5 | 14.30 | 17.30 | |
| Switch housing DLM382 | ||||
| 008 | 459804-1 | 3.60 | 4.36 | |
| Compression spring 6mm | ||||
| 009 | 233068-3 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 010 | 455074-0 | 1.20 | 1.45 | |
| Switch | ||||
| 011 | 650730-9 | 11.00 | 13.31 | |
| Clamp Bracket | ||||
| 012 | 687124-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 013 | 265999-8 | |||
| Switch cover DLM382/432 | ||||
| 014 | 140N15-0 | 3.60 | 4.36 | |
| Warning label | ||||
| 014C10 | 890374-5 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 015 | 265B67-9 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 016 | 265B67-9 | 1.00 | 1.21 | |
| Switch lever cap | ||||
| 017 | 456352-1 | 2.40 | 2.90 | |
| Switch lever housing | ||||
| 018 | 456351-3 | 2.40 | 2.90 | |
| Push beam below DLM382/432 | ||||
| 019 | 327413-3 | 14.30 | 17.30 | |
| Moerbout M6x50mm | ||||
| 020 | 265A14-4 | 1.00 | 1.21 | |
| Star Knob M6 | ||||
| 021 | 264070-5 | 2.40 | 2.90 | |
| Star knob M8X35mm Am/Blm | ||||
| 024 | 266729-0 | 2.40 | 2.90 | |
| Cable holder DLM382/432 | ||||
| 026 | 459809-1 | 1.00 | 1.21 | |
| Wiretree DLM382/432 | ||||
| 027 | 660393-3 | 4.80 | 5.81 | |
| Battery cover DLM382/432 | ||||
| 028 | 140N21-5 | 11.00 | 13.31 | |
| Warning label DLM382 | ||||
| 028C10 | 8005W1-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 029 | 890375-3 | |||
| Nameplate DLM382 | ||||
| 030 | 856L30-9 | 3.60 | 4.36 | |
| Serial number label DLM382 | ||||
| 031 | 856L35-9 | 2.40 | 2.90 | |
| Label indic A DLM382 | ||||
| 032 | 8005W9-1 | 2.40 | 2.90 | |
| Label indic B DLM382 | ||||
| 033 | 8005W7-5 | 2.40 | 2.90 | |
| Label indic C DLM382 | ||||
| 034 | 8005W8-3 | 2.40 | 2.90 | |
| Self-tapping screw Pf 5x25 | ||||
| 035 | 266459-3 | 1.00 | 1.21 | |
| Handle | ||||
| 036 | 273675-0 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 037 | 643890-4 | |||
| TAPSCHR 4X18MM DGA520 A | ||||
| 038 | 265B67-9 | 1.00 | 1.21 | |
| Battery Housing DLM382/432 | ||||
| 039 | 183N35-1 | 7.20 | 8.71 | |
| Rubber pen 6 | ||||
| 039C10 | 263005-3 | 1.00 | 1.21 | |
| Connection unit (3 contacts) | ||||
| 040 | 644809-6 | 4.80 | 5.81 | |
| Battery Housing DLM382/432 | ||||
| 041 | 183N35-1 | 7.20 | 8.71 | |
| Rubber pen 6 | ||||
| 041C10 | 263005-3 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 042 | 265B67-9 | 1.00 | 1.21 | |
| Mower cover DLM382 | ||||
| 043 | 127393-1 | 14.30 | 17.30 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 044 | 265B67-9 | 1.00 | 1.21 | |
| Unlock button | ||||
| 045 | 453250-0 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 046 | 233173-6 | 1.00 | 1.21 | |
| Unlock button base | ||||
| 047 | 453251-8 | 1.20 | 1.45 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 048 | 265B67-9 | 1.00 | 1.21 | |
| Light circuit DLM382/432 | ||||
| 049 | 620B91-3 | 6.00 | 7.26 | |
| Light cover plate | ||||
| 050 | 455070-8 | 1.20 | 1.45 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 051 | 265B67-9 | 1.00 | 1.21 | |
| Motor DLM382 | ||||
| 052 | 629A17-6 | 110.00 | 133.10 | |
| No information available, not orderable | ||||
| 053 | 266774-5 | |||
| No information available, not orderable | ||||
| 054 | 265999-8 | |||
| Clamp Bracket | ||||
| 055 | 687124-5 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 056 | 265B67-9 | 1.00 | 1.21 | |
| Cable harness | ||||
| 057 | 638946-6 | 3.60 | 4.36 | |
| Line filter | ||||
| 058 | 688162-0 | 2.40 | 2.90 | |
| Line filter | ||||
| 059 | 688165-4 | 1.00 | 1.21 | |
| CONTROLLER DLM382 A | ||||
| 060 | 632U24-0 | 77.00 | 93.17 | |
| Controller DLM382 | ||||
| 060 | 632P17-7 | 72.60 | 87.85 | |
| Controller DLM382 | ||||
| 060-1 | 632P17-7 | 72.60 | 87.85 | |
| No information available, not orderable | ||||
| 060C10 | 654208-4 | |||
| Line filter | ||||
| 061 | 688162-0 | 2.40 | 2.90 | |
| Circular Mesh Holder DLM382 | ||||
| 062 | 459811-4 | 3.60 | 4.36 | |
| Maaimes 38cm | ||||
| 063 | 191D41-2 | 9.00 | 10.89 | |
| Blade bolt M8x35mm DLM382/432 | ||||
| 064 | 256933-9 | 1.00 | 1.21 | |
| Ejection cover DLM382/432 | ||||
| 065 | 140S15-0 | 7.20 | 8.71 | |
| Retaining Ring E-5 | ||||
| 066 | 961018-5 | 1.00 | 1.21 | |
| Ejection cover pin DLM382 | ||||
| 067 | 259068-5 | 2.40 | 2.90 | |
| Torsion spring 6mm | ||||
| 068 | 233597-6 | 1.20 | 1.45 | |
| Cutting deck DLM382 | ||||
| 070 | 459777-8 | 52.80 | 63.89 | |
| Nut M8 DLM382 | ||||
| 070C10 | 346544-9 | 1.20 | 1.45 | |
| Hex Nut M6 | ||||
| 070C20 | 931302-2 | 1.00 | 1.21 | |
| Base plate DLM382/432 | ||||
| 071 | 412272-9 | 4.80 | 5.81 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 072 | 265B67-9 | 1.00 | 1.21 | |
| Pull Spring 16mm | ||||
| 073 | 231875-8 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 074 | 265B67-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 075 | 267102-7 | |||
| No information available, not orderable | ||||
| 076 | 231297-2 | |||
| Lock washer 5 | ||||
| 077 | 253808-3 | 1.20 | 1.45 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 078 | 265B67-9 | 1.00 | 1.21 | |
| Hex Nut M6 | ||||
| 079 | 931302-2 | 1.00 | 1.21 | |
| Sleeve 6 Am/Blm | ||||
| 080 | 257670-8 | 1.00 | 1.21 | |
| Adjusting Plate | ||||
| 081 | 453255-0 | 6.00 | 7.26 | |
| Change lever DLM382 | ||||
| 082 | 459099-6 | 3.60 | 4.36 | |
| Hex Socket Screw M6X30Mm Am/Blm | ||||
| 083 | 921352-5 | 1.00 | 1.21 | |
| Connecting rod DLM382/432 | ||||
| 084 | 347571-9 | 7.20 | 8.71 | |
| Washer 5mm DSP601 A | ||||
| 085 | 253414-4 | 1.00 | 1.21 | |
| Washer 5mm DSP601 A | ||||
| 085-1 | 253414-4 | 1.00 | 1.21 | |
| Hex lock nut 5x8 | ||||
| 086 | 252103-8 | 1.20 | 1.45 | |
| Lock nut M8 Dcs230T A | ||||
| 087 | 252145-2 | 1.00 | 1.21 | |
| Rear wheel DLM382 | ||||
| 088 | 459101-5 | 14.30 | 17.30 | |
| Ball bearing 6200llb | ||||
| 089 | 211066-7 | 4.80 | 5.81 | |
| Rear Axle DLM382 | ||||
| 090 | 162C98-4 | 15.40 | 18.63 | |
| Mounting plate Blm/Am | ||||
| 091 | 346545-7 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 092 | 265B67-9 | 1.00 | 1.21 | |
| Lock nut M8 Dcs230T A | ||||
| 093 | 252145-2 | 1.00 | 1.21 | |
| Front wheel DLM382 | ||||
| 094 | 459100-7 | 13.20 | 15.97 | |
| Ball bearing 6200llb | ||||
| 095 | 211066-7 | 4.80 | 5.81 | |
| No longer available, no replacement | ||||
| 096 | 162C69-1 | |||
| Axle lock plate | ||||
| 097 | 341462-6 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 098 | 265B67-9 | 1.00 | 1.21 | |
| Grass collecting bag frame DLM382 | ||||
| 099 | 327411-7 | 9.60 | 11.62 | |
| Lock washer 5 | ||||
| 100 | 267438-4 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 101 | 265B67-9 | 1.00 | 1.21 | |
| Grass catcher assy DLM382 | ||||
| 102 | 127392-3 | 38.50 | 46.58 | |
| Handle DLM382 | ||||
| 104 | 273676-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 105 | 459812-2 | |||
| TAPSCHR 4X18MM DGA520 A | ||||
| 106 | 265B67-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 107 | 162684-3 | |||
| Grass indicator DLM382 | ||||
| 108 | 459806-7 | 1.00 | 1.21 | |
