Here you will find all available parts and drawings of the 'Makita DJV185RTJ'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

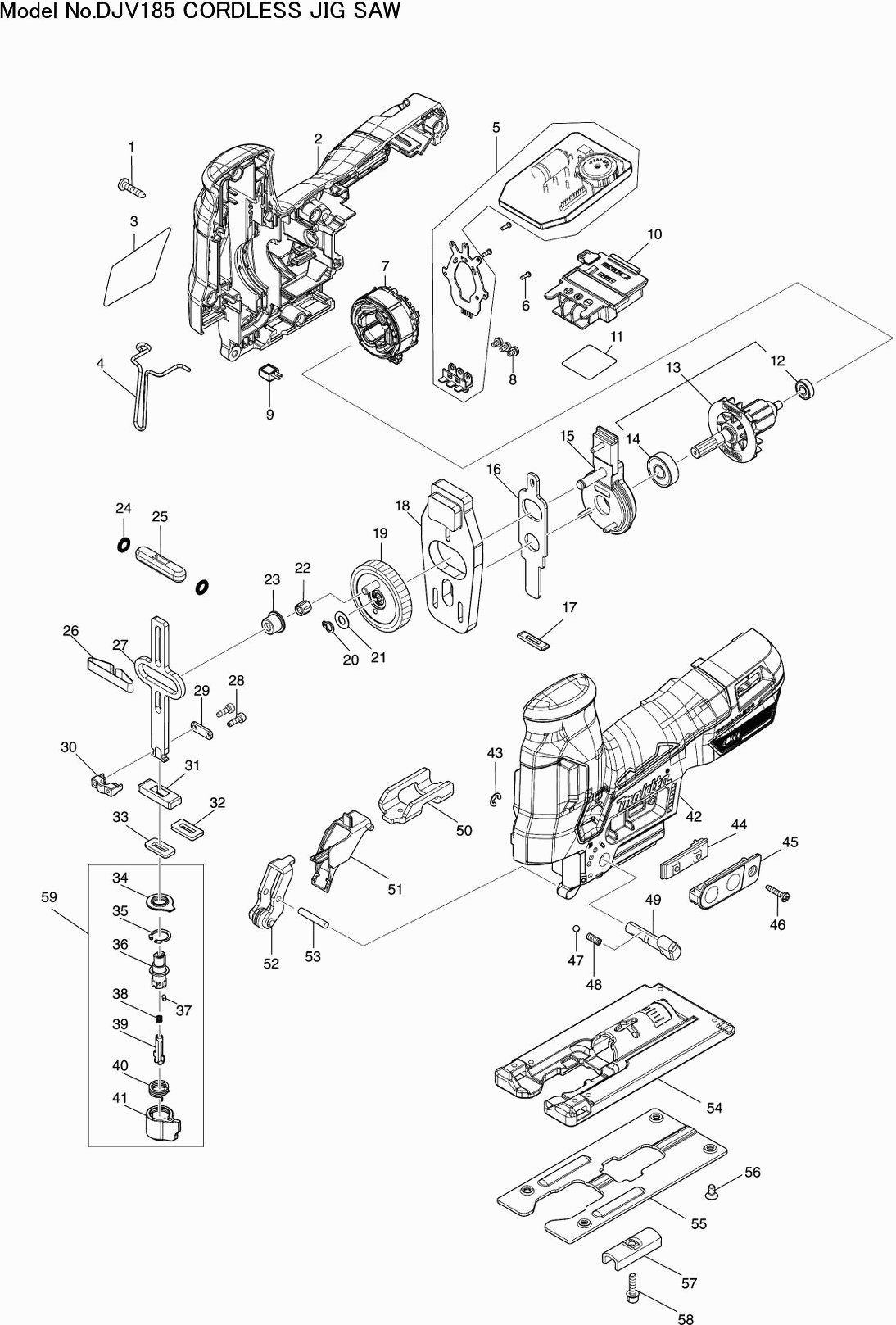

Technical drawing of model Makita DJV185RTJ
Spare parts list of model Makita DJV185RTJ
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 266326-2 | |||
| Motorhuis DJV185 | ||||
| 002 | 183X94-5 | 11.15 | 13.49 | |
| Rubber pen 6 | ||||
| 002C10 | 263005-3 | 0.83 | 1.00 | |
| Label DJV185 | ||||
| 003 | 8589C8-1 | 0.83 | 1.00 | |
| Protection Spring | ||||
| 004 | 323748-0 | 1.02 | 1.23 | |
| Controller DJV185 | ||||
| 005 | 620L44-2 | 74.48 | 90.12 | |
| Parker Ck 2x6mm | ||||
| 006 | 266490-9 | 0.83 | 1.00 | |
| Field | ||||
| 007 | 629B14-8 | 8.38 | 10.14 | |
| Phillips Head Screw M3X6 | ||||
| 008 | 652069-6 | 0.83 | 1.00 | |
| Light Circuit Jv102D | ||||
| 009 | 620712-5 | 5.06 | 6.12 | |
| Connection unit | ||||
| 010 | 643874-2 | 3.54 | 4.28 | |
| Label serienr DJV185 | ||||
| 011 | 8589D9-6 | 0.83 | 1.00 | |
| Ball bearing 609ddw | ||||
| 012 | 210039-7 | 3.11 | 3.76 | |
| Anker DJV185 | ||||
| 013 | 519824-8 | 13.72 | 16.60 | |
| Ball Bearing 608ddw | ||||
| 014 | 210005-4 | 4.45 | 5.38 | |
| Bearing Housing JV0600 A | ||||
| 015 | 144820-3 | 10.50 | 12.70 | |
| Pressure Plate | ||||
| 016 | 347249-4 | 0.98 | 1.19 | |
| Dust Seal | ||||
| 017 | 416703-0 | 0.83 | 1.00 | |
| Weight Block | ||||
| 018 | 310812-6 | 7.22 | 8.74 | |
| Gear DJV184Z | ||||
| 019 | 141H68-6 | 15.76 | 19.07 | |
| Lock ring S-6 | ||||
| 020 | 961002-0 | 0.83 | 1.00 | |
| Washer 6 | ||||
| 021 | 253715-0 | 0.83 | 1.00 | |
| Needle bearing 508 DJV184Z | ||||
| 022 | 212265-4 | 0.89 | 1.08 | |
| Collar Bushing 8 DJB184Z | ||||
| 023 | 257872-6 | 2.15 | 2.60 | |
| O-ring 5 | ||||
| 024 | 213038-8 | 0.83 | 1.00 | |
| Saw Guide | ||||
| 025 | 313082-6 | 0.98 | 1.19 | |
| Leaf Spring | ||||
| 026 | 232183-0 | 0.83 | 1.00 | |
| Guide DJV184Z | ||||
| 027 | 347966-6 | 3.59 | 4.34 | |
| Allen Bolt M3x10 | ||||
| 028 | 266177-3 | 0.83 | 1.00 | |
| Plate | ||||
| 029 | 347247-8 | 0.83 | 1.00 | |
| Blade Clamp | ||||
| 030 | 310811-8 | 3.54 | 4.28 | |
| Saw guide | ||||
| 031 | 313086-8 | 0.83 | 1.00 | |
| Holding Plate | ||||
| 032 | 344686-3 | 0.83 | 1.00 | |
| Sponge rubber seal | ||||
| 033 | 423307-1 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 034 | 424437-1 | |||
| Lock Ring R-13 | ||||
| 035 | 962063-3 | 0.83 | 1.00 | |
| Blade guide | ||||
| 036 | 310810-0 | 6.41 | 7.76 | |
| Pin 2mm | ||||
| 037 | 256528-8 | 0.83 | 1.00 | |
| Compression Spring 4 | ||||
| 038 | 233314-4 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 039 | 310485-5 | |||
| No information available, not orderable | ||||
| 040 | 233591-8 | |||
| No information available, not orderable | ||||
| 041 | 452850-3 | |||
| Motorhuis DJV185 | ||||
| 042 | 183X94-5 | 11.15 | 13.49 | |
| Rubber pen 6 | ||||
| 042C10 | 263005-3 | 0.83 | 1.00 | |
| Retaining Ring E-4 | ||||
| 043 | 961011-9 | 0.83 | 1.00 | |
| Schakelaar DJV185 | ||||
| 044 | 620L34-5 | 4.76 | 5.76 | |
| Switch Plate Cpl Jv102D | ||||
| 045 | 144628-5 | 1.99 | 2.41 | |
| Tapping Screw 3x16 | ||||
| 046 | 266130-9 | 0.83 | 1.00 | |
| Steel ball 4 | ||||
| 047 | 216008-6 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 048 | 233151-6 | |||
| Catch Lever | ||||
| 049 | 271441-9 | 1.99 | 2.41 | |
| Holder | ||||
| 050 | 347251-7 | 0.83 | 1.00 | |
| Support wheel guide | ||||
| 051 | 457866-3 | 0.83 | 1.00 | |
| Support wheel complete | ||||
| 052 | 144629-3 | 7.22 | 8.74 | |
| Pen 4 | ||||
| 053 | 256206-0 | 0.83 | 1.00 | |
| Voetplaat DJV184Z | ||||
| 054 | 312C90-2 | 7.44 | 9.00 | |
| Sliding Plate | ||||
| 055 | 345441-6 | 1.39 | 1.68 | |
| Countersunk screw 4x8 | ||||
| 056 | 912107-9 | 0.83 | 1.00 | |
| Clamp plate for sole | ||||
| 057 | 344685-5 | 0.83 | 1.00 | |
| Hex bolt 4x16 | ||||
| 058 | 922128-3 | 0.83 | 1.00 | |
| Complete Blade Guide Jv102D | ||||
| 059 | 135941-2 | 25.36 | 30.69 | |
