Here you will find all available parts and drawings of the 'Makita DJV182'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

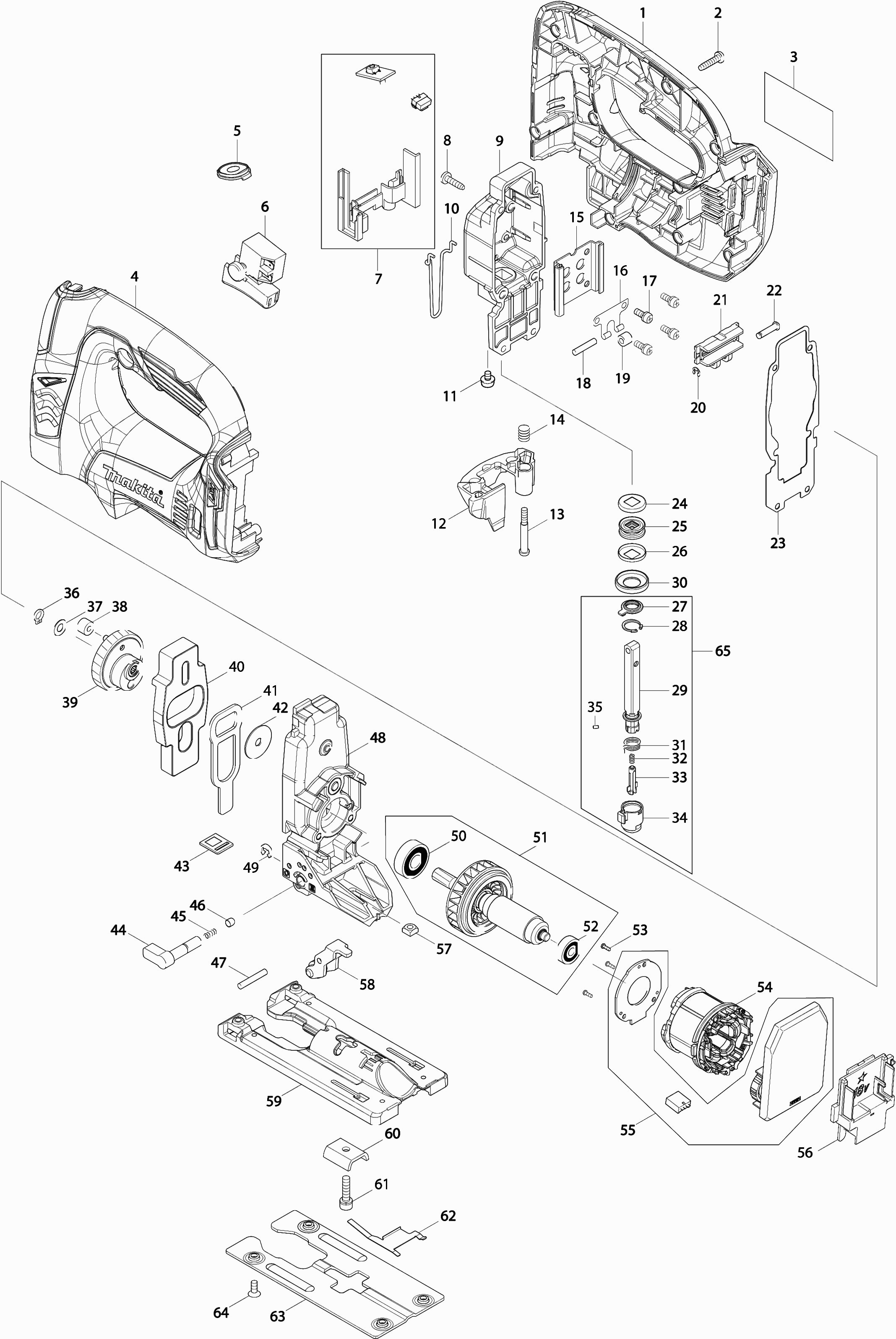

Technical drawing of model Makita DJV182
Spare parts list of model Makita DJV182
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 001 | 187706-8 | 22.00 | 26.62 | |
| No information available, not orderable | ||||
| 001-1 | 187705-0 | |||
| Rubber pen 6 | ||||
| 001A | 263005-3 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 002 | 265A48-7 | 1.00 | 1.21 | |
| Name plate Djv182 | ||||
| 003 | 814V65-6 | 3.60 | 4.36 | |
| Motor Housing | ||||
| 004 | 187706-8 | 22.00 | 26.62 | |
| No information available, not orderable | ||||
| 004-1 | 187705-0 | |||
| Rubber pen 6 | ||||
| 004A | 263005-3 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 005 | 142303-7 | 4.80 | 5.81 | |
| Switch | ||||
| 006 | 650251-1 | 8.40 | 10.16 | |
| Switch | ||||
| 007 | 632B56-3 | 22.00 | 26.62 | |
| Switch | ||||
| 007A | 632B56-3 | 22.00 | 26.62 | |
| No information available, not orderable | ||||
| 007B | 620N15-1 | |||
| Tapping Screw Ct4x16 | ||||
| 008 | 266034-5 | 1.00 | 1.21 | |
| Inner Cover | ||||
| 009 | 142112-4 | 17.60 | 21.30 | |
| Protection Spring | ||||
| 010 | 326302-9 | 1.00 | 1.21 | |
| Screw M4x5 | ||||
| 011 | 265132-2 | 1.00 | 1.21 | |
| Met.Screw Ck M4x6mm | ||||
| 011 | 911104-2 | 0.83 | 1.00 | |
| Rack | ||||
| 012 | 454483-0 | 2.40 | 2.90 | |
| Crosshead screw M4 | ||||
| 013 | 265026-1 | 2.40 | 2.90 | |
| Coil Spring 6 | ||||
| 014 | 231659-4 | 1.00 | 1.21 | |
| Guide Piece | ||||
| 015 | 346687-7 | 6.00 | 7.26 | |
| Leaf Spring | ||||
| 016 | 232207-2 | 2.40 | 2.90 | |
| Screw 4X10 | ||||
| 017 | 911111-5 | 1.00 | 1.21 | |
| Pen 4 | ||||
| 018 | 256117-9 | 1.20 | 1.45 | |
| Slide Bearing 4 | ||||
| 019 | 214031-5 | 1.20 | 1.45 | |
| Stopring E-3 | ||||
| 020 | 961017-7 | 1.00 | 1.21 | |
| Bridge piece | ||||
| 021 | 310837-0 | 13.20 | 15.97 | |
| Locking pin 4 | ||||
| 022 | 268090-1 | 2.40 | 2.90 | |
| Gasket | ||||
| 023 | 442195-7 | 2.40 | 2.90 | |
| Washer 8mm | ||||
| 024 | 267854-0 | 1.00 | 1.21 | |
| Dust ring 8 | ||||
| 025 | 421815-6 | 1.20 | 1.45 | |
| Washer 8mm | ||||
| 026 | 267854-0 | 1.00 | 1.21 | |
| Dust cover for switch | ||||
| 027 | 424569-4 | 1.00 | 1.21 | |
| Lock Ring R-13 | ||||
| 028 | 962063-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 029 | 165724-6 | |||
| Ring 21mm | ||||
| 030 | 257347-5 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 031 | 233591-8 | |||
| Compression Spring 4 | ||||
| 032 | 233314-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 033 | 310485-5 | |||
| No information available, not orderable | ||||
| 034 | 310547-9 | |||
| Pin 2mm | ||||
| 035 | 256528-8 | 1.00 | 1.21 | |
| Lock ring S-6 | ||||
| 036 | 961002-0 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 037 | 253715-0 | 1.20 | 1.45 | |
| Needle Bearing 407 | ||||
| 038 | 212092-9 | 14.30 | 17.30 | |
| Gear | ||||
| 039 | 142109-3 | 28.60 | 34.61 | |
| Weight Block | ||||
| 040 | 313260-8 | 9.60 | 11.62 | |
| Pressure Plate | ||||
| 041 | 346688-5 | 2.40 | 2.90 | |
| Washer 6x25mm | ||||
| 042 | 253196-8 | 1.20 | 1.45 | |
| Rubber plate | ||||
| 043 | 454484-8 | 1.00 | 1.21 | |
| Adjustment Button | ||||
| 044 | 272280-0 | 1.20 | 1.45 | |
| Compression Spring 3 4340/41 | ||||
| 045 | 233139-6 | 1.00 | 1.21 | |
| Cap 5 | ||||
| 046 | 286032-3 | 1.00 | 1.21 | |
| Pin 4 | ||||
| 047 | 268063-4 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 048 | 142111-6 | 19.80 | 23.96 | |
| Retaining Ring E-5 | ||||
| 049 | 961018-5 | 1.00 | 1.21 | |
| Ball bearing 6000ddw | ||||
| 050 | 211289-7 | 13.20 | 15.97 | |
| Armature 14,4v | ||||
| 051 | 519329-8 | 77.67 | 93.98 | |
| Ball bearing 626zz | ||||
| 052 | 210143-2 | 3.60 | 4.36 | |
| Parker Ck 2x6mm | ||||
| 053 | 266490-9 | 1.00 | 1.21 | |
| Field | ||||
| 054 | 629998-8 | 23.10 | 27.95 | |
| Speed Control Circuit DJV182 A | ||||
| 055 | 620B24-8 | 112.20 | 135.76 | |
| Connection unit Bcl182D(3 Cont) A | ||||
| 056 | 643523-1 | 6.00 | 7.26 | |
| Connection unit | ||||
| 056-1 | 643874-2 | 3.60 | 4.36 | |
| Nut M5-8 | ||||
| 057 | 252171-1 | 1.00 | 1.21 | |
| Support wheel complete | ||||
| 058 | 142110-8 | 9.60 | 11.62 | |
| Saw foot | ||||
| 059 | 319016-7 | 9.60 | 11.62 | |
| Mounting Plate | ||||
| 060 | 345237-5 | 1.20 | 1.45 | |
| Hexagonal bolt 5X20 LF1000 A | ||||
| 061 | 265550-4 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 062 | 232208-0 | 1.20 | 1.45 | |
| Sliding Plate | ||||
| 063 | 346685-1 | 3.60 | 4.36 | |
| Met.scr. Vk M4x8mm | ||||
| 064 | 265085-5 | 1.00 | 1.21 | |
| Saw-shaft assembly | ||||
| 065 | 135602-4 | 30.80 | 37.27 | |
