Here you will find all available parts and drawings of the 'Makita DJS200'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

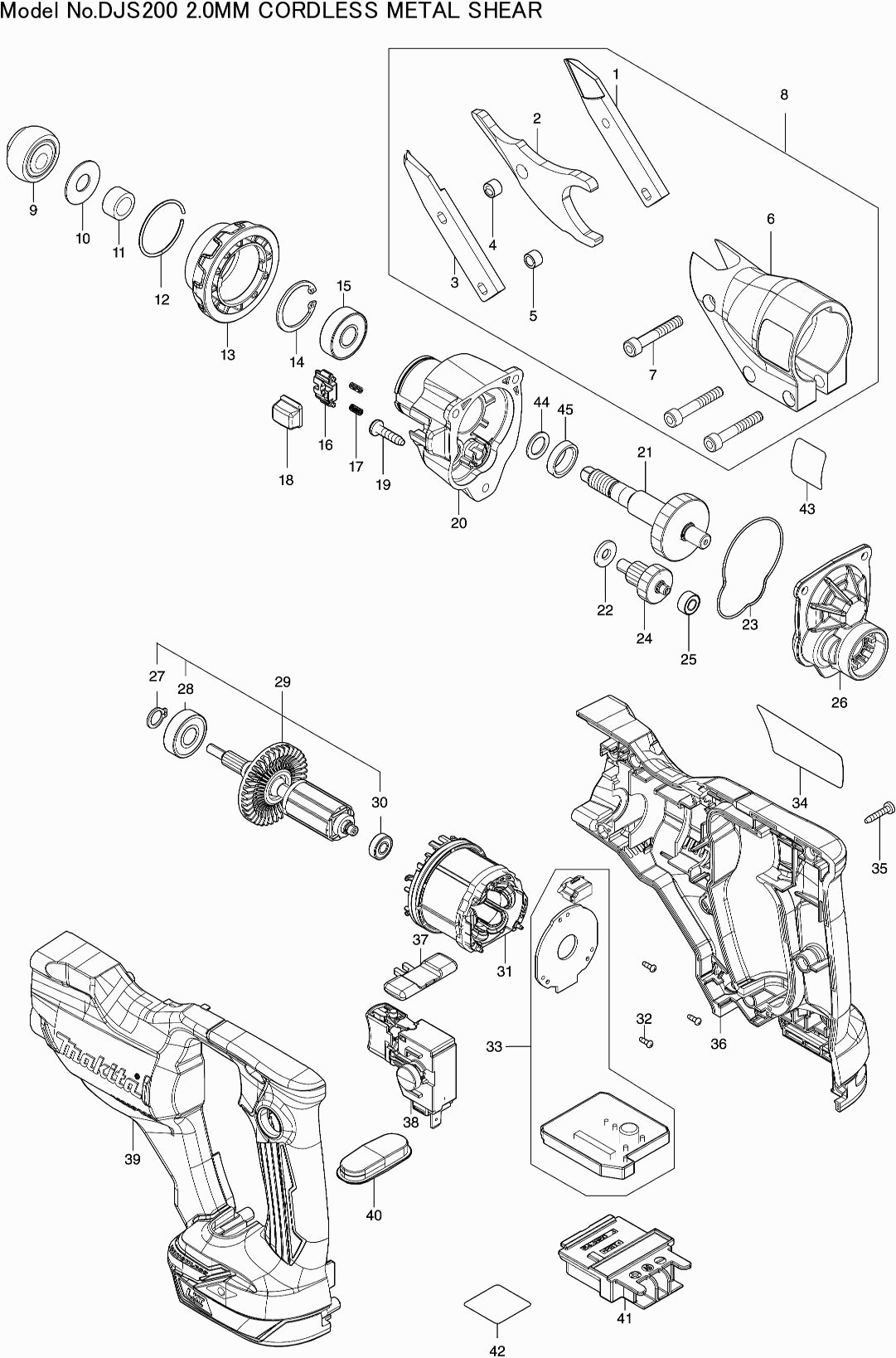

Technical drawing of model Makita DJS200
Spare parts list of model Makita DJS200
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001-1 | 725092-5 | |||
| MESBLAD MIDDEN | ||||
| 002 | 725255-3 | 51.00 | 61.71 | |
| No information available, not orderable | ||||
| 003-1 | 725093-3 | |||
| No information available, not orderable | ||||
| 004 | 327518-9 | |||
| Bus 5 | ||||
| 005-1 | 257705-5 | 4.80 | 5.81 | |
| Cutting Head | ||||
| 006 | 140R34-0 | 88.00 | 106.48 | |
| SCHROEF CAP 10X32 DJS200 | ||||
| 007 | 265A91-6 | 4.80 | 5.81 | |
| SCHAARKOP COMPLEET | ||||
| 008 | 127486-4 | 171.00 | 206.91 | |
| Ball bearing set DJS200 | ||||
| 009 | 127485-6 | 106.70 | 129.11 | |
| Washer 10 | ||||
| 010 | 267223-5 | 3.60 | 4.36 | |
| Distance bus 10 Tl064D | ||||
| 011 | 257428-5 | 1.00 | 1.21 | |
| Retaining ring 29 | ||||
| 012 | 233929-7 | 1.00 | 1.21 | |
| Switching ring DJS200 | ||||
| 013 | 310995-2 | 28.60 | 34.61 | |
| Lock ring R-26 A | ||||
| 014 | 962105-3 | 1.00 | 1.21 | |
| Ball bearing 6000ddw | ||||
| 015 | 211289-7 | 13.20 | 15.97 | |
| Lever DJS200/131/800 | ||||
| 016 | 310993-6 | 6.00 | 7.26 | |
| Compression spring 2 DJS200 | ||||
| 017 | 232390-5 | 1.00 | 1.21 | |
| Knob DJS200/131/800 | ||||
| 018 | 310994-4 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 019 | 265A48-7 | 1.00 | 1.21 | |
| Gearbox housing DJS200/131 | ||||
| 020 | 140R40-5 | 46.20 | 55.90 | |
| Complete gear DJS200/131/800 | ||||
| 021 | 140R42-1 | 12.10 | 14.64 | |
| 6mm Washer | ||||
| 022 | 267100-1 | 1.20 | 1.45 | |
| Seal ring | ||||
| 023 | 424928-2 | 1.00 | 1.21 | |
| Gear | ||||
| 024 | 221478-6 | 7.20 | 8.71 | |
| Ball Bearing 685Zz | ||||
| 025 | 210003-8 | 6.00 | 7.26 | |
| Gearbox cover DJS200/131/800 | ||||
| 026 | 140R41-3 | 6.00 | 7.26 | |
| Lock ring S-9 | ||||
| 027 | 961005-4 | 1.00 | 1.21 | |
| Ball Bearing 609llu | ||||
| 028-1 | 210060-6 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 029 | 519424-4 | |||
| Ball bearing 609ddw | ||||
| 030 | 210039-7 | 3.60 | 4.36 | |
| Field DJS200 | ||||
| 031 | 629487-3 | 16.50 | 19.96 | |
| Parker Ck 2x6mm | ||||
| 032 | 266490-9 | 1.00 | 1.21 | |
| Controller DJS200/800 | ||||
| 033 | 620B89-0 | 112.20 | 135.76 | |
| No information available, not orderable | ||||
| 034 | 857A78-8 | |||
| Tapping Screw 3x16 | ||||
| 035 | 266130-9 | 1.00 | 1.21 | |
| Motor Housing DJS200 | ||||
| 036 | 183P52-3 | 34.10 | 41.26 | |
| Rubber pen 6 | ||||
| 036C10 | 263005-3 | 1.00 | 1.21 | |
| Lock Nut M4x7mm | ||||
| 036C20 | 252126-6 | 1.00 | 1.21 | |
| Switch lever DJS200/800 | ||||
| 037 | 412330-1 | 1.00 | 1.21 | |
| Switch C3JW-4B-1L DUT130 | ||||
| 038 | 651088-9 | 26.40 | 31.94 | |
| Motor Housing DJS200 | ||||
| 039 | 183P52-3 | 34.10 | 41.26 | |
| Rubber pen 6 | ||||
| 039C10 | 263005-3 | 1.00 | 1.21 | |
| Lock Nut M4x7mm | ||||
| 039C20 | 252126-6 | 1.00 | 1.21 | |
| Switch plate DJS200/131 | ||||
| 040 | 412332-7 | 2.40 | 2.90 | |
| Connection unit DTD153 3cont | ||||
| 041 | 643860-3 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 042 | 857A82-7 | |||
| No information available, not orderable | ||||
| 043 | 8012T3-7 | |||
| Ring 10 | ||||
| 044 | 267047-9 | 1.00 | 1.21 | |
| Ring 10mm DJS200 | ||||
| 045 | 257852-2 | 1.20 | 1.45 | |
