Here you will find all available parts and drawings of the 'Makita DJS130'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

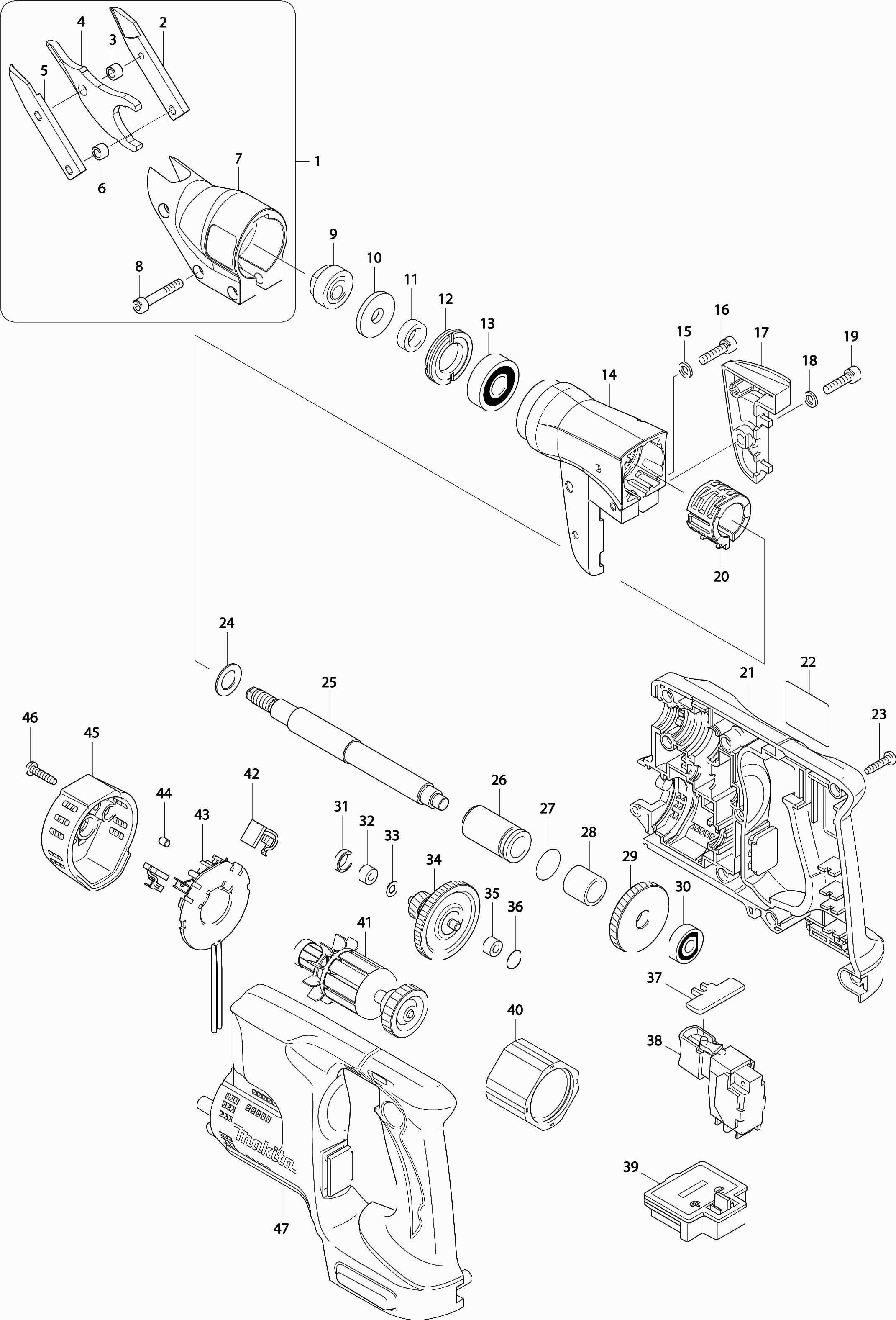

Technical drawing of model Makita DJS130
Spare parts list of model Makita DJS130
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Schaarkop compleet 18 Gauge | ||||
| 001 | 125849-8 | 228.00 | 275.88 | |
| Zijmes rechts | ||||
| 002 | 792742-7 | 45.00 | 54.45 | |
| Bus 5 | ||||
| 003 | 257705-5 | 4.14 | 5.01 | |
| Middenmes | ||||
| 004 | 792744-3 | 49.00 | 59.29 | |
| Zijmes links | ||||
| 005 | 792743-5 | 45.00 | 54.45 | |
| Bus 5 | ||||
| 006 | 257705-5 | 4.14 | 5.01 | |
| Cutting Head | ||||
| 007 | 152663-9 | 95.13 | 115.11 | |
| Allen bolt 10-24unc | ||||
| 008 | 266268-0 | 5.06 | 6.12 | |
| Bearing Holder | ||||
| 009 | 125111-1 | 37.75 | 45.68 | |
| Washer 10 | ||||
| 010 | 267223-5 | 2.84 | 3.44 | |
| Washer 12 5604R | ||||
| 011 | 257173-2 | 0.83 | 1.00 | |
| Bearing Lock 19-33 | ||||
| 012 | 285802-7 | 1.75 | 2.12 | |
| Ball Bearing 6201dw1 | ||||
| 013 | 211129-9 | 7.22 | 8.74 | |
| Cylinder Housing | ||||
| 014 | 318325-1 | 33.36 | 40.37 | |
| Lock washer 5 | ||||
| 015 | 941102-2 | 0.83 | 1.00 | |
| Hexagonal bolt 5X20 LF1000 A | ||||
| 016 | 265550-4 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 016-1 | 922233-6 | |||
| Cover | ||||
| 017 | 450757-7 | 8.21 | 9.93 | |
| Lock washer 5 | ||||
| 018 | 941102-2 | 0.83 | 1.00 | |
| Hexagonal bolt 5X20 LF1000 A | ||||
| 019 | 265550-4 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 019-1 | 922233-6 | |||
| Clamping Sleeve | ||||
| 020 | 450755-1 | 10.50 | 12.70 | |
| Motor housing Dts130 | ||||
| 021 | 187480-8 | 30.69 | 37.13 | |
| Nameplate Djs130 | ||||
| 022 | 815V90-0 | 2.71 | 3.28 | |
| Tap screw 4x18 | ||||
| 023 | 265A48-7 | 0.83 | 1.00 | |
| Washer 12 | ||||
| 024 | 253744-3 | 0.83 | 1.00 | |
| Spindle Ass'y | ||||
| 025 | 324937-0 | 33.36 | 40.37 | |
| Slide bearing 14 | ||||
| 026 | 214174-3 | 4.44 | 5.37 | |
| O-ring 18 | ||||
| 027 | 213262-3 | 0.98 | 1.19 | |
| Bus 14 | ||||
| 028 | 257773-8 | 4.45 | 5.38 | |
| Gear 39 | ||||
| 029 | 226686-4 | 33.35 | 40.35 | |
| Ball Bearing | ||||
| 030 | 211034-0 | 3.72 | 4.50 | |
| Sleeve 10 | ||||
| 031 | 165115-1 | 2.48 | 3.00 | |
| Slide Bearing 5 | ||||
| 032 | 214017-9 | 0.83 | 1.00 | |
| Lock washer 5 | ||||
| 033 | 253811-4 | 0.83 | 1.00 | |
| Gear 11-44 | ||||
| 034 | 226154-7 | 30.70 | 37.15 | |
| Slide Bearing 5 | ||||
| 035 | 214017-9 | 0.83 | 1.00 | |
| O-ring 10 | ||||
| 036 | 213055-8 | 0.83 | 1.00 | |
| Locking Button | ||||
| 037 | 450756-9 | 7.22 | 8.74 | |
| Switch (3 contacts) | ||||
| 038 | 650670-1 | 13.82 | 16.72 | |
| Connection unit Bcl182D(3 Cont) A | ||||
| 039 | 643523-1 | 5.06 | 6.12 | |
| Magnet Unit | ||||
| 040 | 638426-2 | 23.06 | 27.90 | |
| Armature | ||||
| 041 | 619237-4 | 33.35 | 40.35 | |
| Brush set Cb448 | ||||
| 042 | 196855-0 | 3.54 | 4.28 | |
| Brush Holder | ||||
| 043 | 638433-5 | 3.12 | 3.78 | |
| Torsion spring 'r' | ||||
| 043A | 231696-8 | 0.83 | 1.00 | |
| Torsion spring 'l' | ||||
| 043B | 231697-6 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 044 | 263032-0 | 0.83 | 1.00 | |
| Motor Hood | ||||
| 045 | 419307-7 | 5.06 | 6.12 | |
| Tap screw 4x18 | ||||
| 046 | 265A48-7 | 0.83 | 1.00 | |
| Motor housing Dts130 | ||||
| 047 | 187480-8 | 30.69 | 37.13 | |
