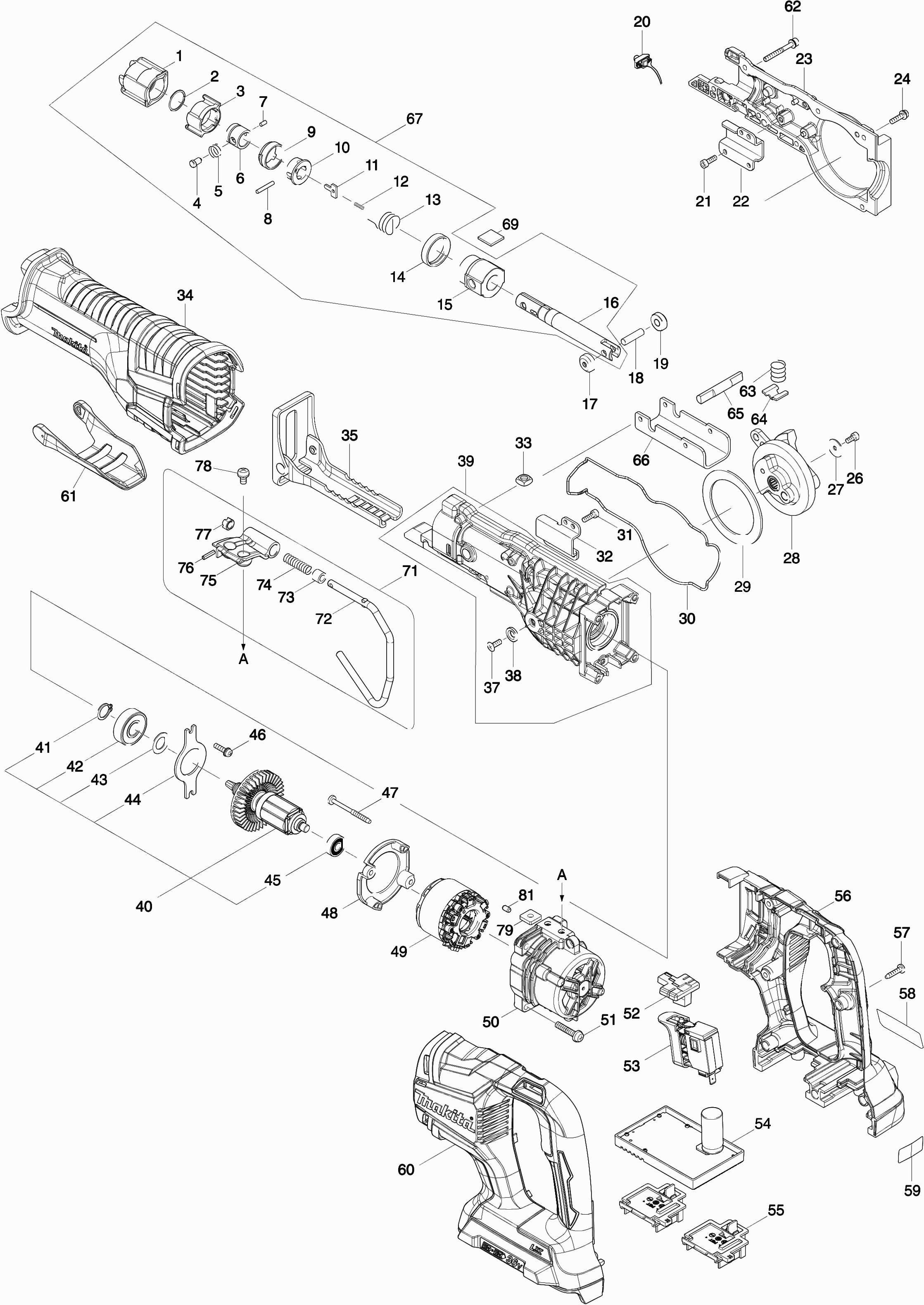

Technical drawing of model Makita DJR360
Spare parts list of model Makita DJR360
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Guard | ||||
| 001 | 424763-8 | 1.00 | 1.21 | |
| Retaining ring 18 P | ||||
| 002 | 257952-8 | 2.00 | 2.42 | |
| Lock Ring 18A | ||||
| 002 | 257430-8 | 1.00 | 1.21 | |
| Control Bushing | ||||
| 003 | 310662-9 | 8.40 | 10.16 | |
| Collar Pin 5 | ||||
| 004 | 256569-4 | 1.20 | 1.45 | |
| Compression Spring 6 | ||||
| 005 | 233345-3 | 1.00 | 1.21 | |
| Compression Spring 6 | ||||
| 005A | 233345-3 | 1.00 | 1.21 | |
| Compression Spring 6 | ||||
| 005B | 233345-3 | 1.00 | 1.21 | |
| Guide bush Bjr181 A | ||||
| 006 | 327043-0 | 1.20 | 1.45 | |
| Pin 3 | ||||
| 007 | 268094-3 | 2.40 | 2.90 | |
| Pen 3 | ||||
| 008 | 256158-5 | 1.20 | 1.45 | |
| Steering sleeve guide | ||||
| 009 | 417791-0 | 2.40 | 2.90 | |
| Sleeve | ||||
| 010 | 418311-3 | 1.20 | 1.45 | |
| Pressure Plate | ||||
| 011 | 345214-7 | 1.20 | 1.45 | |
| Pressure Spring 2 | ||||
| 012 | 233025-1 | 1.00 | 1.21 | |
| Torsion Spring 17 | ||||
| 013 | 231687-9 | 1.00 | 1.21 | |
| Rubber Ring | ||||
| 014 | 424762-0 | 1.00 | 1.21 | |
| Saw guide | ||||
| 015 | 144012-4 | 10.80 | 13.07 | |
| Seal ring 14 | ||||
| 015A | 213151-2 | 3.60 | 4.36 | |
| X-ring 14 | ||||
| 015B | 213174-0 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 016 | 161376-1 | |||
| Support wheel | ||||
| 017 | 310663-7 | 1.00 | 1.21 | |
| Pin 6 | ||||
| 018 | 268341-2 | 1.00 | 1.21 | |
| Support wheel | ||||
| 019 | 310663-7 | 1.00 | 1.21 | |
| Light circuit | ||||
| 020 | 620434-7 | 6.00 | 7.26 | |
| Allen bolt m4x12 | ||||
| 021 | 922118-6 | 1.00 | 1.21 | |
| Guide Piece | ||||
| 022 | 346936-2 | 1.20 | 1.45 | |
| Gear Cover | ||||
| 023 | 143362-4 | 11.00 | 13.31 | |
| Screw 4x16 A | ||||
| 024 | 911526-6 | 1.00 | 1.21 | |
| Hex bolt M4X8 A | ||||
| 026 | 265911-8 | 1.00 | 1.21 | |
| 4 Washer | ||||
| 027 | 267491-0 | 1.00 | 1.21 | |
| DJR187 A Gear Wheel | ||||
| 028 | 140D35-4 | 22.00 | 26.62 | |
| Washer 54 | ||||
| 029 | 267490-2 | 2.40 | 2.90 | |
| Seal ring | ||||
| 030 | 424764-6 | 1.20 | 1.45 | |
| Allen bolt m4x12 | ||||
| 031 | 922118-6 | 1.00 | 1.21 | |
| Guide Piece | ||||
| 032 | 346935-4 | 1.20 | 1.45 | |
| Protection Sleeve | ||||
| 034 | 424767-0 | 16.50 | 19.96 | |
| No longer available, no replacement | ||||
| 035 | 161809-6 | |||
| Countersunk screw 4x10 | ||||
| 037 | 912112-6 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 038 | 253825-3 | 1.20 | 1.45 | |
| Gearbox L DJR187 | ||||
| 039 | 127462-8 | 22.00 | 26.62 | |
| Armature Compl DJR360 A | ||||
| 040 | 519528-2 | 63.80 | 77.20 | |
| Lock washer S-12 | ||||
| 041 | 961052-5 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 042 | 211129-9 | 8.40 | 10.16 | |
| Washer 12 | ||||
| 043 | 253744-3 | 1.00 | 1.21 | |
| Bearing Lock | ||||
| 044 | 285740-3 | 1.20 | 1.45 | |
| Ball bearing 607Zz A | ||||
| 045 | 211382-7 | 1.20 | 1.45 | |
| Screw 4x16 A | ||||
| 046 | 911526-6 | 1.00 | 1.21 | |
| Tapschroef 4x45 | ||||
| 047 | 266069-6 | 1.20 | 1.45 | |
| Intermediate plate Djr187 | ||||
| 048 | 456178-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 049 | 629180-9 | |||
| FIELD DHW080 A | ||||
| 049-1 | 629C12-8 | 14.30 | 17.30 | |
| Motor Housing | ||||
| 050 | 412476-3 | 4.80 | 5.81 | |
| Screw 5x25 | ||||
| 051 | 911243-8 | 1.00 | 1.21 | |
| Reverse button Djr187 | ||||
| 052 | 456177-3 | 2.40 | 2.90 | |
| Switch | ||||
| 053 | 650759-5 | 17.60 | 21.30 | |
| Controller | ||||
| 054 | 620455-9 | 93.50 | 113.14 | |
| Connection unit (3 contacts) | ||||
| 055 | 644808-8 | 3.60 | 4.36 | |
| Handle Set Djr360 | ||||
| 056 | 183C50-9 | 28.60 | 34.61 | |
| Rubber pen 6 | ||||
| 056A | 263005-3 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 057 | 265B67-9 | 1.00 | 1.21 | |
| Label | ||||
| 058 | 851P31-6 | 3.60 | 4.36 | |
| Handle Set Djr360 | ||||
| 060 | 183C50-9 | 28.60 | 34.61 | |
| Rubber pen 6 | ||||
| 060A | 263005-3 | 1.00 | 1.21 | |
| Deblock handle | ||||
| 061 | 456176-5 | 2.40 | 2.90 | |
| Allen screw M4x35 | ||||
| 062 | 266979-7 | 1.00 | 1.21 | |
| Compression spring 12 | ||||
| 063 | 231231-2 | 1.00 | 1.21 | |
| Blocking Plate | ||||
| 064 | 346938-8 | 1.00 | 1.21 | |
| Locking Bolt | ||||
| 065 | 326599-0 | 3.60 | 4.36 | |
| Guide Plate Djr187 | ||||
| 066 | 346937-0 | 2.40 | 2.90 | |
| Complete Saw Unit Djr360 A | ||||
| 067 | 127398-1 | 34.10 | 41.26 | |
| Damping felt Djr360 | ||||
| 069 | 424902-0 | 1.00 | 1.21 | |
| DRAAGHAAK RECIPROZAAG | ||||
| 071 | 123456-1 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 072 | 281223-1 | |||
| Bushing 6 | ||||
| 073 | 262561-0 | 1.00 | 1.21 | |
| Compression Spring 7 | ||||
| 074 | 233455-6 | 1.00 | 1.21 | |
| Connector | ||||
| 075 | 319345-8 | 4.80 | 5.81 | |
| Spring pin 3-12 | ||||
| 076 | 951057-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 077 | 310661-1 | |||
| Screw 5x10 | ||||
| 078 | 911209-8 | 1.00 | 1.21 | |
| Square nut M5 | ||||
| 079 | 264002-2 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 081 | 263002-9 | 1.00 | 1.21 | |
| CONTROLLER B DRS780 | ||||
| 082 | 620K37-3 | 12.10 | 14.64 | |
| WIRE HARNESS DDA460 | ||||
| 083 | 638A31-1 | 6.00 | 7.26 | |
| MACHINE SCREW M2X6MM | ||||
| 084 | 652119-7 | 1.00 | 1.21 | |
