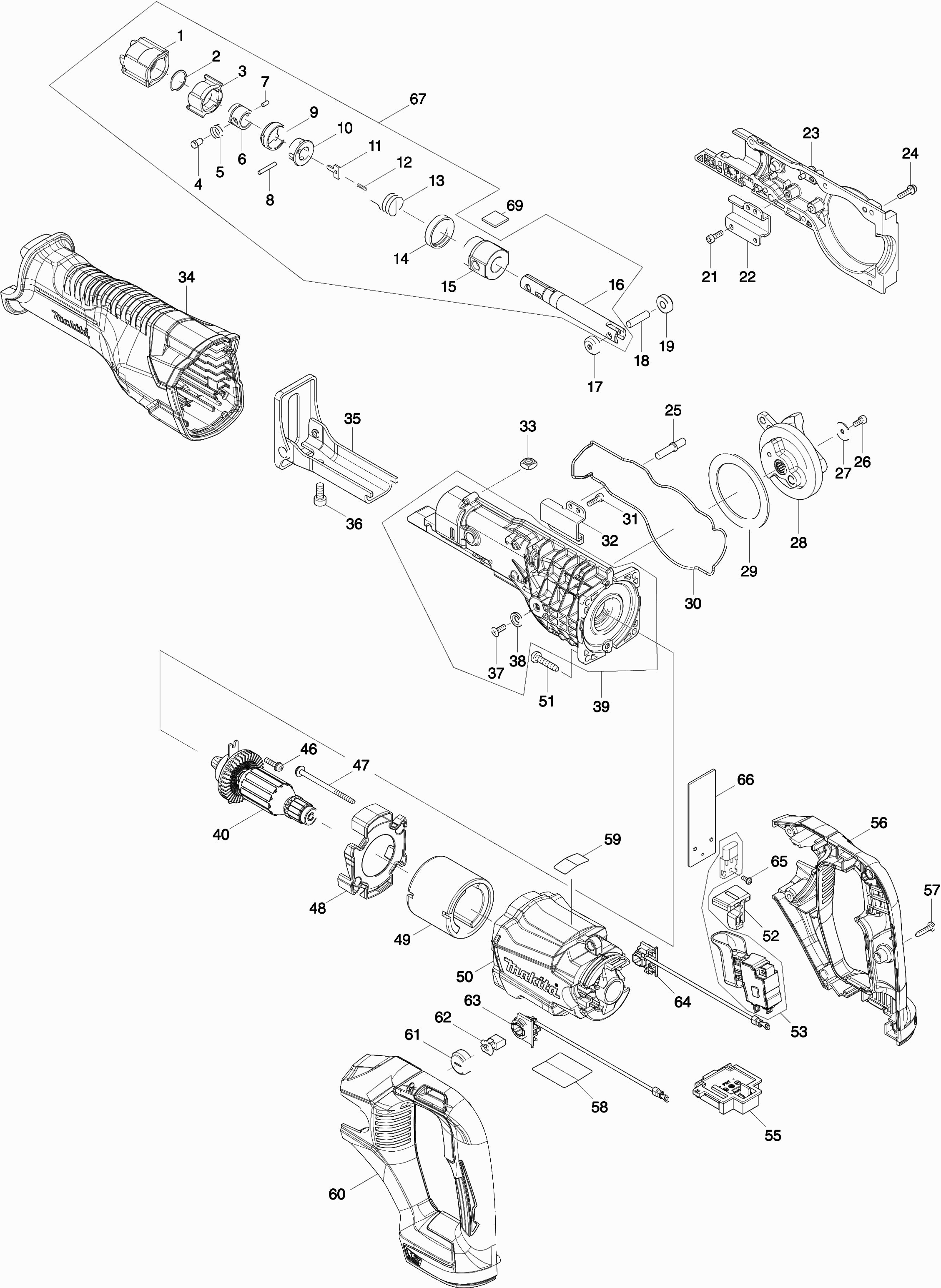

Technical drawing of model Makita DJR186
Spare parts list of model Makita DJR186
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Guard | ||||
| 001 | 424763-8 | 1.00 | 1.21 | |
| Retaining ring 18 P | ||||
| 002 | 257952-8 | 2.00 | 2.42 | |
| Lock Ring 18A | ||||
| 002 | 257430-8 | 1.00 | 1.21 | |
| Control Bushing | ||||
| 003 | 310662-9 | 8.40 | 10.16 | |
| Collar Pin 5 | ||||
| 004 | 256569-4 | 1.20 | 1.45 | |
| Compression Spring 6 | ||||
| 005 | 233345-3 | 1.00 | 1.21 | |
| Compression Spring 6 | ||||
| 005A | 233345-3 | 1.00 | 1.21 | |
| Compression Spring 6 | ||||
| 005B | 233345-3 | 1.00 | 1.21 | |
| Guide bush Bjr181 A | ||||
| 006 | 327043-0 | 1.20 | 1.45 | |
| Pin 3 | ||||
| 007 | 268094-3 | 2.40 | 2.90 | |
| Pen 3 | ||||
| 008 | 256158-5 | 1.20 | 1.45 | |
| Steering sleeve guide | ||||
| 009 | 417791-0 | 2.40 | 2.90 | |
| Sleeve | ||||
| 010 | 418311-3 | 1.20 | 1.45 | |
| Pressure Plate | ||||
| 011 | 345214-7 | 1.20 | 1.45 | |
| Pressure Spring 2 | ||||
| 012 | 233025-1 | 1.00 | 1.21 | |
| Torsion Spring 17 | ||||
| 013 | 231687-9 | 1.00 | 1.21 | |
| Rubber Ring | ||||
| 014 | 424762-0 | 1.00 | 1.21 | |
| Saw assembly Compl | ||||
| 015 | 127397-3 | 28.60 | 34.61 | |
| Seal ring 14 | ||||
| 015A | 213151-2 | 3.60 | 4.36 | |
| X-ring 14 | ||||
| 015B | 213174-0 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 016 | 161376-1 | |||
| Support wheel | ||||
| 017 | 310663-7 | 1.00 | 1.21 | |
| Pin 6 | ||||
| 018 | 268341-2 | 1.00 | 1.21 | |
| Support wheel | ||||
| 019 | 310663-7 | 1.00 | 1.21 | |
| Hexagon socket screw 4x12 | ||||
| 021 | 265353-6 | 1.20 | 1.45 | |
| Guide Piece | ||||
| 022 | 346936-2 | 1.20 | 1.45 | |
| Gear Cover | ||||
| 023 | 143381-0 | 13.20 | 15.97 | |
| Screw 4x16 A | ||||
| 024 | 911526-6 | 1.00 | 1.21 | |
| Collar pin 6-8 | ||||
| 025 | 256567-8 | 1.00 | 1.21 | |
| Hex bolt M4X8 A | ||||
| 026 | 265911-8 | 1.00 | 1.21 | |
| 4 Washer | ||||
| 027 | 267491-0 | 1.00 | 1.21 | |
| Complete Gear | ||||
| 028 | 143377-1 | 21.08 | 25.51 | |
| Complete Gear | ||||
| 028A | 143377-1 | 21.08 | 25.51 | |
| TANDWIEL CPL DJR186 A | ||||
| 028B | 141V68-0 | 21.08 | 25.51 | |
| Washer 54 | ||||
| 029 | 267490-2 | 2.40 | 2.90 | |
| Seal ring | ||||
| 030 | 424764-6 | 1.20 | 1.45 | |
| Hexagon socket screw 4x12 | ||||
| 031 | 265353-6 | 1.20 | 1.45 | |
| Guide Piece | ||||
| 032 | 346935-4 | 1.20 | 1.45 | |
| Hex nut M6 | ||||
| 033 | 252159-1 | 2.40 | 2.90 | |
| Hex nut M6 5621Rd | ||||
| 033 | 252157-5 | 1.20 | 1.45 | |
| Protection Sleeve | ||||
| 034 | 424768-8 | 14.30 | 17.30 | |
| Saw base Djr186 A | ||||
| 035 | 161810-1 | 6.00 | 7.26 | |
| Hex Screw M6x14mm | ||||
| 036 | 265531-8 | 1.00 | 1.21 | |
| Countersunk screw 4x10 | ||||
| 037 | 265135-6 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 038 | 253825-3 | 1.20 | 1.45 | |
| Gearbox L DJR186 A | ||||
| 039 | 126678-2 | 22.00 | 26.62 | |
| Armature | ||||
| 040 | 519392-1 | 28.02 | 33.90 | |
| Armature | ||||
| 040A | 519392-1 | 28.02 | 33.90 | |
| Lock washer S-15 | ||||
| 040AC10 | 961055-9 | 1.00 | 1.21 | |
| Ball bearing 6002ddw | ||||
| 040AC20 | 211236-8 | 9.60 | 11.62 | |
| Gear 7 | ||||
| 040AC30 | 227650-8 | 9.60 | 11.62 | |
| Ball bearing 607Zz A | ||||
| 040AC40 | 211382-7 | 1.20 | 1.45 | |
| ANKER DJR186 A | ||||
| 040B | 510597-6 | 20.90 | 25.29 | |
| Lock washer S-15 | ||||
| 040B | 961055-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 040BC30 | 227A05-3 | |||
| Ball bearing 6002ddw | ||||
| 040C | 211236-8 | 9.60 | 11.62 | |
| Gear 7 | ||||
| 040D | 227650-8 | 9.60 | 11.62 | |
| Ball bearing 607Zz A | ||||
| 040E | 211382-7 | 1.20 | 1.45 | |
| Bearing Lock | ||||
| 044 | 285740-3 | 1.20 | 1.45 | |
| Screw 4x16 A | ||||
| 046 | 911526-6 | 1.00 | 1.21 | |
| Tapschroef Pf 4x65 | ||||
| 047 | 266060-4 | 2.40 | 2.90 | |
| Intermediate plate Djr186 | ||||
| 048 | 456207-0 | 1.20 | 1.45 | |
| Magnet holder AS3625 A | ||||
| 049 | 638571-3 | 11.00 | 13.31 | |
| Motor Housing | ||||
| 050 | 456206-2 | 8.40 | 10.16 | |
| Tap Screw 5X25 | ||||
| 051 | 266041-8 | 1.00 | 1.21 | |
| Lock button Djr186 | ||||
| 052 | 456208-8 | 1.00 | 1.21 | |
| Switch | ||||
| 053 | 650760-0 | 34.10 | 41.26 | |
| Connection unit (3 contacts) | ||||
| 055 | 644808-8 | 3.60 | 4.36 | |
| Connection unit (3 contacts) | ||||
| 055A | 644809-6 | 4.80 | 5.81 | |
| Connection unit (3 contacts) | ||||
| 055B | 644808-8 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 056 | 183C48-6 | |||
| Handle set | ||||
| 056A | 183C49-4 | 14.30 | 17.30 | |
| Rubber pen 6 | ||||
| 056C10 | 263005-3 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 057 | 265B67-9 | 1.00 | 1.21 | |
| Nameplate Djr186 | ||||
| 058 | 851R04-1 | 1.00 | 1.21 | |
| Handle set | ||||
| 060 | 183C49-4 | 14.30 | 17.30 | |
| Handle set | ||||
| 060A | 183C49-4 | 14.30 | 17.30 | |
| Rubber pen 6 | ||||
| 060C10 | 263005-3 | 1.00 | 1.21 | |
| Brush Cap | ||||
| 061 | 643829-7 | 1.00 | 1.21 | |
| KOOLBORSTEL SET CB-441 A | ||||
| 062 | 195022-4 | 4.80 | 5.81 | |
| Brush holder "r" | ||||
| 063 | 643507-9 | 2.40 | 2.90 | |
| Brush holder "l" | ||||
| 064 | 643508-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 065 | 911011-9 | |||
| Heat shield Djr186 | ||||
| 066 | 689204-3 | 1.20 | 1.45 | |
| Saw assembly Compl | ||||
| 067 | 127397-3 | 28.60 | 34.61 | |
| Line filter | ||||
| 068 | 688131-1 | 1.00 | 1.21 | |
| Damping felt | ||||
| 069 | 424858-7 | 1.00 | 1.21 | |
