Here you will find all available parts and drawings of the 'Makita DJR183'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

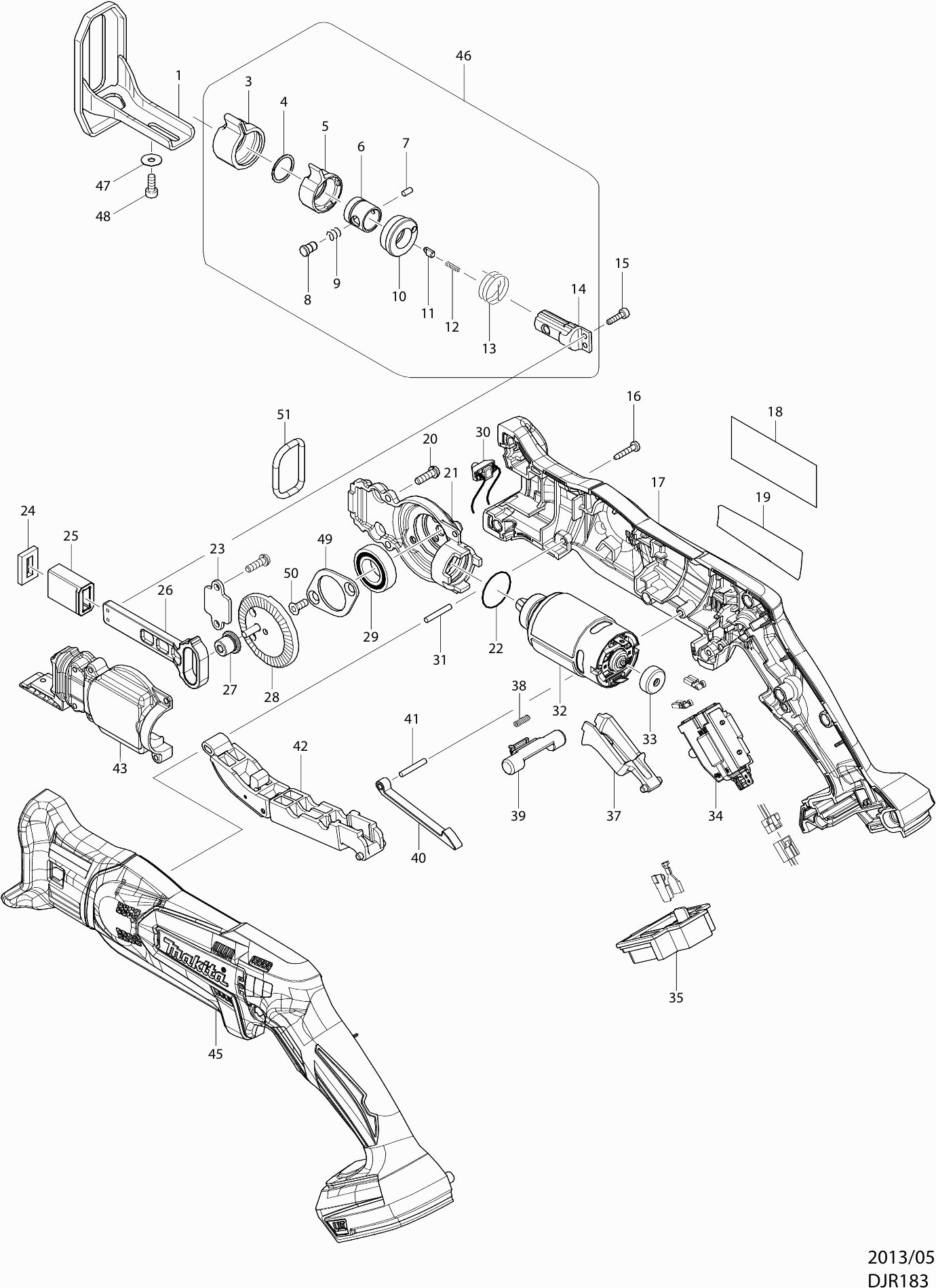

Technical drawing of model Makita DJR183
Spare parts list of model Makita DJR183
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Saw foot | ||||
| 001 | 165740-8 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 003 | 424466-4 | |||
| No information available, not orderable | ||||
| 004 | 257981-1 | |||
| No information available, not orderable | ||||
| 005 | 310496-0 | |||
| No information available, not orderable | ||||
| 006 | 331963-2 | |||
| Pin 3 | ||||
| 007 | 268094-3 | 2.40 | 2.90 | |
| Collar Pin 5 | ||||
| 008 | 256492-3 | 1.20 | 1.45 | |
| Compression Spring 6 | ||||
| 009 | 233345-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 010 | 453071-0 | |||
| No information available, not orderable | ||||
| 011 | 310495-2 | |||
| Pressure Spring 2 | ||||
| 012 | 233025-1 | 1.00 | 1.21 | |
| Torsion Spring 17 JR3051 | ||||
| 013 | 233594-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 014 | 326113-2 | |||
| Hex bolt M3x12mm | ||||
| 015 | 265910-0 | 1.20 | 1.45 | |
| INBUSBOUT M3X10MM JR100 | ||||
| 015-1 | 265D80-9 | 1.20 | 1.45 | |
| Tapping Screw 3x16 | ||||
| 016 | 266130-9 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| 017C10 | 263005-3 | 1.00 | 1.21 | |
| Sponge rubber DJR183 | ||||
| 017C20 | 423475-0 | 1.00 | 1.21 | |
| Name plate DJR183 | ||||
| 019 | 814V98-1 | 3.60 | 4.36 | |
| Tapping Screw M4X14Mm JR100/102D | ||||
| 020 | 266747-8 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 021 | 319060-4 | 8.40 | 10.16 | |
| O-ring 22 | ||||
| 022 | 213961-7 | 1.00 | 1.21 | |
| Guide Plate | ||||
| 023 | 346525-3 | 1.00 | 1.21 | |
| Protective Washer | ||||
| 024 | 443185-3 | 1.00 | 1.21 | |
| Saw guide | ||||
| 025 | 313220-0 | 2.40 | 2.90 | |
| Spindle Ass'y | ||||
| 026 | 313271-3 | 4.80 | 5.81 | |
| Bearing bush 4mm | ||||
| 027 | 313270-5 | 2.40 | 2.90 | |
| Gear set | ||||
| 028 | 142284-5 | 11.00 | 13.31 | |
| Gear set | ||||
| 028A | 142284-5 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 028B | 1410R5-8 | |||
| Ball bearing 6902Zz A | ||||
| 029 | 210153-9 | 1.20 | 1.45 | |
| Light circuit DJR183 | ||||
| 030 | 620237-9 | 4.80 | 5.81 | |
| Pen 3 | ||||
| 031 | 256158-5 | 1.20 | 1.45 | |
| Motor 18.0V Jv185D * | ||||
| 032 | 629109-5 | 22.00 | 26.62 | |
| Motor 18.0V Jv185D * | ||||
| 032A | 629109-5 | 22.00 | 26.62 | |
| No information available, not orderable | ||||
| 032B | 629C93-2 | |||
| Stop ring | ||||
| 033 | 424467-2 | 1.00 | 1.21 | |
| Switch DJR183 | ||||
| 034 | 650712-1 | 28.60 | 34.61 | |
| Connection unit 18v (3 contacts) | ||||
| 035 | 643852-2 | 3.60 | 4.36 | |
| Switch button "r" | ||||
| 037 | 453072-8 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 038 | 233438-6 | 1.00 | 1.21 | |
| Safety Lock Button | ||||
| 039 | 454661-2 | 2.40 | 2.90 | |
| Connecting rod | ||||
| 040 | 313219-5 | 2.40 | 2.90 | |
| Pen 3 | ||||
| 041 | 256158-5 | 1.20 | 1.45 | |
| Switch handle 'f' | ||||
| 042 | 141128-6 | 4.80 | 5.81 | |
| Inner Cover | ||||
| 043 | 319061-2 | 6.00 | 7.26 | |
| Motor Housing Set DJR183 | ||||
| 045 | 187760-2 | 14.30 | 17.30 | |
| Rubber pen 6 | ||||
| 045 | 263005-3 | 1.00 | 1.21 | |
| Sponge rubber DJR183 | ||||
| 045 | 423475-0 | 1.00 | 1.21 | |
| Saw Set (incl. no. 3 to 14) | ||||
| 046 | 126201-3 | 23.10 | 27.95 | |
| 4 Washer | ||||
| 047 | 253874-0 | 1.00 | 1.21 | |
| Allen bolt M4x10 | ||||
| 048 | 922112-8 | 1.00 | 1.21 | |
| Bearing Lock | ||||
| 049 | 285738-0 | 1.20 | 1.45 | |
| Phillips Screw 4x10 | ||||
| 050 | 265035-0 | 1.00 | 1.21 | |
| Rubber ring 23 | ||||
| 051 | 424597-9 | 1.00 | 1.21 | |
