Here you will find all available parts and drawings of the 'Makita DJR181ZK'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

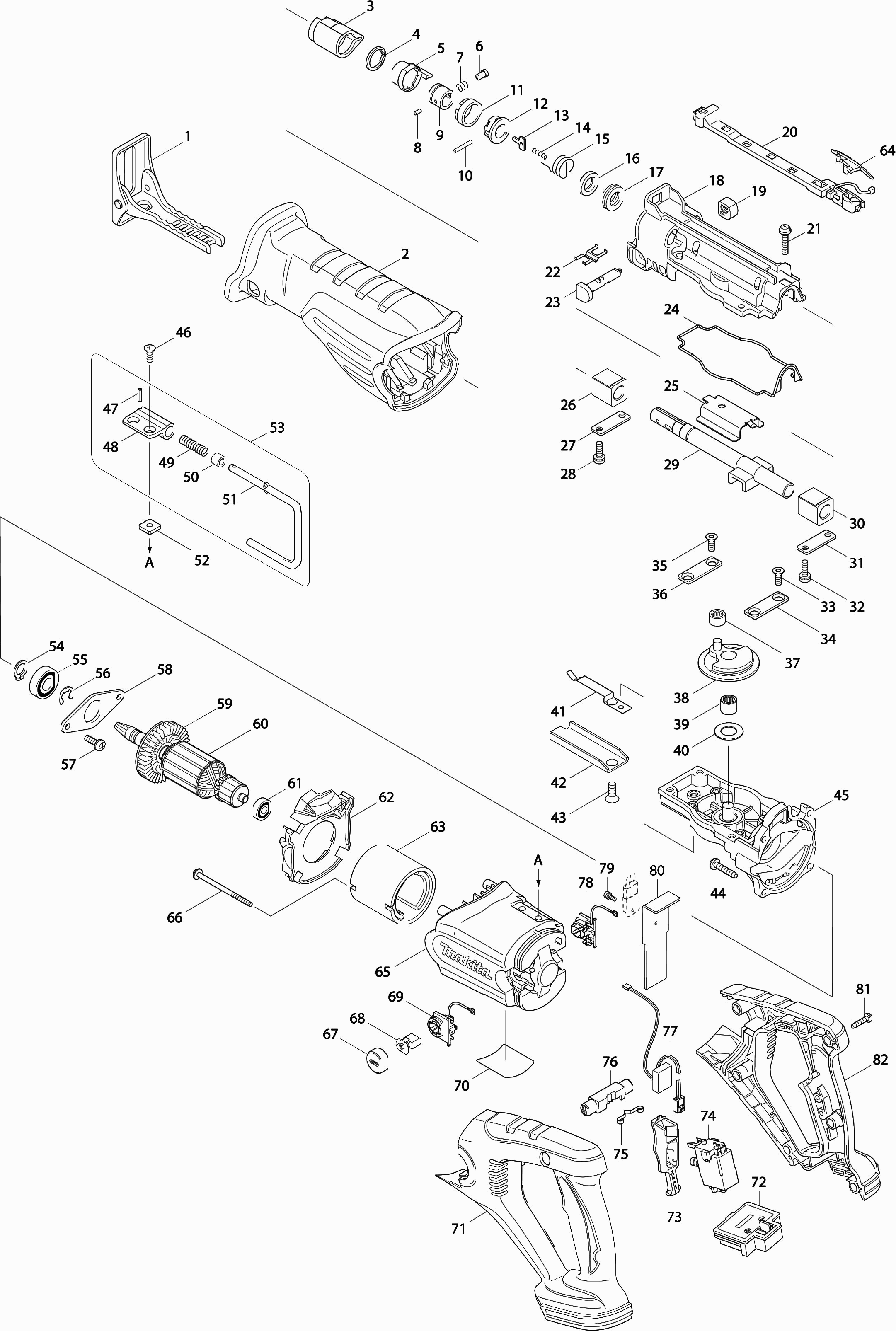

Technical drawing of model Makita DJR181ZK
Spare parts list of model Makita DJR181ZK
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Saw base JR3070T A | ||||
| 001 | 163451-9 | 8.00 | 9.68 | |
| Saw foot | ||||
| 001 | 165406-0 | 7.00 | 8.47 | |
| Protection Sleeve | ||||
| 002 | 421945-3 | 17.60 | 21.30 | |
| Guard | ||||
| 003 | 424147-0 | 1.00 | 1.21 | |
| Retaining ring 18 P | ||||
| 004 | 257952-8 | 2.00 | 2.42 | |
| Control Bushing | ||||
| 005 | 310285-3 | 7.20 | 8.71 | |
| Collar Pin 5 | ||||
| 006 | 256492-3 | 1.20 | 1.45 | |
| Compression Spring 6 | ||||
| 007 | 233345-3 | 1.00 | 1.21 | |
| Pin 3 | ||||
| 008 | 268094-3 | 2.40 | 2.90 | |
| Guide bush Bjr181 A | ||||
| 009 | 327043-0 | 1.20 | 1.45 | |
| Pen 3 | ||||
| 010 | 256158-5 | 1.20 | 1.45 | |
| Steering sleeve guide | ||||
| 011 | 417791-0 | 2.40 | 2.90 | |
| Sleeve | ||||
| 012 | 418311-3 | 1.20 | 1.45 | |
| Pressure Plate | ||||
| 013 | 345214-7 | 1.20 | 1.45 | |
| Pressure Spring 2 | ||||
| 014 | 233025-1 | 1.00 | 1.21 | |
| Torsion Spring 17 | ||||
| 015 | 231687-9 | 1.00 | 1.21 | |
| Seal ring 14 | ||||
| 016 | 213151-2 | 3.60 | 4.36 | |
| X-ring 14 | ||||
| 017 | 213174-0 | 3.60 | 4.36 | |
| Gear Cover | ||||
| 018 | 154813-2 | 25.30 | 30.61 | |
| Cap | ||||
| 019 | 418806-6 | 1.00 | 1.21 | |
| LED Circuit | ||||
| 020 | 631689-9 | 13.20 | 15.97 | |
| Screw 5x25 | ||||
| 021 | 911243-8 | 1.00 | 1.21 | |
| Leaf Spring A | ||||
| 022 | 232221-8 | 1.00 | 1.21 | |
| Adjustment Knob | ||||
| 023 | 162236-0 | 4.80 | 5.81 | |
| Gasket | ||||
| 024 | 421946-1 | 2.40 | 2.90 | |
| Sliding Plate | ||||
| 025 | 345480-6 | 1.20 | 1.45 | |
| Slide Bearing 14a | ||||
| 026 | 214170-1 | 1.20 | 1.45 | |
| Axle lock plate | ||||
| 027 | 341462-6 | 2.40 | 2.90 | |
| Screw 5X16 JR3051T A | ||||
| 028 | 265C32-4 | 1.00 | 1.21 | |
| Plunger | ||||
| 029 | 168405-1 | 16.50 | 19.96 | |
| Slide Bearing 14a | ||||
| 030 | 214170-1 | 1.20 | 1.45 | |
| Axle lock plate | ||||
| 031 | 341462-6 | 2.40 | 2.90 | |
| Screw 5X16 JR3051T A | ||||
| 032 | 265C32-4 | 1.00 | 1.21 | |
| Metal Screw M5x14 | ||||
| 033 | 265148-7 | 1.00 | 1.21 | |
| Plate C | ||||
| 034 | 344795-8 | 2.40 | 2.90 | |
| Metal Screw M5x14 | ||||
| 035 | 265148-7 | 1.00 | 1.21 | |
| Plate C | ||||
| 036 | 344795-8 | 2.40 | 2.90 | |
| Needle bearing 708 | ||||
| 037 | 212959-1 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 038 | 125423-2 | |||
| Needle Bearing 1012 Bjr181 A | ||||
| 039 | 212080-6 | 2.40 | 2.90 | |
| Washer 14 | ||||
| 040 | 253797-2 | 1.20 | 1.45 | |
| Leaf Spring B | ||||
| 041 | 232222-6 | 1.00 | 1.21 | |
| Saw Foot Guide | ||||
| 042 | 345479-1 | 1.20 | 1.45 | |
| Hex head bolt M6x16 | ||||
| 043 | 265165-7 | 1.00 | 1.21 | |
| Tap Screw 5X25 | ||||
| 044 | 266041-8 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 045 | 154812-4 | 18.70 | 22.63 | |
| Countersunk screw 5x10 | ||||
| 046 | 912207-5 | 1.00 | 1.21 | |
| Spring pin 3-12 | ||||
| 047 | 951057-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 048 | 313127-0 | |||
| Compression Spring 7 | ||||
| 049 | 233455-6 | 1.00 | 1.21 | |
| Bushing 6 | ||||
| 050 | 262561-0 | 1.00 | 1.21 | |
| DRAAGHAAK RECIPROZAAG | ||||
| 051 | 125321-0 | 3.00 | 3.63 | |
| Square nut M5 | ||||
| 052 | 264002-2 | 1.00 | 1.21 | |
| DRAAGHAAK RECIPROZAAG | ||||
| 053 | 125321-0 | 3.00 | 3.63 | |
| Lock washer S-12 | ||||
| 054 | 961052-5 | 1.00 | 1.21 | |
| Ball Bearing 6001Ddw A | ||||
| 055 | 210163-6 | 1.20 | 1.45 | |
| Retaining Ring E-10 | ||||
| 056 | 961016-9 | 1.00 | 1.21 | |
| Screw 5X16 JR3051T A | ||||
| 057 | 265C32-4 | 1.00 | 1.21 | |
| Bearing Lock 63 | ||||
| 058 | 285726-7 | 1.20 | 1.45 | |
| Fan 55 | ||||
| 059 | 241869-5 | 3.60 | 4.36 | |
| Armature | ||||
| 060 | 519176-7 | 27.50 | 33.28 | |
| Ball bearing 607Zz A | ||||
| 061 | 211382-7 | 1.20 | 1.45 | |
| Spacer plate | ||||
| 062 | 419333-6 | 2.40 | 2.90 | |
| Magnet holder | ||||
| 063 | 638107-8 | 26.40 | 31.94 | |
| Cover Plate | ||||
| 064 | 419327-1 | 1.00 | 1.21 | |
| Motor housing Bjr181 | ||||
| 065 | 419330-2 | 12.10 | 14.64 | |
| Tapschroef Pf 4x65 | ||||
| 066 | 266060-4 | 2.40 | 2.90 | |
| Brush holder cap | ||||
| 067 | 643941-3 | 2.40 | 2.90 | |
| KOOLBORSTEL SET CB-441 A | ||||
| 068 | 195022-4 | 4.80 | 5.81 | |
| Brush Holder | ||||
| 069 | 643949-7 | 3.60 | 4.36 | |
| Nameplate Bjr181 | ||||
| 070 | 862359-1 | 3.60 | 4.36 | |
| Handle set (3 contacts) | ||||
| 071 | 187485-8 | 28.60 | 34.61 | |
| Connection unit (3 contacts) | ||||
| 072 | 644808-8 | 3.60 | 4.36 | |
| Switch button Bjr181 | ||||
| 073 | 419336-0 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 074 | 650647-6 | |||
| Leaf Spring | ||||
| 075 | 232152-1 | 2.40 | 2.90 | |
| Dead man's switch Bjr181 | ||||
| 076 | 419334-4 | 2.40 | 2.90 | |
| Circuit | ||||
| 077 | 631690-4 | 9.60 | 11.62 | |
| Brush Holder | ||||
| 078 | 638914-9 | 8.40 | 10.16 | |
| Schroef 3x8 | ||||
| 079 | 652066-2 | 1.00 | 1.21 | |
| Heat conduction plate | ||||
| 080 | 689116-0 | 3.60 | 4.36 | |
| Tapping screw Pt4x20 | ||||
| 081 | 266045-0 | 1.00 | 1.21 | |
| Handle set (3 contacts) | ||||
| 082B | 187485-8 | 28.60 | 34.61 | |
