Here you will find all available parts and drawings of the 'Makita DHS660'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

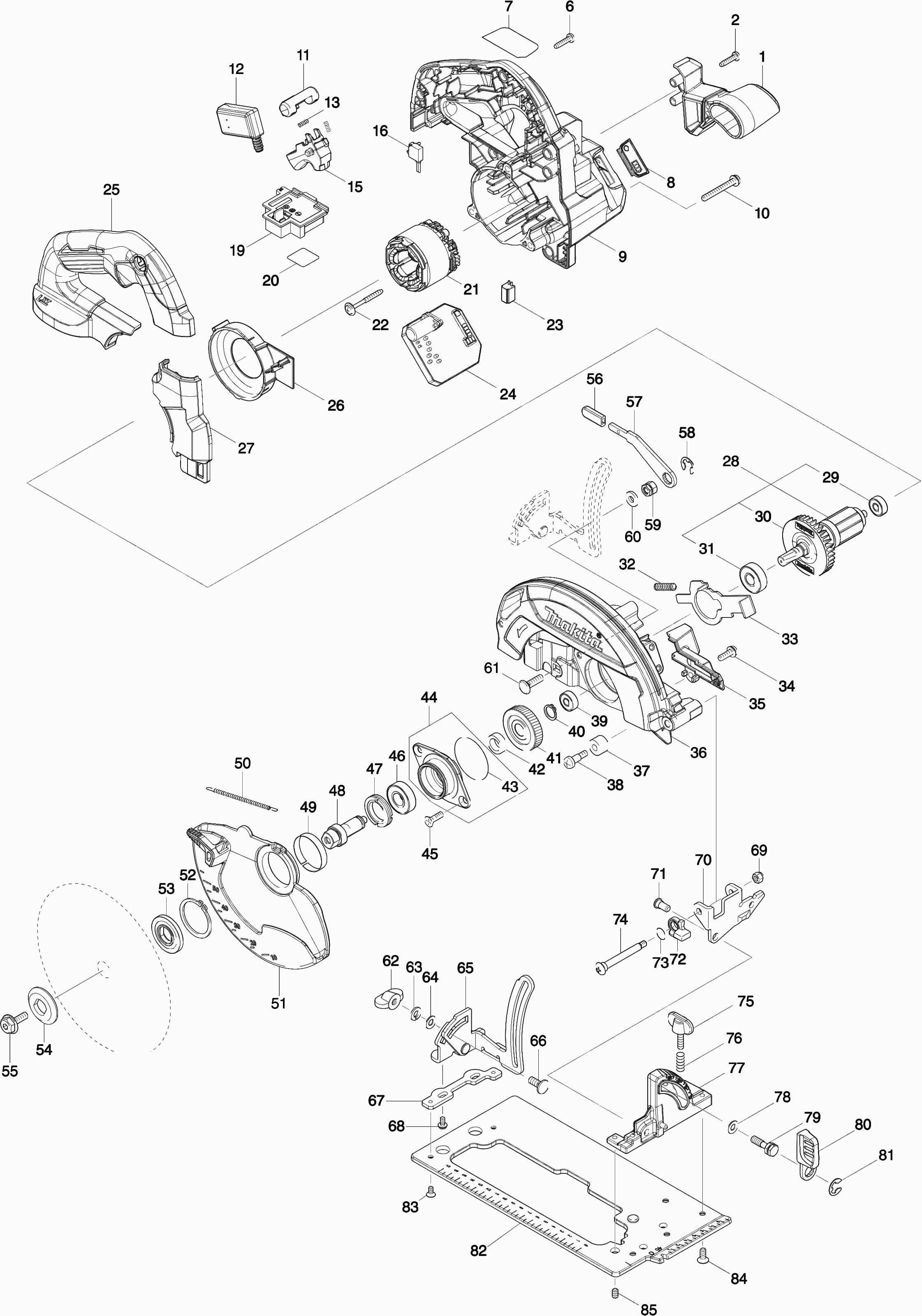

Technical drawing of model Makita DHS660
Spare parts list of model Makita DHS660
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Front handle DHS660 | ||||
| 001 | 458590-1 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 002 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 006 | 265A48-7 | 1.00 | 1.21 | |
| Nameplate DHS660 | ||||
| 007 | 854N75-3 | 3.60 | 4.36 | |
| Signal plate DHS660 | ||||
| 08 | 144251-6 | 3.60 | 4.36 | |
| Motor Housing DHS660 | ||||
| 009 | 140C48-9 | 14.30 | 17.30 | |
| Rubber pen 6 | ||||
| 009C10 | 263005-3 | 1.00 | 1.21 | |
| Screw 5x40 | ||||
| 010 | 911263-2 | 1.00 | 1.21 | |
| Lock button Kp0810/C | ||||
| 011 | 419704-7 | 2.40 | 2.90 | |
| Switch C3Xa-1Pspm Dsp600 | ||||
| 012 | 651083-9 | 19.80 | 23.96 | |
| Compression Spring 4 | ||||
| 013 | 231433-0 | 1.00 | 1.21 | |
| Switch button DHS660 | ||||
| 015 | 458594-3 | 1.20 | 1.45 | |
| Switch unit DHS660 | ||||
| 016 | 632L80-6 | 10.80 | 13.07 | |
| Connection unit (3 contacts) | ||||
| 019 | 644809-6 | 4.80 | 5.81 | |
| Serial nr label DHS660 | ||||
| 020 | 854N80-0 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 021 | 629362-3 | |||
| No longer available, no replacement | ||||
| 021-1 | 629B61-9 | |||
| Parker screw 4x40mm | ||||
| 022 | 251517-8 | 1.20 | 1.45 | |
| LED circuit DHR680 | ||||
| 023 | 620936-3 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 024 | 620935-5 | |||
| CONTROLLER DHS660 A | ||||
| 024-1 | 620K98-3 | 82.76 | 100.14 | |
| Handle cover DHS660 | ||||
| 025 | 458584-6 | 6.00 | 7.26 | |
| Intermediate plate DHS660 | ||||
| 026 | 458586-2 | 1.20 | 1.45 | |
| Cover Cap DHS660 | ||||
| 027 | 458592-7 | 1.20 | 1.45 | |
| Armature 18V DHS660/661 | ||||
| 028 | 519527-4 | 30.80 | 37.27 | |
| Ball bearing 606Zz A | ||||
| 029 | 210137-7 | 1.20 | 1.45 | |
| Impeller 55mm | ||||
| 030 | 240045-8 | 2.40 | 2.90 | |
| Ball bearing 6000ddw | ||||
| 031 | 211289-7 | 13.20 | 15.97 | |
| Compression Spring 6x29mm | ||||
| 032 | 233117-6 | 1.00 | 1.21 | |
| Blocking Pin DHS660 | ||||
| 033 | 347400-6 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 034 | 911223-4 | |||
| Cap DHS660 | ||||
| 035 | 458589-6 | 1.20 | 1.45 | |
| Protective Cover DHS660/661 | ||||
| 036 | 140D07-9 | 45.10 | 54.57 | |
| O-Ring 26 Hs6601 | ||||
| 036C10 | 213821-3 | 1.00 | 1.21 | |
| Rubber bush 6 | ||||
| 037 | 262511-5 | 1.00 | 1.21 | |
| Metal Screw M5 | ||||
| 038 | 265115-2 | 1.00 | 1.21 | |
| Ball bearing 606Zz A | ||||
| 039 | 210137-7 | 1.20 | 1.45 | |
| Lock washer S-12 | ||||
| 040 | 961052-5 | 1.00 | 1.21 | |
| Gear 49 DHS660/661 | ||||
| 041 | 226192-9 | 3.60 | 4.36 | |
| Washer 12 5604R | ||||
| 042 | 257173-2 | 1.20 | 1.45 | |
| O-ring 39 | ||||
| 043 | 213512-6 | 2.40 | 2.90 | |
| Lagerhuis DHS660/661 | ||||
| 044 | 135993-3 | 4.80 | 5.81 | |
| Countersunk screw 5x13 | ||||
| 045 | 265034-2 | 1.00 | 1.21 | |
| Ball Bearing 6001dw | ||||
| 046 | 211131-2 | 9.60 | 11.62 | |
| Bearing Lock 19-29 DHS660/661 | ||||
| 047 | 285843-3 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 048 | 327143-6 | |||
| Compensating washer | ||||
| 049 | 345469-4 | 2.40 | 2.90 | |
| Pull Spring 3 DHS660/661 | ||||
| 050 | 231832-6 | 1.20 | 1.45 | |
| Spring-loaded protective cover DHS660 | ||||
| 051 | 458680-0 | 6.00 | 7.26 | |
| Lock Ring S-34 | ||||
| 052 | 961152-1 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 053 | 224593-5 | |||
| Outer flange 35mm | ||||
| 054 | 224409-4 | 2.40 | 2.90 | |
| Allen bolt M6x18mm Li | ||||
| 055 | 266925-0 | 1.20 | 1.45 | |
| Cap DHS660/661 | ||||
| 056 | 286036-5 | 1.00 | 1.21 | |
| Lever plate DHS660/661 | ||||
| 057 | 347399-5 | 1.20 | 1.45 | |
| Lock washer E-8 | ||||
| 058 | 257982-9 | 1.00 | 1.21 | |
| Hex nut M6 | ||||
| 059 | 264096-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 060 | 267118-2 | |||
| Carriage bolt M6x20mm | ||||
| 061 | 266737-1 | 1.00 | 1.21 | |
| Screw M6 | ||||
| 062 | 252631-3 | 2.40 | 2.90 | |
| Spring Washer 6 A | ||||
| 063 | 253903-9 | 1.00 | 1.21 | |
| Washer 6x12mm | ||||
| 064 | 941151-9 | 1.00 | 1.21 | |
| Depth guide DHS660/661 | ||||
| 065 | 161899-9 | 6.00 | 7.26 | |
| Slotted Bolt M6x14 DSS610 | ||||
| 066 | 265939-6 | 1.20 | 1.45 | |
| Guide plate DHS660/661 | ||||
| 067 | 347401-4 | 1.20 | 1.45 | |
| Flat Head Screw M4x8mm DHS660 | ||||
| 068 | 265648-7 | 1.00 | 1.21 | |
| Hex lock nut 5x8 | ||||
| 069 | 252103-8 | 1.20 | 1.45 | |
| Angle Guide | ||||
| 070 | 345590-9 | 3.60 | 4.36 | |
| Collar pin 6-7 | ||||
| 071 | 256480-0 | 1.00 | 1.21 | |
| Stopper | ||||
| 072 | 318823-5 | 2.40 | 2.90 | |
| O-ring 7 | ||||
| 073 | 213977-2 | 1.00 | 1.21 | |
| Self tapping screw M5 | ||||
| 074 | 266734-7 | 2.40 | 2.90 | |
| Screw M5x20 | ||||
| 075 | 251896-4 | 1.20 | 1.45 | |
| Compression Spring 6 | ||||
| 076 | 231007-7 | 1.00 | 1.21 | |
| Angle Guide DHS660/661 | ||||
| 077 | 319715-1 | 11.00 | 13.31 | |
| Washer 6x12mm | ||||
| 078 | 941151-9 | 1.00 | 1.21 | |
| Allen bolt M6X20mm DHS660 A | ||||
| 079 | 265B21-3 | 1.00 | 1.21 | |
| Lock Handle 45 DHS660/661 | ||||
| 080 | 271446-9 | 1.20 | 1.45 | |
| Lock washer E-8 | ||||
| 081 | 257982-9 | 1.00 | 1.21 | |
| Footplate DHS660/661 | ||||
| 082 | 347398-7 | 14.30 | 17.30 | |
| Met.scr. Vk M4x8mm | ||||
| 083 | 265085-5 | 1.00 | 1.21 | |
| Countersunk screw 5x12 | ||||
| 084 | 912212-2 | 1.00 | 1.21 | |
| Set screw M5x8mm | ||||
| 085 | 266436-5 | 1.00 | 1.21 | |
| CONTROLLER B DRS780 | ||||
| 086 | 620K37-3 | 12.10 | 14.64 | |
| MET.SCHR M2X6MM | ||||
| 087 | 652119-7 | 1.00 | 1.21 | |
