Here you will find all available parts and drawings of the 'Makita DHP480'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

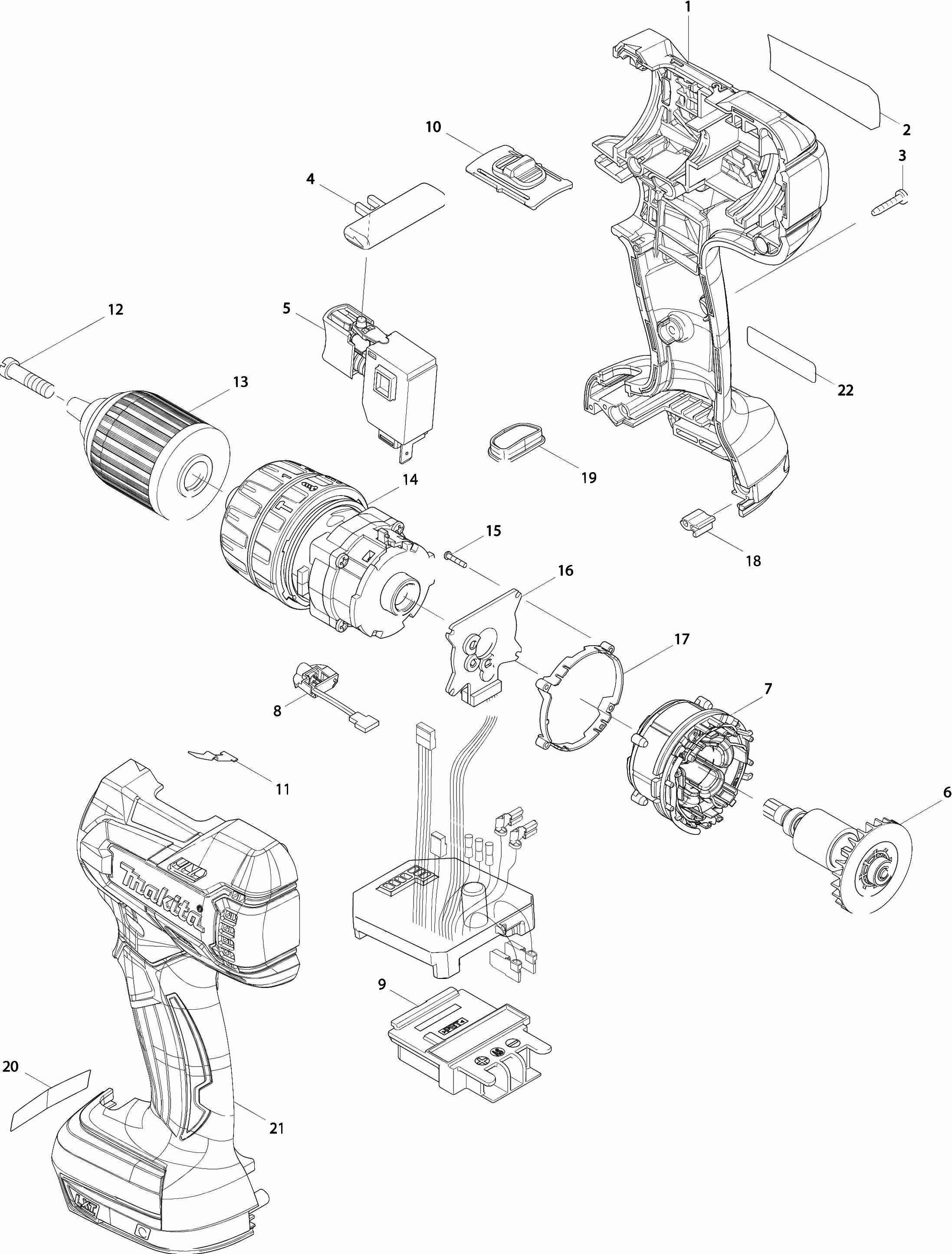

Technical drawing of model Makita DHP480
Spare parts list of model Makita DHP480
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 001 | 187714-9 | 17.38 | 21.03 | |
| Rubber pen 6 | ||||
| 001A | 263005-3 | 0.83 | 1.00 | |
| Label | ||||
| 002 | 814X16-1 | 2.71 | 3.28 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 0.83 | 1.00 | |
| L/r slide | ||||
| 004 | 419250-0 | 0.83 | 1.00 | |
| Switch C3jw-4b | ||||
| 005 | 650006-4 | 11.97 | 14.48 | |
| Armature | ||||
| 006 | 619331-2 | 36.05 | 43.62 | |
| Field | ||||
| 007 | 629999-6 | 12.22 | 14.79 | |
| Light circuit | ||||
| 008 | 620244-2 | 7.22 | 8.74 | |
| Connection unit Bcl182D(3 Cont) A | ||||
| 009 | 643523-1 | 5.06 | 6.12 | |
| High/low speed slide | ||||
| 010 | 126180-5 | 0.83 | 1.00 | |
| Leaf Spring | ||||
| 011 | 232182-2 | 0.83 | 1.00 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 012 | 251468-5 | 0.83 | 1.00 | |
| Boorkop snelspan 1,5-13mm | ||||
| 013 | 766027-7 | 26.00 | 31.46 | |
| Gear set | ||||
| 014 | 126353-0 | 38.72 | 46.85 | |
| Inbusbout M2x10mm | ||||
| 015 | 266786-8 | 0.83 | 1.00 | |
| Control unit | ||||
| 016 | 620245-0 | 72.58 | 87.82 | |
| Locating Ring | ||||
| 017 | 687464-1 | 0.83 | 1.00 | |
| Protection AF-DW | ||||
| 018 | 424517-3 | 0.83 | 1.00 | |
| Indicator Plate | ||||
| 019 | 142263-3 | 1.20 | 1.45 | |
| Motor Housing | ||||
| 021 | 187714-9 | 17.38 | 21.03 | |
| Rubber pen 6 | ||||
| 021A | 263005-3 | 0.83 | 1.00 | |
