Here you will find all available parts and drawings of the 'Makita DHK180'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

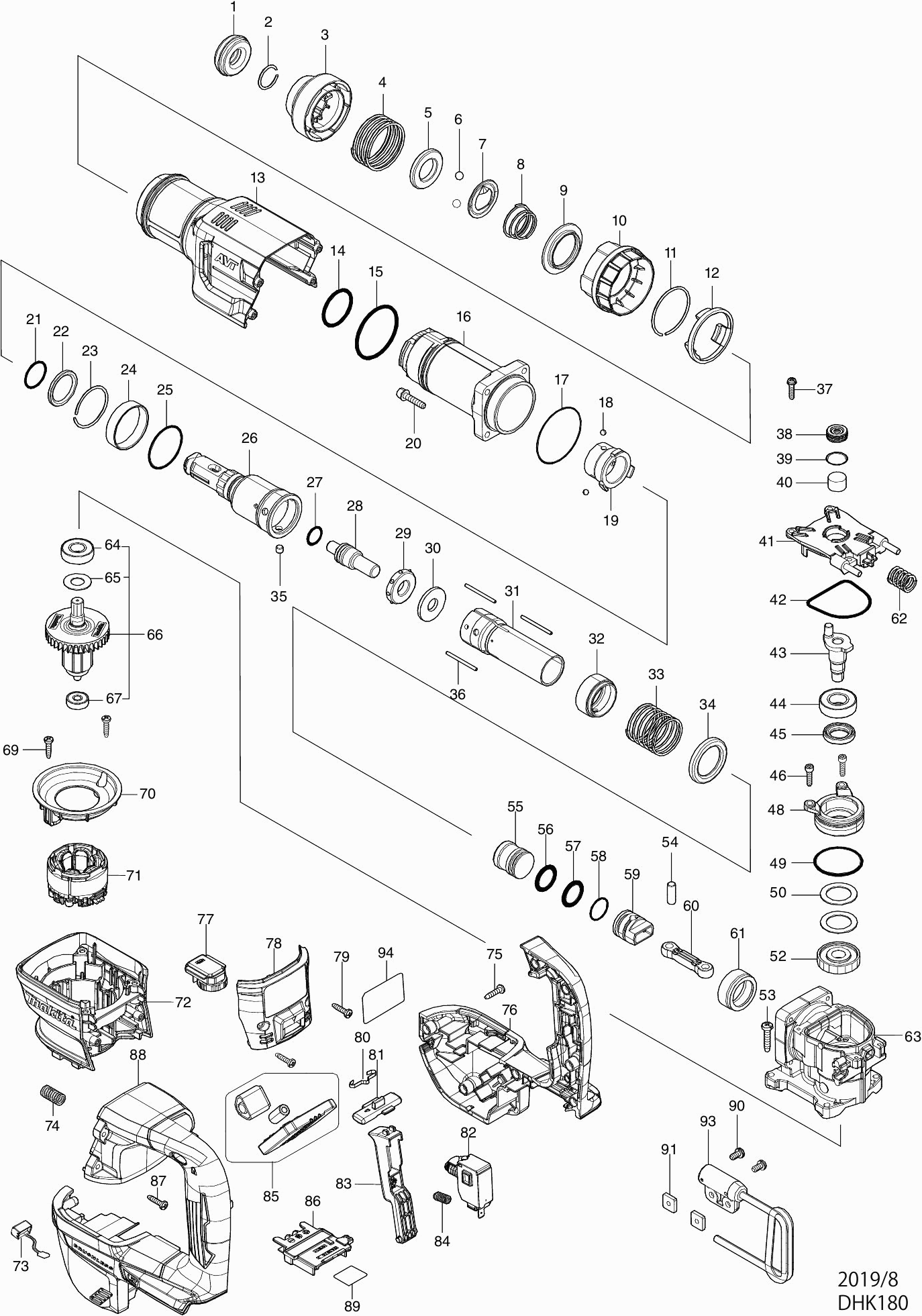

Technical drawing of model Makita DHK180
Spare parts list of model Makita DHK180
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Chisel Holder Cap | ||||
| 001 | 286283-8 | 2.40 | 2.90 | |
| Lock washer 19 | ||||
| 002 | 233966-1 | 2.40 | 2.90 | |
| Chisel lock cap | ||||
| 003 | 450275-5 | 4.80 | 5.81 | |
| Compression Spring 42 | ||||
| 004 | 234039-3 | 1.20 | 1.45 | |
| Washer 21 | ||||
| 005 | 257288-5 | 8.40 | 10.16 | |
| Steel ball 7.0 | ||||
| 006 | 216022-2 | 1.00 | 1.21 | |
| Guide Ring | ||||
| 007 | 345873-7 | 2.40 | 2.90 | |
| Compression Spring 21-29 | ||||
| 008 | 233916-6 | 1.00 | 1.21 | |
| Ball Guide | ||||
| 009 | 345874-5 | 6.00 | 7.26 | |
| Exchange Washer | ||||
| 010 | 450274-7 | 4.80 | 5.81 | |
| Lock washer 43 | ||||
| 011 | 231985-1 | 1.20 | 1.45 | |
| Ring DHK180 | ||||
| 012 | 459752-4 | 3.60 | 4.36 | |
| DHK180 Motor housing cover | ||||
| 013 | 459748-5 | 19.80 | 23.96 | |
| O-ring 31 | ||||
| 014 | 213465-9 | 1.00 | 1.21 | |
| O-ring 47 | ||||
| 015 | 213617-2 | 1.20 | 1.45 | |
| Cylinder casing DHK180 A | ||||
| 016 | 319988-6 | 26.40 | 31.94 | |
| O-ring 48 | ||||
| 017 | 213606-7 | 2.40 | 2.90 | |
| Steel ball 4.8 | ||||
| 018 | 216002-8 | 1.00 | 1.21 | |
| Washer 25 | ||||
| 019 | 331796-5 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 020 | 922243-3 | |||
| O-ring 22.4 | ||||
| 021 | 213008-7 | 1.20 | 1.45 | |
| Urethane washer 26 | ||||
| 022 | 262142-0 | 2.40 | 2.90 | |
| Locking ring 37 | ||||
| 023 | 233956-4 | 1.20 | 1.45 | |
| Washer 39 Hk1820 A | ||||
| 024 | 257296-6 | 14.30 | 17.30 | |
| O-ring 35 | ||||
| 025 | 213142-3 | 1.00 | 1.21 | |
| Chisel holder | ||||
| 026 | 324837-4 | 147.40 | 178.35 | |
| O-ring 12 | ||||
| 027 | 213128-7 | 1.20 | 1.45 | |
| Striker Pin | ||||
| 028 | 324844-7 | 6.00 | 7.26 | |
| Rubber ring 13mm | ||||
| 029 | 424065-2 | 8.40 | 10.16 | |
| Washer 12 | ||||
| 030 | 267363-9 | 7.20 | 8.71 | |
| Cylinder DHK180 | ||||
| 031 | 326814-2 | 72.60 | 87.85 | |
| Washer 29mm DHK180 | ||||
| 032 | 326813-4 | 14.30 | 17.30 | |
| Compression Spring 32 | ||||
| 033 | 234041-6 | 1.20 | 1.45 | |
| Washer 29 | ||||
| 034 | 345872-9 | 2.40 | 2.90 | |
| Pin 6 | ||||
| 035 | 268226-2 | 2.40 | 2.90 | |
| Rod 3 | ||||
| 036 | 256862-6 | 1.20 | 1.45 | |
| Screw 4X18 | ||||
| 037 | 911133-5 | 1.00 | 1.21 | |
| Filter cap | ||||
| 038 | 419988-7 | 1.00 | 1.21 | |
| O-ring 16 | ||||
| 039 | 213218-6 | 1.20 | 1.45 | |
| Filter | ||||
| 040 | 443129-3 | 1.00 | 1.21 | |
| Cylinder cap DHK180 | ||||
| 041 | 459746-9 | 8.40 | 10.16 | |
| Washer | ||||
| 042 | 424067-8 | 1.00 | 1.21 | |
| Crank Shaft | ||||
| 043 | 324845-5 | 11.00 | 13.31 | |
| Ball bearing 6002llu | ||||
| 044 | 211232-6 | 8.40 | 10.16 | |
| Seal Ring 15 | ||||
| 045 | 213219-4 | 3.60 | 4.36 | |
| Hex bolt 4x16 | ||||
| 046 | 266437-3 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 048 | 318202-7 | 3.60 | 4.36 | |
| O-ring 39 | ||||
| 049 | 213513-4 | 1.00 | 1.21 | |
| Washer 22 | ||||
| 050 | 267126-3 | 1.20 | 1.45 | |
| Gear | ||||
| 052 | 226675-9 | 13.20 | 15.97 | |
| Tap Screw 5X25 | ||||
| 053 | 266041-8 | 1.00 | 1.21 | |
| Pin 7 | ||||
| 054 | 256087-2 | 1.00 | 1.21 | |
| Jackhammer | ||||
| 055 | 324847-1 | 8.40 | 10.16 | |
| O-ring 20 | ||||
| 056 | 213283-5 | 2.40 | 2.90 | |
| O-ring 20 | ||||
| 057 | 213283-5 | 2.40 | 2.90 | |
| O-ring 18 | ||||
| 058 | 213262-3 | 1.20 | 1.45 | |
| Piston | ||||
| 059 | 450298-3 | 4.80 | 5.81 | |
| Connecting Rod | ||||
| 060 | 450278-9 | 2.40 | 2.90 | |
| Bus 29 | ||||
| 061 | 331797-3 | 4.80 | 5.81 | |
| Compression Spring 12mm DHK180 | ||||
| 062 | 232560-6 | 1.00 | 1.21 | |
| Crank Case | ||||
| 063 | 158523-3 | 56.10 | 67.88 | |
| O-ring 28 | ||||
| 063C10 | 213415-4 | 1.00 | 1.21 | |
| Ball Bearing 6001dw | ||||
| 064 | 211131-2 | 9.60 | 11.62 | |
| Washer 12 | ||||
| 065 | 253748-5 | 1.00 | 1.21 | |
| Armature 18v DHK180 | ||||
| 066 | 519589-2 | 41.80 | 50.58 | |
| Ball bearing 626zz | ||||
| 067 | 210143-2 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 069 | 265A48-7 | 1.00 | 1.21 | |
| Intermediate plate DHK180 | ||||
| 070 | 459749-3 | 3.60 | 4.36 | |
| Field 18v DHK180 | ||||
| 071 | 629451-4 | 59.40 | 71.87 | |
| No information available, not orderable | ||||
| 071-1 | 629B71-6 | |||
| Motor housing DHK180 | ||||
| 072 | 459747-7 | 17.60 | 21.30 | |
| LED circuit DHR680 | ||||
| 073 | 620936-3 | 8.40 | 10.16 | |
| Compression Spring 8 | ||||
| 074 | 232411-3 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 075 | 265A48-7 | 1.00 | 1.21 | |
| Housing DHK180 | ||||
| 076 | 183N36-9 | 36.30 | 43.92 | |
| Rubber pen 6 | ||||
| 076C10 | 263005-3 | 1.00 | 1.21 | |
| Circuit DHR400 | ||||
| 077 | 620796-3 | 16.50 | 19.96 | |
| DHK180 Motor housing cover | ||||
| 078 | 140M96-8 | 6.00 | 7.26 | |
| Tap screw 4x18 | ||||
| 079 | 265A48-7 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 080 | 232152-1 | 2.40 | 2.90 | |
| Unlock button DHK180 | ||||
| 081 | 459751-6 | 3.60 | 4.36 | |
| Switch C3JW-6B-PA | ||||
| 082 | 651399-2 | 19.80 | 23.96 | |
| Switch button DHK180 | ||||
| 083 | 459750-8 | 2.40 | 2.90 | |
| Compression Spring 5mm DHK180 | ||||
| 084 | 232561-4 | 1.00 | 1.21 | |
| Controller DHK180 | ||||
| 085 | 620C18-9 | 88.00 | 106.48 | |
| Connection unit | ||||
| 086 | 643874-2 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 087 | 265A48-7 | 1.00 | 1.21 | |
| Housing DHK180 | ||||
| 088 | 183N36-9 | 36.30 | 43.92 | |
| Rubber pen 6 | ||||
| 088C10 | 263005-3 | 1.00 | 1.21 | |
| Serial number label DHK180 | ||||
| 089 | 856L09-0 | 2.40 | 2.90 | |
| Screw 5x12 | ||||
| 090 | 911211-1 | 1.00 | 1.21 | |
| Square nut M5 | ||||
| 091 | 264002-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 093 | 127344-4 | |||
| Nameplate DHK180 | ||||
| 094 | 856L02-4 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 095 | 620L06-0 | |||
| DRAADBOOM DDA460 | ||||
| 096 | 638A31-1 | 6.00 | 7.26 | |
| MET.SCHR M2X6MM | ||||
| 097 | 652119-7 | 1.00 | 1.21 | |
