Here you will find all available parts and drawings of the 'Makita DGP180'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

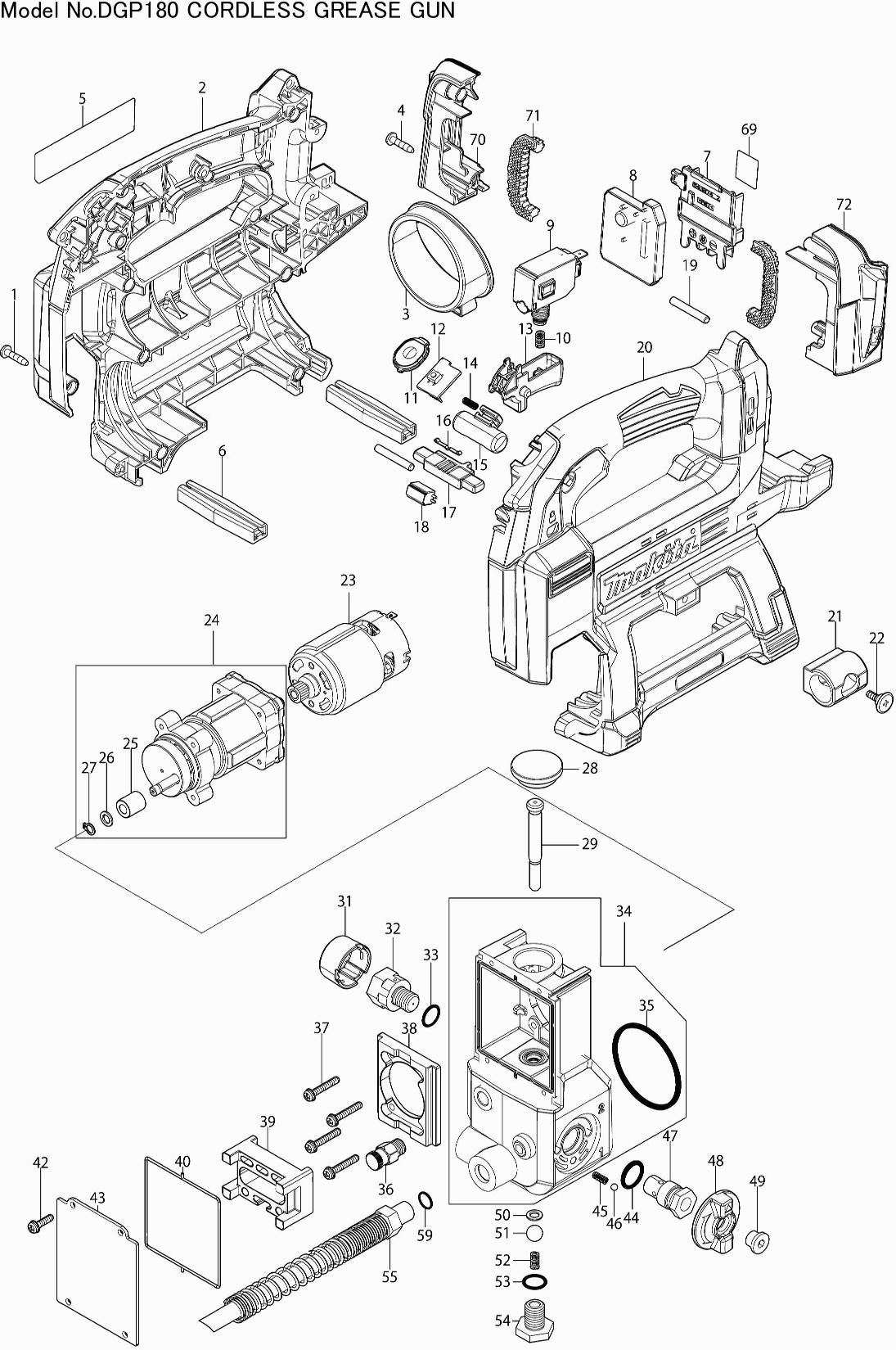

Technical drawing of model Makita DGP180
Spare parts list of model Makita DGP180
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 1.00 | 1.21 | |
| Motor house DGP180 | ||||
| 002 | 183R38-9 | 36.30 | 43.92 | |
| Lock Nut M4x7mm | ||||
| 002AC20 | 252126-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 002BC20 | 252303-0 | |||
| Rubber Pin 4 | ||||
| 002C10 | 263002-9 | 1.00 | 1.21 | |
| Lock Nut M4x7mm | ||||
| 002C20 | 252126-6 | 1.00 | 1.21 | |
| Tube holder DGP180 | ||||
| 003 | 459621-9 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 004 | 265A48-7 | 1.00 | 1.21 | |
| Nameplate DGP180 | ||||
| 005 | 856C52-5 | 3.60 | 4.36 | |
| Foot DGP180 | ||||
| 006 | 422479-9 | 1.20 | 1.45 | |
| Connection unit (3 contacts) | ||||
| 007 | 644809-6 | 4.80 | 5.81 | |
| Controller DGP180 | ||||
| 008 | 620A88-6 | 56.10 | 67.88 | |
| Line filter | ||||
| 008C10 | 688164-6 | 1.00 | 1.21 | |
| Switch WR100D | ||||
| 009 | 651391-8 | 23.10 | 27.95 | |
| Compression Spring 4mm DGP180 | ||||
| 010 | 233306-3 | 1.00 | 1.21 | |
| Switch Plate DGP180 | ||||
| 011 | 140M75-6 | 6.00 | 7.26 | |
| Label A/U DGP180 | ||||
| 011C10 | 819V26-1 | 2.40 | 2.90 | |
| Switch circuit DGP180 | ||||
| 012 | 620A89-4 | 10.80 | 13.07 | |
| Switch lever DGP180 | ||||
| 013 | 459623-5 | 3.60 | 4.36 | |
| Compression Spring 4 | ||||
| 014 | 231433-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 015 | 419705-5 | |||
| Leaf Spring | ||||
| 016 | 232201-4 | 2.40 | 2.90 | |
| A/U button DGP180 | ||||
| 017 | 459624-3 | 2.40 | 2.90 | |
| LED circuit DGP180 | ||||
| 018 | 620A90-9 | 9.60 | 11.62 | |
| Pen 5 | ||||
| 019 | 268306-4 | 1.00 | 1.21 | |
| Motor house DGP180 | ||||
| 020 | 183R38-9 | 36.30 | 43.92 | |
| Lock Nut M4x7mm | ||||
| 020AC20 | 252126-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 020BC20 | 252303-0 | |||
| Rubber Pin 4 | ||||
| 020C10 | 263002-9 | 1.00 | 1.21 | |
| Lock Nut M4x7mm | ||||
| 020C20 | 252126-6 | 1.00 | 1.21 | |
| Hose holder DGP180 | ||||
| 021 | 422643-2 | 2.40 | 2.90 | |
| Met.screw M4x14mm DGP180 | ||||
| 022 | 265B56-4 | 1.00 | 1.21 | |
| Motor DC 18V | ||||
| 023 | 629387-7 | 26.40 | 31.94 | |
| Gear set DGP180 | ||||
| 024 | 136124-7 | 39.60 | 47.92 | |
| Slide Bearing 6 DGP180 | ||||
| 025 | 214079-7 | 2.40 | 2.90 | |
| Washer 6mm DGP180 | ||||
| 026 | 253477-0 | 1.00 | 1.21 | |
| Lock ring S-6 | ||||
| 027 | 961002-0 | 1.00 | 1.21 | |
| Afdekkap 32 DGP180 | ||||
| 028 | 286043-8 | 1.00 | 1.21 | |
| Pen 7mm | ||||
| 029 | 256951-7 | 2.40 | 2.90 | |
| Flip cover DGP180 | ||||
| 031 | 459622-7 | 1.20 | 1.45 | |
| Relief Valve DGP180 | ||||
| 032 | 140M83-7 | 23.10 | 27.95 | |
| O-ring 12.5 DGP180 | ||||
| 033 | 213918-8 | 1.00 | 1.21 | |
| Pomphuis assy DGP180 | ||||
| 034 | 136128-9 | 60.50 | 73.20 | |
| Set screw DGP180 | ||||
| 034C10 | 265A55-0 | 1.00 | 1.21 | |
| Set screw DGP180 | ||||
| 034C11 | 265A55-0 | 1.00 | 1.21 | |
| Gasket A DGP180 | ||||
| 035 | 422476-5 | 2.40 | 2.90 | |
| Exit gasket DGP180 A | ||||
| 036 | 162B92-0 | 12.10 | 14.64 | |
| Screw 4x25 | ||||
| 037 | 911148-2 | 1.00 | 1.21 | |
| Axle Guide DGP180 | ||||
| 038 | 310961-9 | 4.80 | 5.81 | |
| Guide DGP180 | ||||
| 039 | 310960-1 | 6.00 | 7.26 | |
| Seal Ring DGP180 | ||||
| 040 | 422480-4 | 1.00 | 1.21 | |
| Screw 4x16 A | ||||
| 042 | 911526-6 | 1.00 | 1.21 | |
| Pump Cover DGP180 | ||||
| 043 | 347546-8 | 3.60 | 4.36 | |
| O-ring 14 | ||||
| 044 | 213182-1 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 045 | 231314-8 | 1.00 | 1.21 | |
| Steel ball 4 | ||||
| 046 | 216008-6 | 1.00 | 1.21 | |
| Switch Valve DGP180 | ||||
| 047 | 140M82-9 | 9.60 | 11.62 | |
| Star button DGP180 | ||||
| 048 | 459620-1 | 2.40 | 2.90 | |
| Tap bolt M10x7mm DGP180 | ||||
| 049 | 265A57-6 | 1.00 | 1.21 | |
| Rivet 8 DGP180 | ||||
| 050 | 257494-2 | 2.40 | 2.90 | |
| Steel ball 10 | ||||
| 051 | 216003-6 | 1.00 | 1.21 | |
| Compression Spring 4 DGP180 | ||||
| 052 | 232557-5 | 1.00 | 1.21 | |
| O-ring 12.5 DGP180 | ||||
| 053 | 213918-8 | 1.00 | 1.21 | |
| Allen bolt M12x16mm DGP180 | ||||
| 054 | 265A56-8 | 7.20 | 8.71 | |
| No longer available, no replacement | ||||
| 055 | 191A79-9 | |||
| No information available, not orderable | ||||
| 055-1 | 191W58-9 | |||
| No longer available, no replacement | ||||
| 055C10 | 162662-3 | |||
| No information available, not orderable | ||||
| 055C10-1 | 191W61-0 | |||
| O-ring 9 | ||||
| 059 | 213054-0 | 1.00 | 1.21 | |
| VETPATROONHOUDER DICHT | ||||
| 060 | 191B12-7 | 54.00 | 65.34 | |
| Push rod DGP180 | ||||
| 061 | 140T28-7 | 8.40 | 10.16 | |
| Switch DGP180 | ||||
| 061C10 | 459619-6 | 2.40 | 2.90 | |
| Spring Pin 4-20 | ||||
| 061C20 | 951116-3 | 1.00 | 1.21 | |
| Cylinder A DGP180 | ||||
| 062 | 327379-7 | 32.53 | 39.36 | |
| Cover A DGP180 | ||||
| 063 | 347543-4 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 064 | 232775-5 | |||
| Plate A DGP180 | ||||
| 065 | 413459-6 | 6.00 | 7.26 | |
| Gasket A DGP180 | ||||
| 066 | 422685-6 | 6.00 | 7.26 | |
| Washer 8 | ||||
| 067 | 941202-8 | 1.00 | 1.21 | |
| Hex Nut M6 | ||||
| 068 | 931302-2 | 1.00 | 1.21 | |
| Serial number label DGP180 | ||||
| 069 | 856C61-4 | 2.40 | 2.90 | |
| Battery Housing DGP180 | ||||
| 070 | 187303-0 | 4.80 | 5.81 | |
| Damping Rubber | ||||
| 071 | 424473-7 | 2.40 | 2.90 | |
| Battery Housing DGP180 | ||||
| 072 | 187303-0 | 4.80 | 5.81 | |
