Here you will find all available parts and drawings of the 'Makita DGD801'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

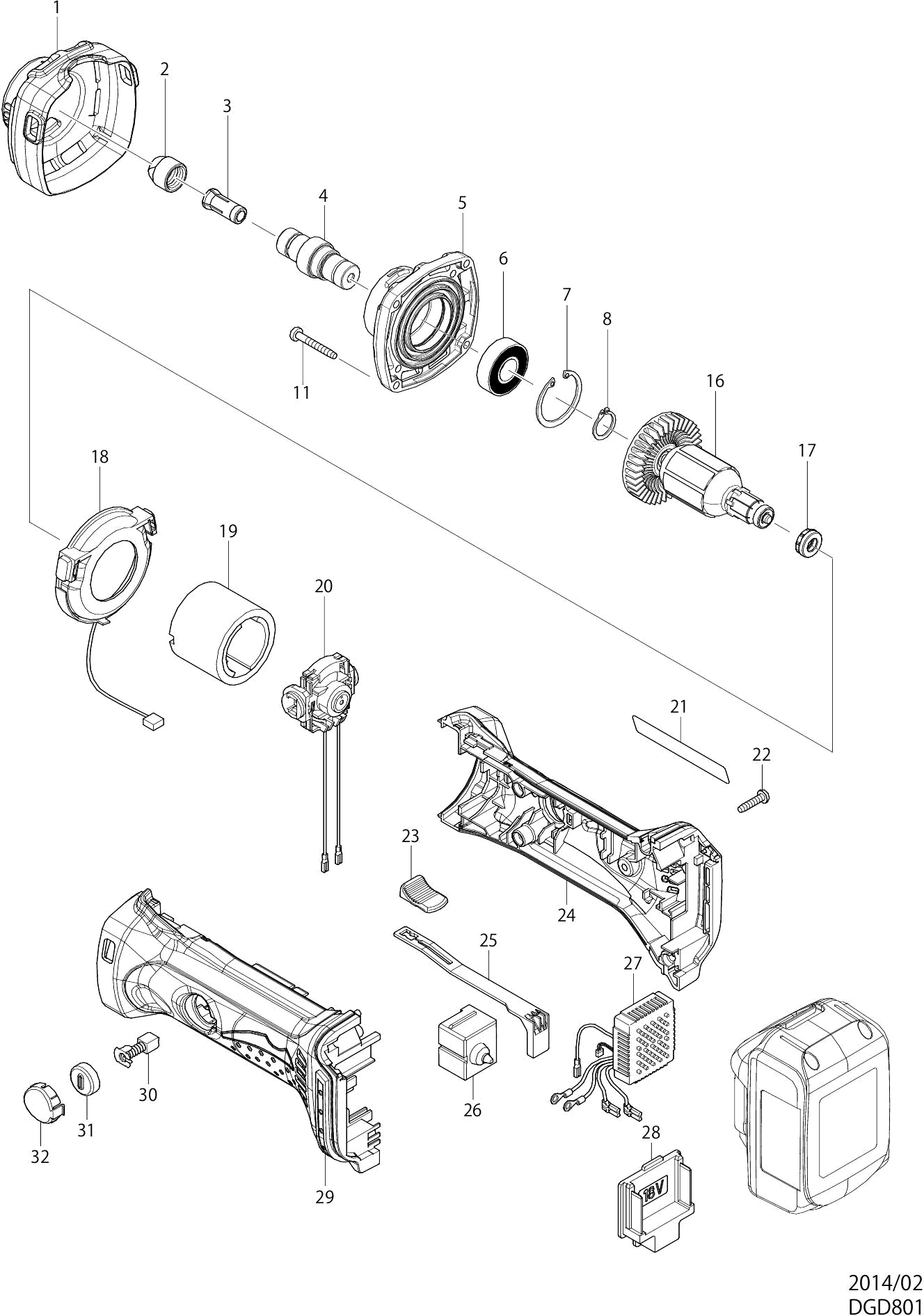

Technical drawing of model Makita DGD801
Spare parts list of model Makita DGD801
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Insulation cap DGD801 | ||||
| 001 | 424381-2 | 26.40 | 31.94 | |
| SPANMOER RECHTE SLIJPER | ||||
| 002 | 763668-0 | 2.00 | 2.42 | |
| SPANTANG 6MM RECHTE SLIJPER | ||||
| 003 | 763670-3 | 10.00 | 12.10 | |
| Axle DGD801 | ||||
| 004 | 326011-0 | 11.00 | 13.31 | |
| BEARING HOUSE DGD801 | ||||
| 005 | 140091-0 | 8.40 | 10.16 | |
| Felt washer 18 | ||||
| 005C10 | 262118-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 006 | 211237-6 | |||
| Lock washer r-32 | ||||
| 007 | 962151-6 | 1.00 | 1.21 | |
| Lock washer S-15 | ||||
| 008 | 961055-9 | 1.00 | 1.21 | |
| Tapping screw 4x22 | ||||
| 011 | 266324-6 | 1.00 | 1.21 | |
| Armature DGD801 | ||||
| 016 | 619285-3 | 16.50 | 19.96 | |
| Rubber Ring | ||||
| 017 | 421977-0 | 1.00 | 1.21 | |
| LED Circuit | ||||
| 018 | 631714-6 | 9.60 | 11.62 | |
| Magnet Unit | ||||
| 019 | 638627-2 | 24.20 | 29.28 | |
| Brush Holder | ||||
| 020 | 638921-2 | 4.80 | 5.81 | |
| Nameplate DGD801 | ||||
| 021 | 815P39-4 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 022 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 022-1 | 265B67-9 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 023 | 419566-3 | 1.00 | 1.21 | |
| Housing 3 contacts | ||||
| 024 | 187843-8 | 23.10 | 27.95 | |
| Rubber pen 6 | ||||
| 024C10 | 263005-3 | 1.00 | 1.21 | |
| Switch handle | ||||
| 025 | 419519-2 | 2.40 | 2.90 | |
| Switch GA5050 A | ||||
| 026 | 651396-8 | 10.80 | 13.07 | |
| Speed regulation | ||||
| 027 | 620243-4 | 38.72 | 46.85 | |
| TOERENREGELING DGA452 3-CONT A | ||||
| 027-1 | 620G22-2 | 33.00 | 39.93 | |
| Connection unit (3 contacts) | ||||
| 028 | 644808-8 | 3.60 | 4.36 | |
| Housing 3 contacts | ||||
| 029 | 187843-8 | 23.10 | 27.95 | |
| Rubber pen 6 | ||||
| 029C10 | 263005-3 | 1.00 | 1.21 | |
| Carbon brush set Cb-430 | ||||
| 030 | 191971-3 | 3.60 | 4.36 | |
| Brush Cap | ||||
| 031 | 643929-3 | 1.00 | 1.21 | |
| Brush cover | ||||
| 032 | 419518-4 | 1.20 | 1.45 | |
