Here you will find all available parts and drawings of the 'Makita DGA520'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

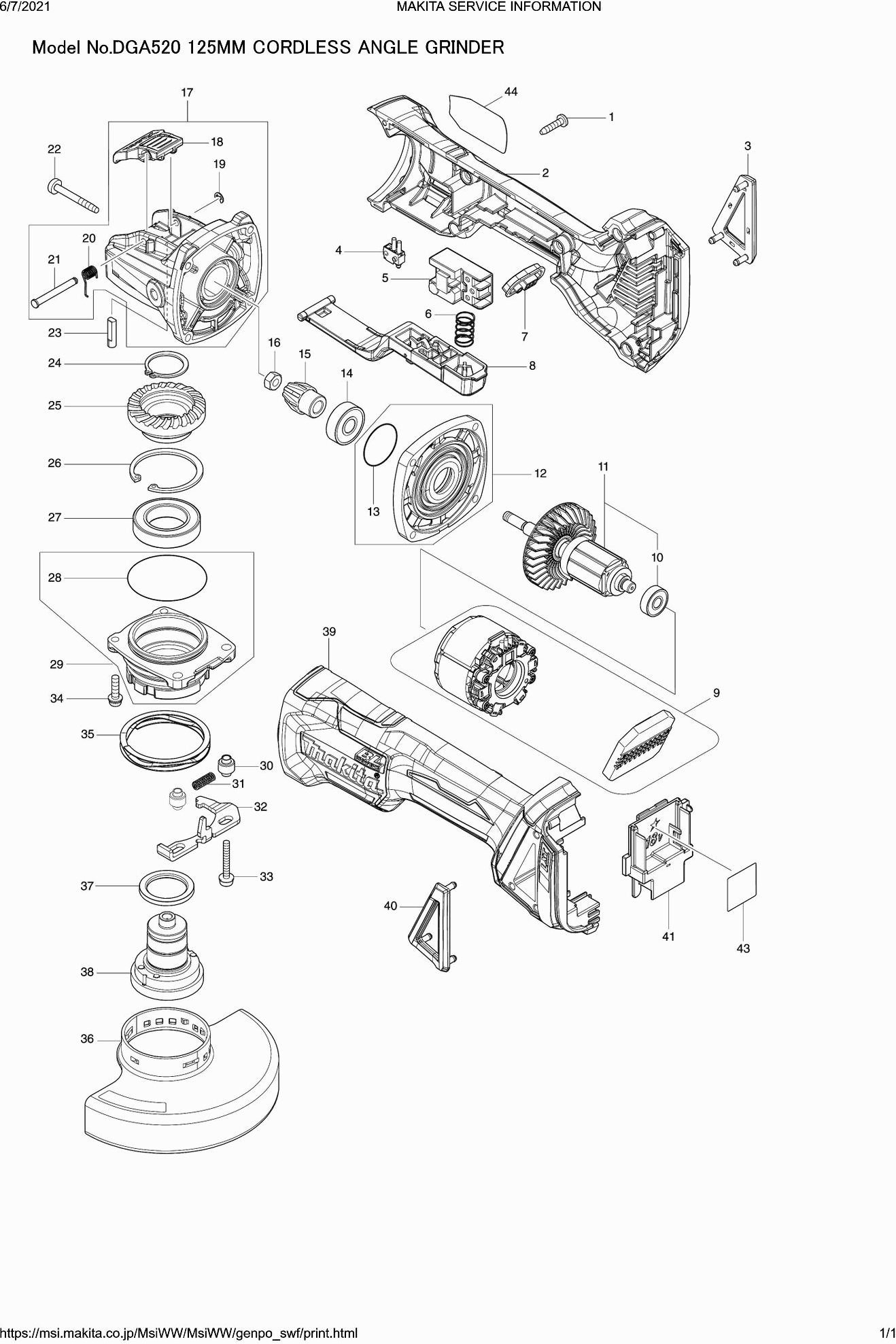

Technical drawing of model Makita DGA520
Spare parts list of model Makita DGA520
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapschr 4x18mm DGA520 A | ||||
| 001 | 265B67-9 | 0.83 | 1.00 | |
| Motor housing set DGA520/21 | ||||
| 002 | 183J41-2 | 11.09 | 13.42 | |
| Rubber pen 6 | ||||
| 002C10 | 263005-3 | 0.83 | 1.00 | |
| Dust cap "r" | ||||
| 003 | 455450-8 | 3.54 | 4.28 | |
| Switch | ||||
| 004 | 632E12-1 | 10.50 | 12.70 | |
| Switch | ||||
| 005 | 650734-1 | 13.82 | 16.72 | |
| Compression Spring 11 | ||||
| 006 | 234357-9 | 0.83 | 1.00 | |
| Indicator Panel | ||||
| 007 | 142901-7 | 1.39 | 1.68 | |
| Switch handle | ||||
| 008 | 142976-6 | 5.06 | 6.12 | |
| No longer available, no replacement | ||||
| 009 | 629203-3 | |||
| No longer available, no replacement | ||||
| 009-1 | 629B61-9 | |||
| Ball Bearing 607Llb A | ||||
| 010 | 210169-4 | 1.39 | 1.68 | |
| Armature DGA519 | ||||
| 011 | 510440-9 | 25.04 | 30.30 | |
| Gear Housing Cover DGA520 | ||||
| 012 | 136170-0 | 15.60 | 18.88 | |
| O-ring 26 | ||||
| 013 | 213407-3 | 1.18 | 1.43 | |
| Ball bearing 629llb | ||||
| 014 | 210042-8 | 2.36 | 2.86 | |
| Gear 10 DGA519 | ||||
| 015 | 226950-3 | 4.45 | 5.38 | |
| Nut M6 | ||||
| 016 | 252186-8 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 017 | 136209-9 | |||
| Lock button DGA519 | ||||
| 018 | 459967-3 | 4.44 | 5.37 | |
| Stopring E-3 | ||||
| 019 | 961017-7 | 0.83 | 1.00 | |
| Torsion Spring DGA519 | ||||
| 020 | 232576-1 | 0.83 | 1.00 | |
| Locking pin DGA519 | ||||
| 021 | 256935-5 | 1.39 | 1.68 | |
| Tap screw 4x30mm DGA520 | ||||
| 022 | 265B70-0 | 0.83 | 1.00 | |
| Locking pin DGA519 | ||||
| 023 | 327460-4 | 1.39 | 1.68 | |
| Lock Ring S-24 * | ||||
| 024 | 961104-2 | 0.83 | 1.00 | |
| Gear 37 DGA519 | ||||
| 025 | 226951-1 | 6.38 | 7.72 | |
| Lock ring R-42 | ||||
| 026 | 962201-7 | 0.98 | 1.19 | |
| Ball bearing 6905DDW | ||||
| 027 | 210208-0 | 11.82 | 14.30 | |
| O-ring 45 | ||||
| 028 | 213622-9 | 0.83 | 1.00 | |
| Bearing Housing DGA519 | ||||
| 029 | 136199-6 | 5.70 | 6.90 | |
| Sleeve 4 | ||||
| 030 | 327322-6 | 0.83 | 1.00 | |
| Compression Spring 4 | ||||
| 031 | 232490-1 | 0.83 | 1.00 | |
| Lever DGA519 | ||||
| 032 | 347615-5 | 1.67 | 2.02 | |
| Crosshead screw 4X30 | ||||
| 033 | 911159-7 | 0.83 | 1.00 | |
| Screw 4x20 | ||||
| 034 | 911138-5 | 0.83 | 1.00 | |
| Wave Washer DGA519 | ||||
| 035 | 232577-9 | 7.22 | 8.74 | |
| Protective cover 125 mm grinding and sanding | ||||
| 036 | 347618-9 | 12.00 | 14.52 | |
| Ring 25mm DGA519 | ||||
| 037 | 327459-9 | 0.83 | 1.00 | |
| Axle assembly DGA519 | ||||
| 038 | 127428-8 | 48.40 | 58.56 | |
| Motor housing set DGA520/21 | ||||
| 039 | 183J41-2 | 11.09 | 13.42 | |
| Rubber pen 6 | ||||
| 039C10 | 263005-3 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 040 | 455449-3 | |||
| Connection unit | ||||
| 041 | 643874-2 | 3.54 | 4.28 | |
| No information available, not orderable | ||||
| 043 | 811Y70-2 | |||
| No information available, not orderable | ||||
| 044 | 811Y69-7 | |||
