Here you will find all available parts and drawings of the 'Makita DGA518'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

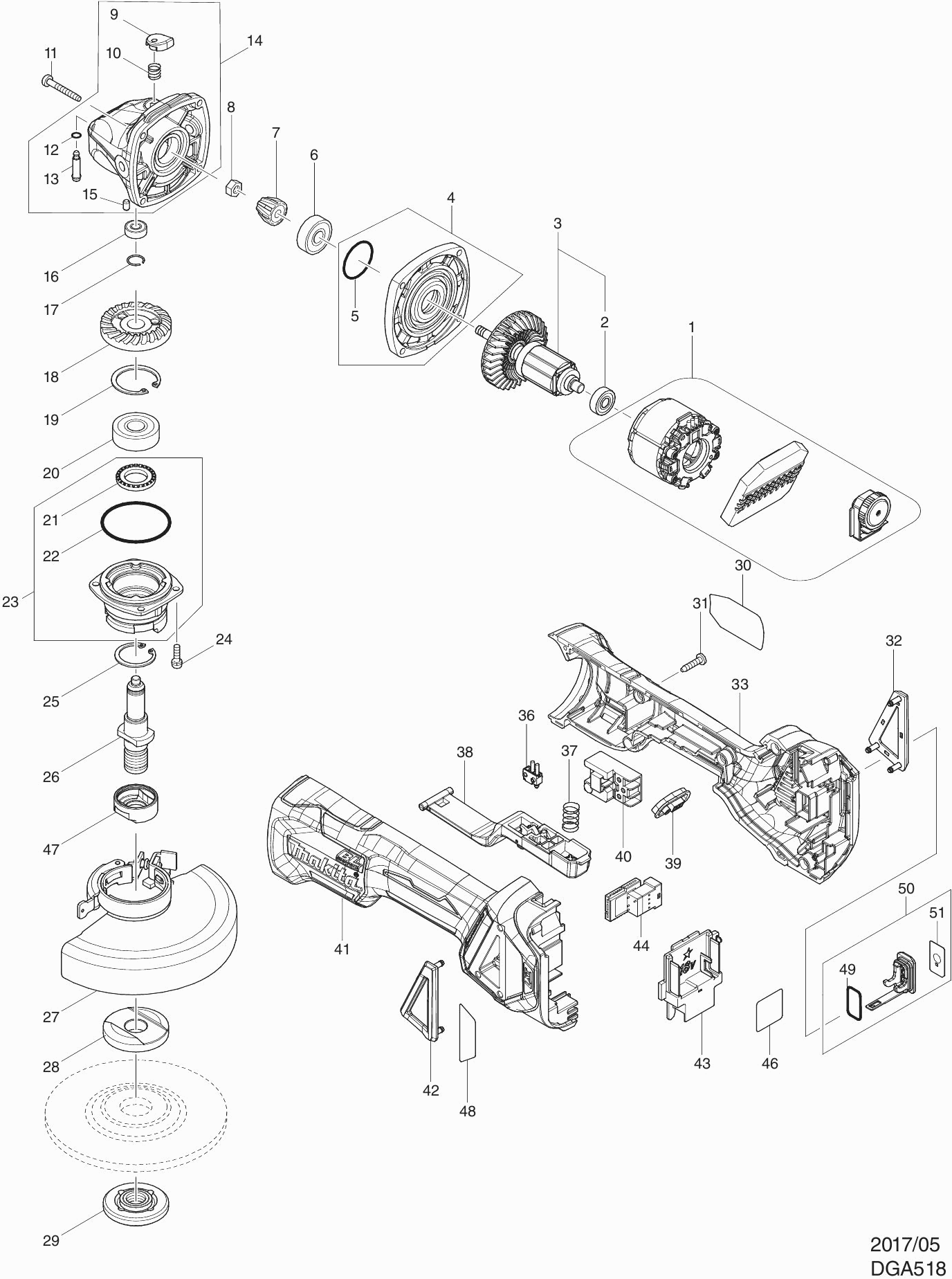

Technical drawing of model Makita DGA518
Spare parts list of model Makita DGA518
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 001 | 629305-5 | |||
| Ball Bearing 607Llb A | ||||
| 002 | 210169-4 | 2.40 | 2.90 | |
| Armature 18V Dga504/5/6 A | ||||
| 003 | 510329-1 | 30.80 | 37.27 | |
| Gear Housing Cover Dga | ||||
| 004 | 135930-7 | 7.20 | 8.71 | |
| O-ring 26 | ||||
| 005 | 213407-3 | 1.20 | 1.45 | |
| Ball bearing 629llb | ||||
| 006 | 210042-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 007 | 227541-3 | |||
| Nut M6 | ||||
| 008 | 252186-8 | 1.00 | 1.21 | |
| Lock pin cap | ||||
| 009 | 417771-6 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 010 | 233376-2 | 1.00 | 1.21 | |
| Tap screw 4x30mm DGA520 | ||||
| 011 | 265B70-0 | 1.00 | 1.21 | |
| Tap screw 4x30mm DGA520 | ||||
| 011-1 | 265B70-0 | 1.00 | 1.21 | |
| O-ring 4 | ||||
| 012 | 213032-0 | 1.00 | 1.21 | |
| Collar Pin 4mm | ||||
| 013 | 256546-6 | 1.00 | 1.21 | |
| Gear Unit DGA | ||||
| 014 | 135929-2 | 11.00 | 13.31 | |
| Rubber Pin 4 | ||||
| 015 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 016 | 210026-6 | 2.40 | 2.90 | |
| Washer 11 Ga4530 | ||||
| 017 | 233950-6 | 1.00 | 1.21 | |
| Gear 37 DGA505 A | ||||
| 018 | 226862-0 | 6.00 | 7.26 | |
| Lock washer r-32 | ||||
| 019 | 962151-6 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 020 | 211129-9 | 8.40 | 10.16 | |
| Spring retention washer Dga506 | ||||
| 021 | 262153-5 | 1.20 | 1.45 | |
| O-ring 45 | ||||
| 022 | 213622-9 | 1.00 | 1.21 | |
| Complete bearing housing DGA514 | ||||
| 023 | 135949-6 | 6.00 | 7.26 | |
| Screw 4x14 | ||||
| 024 | 911121-2 | 1.00 | 1.21 | |
| Lock ring R-26 A | ||||
| 025 | 962105-3 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 026 | 326672-6 | 9.60 | 11.62 | |
| BESCHERMKAP 125MM AFBRAMEN EN SCHUREN | ||||
| 027 | 141P36-7 | 7.00 | 8.47 | |
| O-ring 4 | ||||
| 027C10 | 213009-5 | 1.00 | 1.21 | |
| Screw 5x16 | ||||
| 027C20 | 265180-1 | 1.00 | 1.21 | |
| Inner flange | ||||
| 028 | 224447-6 | 4.90 | 5.93 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 029 | 224554-5 | 3.00 | 3.63 | |
| Nameplate DGA518 | ||||
| 030 | 854A02-2 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 031 | 265B67-9 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 031-1 | 265B67-9 | 1.00 | 1.21 | |
| Dust cap "r" | ||||
| 032 | 455450-8 | 3.60 | 4.36 | |
| Motor Housing DGA518 | ||||
| 033 | 183H85-0 | 19.80 | 23.96 | |
| Rubber pen 6 | ||||
| 033C10 | 263005-3 | 1.00 | 1.21 | |
| Switch | ||||
| 036 | 632E12-1 | 10.80 | 13.07 | |
| Compression Spring 11 | ||||
| 037 | 234357-9 | 1.00 | 1.21 | |
| Switch handle | ||||
| 038 | 142976-6 | 6.00 | 7.26 | |
| Indicator Panel | ||||
| 039 | 142901-7 | 2.40 | 2.90 | |
| Switch | ||||
| 040 | 650734-1 | 14.30 | 17.30 | |
| Motor Housing DGA518 | ||||
| 041 | 183H85-0 | 19.80 | 23.96 | |
| Rubber pen 6 | ||||
| 041C10 | 263005-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 042 | 455449-3 | |||
| Connection unit | ||||
| 043 | 643874-2 | 3.60 | 4.36 | |
| Sub Controller Dga | ||||
| 044 | 620752-3 | 30.80 | 37.27 | |
| Serial number label DGA518 | ||||
| 046 | 854A09-8 | 2.40 | 2.90 | |
| Guide ring holder | ||||
| 047 | 310514-4 | 8.40 | 10.16 | |
| Indicator Label Dga512 | ||||
| 048 | 816D93-9 | 2.40 | 2.90 | |
| O-ring 18 | ||||
| 049 | 213275-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 049-1 | 213A42-3 | |||
| Cap Set DSP601/DGA514 P | ||||
| 050 | 183H92-3 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 051 | 813T75-8 | |||
