Here you will find all available parts and drawings of the 'Makita DG001G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

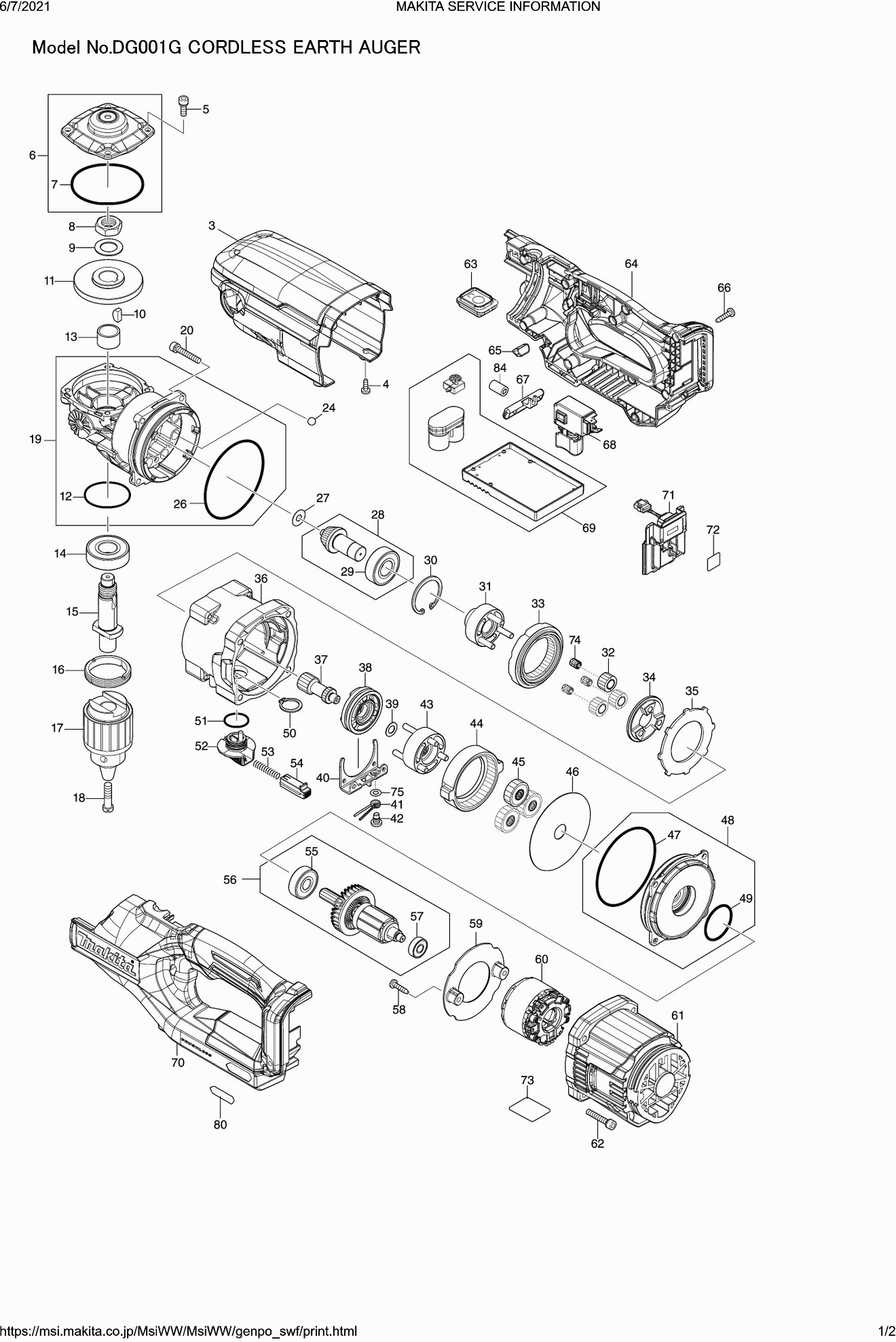

Technical drawing of model Makita DG001G
Spare parts list of model Makita DG001G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handle TSC 55 | ||||
| 001 | 458431-1 | 4.00 | 4.84 | |
| Hex socket screw M8x55mm DDG460 | ||||
| 002 | 922478-6 | 1.20 | 1.45 | |
| Top Cover DDA460 | ||||
| 003 | 458430-3 | 9.60 | 11.62 | |
| Tapping screw M4x12mm Ck | ||||
| 004 | 266026-4 | 1.00 | 1.21 | |
| Screw 5X16 JR3051T A | ||||
| 005 | 265C32-4 | 1.00 | 1.21 | |
| Gearcase cover Dda460D | ||||
| 006 | 140A21-7 | 11.00 | 13.31 | |
| O-ring 63 | ||||
| 007 | 213709-7 | 2.40 | 2.90 | |
| Hex nut M16x22 DDA460 | ||||
| 008 | 252267-8 | 10.80 | 13.07 | |
| 16 * Washer | ||||
| 009 | 253771-0 | 1.00 | 1.21 | |
| Inlegspie 5 | ||||
| 010 | 254032-1 | 2.40 | 2.90 | |
| Gear 40 | ||||
| 011 | 227416-6 | 34.10 | 41.26 | |
| O-ring 40 | ||||
| 012 | 213507-9 | 1.20 | 1.45 | |
| Bus 17 DDA460 | ||||
| 013 | 257440-5 | 1.20 | 1.45 | |
| Ball bearing 6203dw | ||||
| 014 | 211278-2 | 9.60 | 11.62 | |
| As DDA460 | ||||
| 015 | 327106-2 | 34.10 | 41.26 | |
| Bearing lock ring 36-43 | ||||
| 016 | 285842-5 | 3.60 | 4.36 | |
| BOORKOP TANDKRANS 2-13MM | ||||
| 017 | 763250-5 | 22.00 | 26.62 | |
| Screw LI M6x22 drill DDA460 | ||||
| 018 | 251463-5 | 2.40 | 2.90 | |
| Gearbox DA001G | ||||
| 019 | 141D39-9 | 56.10 | 67.88 | |
| Allen bolt M5x30mm DDA460 | ||||
| 020 | 265695-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 020-1 | 265D08-7 | |||
| No information available, not orderable | ||||
| 020-2 | 265E69-3 | |||
| Steel ball 7.0 | ||||
| 024 | 216022-2 | 1.00 | 1.21 | |
| O-ring 75 | ||||
| 026 | 213755-0 | 3.60 | 4.36 | |
| Washer 6 | ||||
| 027 | 253411-0 | 1.00 | 1.21 | |
| Gear 13C DDA460 | ||||
| 028 | 140A23-3 | 30.80 | 37.27 | |
| Ball bearing 6202llb | ||||
| 029 | 211228-7 | 8.40 | 10.16 | |
| Lock Ring R-35 | ||||
| 030 | 962153-2 | 1.00 | 1.21 | |
| Tandwieldrager A DDA460 | ||||
| 031 | 140A13-6 | 17.60 | 21.30 | |
| Gear 13 DDA460 | ||||
| 032 | 226176-7 | 1.20 | 1.45 | |
| Internal gear 40 DDA460 | ||||
| 033 | 226177-5 | 7.20 | 8.71 | |
| Cam Disk DDA460 | ||||
| 034 | 223188-1 | 8.40 | 10.16 | |
| Lock Washer 65 DDA460 | ||||
| 035 | 347365-2 | 2.40 | 2.90 | |
| Gearbox DA001G | ||||
| 036 | 127809-6 | 22.00 | 26.62 | |
| Gear 14 DDA460 | ||||
| 037 | 226175-9 | 6.00 | 7.26 | |
| Coupling Ring DDA460 | ||||
| 038 | 310876-0 | 8.40 | 10.16 | |
| Washer 8 x 14 x 0.5mm | ||||
| 039 | 253215-0 | 1.00 | 1.21 | |
| Switch Plate DDA460 | ||||
| 040 | 347366-0 | 1.20 | 1.45 | |
| Coil Spring 6 | ||||
| 041 | 231657-8 | 1.20 | 1.45 | |
| Phillips head screw M5 DDA460 | ||||
| 042 | 265628-3 | 1.00 | 1.21 | |
| Tandwieldrager B compleet | ||||
| 043 | 140A14-4 | 17.60 | 21.30 | |
| Internal gear 71 DDA460 | ||||
| 044 | 226174-1 | 6.00 | 7.26 | |
| Tandwiel 29 compleet DDA460 | ||||
| 045 | 140A12-8 | 7.20 | 8.71 | |
| Washer 15 | ||||
| 046 | 253412-8 | 1.20 | 1.45 | |
| O-ring 75 | ||||
| 047 | 213755-0 | 3.60 | 4.36 | |
| Motor mount DDA460 | ||||
| 048 | 140A20-9 | 10.80 | 13.07 | |
| O-ring 30 | ||||
| 049 | 213406-5 | 1.20 | 1.45 | |
| Lock Ring S-18 DDF460 | ||||
| 050 | 961058-3 | 1.20 | 1.45 | |
| O-ring 17 | ||||
| 051 | 213265-7 | 1.00 | 1.21 | |
| Adjustment Knob DDA460 | ||||
| 052 | 458433-7 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 053 | 233279-0 | 1.20 | 1.45 | |
| Locking Button DDA460 | ||||
| 054 | 458434-5 | 1.20 | 1.45 | |
| Ball bearing 6200dw | ||||
| 055 | 211087-9 | 8.40 | 10.16 | |
| Armature DA001G | ||||
| 056 | 519689-8 | 48.40 | 58.56 | |
| Ball bearing 607llb | ||||
| 057 | 211021-9 | 4.80 | 5.81 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 058 | 265B67-9 | 1.00 | 1.21 | |
| Intermediate Plate DDA460 | ||||
| 059 | 458427-2 | 2.40 | 2.90 | |
| Armature DDA460 | ||||
| 060 | 629356-8 | 55.40 | 67.03 | |
| Motor Housing DDA460 | ||||
| 061 | 458426-4 | 9.60 | 11.62 | |
| Allen bolt M5x30mm DDA460 | ||||
| 062 | 265695-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 062-1 | 265D08-7 | |||
| No information available, not orderable | ||||
| 062-2 | 265E69-3 | |||
| Complete switch DDA460 | ||||
| 063 | 140A19-4 | 13.20 | 15.97 | |
| Label A/U AS1925 | ||||
| 063 | 810D46-0 | 2.40 | 2.90 | |
| Handle set DA001G | ||||
| 064 | 183S93-7 | 23.10 | 27.95 | |
| Rubber pen 6 | ||||
| 064 | 263005-3 | 1.00 | 1.21 | |
| Lock Nut M4x7mm | ||||
| 064 | 252126-6 | 1.00 | 1.21 | |
| Light Circuit DDA460 | ||||
| 065 | 620839-1 | 4.80 | 5.81 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 066 | 265B67-9 | 1.00 | 1.21 | |
| Adjustment Knob F/R DA460 | ||||
| 067 | 458432-9 | 1.20 | 1.45 | |
| Switch C3JR-4B DF001G | ||||
| 068 | 651443-5 | 22.00 | 26.62 | |
| Controller DA001G | ||||
| 069 | 620F91-7 | 138.80 | 167.95 | |
| Controller DA001G | ||||
| 069A | 620F91-7 | 138.80 | 167.95 | |
| CONTROLLER DA001G A | ||||
| 069B | 620R38-3 | 133.10 | 161.05 | |
| Handle set DA001G | ||||
| 070 | 183S93-7 | 23.10 | 27.95 | |
| Lock Nut M4x7mm | ||||
| 070 | 252126-6 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| 070 | 263005-3 | 1.00 | 1.21 | |
| Control unit GA-40V series | ||||
| 071 | 632P65-6 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 072 | 811G89-3 | |||
| No information available, not orderable | ||||
| 073 | 811G82-7 | |||
| Needle Bearing 5810 | ||||
| 074 | 212193-3 | 2.40 | 2.90 | |
| Lock washer 5 | ||||
| 075 | 267010-2 | 1.00 | 1.21 | |
| Handle Base DDG460 A | ||||
| 076 | 127688-2 | 72.60 | 87.85 | |
| Square nut M5 | ||||
| 077 | 264002-2 | 1.00 | 1.21 | |
| Label XGT HS004G | ||||
| 080 | 8012U4-2 | 2.40 | 2.90 | |
| Hex socket bolt M12x50mm DDG460 | ||||
| 081 | 922673-8 | 3.60 | 4.36 | |
| Hex Socket Bolt M6x40mm DDG460 | ||||
| 082 | 922363-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 083 | 140W52-8 | |||
| Line filter | ||||
| 084 | 688162-0 | 2.40 | 2.90 | |
| CONTROLLER B DUX60 P | ||||
| 085A | 620K74-7 | 20.90 | 25.29 | |
| CONTROLLER B DUX60 A | ||||
| 085B | 620R29-4 | 14.30 | 17.30 | |
