Here you will find all available parts and drawings of the 'Makita DFT087F'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

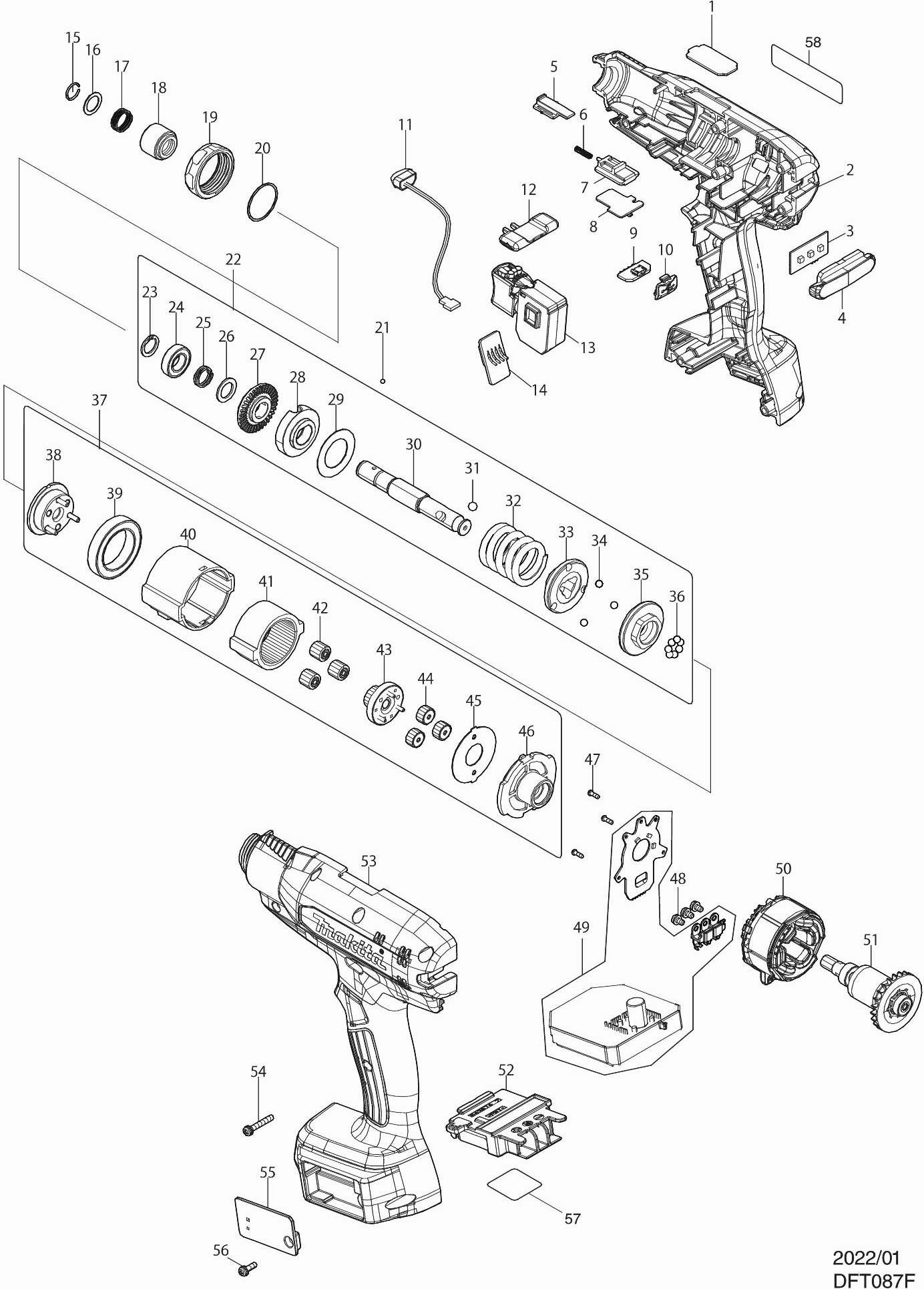

Technical drawing of model Makita DFT087F
Spare parts list of model Makita DFT087F
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plate H 3-8nm (hard-torque) | ||||
| 001 | 345344-4 | 4.80 | 5.81 | |
| MOTORHUISSET DFT087 P | ||||
| 002 | 183W30-5 | 24.13 | 29.20 | |
| Rubber pen 6 | ||||
| 002C10 | 263005-3 | 1.00 | 1.21 | |
| Hexagonal nut M3 | ||||
| 002C20 | 931002-4 | 1.00 | 1.21 | |
| LED Circuit Dtd085F | ||||
| 003 | 620622-6 | 9.60 | 11.62 | |
| Lens | ||||
| 004 | 457484-7 | 2.40 | 2.90 | |
| Exchange plate DFT024/25 | ||||
| 005 | 412712-7 | 2.40 | 2.90 | |
| Pressure Spring 2 | ||||
| 006 | 233025-1 | 1.00 | 1.21 | |
| Schakelhendel DFT024/25 | ||||
| 007 | 140U90-8 | 17.38 | 21.03 | |
| Sensor circuit DFT024/25 | ||||
| 008 | 620D61-4 | 8.40 | 10.16 | |
| CIRCUIT USB DFT087 | ||||
| 009 | 620J83-0 | 9.60 | 11.62 | |
| USB cover cap | ||||
| 010 | 144709-5 | 3.60 | 4.36 | |
| CIRCUIT LED DFT087 | ||||
| 011 | 620J82-2 | 4.80 | 5.81 | |
| Rotary knob ABB OHYS2AJ | ||||
| 012 | 457469-3 | 2.40 | 2.90 | |
| Switch C3Jw-1B-S Dft085F | ||||
| 013 | 651082-1 | 22.00 | 26.62 | |
| Buzzer Circuit Dft085F | ||||
| 014 | 620621-8 | 9.60 | 11.62 | |
| Retaining ring 9 | ||||
| 015 | 233930-2 | 2.40 | 2.90 | |
| 10x0.5mm washer | ||||
| 016 | 267070-4 | 1.00 | 1.21 | |
| Compression Spring 10a | ||||
| 017 | 232374-3 | 1.20 | 1.45 | |
| Bit Holder | ||||
| 018 | 161607-8 | 9.60 | 11.62 | |
| Black M28 lock nut | ||||
| 019 | 457530-6 | 4.80 | 5.81 | |
| O-ring 22 | ||||
| 020 | 213836-0 | 1.00 | 1.21 | |
| Steel Ball 2.4 DFT025 | ||||
| 021 | 216015-9 | 1.00 | 1.21 | |
| KOPPELING 8MR DFT087 | ||||
| 022 | 122C82-1 | 79.20 | 95.83 | |
| Locking Ring S-10 | ||||
| 023 | 961026-6 | 1.00 | 1.21 | |
| Ball Bearing 6800llb | ||||
| 024 | 210076-1 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 025 | 232375-1 | |||
| Ring 10 | ||||
| 026 | 267047-9 | 1.00 | 1.21 | |
| Lock Ring M12 | ||||
| 027 | 324834-0 | 10.80 | 13.07 | |
| Clutch Dial | ||||
| 028 | 158408-3 | 6.00 | 7.26 | |
| Flat Washer 18 | ||||
| 029 | 267276-4 | 1.20 | 1.45 | |
| AS DFT087/129F | ||||
| 030 | 327A31-3 | 40.70 | 49.25 | |
| Steel ball 5.0 | ||||
| 031 | 216018-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 032 | 233384-3 | |||
| No information available, not orderable | ||||
| 033 | 223146-7 | |||
| Steel ball 4 | ||||
| 034 | 216024-8 | 1.00 | 1.21 | |
| Cam Disk F DFL083F | ||||
| 035 | 223187-3 | 17.60 | 21.30 | |
| Steel ball 4 | ||||
| 036 | 216024-8 | 1.00 | 1.21 | |
| TANDWIELSET DFT087F | ||||
| 037 | 136814-2 | 36.30 | 43.92 | |
| No information available, not orderable | ||||
| 038 | 153443-6 | |||
| Ball Bearing 6805llb | ||||
| 039 | 211375-4 | 13.20 | 15.97 | |
| TANDWIELHUIS DFT087 P | ||||
| 040 | 413J94-0 | 3.77 | 4.56 | |
| No information available, not orderable | ||||
| 041 | 227048-9 | |||
| No information available, not orderable | ||||
| 042 | 227050-2 | |||
| No information available, not orderable | ||||
| 043 | 153445-2 | |||
| No information available, not orderable | ||||
| 044 | 227049-7 | |||
| Spring retaining ring | ||||
| 045 | 267774-8 | 1.20 | 1.45 | |
| Motor mount | ||||
| 046 | 418003-4 | 3.60 | 4.36 | |
| Parker Ck 2x6mm | ||||
| 047 | 266490-9 | 1.00 | 1.21 | |
| Phillips Head Screw M3X6 | ||||
| 048 | 652069-6 | 1.00 | 1.21 | |
| CONTROLLER DFT087 | ||||
| 049 | 620J80-6 | 129.80 | 157.06 | |
| VELD DFT087/129 | ||||
| 050 | 629B33-4 | 37.40 | 45.25 | |
| Rotary Core | ||||
| 051 | 619442-3 | 63.80 | 77.20 | |
| Connection unit | ||||
| 052 | 643874-2 | 3.60 | 4.36 | |
| MOTORHUISSET DFT087 P | ||||
| 053 | 183W30-5 | 24.13 | 29.20 | |
| Rubber pen 6 | ||||
| 053C10 | 263005-3 | 1.00 | 1.21 | |
| Hexagonal nut M3 | ||||
| 053C20 | 931002-4 | 1.00 | 1.21 | |
| Screw M30x20 | ||||
| 054 | 251581-9 | 1.00 | 1.21 | |
| LABEL SERIENR DFT087F | ||||
| 057 | 858T32-9 | 2.40 | 2.90 | |
| NAAMPLAAT DFT087F | ||||
| 058 | 858T27-2 | 1.00 | 1.21 | |
