Here you will find all available parts and drawings of the 'Makita DFT085F'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

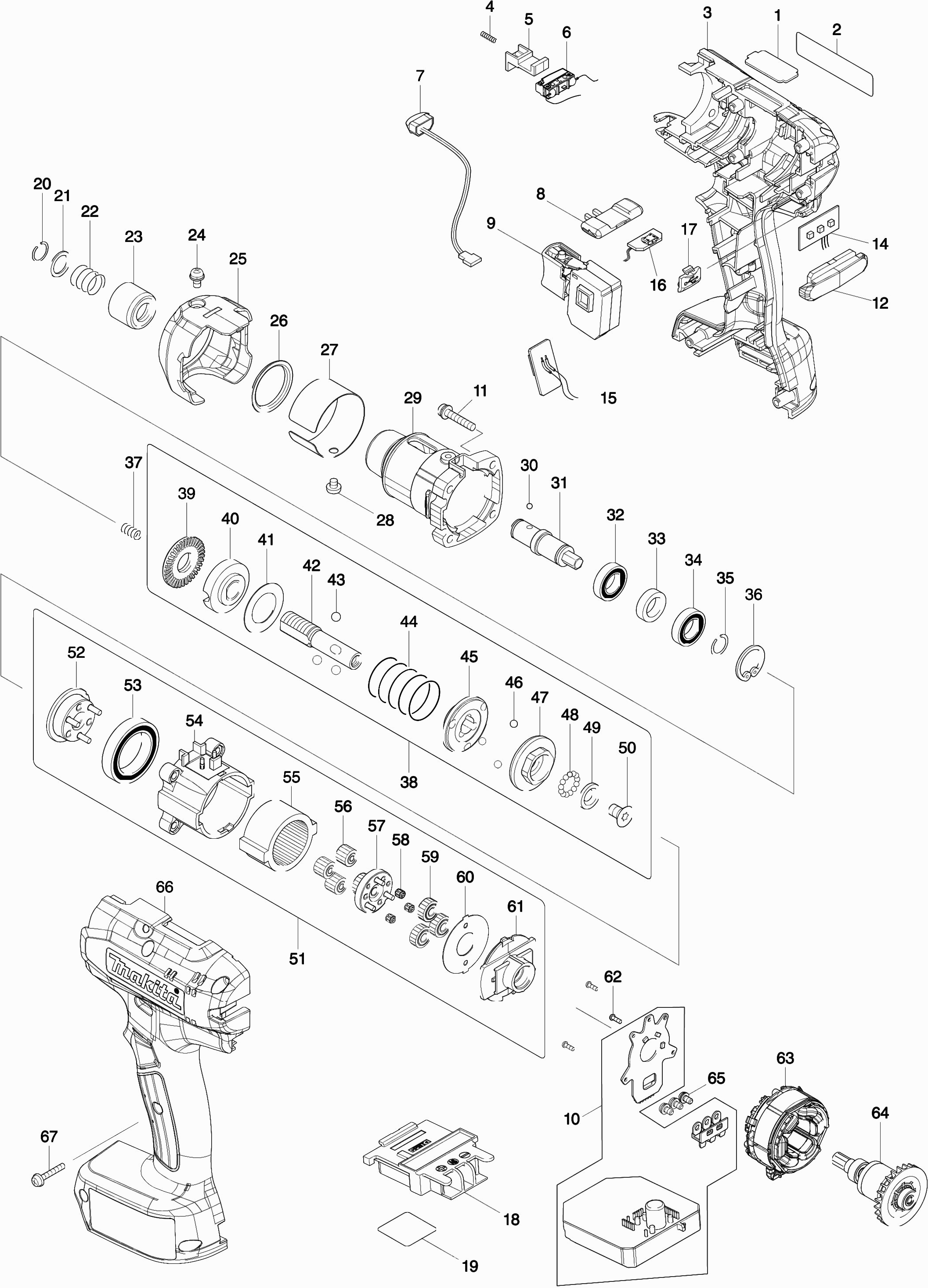

Technical drawing of model Makita DFT085F
Spare parts list of model Makita DFT085F
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plate H 3-8nm (hard-torque) | ||||
| 001 | 345344-4 | 3.97 | 4.80 | |
| Nameplate Dft085f | ||||
| 002 | 853A47-7 | 2.71 | 3.28 | |
| Motorhuis set | ||||
| 003 | 183G11-3 | 17.38 | 21.03 | |
| Rubber pen 6 | ||||
| 003C10 | 263005-3 | 0.83 | 1.00 | |
| Hexagonal nut M3 | ||||
| 003C20 | 931002-4 | 0.83 | 1.00 | |
| Pressure Spring 2 | ||||
| 004 | 233025-1 | 0.83 | 1.00 | |
| Rotary knob ABB OHYS2AJ | ||||
| 005 | 418002-6 | 1.39 | 1.68 | |
| Switch Dft085/127F | ||||
| 006 | 632K18-5 | 10.50 | 12.70 | |
| LED Circuit | ||||
| 007 | 620521-2 | 5.71 | 6.91 | |
| Rotary knob ABB OHYS2AJ | ||||
| 008 | 457469-3 | 1.67 | 2.02 | |
| Switch C3Jw-1B-S Dft085F | ||||
| 009 | 651082-1 | 21.08 | 25.51 | |
| Controller | ||||
| 010 | 620619-5 | 161.72 | 195.68 | |
| Screw 4x22 | ||||
| 011 | 265145-3 | 0.83 | 1.00 | |
| Lens | ||||
| 012 | 457484-7 | 2.02 | 2.44 | |
| LED Circuit Dtd085F | ||||
| 014 | 620622-6 | 9.24 | 11.18 | |
| Buzzer Circuit Dft085F | ||||
| 015 | 620621-8 | 9.24 | 11.18 | |
| USB Circuit Dft085F | ||||
| 016 | 620623-4 | 10.50 | 12.70 | |
| USB cover cap | ||||
| 017 | 144709-5 | 2.71 | 3.28 | |
| Connection unit (3 contacts) | ||||
| 018 | 643850-6 | 4.45 | 5.38 | |
| Serial number label | ||||
| 019 | 853A50-8 | 2.71 | 3.28 | |
| Spring Washer 10 | ||||
| 020 | 231965-7 | 0.83 | 1.00 | |
| Flat washer | ||||
| 021 | 267143-3 | 0.83 | 1.00 | |
| Compression Spring 13 | ||||
| 022 | 233005-7 | 0.83 | 1.00 | |
| Socket | ||||
| 023 | 162218-2 | 6.70 | 8.11 | |
| Screw M4x8 | ||||
| 024 | 265171-2 | 0.83 | 1.00 | |
| Clutch | ||||
| 025 | 457470-8 | 3.54 | 4.28 | |
| Washer 25 | ||||
| 026 | 424977-9 | 1.39 | 1.68 | |
| Washer 38h | ||||
| 027 | 345350-9 | 7.22 | 8.74 | |
| Screw Ph M4X4 Bfh/Bht-Series | ||||
| 028 | 265127-5 | 0.83 | 1.00 | |
| Clutch housing | ||||
| 029 | 319568-8 | 38.75 | 46.89 | |
| Steel ball 3 | ||||
| 030 | 216019-1 | 0.83 | 1.00 | |
| Spindle Ass'y | ||||
| 031 | 324377-2 | 40.56 | 49.08 | |
| Ball Bearing 6801llb | ||||
| 032 | 210112-3 | 5.06 | 6.12 | |
| Washer 12 | ||||
| 033 | 257011-8 | 1.18 | 1.43 | |
| Ball Bearing 6801llb | ||||
| 034 | 210112-3 | 5.06 | 6.12 | |
| Locking Ring 11 | ||||
| 035 | 231951-8 | 0.83 | 1.00 | |
| Lock Ring R-21 | ||||
| 036 | 962111-8 | 0.83 | 1.00 | |
| Compression Spring 5 | ||||
| 037 | 233019-6 | 0.83 | 1.00 | |
| Coupling 'f' | ||||
| 038 | 125393-5 | 82.76 | 100.14 | |
| Lock Ring M12 | ||||
| 039 | 324834-0 | 10.50 | 12.70 | |
| Clutch Dial | ||||
| 040 | 158408-3 | 5.06 | 6.12 | |
| Flat Washer 18 | ||||
| 041 | 267276-4 | 0.83 | 1.00 | |
| Spindle Ass'y | ||||
| 042 | 324296-2 | 33.36 | 40.37 | |
| Steel ball 5.0 | ||||
| 043 | 216018-3 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 044 | 233384-3 | |||
| No information available, not orderable | ||||
| 045 | 223146-7 | |||
| Steel ball 4 | ||||
| 046 | 216024-8 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 047 | 223139-4 | |||
| Steel ball 3 | ||||
| 048 | 216019-1 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 049 | 267247-1 | |||
| Screw M5X10 | ||||
| 050 | 266305-0 | 0.83 | 1.00 | |
| Gear Set H | ||||
| 051 | 123935-9 | 59.31 | 71.77 | |
| Complete gear carrier | ||||
| 052 | 144382-1 | 7.21 | 8.72 | |
| Ball Bearing 6805llb | ||||
| 053 | 211375-4 | 12.65 | 15.31 | |
| No information available, not orderable | ||||
| 054 | 418004-2 | |||
| No information available, not orderable | ||||
| 055 | 227048-9 | |||
| Gear 14 | ||||
| 056 | 221539-2 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 057 | 144384-7 | |||
| No information available, not orderable | ||||
| 058 | 212132-3 | |||
| No information available, not orderable | ||||
| 059 | 227366-5 | |||
| Spring retaining ring | ||||
| 060 | 267774-8 | 1.18 | 1.43 | |
| Motor mount | ||||
| 061 | 457468-5 | 3.54 | 4.28 | |
| Parker Ck 2x6mm | ||||
| 062 | 266490-9 | 0.83 | 1.00 | |
| Field | ||||
| 063 | 629262-7 | 14.33 | 17.34 | |
| Rotary Core | ||||
| 064 | 619442-3 | 63.68 | 77.05 | |
| Phillips Head Screw M3X6 | ||||
| 065 | 652069-6 | 0.83 | 1.00 | |
| Motorhuis set | ||||
| 066 | 183G11-3 | 17.38 | 21.03 | |
| Rubber pen 6 | ||||
| 066C10 | 263005-3 | 0.83 | 1.00 | |
| Hexagonal nut M3 | ||||
| 066C20 | 931002-4 | 0.83 | 1.00 | |
| Phillips Screw 3x20 | ||||
| 067 | 265095-2 | 0.83 | 1.00 | |
