Here you will find all available parts and drawings of the 'Makita DFT025F'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

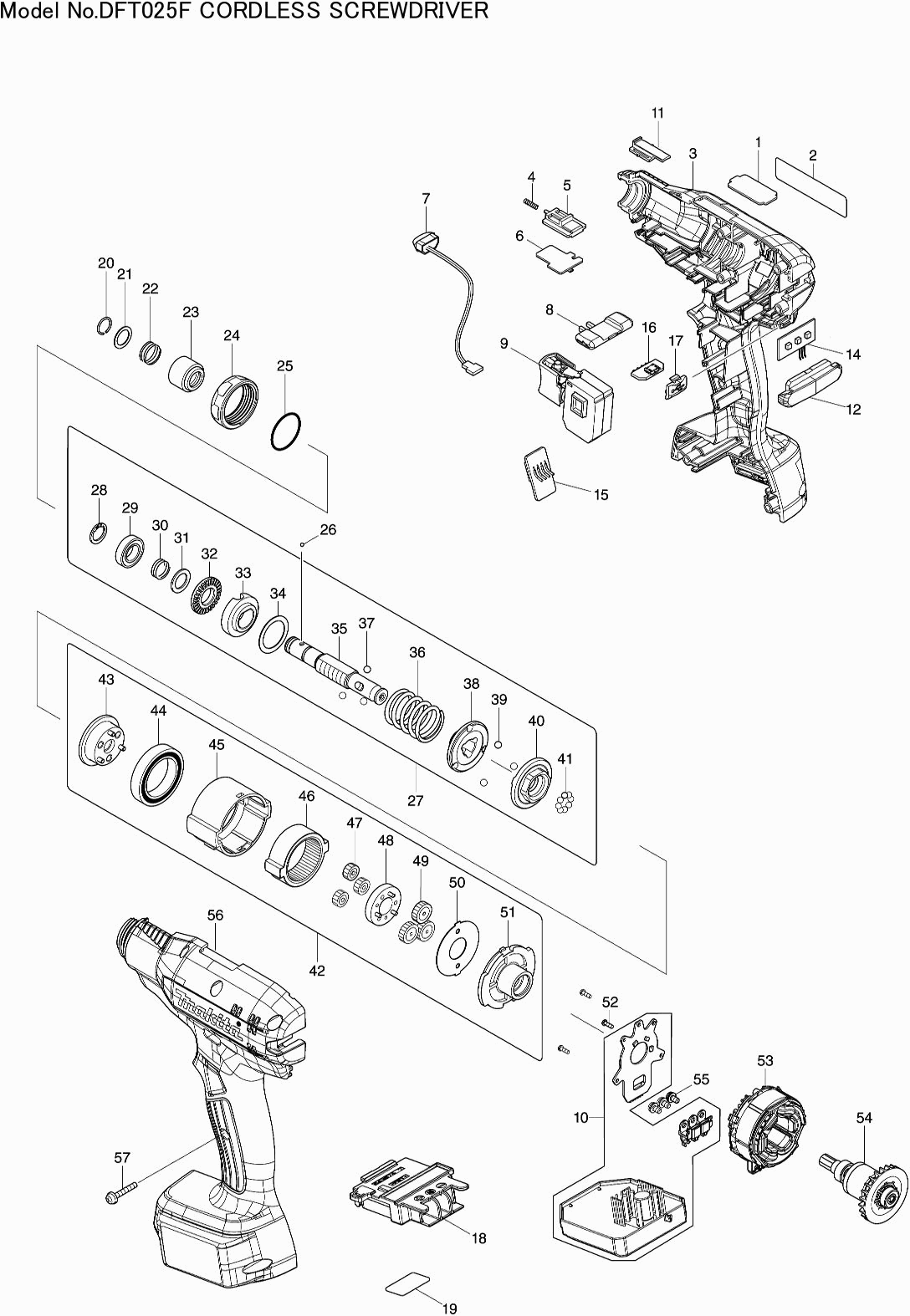

Technical drawing of model Makita DFT025F
Spare parts list of model Makita DFT025F
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plate L Bft022f | ||||
| 001 | 345647-6 | 6.41 | 7.76 | |
| Nameplate DFT025F | ||||
| 002 | 857U36-4 | 0.83 | 1.00 | |
| Motor Housing DFT024 | ||||
| 003 | 183R48-6 | 21.08 | 25.51 | |
| Rubber pen 6 | ||||
| 003C10 | 263005-3 | 0.83 | 1.00 | |
| Hexagonal nut M3 | ||||
| 003C20 | 931002-4 | 0.83 | 1.00 | |
| Pressure Spring 2 | ||||
| 004 | 233025-1 | 0.83 | 1.00 | |
| Schakelhendel DFT024/25 | ||||
| 005 | 140U90-8 | 17.38 | 21.03 | |
| Sensor circuit DFT024/25 | ||||
| 006 | 620D61-4 | 8.27 | 10.01 | |
| LED Circuit | ||||
| 007 | 620521-2 | 5.71 | 6.91 | |
| Rotary knob ABB OHYS2AJ | ||||
| 008 | 457469-3 | 1.67 | 2.02 | |
| Switch C3Jw-1B-S Dft085F | ||||
| 009 | 651082-1 | 21.08 | 25.51 | |
| Controller DFT025 | ||||
| 010 | 620D88-4 | 146.44 | 177.19 | |
| Exchange plate DFT024/25 | ||||
| 011 | 412712-7 | 2.02 | 2.44 | |
| Lens | ||||
| 012 | 457484-7 | 2.02 | 2.44 | |
| LED Circuit Dtd085F | ||||
| 014 | 620622-6 | 9.24 | 11.18 | |
| Buzzer Circuit Dft085F | ||||
| 015 | 620621-8 | 9.24 | 11.18 | |
| USB circuit DTDA series | ||||
| 016 | 620A99-1 | 11.82 | 14.30 | |
| USB cover cap | ||||
| 017 | 144709-5 | 2.71 | 3.28 | |
| Connection unit | ||||
| 018 | 643874-2 | 3.54 | 4.28 | |
| Serial number label DFT025F | ||||
| 019 | 857U40-3 | 0.83 | 1.00 | |
| Retaining ring 9 | ||||
| 020 | 233930-2 | 1.99 | 2.41 | |
| 10x0.5mm washer | ||||
| 021 | 267070-4 | 0.83 | 1.00 | |
| Compression Spring 10a | ||||
| 022 | 232374-3 | 0.98 | 1.19 | |
| Bit Holder | ||||
| 023 | 161607-8 | 9.26 | 11.20 | |
| Black M28 lock nut | ||||
| 024 | 457530-6 | 4.45 | 5.38 | |
| O-ring 22 | ||||
| 025 | 213836-0 | 0.83 | 1.00 | |
| Steel Ball 2.4 DFT025 | ||||
| 026 | 216015-9 | 0.83 | 1.00 | |
| Clutch | ||||
| 027 | 123937-5 | 105.51 | 127.67 | |
| Locking Ring S-10 | ||||
| 028 | 961026-6 | 0.83 | 1.00 | |
| Ball Bearing 6800llb | ||||
| 029 | 210076-1 | 7.22 | 8.74 | |
| No information available, not orderable | ||||
| 030 | 232375-1 | |||
| Ring 10 | ||||
| 031 | 267047-9 | 0.83 | 1.00 | |
| Borgmoer M12 | ||||
| 032 | 326953-8 | 9.24 | 11.18 | |
| Set ring Dft023f | ||||
| 033 | 144421-7 | 1.18 | 1.43 | |
| Washer 18 | ||||
| 034 | 253391-0 | 4.45 | 5.38 | |
| Spindle (m) | ||||
| 035 | 326944-9 | 30.70 | 37.15 | |
| Compression spring 18a | ||||
| 036 | 232372-7 | 2.71 | 3.28 | |
| Steel ball 4 | ||||
| 037 | 216024-8 | 0.83 | 1.00 | |
| Impact Chamber "a" | ||||
| 038 | 223185-7 | 17.40 | 21.05 | |
| Steel ball 4 | ||||
| 039 | 216024-8 | 0.83 | 1.00 | |
| Impact Chamber "b" | ||||
| 040 | 223186-5 | 19.23 | 23.27 | |
| Steel ball 3.5 | ||||
| 041 | 216040-0 | 0.83 | 1.00 | |
| Gear Set O DFT025/060 | ||||
| 042 | 127682-4 | 44.96 | 54.40 | |
| Complete gear carrier | ||||
| 043 | 144424-1 | 9.26 | 11.20 | |
| Ball Bearing 6805llb | ||||
| 044 | 211375-4 | 12.65 | 15.31 | |
| Gear housing DFT024F/25F | ||||
| 045 | 412713-5 | 4.03 | 4.88 | |
| Gear 47 | ||||
| 046 | 221546-5 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 047 | 221543-1 | |||
| Gear 20 | ||||
| 048 | 144422-5 | 6.41 | 7.76 | |
| No information available, not orderable | ||||
| 049 | 221544-9 | |||
| Spring retaining ring | ||||
| 050 | 267774-8 | 1.18 | 1.43 | |
| Motor mount | ||||
| 051 | 418003-4 | 2.71 | 3.28 | |
| Parker Ck 2x6mm | ||||
| 052 | 266490-9 | 0.83 | 1.00 | |
| Field | ||||
| 053 | 629A21-5 | 33.36 | 40.37 | |
| Rotary Core | ||||
| 054 | 619440-7 | 63.68 | 77.05 | |
| Phillips Head Screw M3X6 | ||||
| 055 | 652069-6 | 0.83 | 1.00 | |
| Motor Housing DFT024 | ||||
| 056 | 183R48-6 | 21.08 | 25.51 | |
| Rubber pen 6 | ||||
| 056C10 | 263005-3 | 0.83 | 1.00 | |
| Hexagonal nut M3 | ||||
| 056C20 | 931002-4 | 0.83 | 1.00 | |
| Screw M30x20 | ||||
| 057 | 251581-9 | 0.83 | 1.00 | |
