Here you will find all available parts and drawings of the 'Makita DFT023F'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

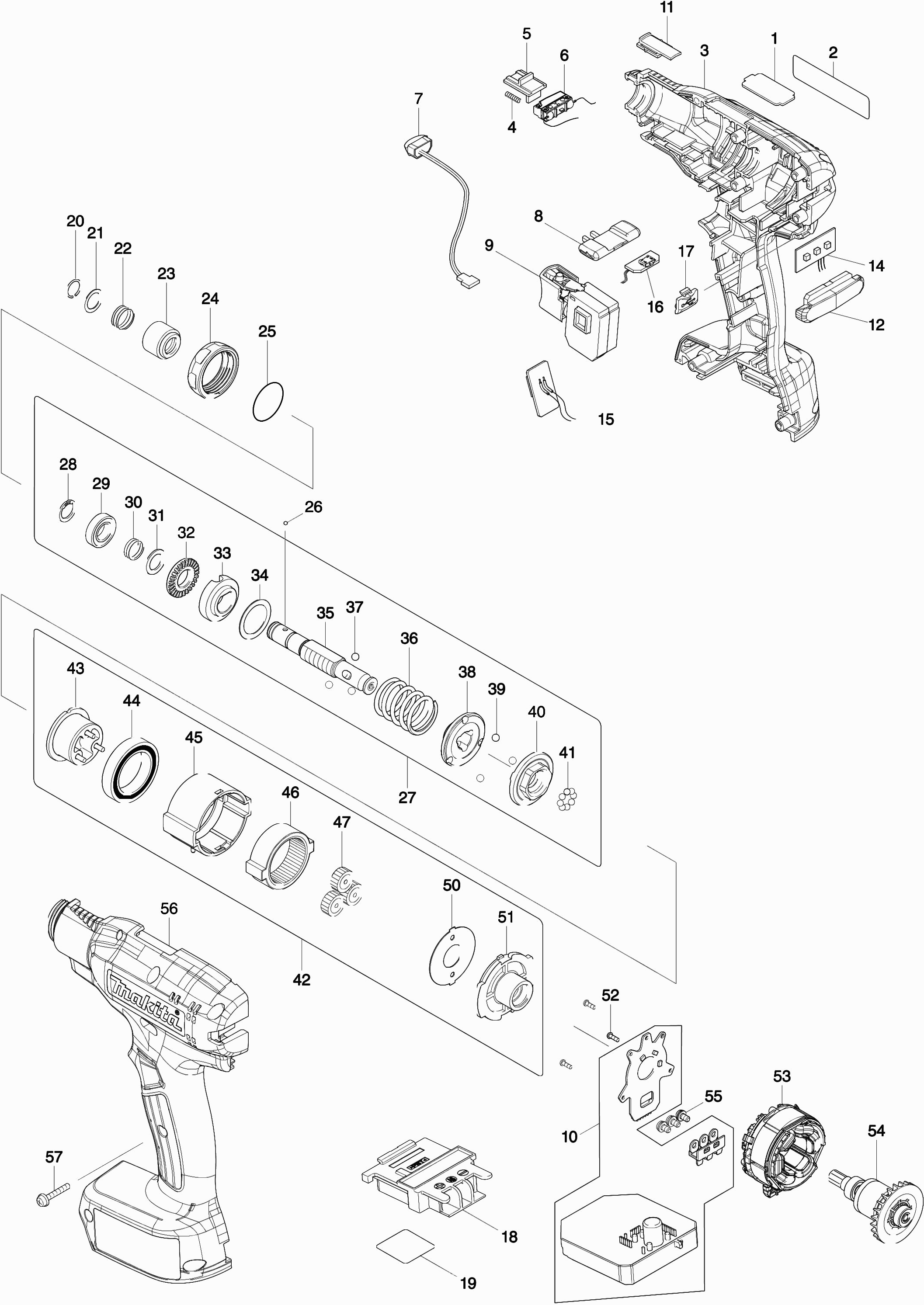

Technical drawing of model Makita DFT023F
Spare parts list of model Makita DFT023F
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plate L Bft022f | ||||
| 001 | 345647-6 | 7.20 | 8.71 | |
| Nameplate Dft023f | ||||
| 002 | 853A21-5 | 3.60 | 4.36 | |
| Motor Housing | ||||
| 003 | 183F88-2 | 22.00 | 26.62 | |
| Rubber pen 6 | ||||
| 003C10 | 263005-3 | 1.00 | 1.21 | |
| Hexagonal nut M3 | ||||
| 003C20 | 931002-4 | 1.00 | 1.21 | |
| Pressure Spring 2 | ||||
| 004 | 233025-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 005 | 457525-9 | |||
| Switch Dft085/127F | ||||
| 006 | 632K18-5 | 10.80 | 13.07 | |
| LED Circuit | ||||
| 007 | 620521-2 | 6.00 | 7.26 | |
| Rotary knob ABB OHYS2AJ | ||||
| 008 | 457469-3 | 2.40 | 2.90 | |
| Switch C3Jw-1B-S Dft085F | ||||
| 009 | 651082-1 | 22.00 | 26.62 | |
| Controller | ||||
| 010 | 620617-9 | 169.40 | 204.97 | |
| Exchange Plate | ||||
| 011 | 457526-7 | 2.40 | 2.90 | |
| Lens | ||||
| 012 | 457484-7 | 2.40 | 2.90 | |
| LED Circuit Dtd085F | ||||
| 014 | 620622-6 | 9.60 | 11.62 | |
| Buzzer Circuit Dft085F | ||||
| 015 | 620621-8 | 9.60 | 11.62 | |
| USB Circuit Dft085F | ||||
| 016 | 620623-4 | 10.80 | 13.07 | |
| USB cover cap | ||||
| 017 | 144709-5 | 3.60 | 4.36 | |
| Connection unit (3 contacts) | ||||
| 018 | 643850-6 | 4.80 | 5.81 | |
| Serial number label | ||||
| 019 | 853A24-9 | 2.40 | 2.90 | |
| Retaining ring 9 | ||||
| 020 | 233930-2 | 2.40 | 2.90 | |
| 10x0.5mm washer | ||||
| 021 | 267070-4 | 1.00 | 1.21 | |
| Compression Spring 10a | ||||
| 022 | 232374-3 | 1.20 | 1.45 | |
| Bit Holder | ||||
| 023 | 161607-8 | 9.60 | 11.62 | |
| Black M28 lock nut | ||||
| 024 | 457530-6 | 4.80 | 5.81 | |
| O-ring 22 | ||||
| 025 | 213836-0 | 1.00 | 1.21 | |
| Steel Ball 2.4 DFT025 | ||||
| 026 | 216015-9 | 1.00 | 1.21 | |
| Clutch | ||||
| 027 | 123937-5 | 105.60 | 127.78 | |
| Locking Ring S-10 | ||||
| 028 | 961026-6 | 1.00 | 1.21 | |
| Ball Bearing 6800llb | ||||
| 029 | 210076-1 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 030 | 232375-1 | |||
| Ring 10 | ||||
| 031 | 267047-9 | 1.00 | 1.21 | |
| Borgmoer M12 | ||||
| 032 | 326953-8 | 9.60 | 11.62 | |
| Set ring Dft023f | ||||
| 033 | 144421-7 | 1.20 | 1.45 | |
| Washer 18 | ||||
| 034 | 253391-0 | 4.80 | 5.81 | |
| Spindle (m) | ||||
| 035 | 326944-9 | 30.80 | 37.27 | |
| Compression spring 18a | ||||
| 036 | 232372-7 | 3.60 | 4.36 | |
| Steel ball 4 | ||||
| 037 | 216024-8 | 1.00 | 1.21 | |
| Impact Chamber "a" | ||||
| 038 | 223185-7 | 17.60 | 21.30 | |
| Steel ball 4 | ||||
| 039 | 216024-8 | 1.00 | 1.21 | |
| Impact Chamber "b" | ||||
| 040 | 223186-5 | 19.80 | 23.96 | |
| Steel ball 3.5 | ||||
| 041 | 216040-0 | 1.00 | 1.21 | |
| Gear Set 'a' | ||||
| 042 | 123969-2 | 36.30 | 43.92 | |
| Complete gear carrier | ||||
| 043 | 144423-3 | 11.00 | 13.31 | |
| Ball Bearing 6805llb | ||||
| 044 | 211375-4 | 13.20 | 15.97 | |
| Gear Cover | ||||
| 045 | 457529-1 | 4.80 | 5.81 | |
| Gear 47 | ||||
| 046 | 221546-5 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 047 | 227051-0 | |||
| Spring retaining ring | ||||
| 050 | 267774-8 | 1.20 | 1.45 | |
| Motor mount | ||||
| 051 | 418003-4 | 3.60 | 4.36 | |
| Parker Ck 2x6mm | ||||
| 052 | 266490-9 | 1.00 | 1.21 | |
| Field | ||||
| 053 | 629261-9 | 18.70 | 22.63 | |
| Rotary Core | ||||
| 054 | 619439-2 | 48.40 | 58.56 | |
| Phillips Head Screw M3X6 | ||||
| 055 | 652069-6 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 056 | 183F88-2 | 22.00 | 26.62 | |
| Rubber pen 6 | ||||
| 056C10 | 263005-3 | 1.00 | 1.21 | |
| Hexagonal nut M3 | ||||
| 056C20 | 931002-4 | 1.00 | 1.21 | |
| Phillips Screw 3x20 | ||||
| 057 | 265095-2 | 1.00 | 1.21 | |
