Here you will find all available parts and drawings of the 'Makita DFR552'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

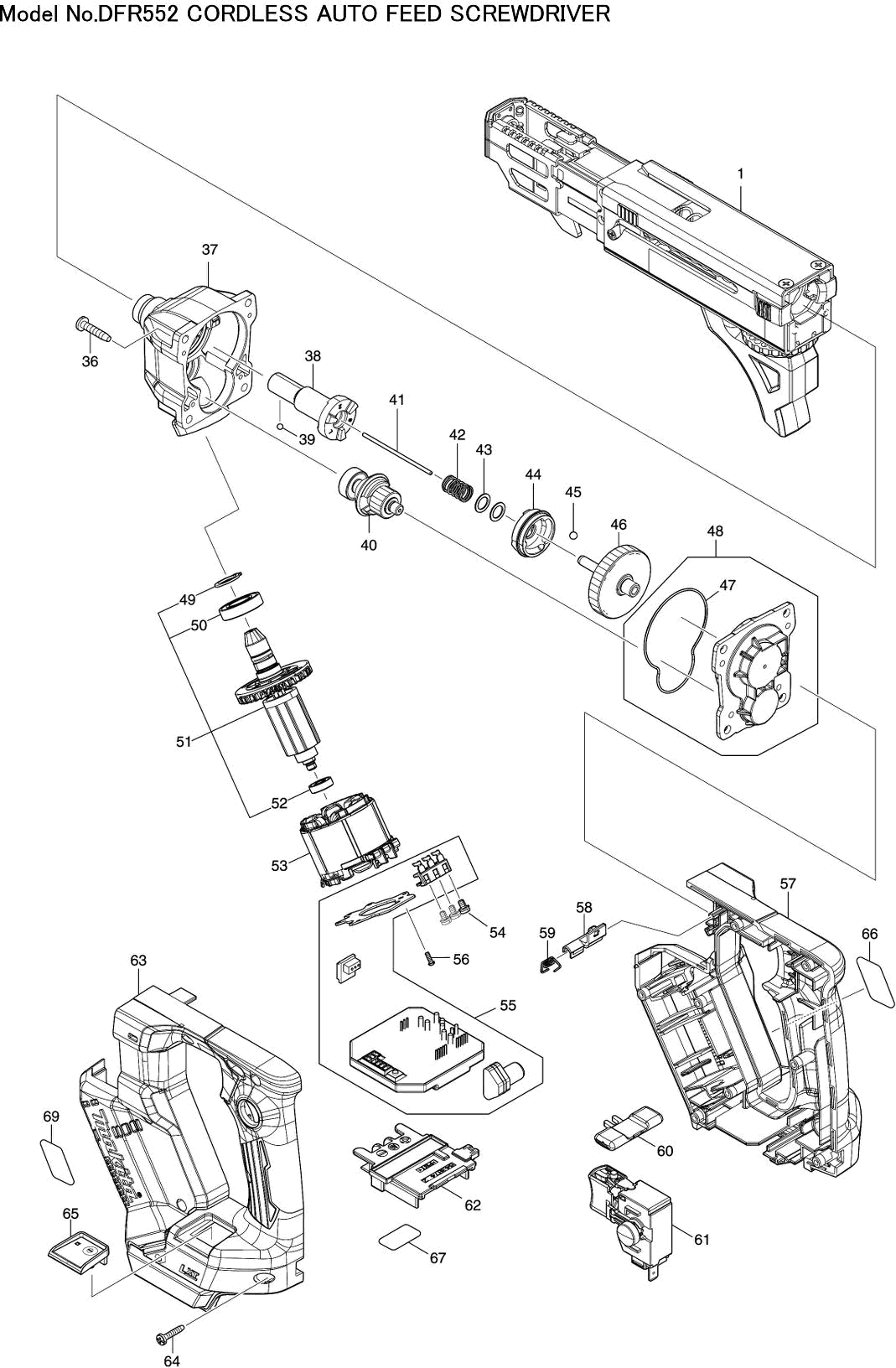

Technical drawing of model Makita DFR552
Spare parts list of model Makita DFR552
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| NEUSSTUK DFR551/DFR552 | ||||
| 001 | 1915G9-3 | 83.00 | 100.43 | |
| Base plate cpl DFR551 | ||||
| 002 | 141A81-2 | 14.15 | 17.12 | |
| NEUSSTUKKAP DFR451 | ||||
| 002C10 | 422695-3 | 2.40 | 2.90 | |
| Lever | ||||
| 003 | 345837-1 | 1.20 | 1.45 | |
| Pressure Spring 2 | ||||
| 004 | 233211-4 | 1.00 | 1.21 | |
| Pin 6 | ||||
| 005 | 256451-7 | 2.40 | 2.90 | |
| VEERBOX | ||||
| 006 | 413527-5 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 007 | 257855-6 | |||
| Stopper 6833 | ||||
| 008 | 310062-3 | 6.00 | 7.26 | |
| Torsion spring 4 | ||||
| 009 | 231636-6 | 1.20 | 1.45 | |
| Pen 3 | ||||
| 010 | 256158-5 | 1.20 | 1.45 | |
| Gear 16 | ||||
| 011 | 226344-2 | 2.40 | 2.90 | |
| Ratchet arm DFR551 | ||||
| 012 | 141A78-1 | 14.30 | 17.30 | |
| DRUKVEER 5 DFR551 | ||||
| 013 | 232771-3 | 1.00 | 1.21 | |
| Feed wheel | ||||
| 014 | 416518-5 | 3.60 | 4.36 | |
| Dust cover DFR452 | ||||
| 015 | 162934-6 | 6.00 | 7.26 | |
| COVER DFR551 | ||||
| 016 | 141A80-4 | 4.80 | 5.81 | |
| Tapping Screw 3x16 | ||||
| 017 | 266130-9 | 1.00 | 1.21 | |
| PLAAT DFR551 | ||||
| 018 | 347828-8 | 3.60 | 4.36 | |
| Pressure Spring 22 DFR551 | ||||
| 019 | 232698-7 | 2.40 | 2.90 | |
| Nose piece 44 assembly DFR551 | ||||
| 020 | 141A79-9 | 38.50 | 46.58 | |
| No information available, not orderable | ||||
| 020C10 | 8040Y6-3 | |||
| Lock Lever | ||||
| 021 | 450111-5 | 1.20 | 1.45 | |
| Socket | ||||
| 022 | 257764-9 | 2.40 | 2.90 | |
| Adjusting Screw | ||||
| 023 | 265177-0 | 2.40 | 2.90 | |
| Switch pin DFR452 | ||||
| 024 | 313378-5 | 3.60 | 4.36 | |
| Countersunk screw 4x8 | ||||
| 025 | 912107-9 | 1.00 | 1.21 | |
| Clamping device DFR452 | ||||
| 026 | 141A77-3 | 22.00 | 26.62 | |
| Rubber Pin 4 | ||||
| 026C10 | 263032-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 027 | 216001-0 | |||
| Button 42mm | ||||
| 028 | 417056-0 | 2.40 | 2.90 | |
| O-ring 12 | ||||
| 029 | 213107-5 | 1.00 | 1.21 | |
| Washer 6 6835D | ||||
| 030 | 267201-5 | 1.20 | 1.45 | |
| Countersunk screw 4x12 | ||||
| 031 | 912117-6 | 1.00 | 1.21 | |
| Screw Guide Set DFR452 | ||||
| 032 | 183T81-0 | 4.60 | 5.57 | |
| Met.screw M3x6mm WR100D | ||||
| 033 | 265A38-0 | 1.00 | 1.21 | |
| Screw Guide Set DFR452 | ||||
| 034 | 183T81-0 | 4.60 | 5.57 | |
| Tapping Screw 3x16 | ||||
| 035 | 266130-9 | 1.00 | 1.21 | |
| Tapping screw Pt4x20 | ||||
| 036 | 266045-0 | 1.00 | 1.21 | |
| Gearbox assembly DFR452/551 | ||||
| 037 | 141A64-2 | 63.80 | 77.20 | |
| O-ring 17 | ||||
| 037C10 | 213265-7 | 1.00 | 1.21 | |
| O-ring 24 | ||||
| 037C20 | 213380-7 | 1.00 | 1.21 | |
| Shaft 270s assembly DFR452/551 | ||||
| 038 | 141A67-6 | 23.10 | 27.95 | |
| Steel ball 3 | ||||
| 039 | 216019-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 040 | 141U47-2 | |||
| Spindle Ass'y | ||||
| 041 | 268325-0 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 042 | 234121-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 042-1 | 232978-1 | |||
| Washer 8 | ||||
| 043 | 267202-3 | 1.00 | 1.21 | |
| KOPPELINGKAM DFR551 | ||||
| 044 | 223192-0 | 7.20 | 8.71 | |
| Steel ball 4 | ||||
| 045 | 216008-6 | 1.00 | 1.21 | |
| Gear 50 DFR552 P | ||||
| 046 | 141U46-4 | 24.20 | 29.28 | |
| No information available, not orderable | ||||
| 046-1 | 1411T0-8 | |||
| No information available, not orderable | ||||
| 047 | 422692-9 | |||
| Gearbox assy DFR452/551 | ||||
| 048 | 136412-2 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 048C10 | 422694-5 | |||
| Lock washer S-12 | ||||
| 049 | 961052-5 | 1.00 | 1.21 | |
| KOGELLAGER 6901DDW TM001G | ||||
| 050 | 210248-8 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 051 | 519849-2 | |||
| Ball bearing 609ddw | ||||
| 052 | 210039-7 | 3.60 | 4.36 | |
| Field | ||||
| 053 | 629A57-4 | 13.20 | 15.97 | |
| Phillips Head Screw M3X6 | ||||
| 054 | 652069-6 | 1.00 | 1.21 | |
| Controller DFR452/551 | ||||
| 055 | 620E75-9 | 82.50 | 99.82 | |
| Parker Ck 2x6mm | ||||
| 056 | 266490-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 057 | 183W94-9 | |||
| Rubber pen 6 | ||||
| 057C10 | 263005-3 | 1.00 | 1.21 | |
| Lock Nut M4x7mm | ||||
| 057C20 | 252126-6 | 1.00 | 1.21 | |
| Switching handle assembly DFR452/551 | ||||
| 058 | 141A65-0 | 6.00 | 7.26 | |
| Torsion Spring 3 DFR452/551 | ||||
| 059 | 232703-0 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 060 | 455053-8 | 1.00 | 1.21 | |
| Switch C3JW-4B-1L DUT130 | ||||
| 061 | 651088-9 | 26.40 | 31.94 | |
| Connection unit | ||||
| 062 | 643874-2 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 063 | 183W94-9 | |||
| Rubber pen 6 | ||||
| 063C10 | 263005-3 | 1.00 | 1.21 | |
| Lock Nut M4x7mm | ||||
| 063C20 | 252126-6 | 1.00 | 1.21 | |
| Tapping Screw 3x16 | ||||
| 064 | 266130-9 | 1.00 | 1.21 | |
| Switch plate complete DFR452/551 | ||||
| 065 | 141L34-7 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 065C10 | 8031T5-3 | |||
| No information available, not orderable | ||||
| 066 | 8144S7-5 | |||
| No information available, not orderable | ||||
| 067 | 8144S9-1 | |||
| Thin Washer 8 * | ||||
| 068 | 253309-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 069 | 808693-5 | |||
