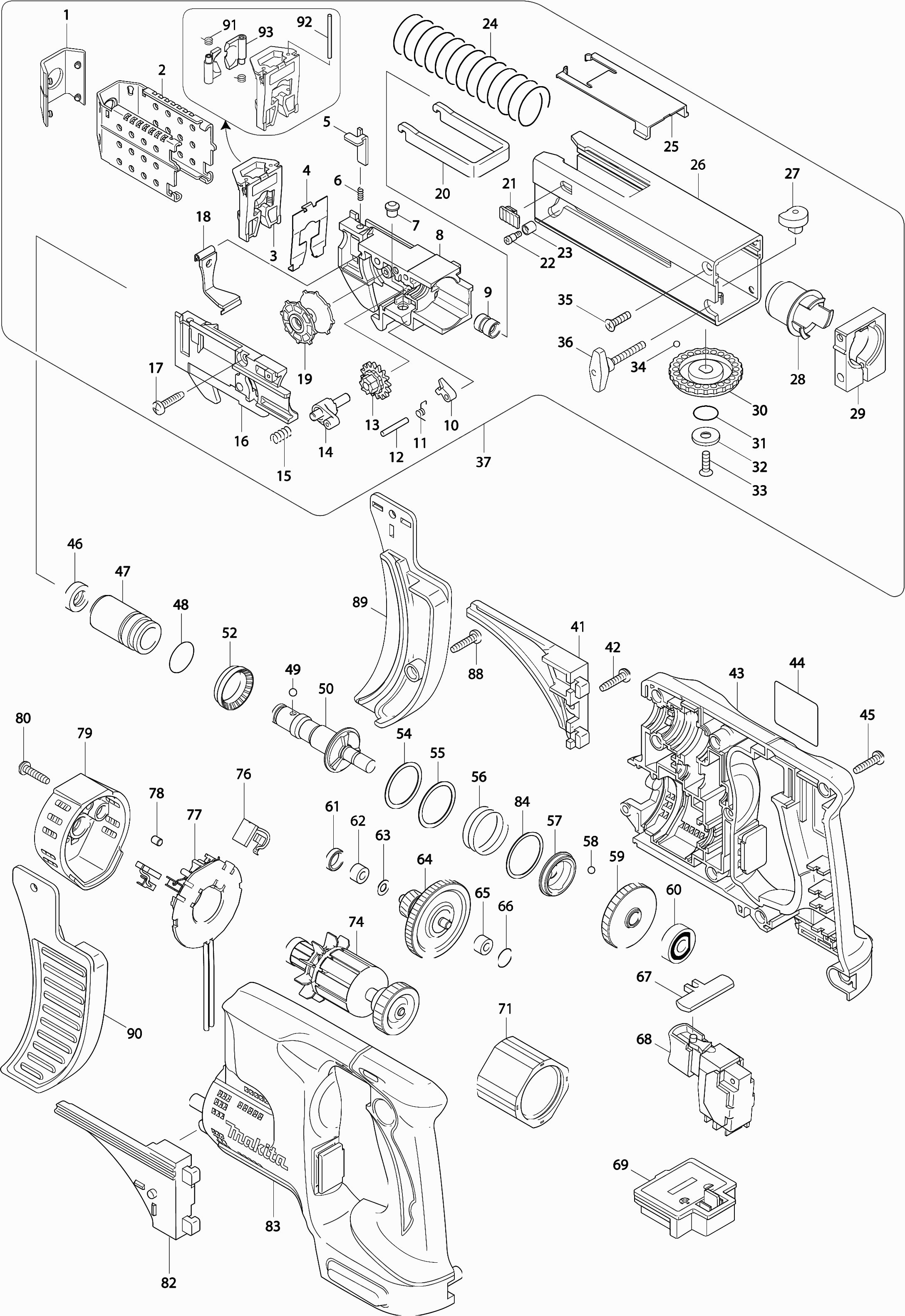

Technical drawing of model Makita DFR550

Spare parts list of model Makita DFR550

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Nose cap
001 424043-2 2.02 2.44
Stop base
002 345839-7 8.21 9.93
Guide Block
003 140493-0 13.82 16.72
Shield
004 346269-5 2.02 2.44
Lever
005 345837-1 0.83 1.00
Pressure Spring 2
006 233211-4 0.83 1.00
Pin 6
007 256451-7 1.24 1.50
Feeder house
008 450107-6 3.96 4.79
Bus 5 6833/34/35/37 Grs A
009 257685-5 2.71 3.28
Stopper 6833
010 310062-3 5.06 6.12
Torsion spring 4
011 231636-6 0.83 1.00
Pen 3
012 256158-5 0.83 1.00
Gear 16
013 226344-2 1.39 1.68
Pawl gear 6842
014 158374-4 16.35 19.78
Compression Spring 6
015 233212-2 0.83 1.00
Feed Housing Lid
016 158375-2 8.21 9.93
Tap screw 4x18
017 265A48-7 0.83 1.00
Dust-Protection Cover
018 162201-9 3.97 4.80
Feed wheel
019 416518-5 2.71 3.28
Bow
020 345838-9 3.12 3.78
Lock Lever
021 450111-5 1.18 1.43
Adjusting Screw
022 265177-0 2.02 2.44
Socket
023 257764-9 1.67 2.02
Compression Spring 23 Bfr540
024 234031-9 1.67 2.02
Screw housing cap
025 450114-9 1.39 1.68
Screw Housing
026 158377-8 30.70 37.15
Label "bfr540" nose piece
026A 816885-2 2.84 3.44
Adjusting pin
027 310237-4 4.67 5.65
Insulation sleeve
028 450110-7 1.67 2.02
Circlip
029 318181-9 9.24 11.18
Button 42mm
030 417056-0 1.39 1.68
O-ring 12
031 213107-5 0.83 1.00
Washer 6 6835D
032 267201-5 1.02 1.23
Countersunk screw 4x12
033 912117-6 0.83 1.00
Steel ball 3.5
034 216040-0 0.83 1.00
Countersunk screw 4x12
035 912117-6 0.83 1.00
Screw 4x28
036 265779-2 1.39 1.68
Complete nose piece 55
037 195184-8 146.44 177.19
Screwdriver Set
041 188309-1 6.38 7.72
Tap screw 4x18
042 265A48-7 0.83 1.00
Handle set (3 contacts)
043 187478-5 30.69 37.13
Nameplate Dfr550
044 815R58-2 2.84 3.44
Tap screw 4x18
045 265A48-7 0.83 1.00
Dust Ring
046 421467-3 0.98 1.19
Slide bearing 14
047 214173-5 4.45 5.38
O-ring 18
048 213262-3 0.98 1.19
Steel ball 3.5
049 216040-0 0.83 1.00
As 6842
050 324808-1 21.08 25.51
Washer
052 421927-5 0.83 1.00
Washer 25
054 267331-2 0.98 1.19
Washer 25
055 267331-2 0.98 1.19
Compression Spring 25
056 234017-3 2.36 2.86
Clutch Plate C Bfr540
057 223169-5 15.60 18.88
Steel ball 4
058 216008-6 0.83 1.00
Gear
059 226670-9 25.36 30.69
Ball Bearing
060 211034-0 3.72 4.50
Sleeve 10
061 165115-1 2.48 3.00
Slide Bearing 5
062 214017-9 0.83 1.00
Lock washer 5
063 253811-4 0.83 1.00
Gear
064 154937-4 25.36 30.69
Slide Bearing 5
065 214017-9 0.83 1.00
O-ring 10
066 213055-8 0.83 1.00
L/r adjusting lever
067 419304-3 1.67 2.02
Switch (3 contacts)
068 650670-1 13.82 16.72
Connection unit Bcl182D(3 Cont) A
069 643523-1 5.06 6.12
Magnet Unit
071 638426-2 23.06 27.90
Armature
074 619216-2 33.36 40.37
Brush set Cb448
076 196855-0 3.54 4.28
Brush Holder
077 638433-5 3.12 3.78
Rubber Pin 4
078 263032-0 0.83 1.00
Motor Hood
079 419307-7 5.06 6.12
Tap screw 4x18
080 265A48-7 0.83 1.00
Screwdriver Set
082 188309-1 6.38 7.72
Handle set (3 contacts)
083 187478-5 30.69 37.13
Washer 26
084 267332-0 0.83 1.00
Tap screw 4x18
088 265A48-7 0.83 1.00
Screw tape guide
089 188310-6 5.71 6.91
Screw tape guide
090 188310-6 5.71 6.91
No information available, not orderable
091 233516-2
Pen 2
092 268188-4 0.83 1.00
Guide
093 310236-6 2.71 3.28
Supply Set Neuss 6842/Bfr540 A
094 125809-0 72.58 87.82
