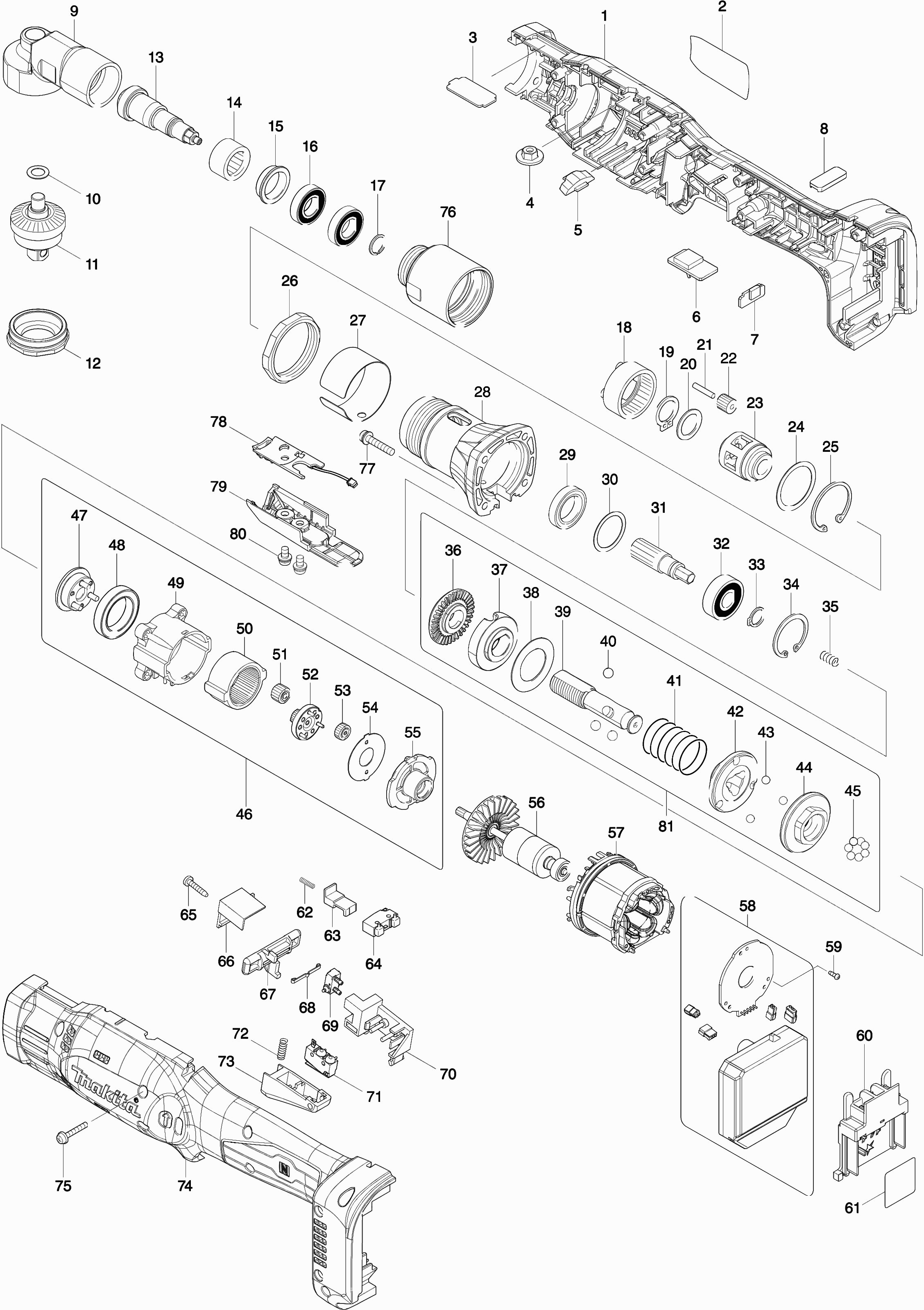

Technical drawing of model Makita DFL403F
Spare parts list of model Makita DFL403F
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor housing set FL083FD | ||||
| 001 | 183J44-6 | 56.10 | 67.88 | |
| Rubber pen 6 | ||||
| 001C10 | 263005-3 | 1.00 | 1.21 | |
| Nut M4x4 | ||||
| 001C20 | 252825-0 | 4.80 | 5.81 | |
| Hexagonal nut M3 | ||||
| 001C30 | 931002-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 002 | 854F69-0 | |||
| Info plate 'k' | ||||
| 003 | 345446-6 | 4.80 | 5.81 | |
| Flange nut M5 | ||||
| 004 | 252142-8 | 6.00 | 7.26 | |
| Lens Dfl651F A | ||||
| 005 | 458391-7 | 3.60 | 4.36 | |
| Buzzer Circuit Dfl083F | ||||
| 006 | 620792-1 | 13.20 | 15.97 | |
| USB Circuit Dfl083F | ||||
| 007 | 620793-9 | 11.00 | 13.31 | |
| USB cover cap | ||||
| 008 | 424827-8 | 6.00 | 7.26 | |
| Gear Cover | ||||
| 009 | 143716-5 | 177.10 | 214.29 | |
| Washer 8 | ||||
| 010 | 253777-8 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 011A | 143714-9 | 78.10 | 94.50 | |
| G shaft cpl 1/2 DFL302/403 | ||||
| 011B | 143715-7 | 82.50 | 99.82 | |
| Pin 3-5 6507D * | ||||
| 011C10 | 256436-3 | 2.40 | 2.90 | |
| Compression Spring 3 | ||||
| 011C20 | 233081-1 | 1.00 | 1.21 | |
| Kap 6706D * | ||||
| 011C30 | 322640-7 | 2.40 | 2.90 | |
| Bearing Lock | ||||
| 012 | 285739-8 | 17.60 | 21.30 | |
| Gear 9 Dfl302F | ||||
| 013 | 221589-7 | 41.80 | 50.58 | |
| Needle Bearing 1612 | ||||
| 014 | 212222-2 | 8.40 | 10.16 | |
| WASHER SHIM | ||||
| 015 | 326709-9 | 7.20 | 8.71 | |
| Ball Bearing 6901ddw | ||||
| 016 | 211288-9 | 5.71 | 6.91 | |
| KOGELLAGER 6901DDW TM001G | ||||
| 016 | 210248-8 | 4.80 | 5.81 | |
| Ring for locking pin Wr12 | ||||
| 017 | 961082-6 | 2.40 | 2.90 | |
| Internal gear 50 | ||||
| 018 | 227120-7 | 8.40 | 10.16 | |
| Lock ring S-14 | ||||
| 019 | 961054-1 | 1.00 | 1.21 | |
| Washer 14 | ||||
| 020 | 253837-6 | 1.00 | 1.21 | |
| Pen 3 | ||||
| 021 | 256104-8 | 1.00 | 1.21 | |
| Gear 14 | ||||
| 022 | 227138-8 | 14.30 | 17.30 | |
| Gear Carrier | ||||
| 023 | 310148-3 | 47.30 | 57.23 | |
| Washer 26 | ||||
| 024 | 267127-1 | 1.20 | 1.45 | |
| Lock washer r-32 | ||||
| 025 | 962161-3 | 1.20 | 1.45 | |
| Nut M36-41 | ||||
| 026 | 252187-6 | 11.00 | 13.31 | |
| Washer 38k | ||||
| 027 | 345447-4 | 7.20 | 8.71 | |
| Clutch | ||||
| 028 | 317808-8 | 48.40 | 58.56 | |
| Ball bearing 6803zz | ||||
| 029 | 211283-9 | 9.60 | 11.62 | |
| Washer 21 | ||||
| 030 | 267283-7 | 1.00 | 1.21 | |
| Gear 21 | ||||
| 031 | 227137-0 | 35.20 | 42.59 | |
| Ball bearing 6000ddw | ||||
| 032 | 211088-7 | 10.00 | 12.10 | |
| Ball bearing 6000DDW A | ||||
| 032 | 210315-9 | 6.00 | 7.26 | |
| Locking Ring S-10 | ||||
| 033 | 961026-6 | 1.00 | 1.21 | |
| Lock ring R-26 A | ||||
| 034 | 962105-3 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 035 | 233019-6 | 1.00 | 1.21 | |
| Lock Ring M12 | ||||
| 036 | 324834-0 | 10.80 | 13.07 | |
| Clutch Dial | ||||
| 037 | 158408-3 | 6.00 | 7.26 | |
| Flat Washer 18 | ||||
| 038 | 267276-4 | 1.20 | 1.45 | |
| As DFL083 | ||||
| 039 | 327086-2 | 33.00 | 39.93 | |
| Steel ball 5.0 | ||||
| 040 | 216018-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 041 | 233357-6 | |||
| No information available, not orderable | ||||
| 042 | 223146-7 | |||
| Steel ball 4 | ||||
| 043 | 216024-8 | 1.00 | 1.21 | |
| Cam Disk F DFL083F | ||||
| 044 | 223187-3 | 17.60 | 21.30 | |
| Steel ball 4 | ||||
| 045 | 216024-8 | 1.00 | 1.21 | |
| Gear Set Dfl083F | ||||
| 046 | 126771-2 | 45.10 | 54.57 | |
| Gear Carrier D Cpl Dft085F | ||||
| 047 | 144383-9 | 6.00 | 7.26 | |
| Ball Bearing 6805llb | ||||
| 048 | 211375-4 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 049 | 418004-2 | |||
| Hex nut M4 | ||||
| 049C10 | 931102-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 050 | 227048-9 | |||
| No information available, not orderable | ||||
| 051 | 221537-6 | |||
| Gear 13 Complete B Dfl083F | ||||
| 052 | 144953-4 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 053 | 227104-5 | |||
| Spring retaining ring | ||||
| 054 | 267774-8 | 1.20 | 1.45 | |
| Motor mount | ||||
| 055 | 418003-4 | 3.60 | 4.36 | |
| Armature Dfl083F | ||||
| 056 | 619493-6 | 88.00 | 106.48 | |
| Field Dfl083F | ||||
| 057 | 629333-0 | 34.10 | 41.26 | |
| Controller Dfl403F | ||||
| 058 | 620791-3 | 162.80 | 196.99 | |
| Parker Ck 2x6mm | ||||
| 059 | 266490-9 | 1.00 | 1.21 | |
| Connection unit (3 contacts) | ||||
| 060 | 643850-6 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 061 | 854F74-7 | |||
| Pressure Spring 2 | ||||
| 062 | 234361-8 | 1.20 | 1.45 | |
| Rotary knob ABB OHYS2AJ | ||||
| 063 | 418002-6 | 2.40 | 2.90 | |
| Switch | ||||
| 064 | 632E35-9 | 8.21 | 9.93 | |
| Tapping Screw 3x16 | ||||
| 065 | 266130-9 | 1.00 | 1.21 | |
| Covering hood | ||||
| 066 | 418204-4 | 7.20 | 8.71 | |
| L/r adjusting lever | ||||
| 067 | 455766-1 | 4.80 | 5.81 | |
| Leaf Spring | ||||
| 068 | 232201-4 | 2.40 | 2.90 | |
| Switch | ||||
| 069 | 638276-5 | 8.40 | 10.16 | |
| Switch mounting plate compl. | ||||
| 070 | 418202-8 | 9.60 | 11.62 | |
| Switch | ||||
| 071 | 638275-7 | 11.00 | 13.31 | |
| Compression Spring 4 | ||||
| 072 | 231397-8 | 1.00 | 1.21 | |
| Switch handle | ||||
| 073 | 418203-6 | 9.60 | 11.62 | |
| Motor housing set FL083FD | ||||
| 074 | 183J44-6 | 56.10 | 67.88 | |
| Rubber pen 6 | ||||
| 074C10 | 263005-3 | 1.00 | 1.21 | |
| Nut M4x4 | ||||
| 074C20 | 252825-0 | 4.80 | 5.81 | |
| Hexagonal nut M3 | ||||
| 074C30 | 931002-4 | 1.00 | 1.21 | |
| Screw M30x20 | ||||
| 075 | 251581-9 | 1.00 | 1.21 | |
| Gearbox Dfl302F | ||||
| 076 | 327058-7 | 45.10 | 54.57 | |
| Screw 4x22 | ||||
| 077 | 265145-3 | 1.00 | 1.21 | |
| Light circuit | ||||
| 078 | 620396-9 | 7.20 | 8.71 | |
| HANDGREEPDEKSEL DFL651F A | ||||
| 079 | 457976-6 | 4.80 | 5.81 | |
| Screw M4x8 | ||||
| 080 | 265171-2 | 1.00 | 1.21 | |
| Coupling Cpl R Dfl125F | ||||
| 081 | 126789-3 | 83.60 | 101.16 | |
