Here you will find all available parts and drawings of the 'Makita DFL402R'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

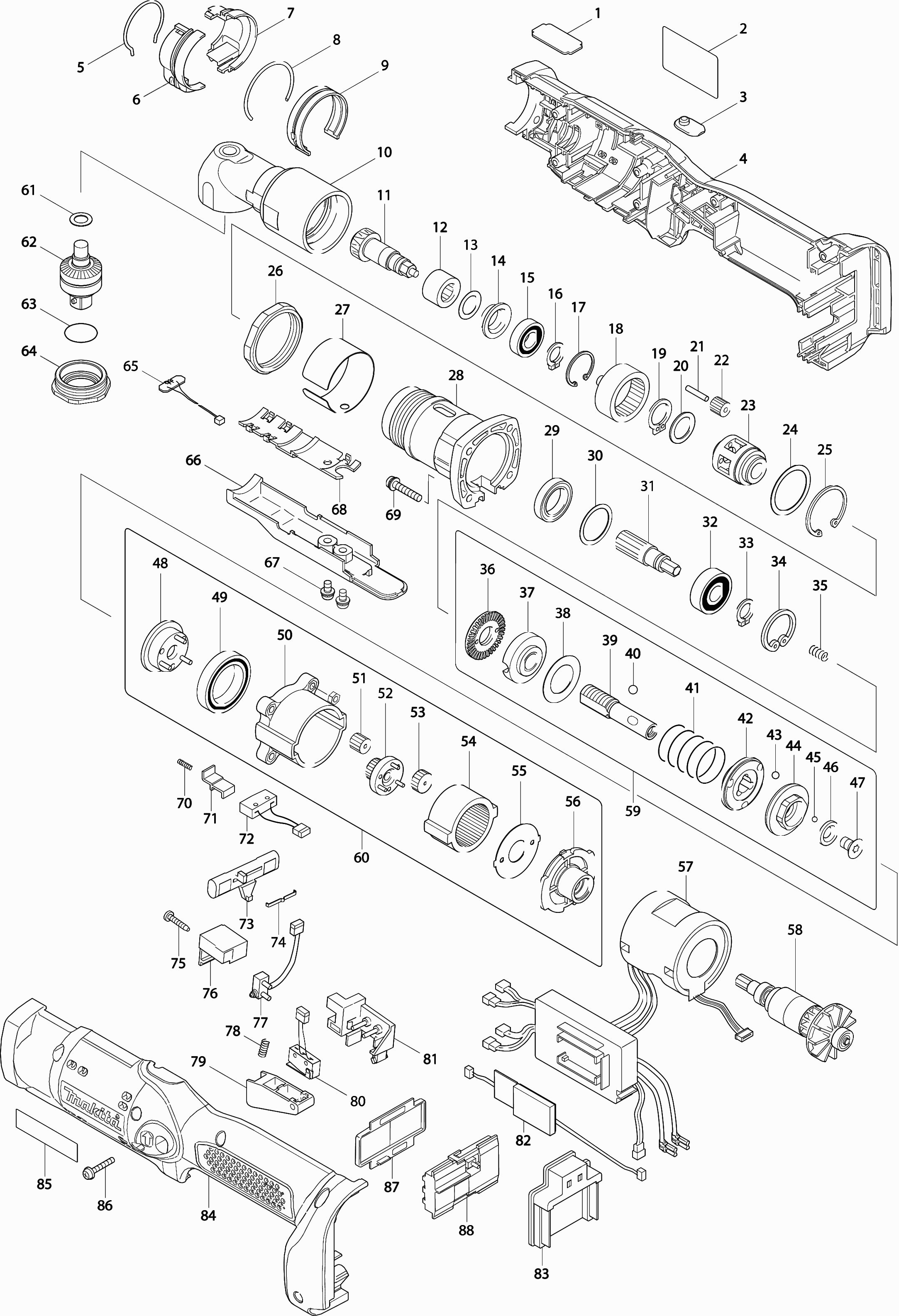

Technical drawing of model Makita DFL402R
Spare parts list of model Makita DFL402R
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Info plate 'k' | ||||
| 001 | 345446-6 | 4.80 | 5.81 | |
| Nameplate "9558hnr" | ||||
| 002 | 850N78-5 | 3.60 | 4.36 | |
| Lens Bfl402F A | ||||
| 003 | 457975-8 | 6.00 | 7.26 | |
| Housing | ||||
| 004 | 187859-3 | 100.10 | 121.12 | |
| Retaining ring 29 | ||||
| 005 | 233932-8 | 2.40 | 2.90 | |
| Protection ring set | ||||
| 006 | 183848-6 | 8.40 | 10.16 | |
| Protection ring set | ||||
| 007 | 183848-6 | 8.40 | 10.16 | |
| Lock ring 36 | ||||
| 008 | 233931-0 | 1.20 | 1.45 | |
| Guide Ring | ||||
| 009 | 418687-8 | 4.80 | 5.81 | |
| Double Gearbox Bfl400 A | ||||
| 010 | 140B18-2 | 88.00 | 106.48 | |
| Gear 9 | ||||
| 011 | 227479-2 | 34.10 | 41.26 | |
| Needle Bearing 1212 | ||||
| 012 | 212108-0 | 11.00 | 13.31 | |
| Thin Washer 12 | ||||
| 013 | 253312-2 | 1.00 | 1.21 | |
| WASHER SHIM | ||||
| 014 | 345281-2 | 2.40 | 2.90 | |
| Ball Bearing 6900llb | ||||
| 015 | 210057-5 | 3.60 | 4.36 | |
| Locking Ring S-10 | ||||
| 016 | 961026-6 | 1.00 | 1.21 | |
| Lock Ring R-22 | ||||
| 017 | 962102-9 | 1.00 | 1.21 | |
| Internal gear 50 | ||||
| 018 | 227120-7 | 8.40 | 10.16 | |
| Lock ring S-14 | ||||
| 019 | 961054-1 | 1.00 | 1.21 | |
| Washer 14 | ||||
| 020 | 253837-6 | 1.00 | 1.21 | |
| Pen 3 | ||||
| 021 | 256104-8 | 1.00 | 1.21 | |
| Gear 14 | ||||
| 022 | 227138-8 | 14.30 | 17.30 | |
| Gear Carrier | ||||
| 023 | 310148-3 | 47.30 | 57.23 | |
| Washer 26 | ||||
| 024 | 267127-1 | 1.20 | 1.45 | |
| Lock washer r-32 | ||||
| 025 | 962161-3 | 1.20 | 1.45 | |
| Nut M36-41 | ||||
| 026 | 252187-6 | 11.00 | 13.31 | |
| Washer 38k | ||||
| 027 | 345447-4 | 7.20 | 8.71 | |
| Clutch | ||||
| 028 | 317808-8 | 48.40 | 58.56 | |
| Ball bearing 6803zz | ||||
| 029 | 211283-9 | 9.60 | 11.62 | |
| Washer 21 | ||||
| 030 | 267283-7 | 1.00 | 1.21 | |
| Gear 21 | ||||
| 031 | 227137-0 | 35.20 | 42.59 | |
| Ball bearing 6000ddw | ||||
| 032 | 211088-7 | 10.00 | 12.10 | |
| Ball bearing 6000DDW A | ||||
| 032 | 210315-9 | 6.00 | 7.26 | |
| Locking Ring S-10 | ||||
| 033 | 961026-6 | 1.00 | 1.21 | |
| Lock ring R-26 A | ||||
| 034 | 962105-3 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 035 | 233019-6 | 1.00 | 1.21 | |
| Lock Ring M12 | ||||
| 036 | 324834-0 | 10.80 | 13.07 | |
| Clutch Dial | ||||
| 037 | 158408-3 | 6.00 | 7.26 | |
| Flat Washer 18 | ||||
| 038 | 267276-4 | 1.20 | 1.45 | |
| Spindle Ass'y | ||||
| 039 | 324296-2 | 34.10 | 41.26 | |
| Steel ball 5.0 | ||||
| 040 | 216018-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 041 | 233357-6 | |||
| No information available, not orderable | ||||
| 042 | 223146-7 | |||
| Steel ball 4 | ||||
| 043 | 216024-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 044 | 223139-4 | |||
| Steel ball 3 | ||||
| 045 | 216019-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 046 | 267247-1 | |||
| Screw M5X10 | ||||
| 047 | 266305-0 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 048 | 153443-6 | |||
| Ball Bearing 6805llb | ||||
| 049 | 211375-4 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 050 | 418004-2 | |||
| No information available, not orderable | ||||
| 051 | 227050-2 | |||
| No information available, not orderable | ||||
| 052 | 153445-2 | |||
| No information available, not orderable | ||||
| 053 | 227049-7 | |||
| No information available, not orderable | ||||
| 054 | 227048-9 | |||
| Spring retaining ring | ||||
| 055 | 267774-8 | 1.20 | 1.45 | |
| Motor mount | ||||
| 056 | 418003-4 | 3.60 | 4.36 | |
| Motor control unit | ||||
| 057 | 631980-5 | 553.30 | 669.49 | |
| Armature | ||||
| 058 | 619144-1 | 221.10 | 267.53 | |
| Coupling "j" | ||||
| 059 | 125397-7 | 92.40 | 111.80 | |
| Gear Set 'a' | ||||
| 060 | 125189-4 | 47.30 | 57.23 | |
| Washer 8 | ||||
| 061 | 253777-8 | 1.00 | 1.21 | |
| Spindle A | ||||
| 062 | 154448-9 | 78.10 | 94.50 | |
| Pin 3-5 6507D * | ||||
| 062C10 | 256436-3 | 2.40 | 2.90 | |
| Compression Spring 3 | ||||
| 062C20 | 233081-1 | 1.00 | 1.21 | |
| Kap 6706D * | ||||
| 062C30 | 322640-7 | 2.40 | 2.90 | |
| O-ring 18 | ||||
| 063 | 213275-4 | 1.00 | 1.21 | |
| Bearing Lock 18-30 | ||||
| 064 | 285723-3 | 18.70 | 22.63 | |
| LED Circuit | ||||
| 065 | 631622-1 | 13.20 | 15.97 | |
| Dust cover for switch | ||||
| 066 | 418690-9 | 8.40 | 10.16 | |
| Screw M4x8 | ||||
| 067 | 265171-2 | 1.00 | 1.21 | |
| Guide ring holder | ||||
| 068 | 418686-0 | 6.00 | 7.26 | |
| Screw 4x22 | ||||
| 069 | 265145-3 | 1.00 | 1.21 | |
| Pressure Spring 2 | ||||
| 070 | 233025-1 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 071 | 418002-6 | 2.40 | 2.90 | |
| SCHAKELAAR DFL201F A | ||||
| 072 | 632T52-9 | 9.60 | 11.62 | |
| L/r adjusting lever | ||||
| 073 | 418201-0 | 4.80 | 5.81 | |
| Leaf Spring | ||||
| 074 | 232201-4 | 2.40 | 2.90 | |
| Tapping Screw 3x16 | ||||
| 075 | 266130-9 | 1.00 | 1.21 | |
| Covering hood | ||||
| 076 | 418204-4 | 7.20 | 8.71 | |
| Switch | ||||
| 077 | 638276-5 | 8.40 | 10.16 | |
| Compression Spring 4 | ||||
| 078 | 231397-8 | 1.00 | 1.21 | |
| Switch handle | ||||
| 079 | 418203-6 | 9.60 | 11.62 | |
| Switch | ||||
| 080 | 638275-7 | 11.00 | 13.31 | |
| Switch mounting plate compl. | ||||
| 081 | 418202-8 | 9.60 | 11.62 | |
| Electric Circuit | ||||
| 082 | 631985-5 | 169.40 | 204.97 | |
| Connection Unit (2 contacts) | ||||
| 083 | 643828-9 | 4.80 | 5.81 | |
| Housing | ||||
| 084 | 187859-3 | 100.10 | 121.12 | |
| Phillips Screw 3x20 | ||||
| 086 | 265095-2 | 1.00 | 1.21 | |
| Covering hood | ||||
| 087 | 452188-6 | 6.00 | 7.26 | |
| Control unit | ||||
| 088 | 631717-0 | 647.90 | 783.96 | |
