Here you will find all available parts and drawings of the 'Makita DFL083F'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

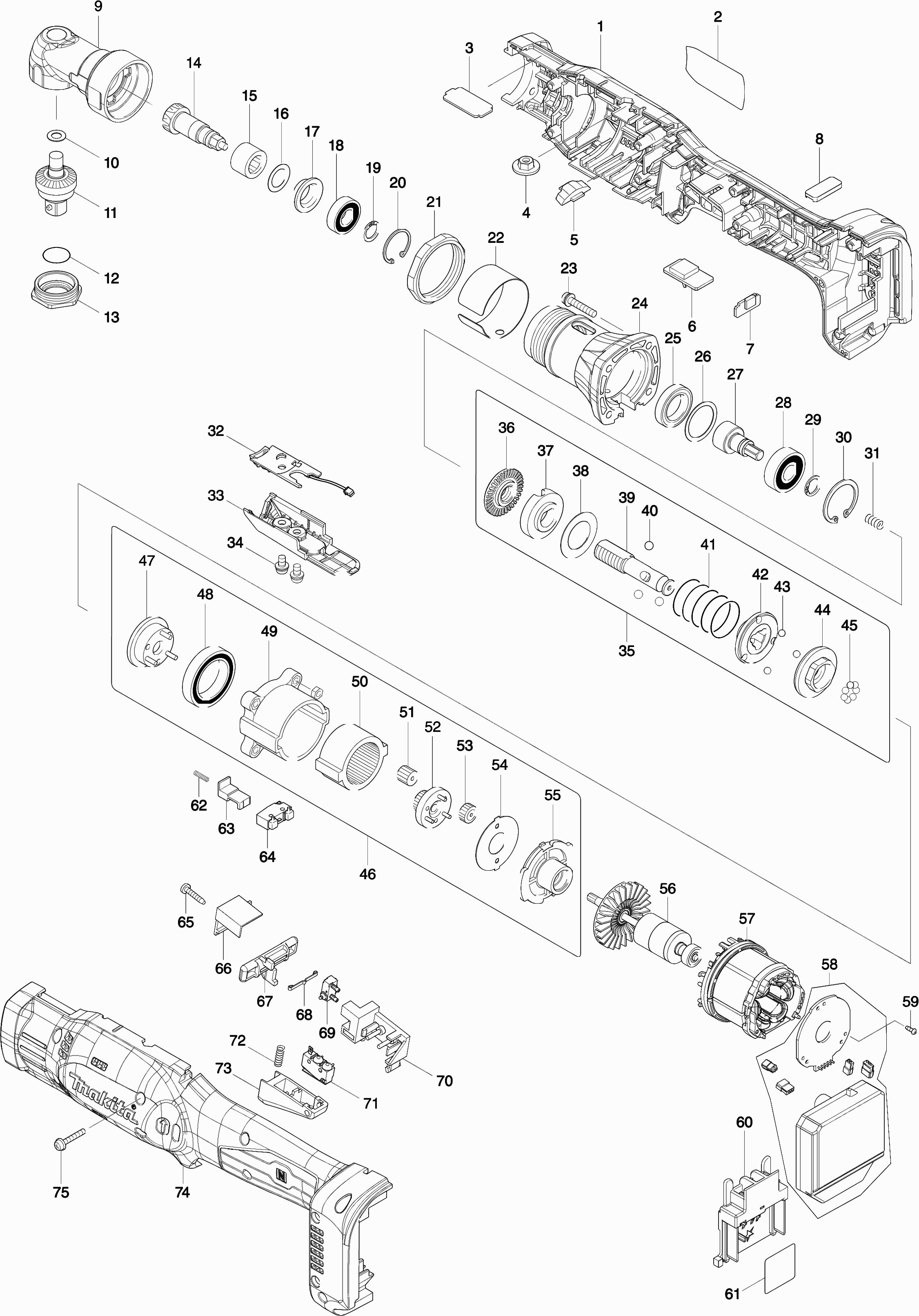

Technical drawing of model Makita DFL083F
Spare parts list of model Makita DFL083F
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor housing set FL083FD | ||||
| 001 | 183J44-6 | 56.10 | 67.88 | |
| Rubber pen 6 | ||||
| 001C10 | 263005-3 | 1.00 | 1.21 | |
| Nut M4x4 | ||||
| 001C20 | 252825-0 | 4.80 | 5.81 | |
| Hexagonal nut M3 | ||||
| 001C30 | 931002-4 | 1.00 | 1.21 | |
| Nameplate DFL083 | ||||
| 002 | 854E99-5 | 3.60 | 4.36 | |
| Label A 2-8nm (hard-torque) | ||||
| 003 | 345282-0 | 3.60 | 4.36 | |
| Flange nut M5 | ||||
| 004 | 252142-8 | 6.00 | 7.26 | |
| Lens Dfl651F A | ||||
| 005 | 458391-7 | 3.60 | 4.36 | |
| Buzzer Circuit Dfl083F | ||||
| 006 | 620792-1 | 13.20 | 15.97 | |
| USB Circuit Dfl083F | ||||
| 007 | 620793-9 | 11.00 | 13.31 | |
| USB cover cap | ||||
| 008 | 424827-8 | 6.00 | 7.26 | |
| Front House Complete Dfl083F | ||||
| 009 | 144970-4 | 78.10 | 94.50 | |
| Washer 8 | ||||
| 010 | 253777-8 | 1.00 | 1.21 | |
| Spindle A | ||||
| 011A | 154447-1 | 81.40 | 98.49 | |
| Shaft H cpl 3/8 DFL083/125/204 | ||||
| 011B | 158542-9 | 72.60 | 87.85 | |
| Shaft C cpl 1/4 DFL083/125/204 | ||||
| 011C | 140A00-5 | 69.30 | 83.85 | |
| Pin 3-5 6507D * | ||||
| 011C10 | 256436-3 | 2.40 | 2.90 | |
| Compression Spring 3 | ||||
| 011C20 | 233081-1 | 1.00 | 1.21 | |
| Kap 6706D * | ||||
| 011C30 | 322640-7 | 2.40 | 2.90 | |
| Shaft F cpl 1/4 DFL083/204 | ||||
| 011D | 140A01-3 | 88.00 | 106.48 | |
| O-ring 15 | ||||
| 012 | 213222-5 | 1.20 | 1.45 | |
| Bearing Lock 15-26 | ||||
| 013 | 285722-5 | 13.20 | 15.97 | |
| Gear 9 | ||||
| 014 | 227478-4 | 27.50 | 33.28 | |
| Needle Bearing 1212 | ||||
| 015 | 212122-6 | 3.60 | 4.36 | |
| Thin Washer 12 | ||||
| 016 | 253312-2 | 1.00 | 1.21 | |
| WASHER SHIM | ||||
| 017 | 345281-2 | 2.40 | 2.90 | |
| Ball Bearing 6900llb | ||||
| 018 | 210057-5 | 3.60 | 4.36 | |
| Locking Ring S-10 | ||||
| 019 | 961026-6 | 1.00 | 1.21 | |
| Lock Ring R-22 | ||||
| 020 | 962102-9 | 1.00 | 1.21 | |
| Nut M36-41 | ||||
| 021 | 252187-6 | 11.00 | 13.31 | |
| Washer 38j | ||||
| 022 | 345442-4 | 7.20 | 8.71 | |
| Screw 4x22 | ||||
| 023 | 265145-3 | 1.00 | 1.21 | |
| Clutch | ||||
| 024 | 317808-8 | 48.40 | 58.56 | |
| Ball bearing 6803zz | ||||
| 025 | 211283-9 | 9.60 | 11.62 | |
| Washer 21 | ||||
| 026 | 267283-7 | 1.00 | 1.21 | |
| Axis B DFL083 | ||||
| 027 | 326992-8 | 36.30 | 43.92 | |
| Ball bearing 6000ddw | ||||
| 028 | 211088-7 | 10.00 | 12.10 | |
| Ball bearing 6000DDW A | ||||
| 028 | 210315-9 | 6.00 | 7.26 | |
| Locking Ring S-10 | ||||
| 029 | 961026-6 | 1.00 | 1.21 | |
| Lock ring R-26 A | ||||
| 030 | 962105-3 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 031 | 233019-6 | 1.00 | 1.21 | |
| Light circuit | ||||
| 032 | 620396-9 | 7.20 | 8.71 | |
| HANDGREEPDEKSEL DFL651F A | ||||
| 033 | 457976-6 | 4.80 | 5.81 | |
| Screw M4x8 | ||||
| 034 | 265171-2 | 1.00 | 1.21 | |
| Complete Coupling O Bfl083F | ||||
| 035 | 126770-4 | 83.60 | 101.16 | |
| Lock Ring M12 | ||||
| 036 | 324834-0 | 10.80 | 13.07 | |
| Clutch Dial | ||||
| 037 | 158408-3 | 6.00 | 7.26 | |
| Flat Washer 18 | ||||
| 038 | 267276-4 | 1.20 | 1.45 | |
| As DFL083 | ||||
| 039 | 327086-2 | 33.00 | 39.93 | |
| Steel ball 5.0 | ||||
| 040 | 216018-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 041 | 233356-8 | |||
| No information available, not orderable | ||||
| 042 | 223146-7 | |||
| Steel ball 4 | ||||
| 043 | 216024-8 | 1.00 | 1.21 | |
| Cam Disk F DFL083F | ||||
| 044 | 223187-3 | 17.60 | 21.30 | |
| Steel ball 4 | ||||
| 045 | 216024-8 | 1.00 | 1.21 | |
| Gear set 'e' | ||||
| 046 | 125231-1 | 48.40 | 58.56 | |
| No information available, not orderable | ||||
| 047 | 153443-6 | |||
| Ball Bearing 6805llb | ||||
| 048 | 211375-4 | 13.20 | 15.97 | |
| Hex nut M4 | ||||
| 049 | 931102-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 050 | 227048-9 | |||
| No information available, not orderable | ||||
| 051 | 227050-2 | |||
| No information available, not orderable | ||||
| 052 | 153684-4 | |||
| No information available, not orderable | ||||
| 053 | 227104-5 | |||
| Spring retaining ring | ||||
| 054 | 267774-8 | 1.20 | 1.45 | |
| Motor mount | ||||
| 055 | 418003-4 | 3.60 | 4.36 | |
| Armature Dfl083F | ||||
| 056 | 619493-6 | 88.00 | 106.48 | |
| Field Dfl083F | ||||
| 057 | 629333-0 | 34.10 | 41.26 | |
| Controller Dfl083F | ||||
| 058 | 620787-4 | 162.80 | 196.99 | |
| Parker Ck 2x6mm | ||||
| 059 | 266490-9 | 1.00 | 1.21 | |
| Connection unit (3 contacts) | ||||
| 060 | 643850-6 | 4.80 | 5.81 | |
| Serial number label DFL083 | ||||
| 061 | 854F04-8 | 2.40 | 2.90 | |
| Pressure Spring 2 | ||||
| 062 | 234361-8 | 1.20 | 1.45 | |
| Rotary knob ABB OHYS2AJ | ||||
| 063 | 418002-6 | 2.40 | 2.90 | |
| Switch | ||||
| 064 | 632E35-9 | 8.21 | 9.93 | |
| No information available, not orderable | ||||
| 065 | 227104-5 | |||
| Covering hood | ||||
| 066 | 418204-4 | 7.20 | 8.71 | |
| L/r adjusting lever | ||||
| 067 | 455766-1 | 4.80 | 5.81 | |
| Leaf Spring | ||||
| 068 | 232201-4 | 2.40 | 2.90 | |
| Switch | ||||
| 069 | 638276-5 | 8.40 | 10.16 | |
| Switch mounting plate compl. | ||||
| 070 | 418202-8 | 9.60 | 11.62 | |
| Switch | ||||
| 071 | 638275-7 | 11.00 | 13.31 | |
| Compression Spring 4 | ||||
| 072 | 231397-8 | 1.00 | 1.21 | |
| Switch handle | ||||
| 073 | 418203-6 | 9.60 | 11.62 | |
| Motor housing set FL083FD | ||||
| 074 | 183J44-6 | 56.10 | 67.88 | |
| Rubber pen 6 | ||||
| 074C10 | 263005-3 | 1.00 | 1.21 | |
| Nut M4x4 | ||||
| 074C20 | 252825-0 | 4.80 | 5.81 | |
| Hexagonal nut M3 | ||||
| 074C30 | 931002-4 | 1.00 | 1.21 | |
| Screw M30x20 | ||||
| 075 | 251581-9 | 1.00 | 1.21 | |
