Here you will find all available parts and drawings of the 'Makita DF333D'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

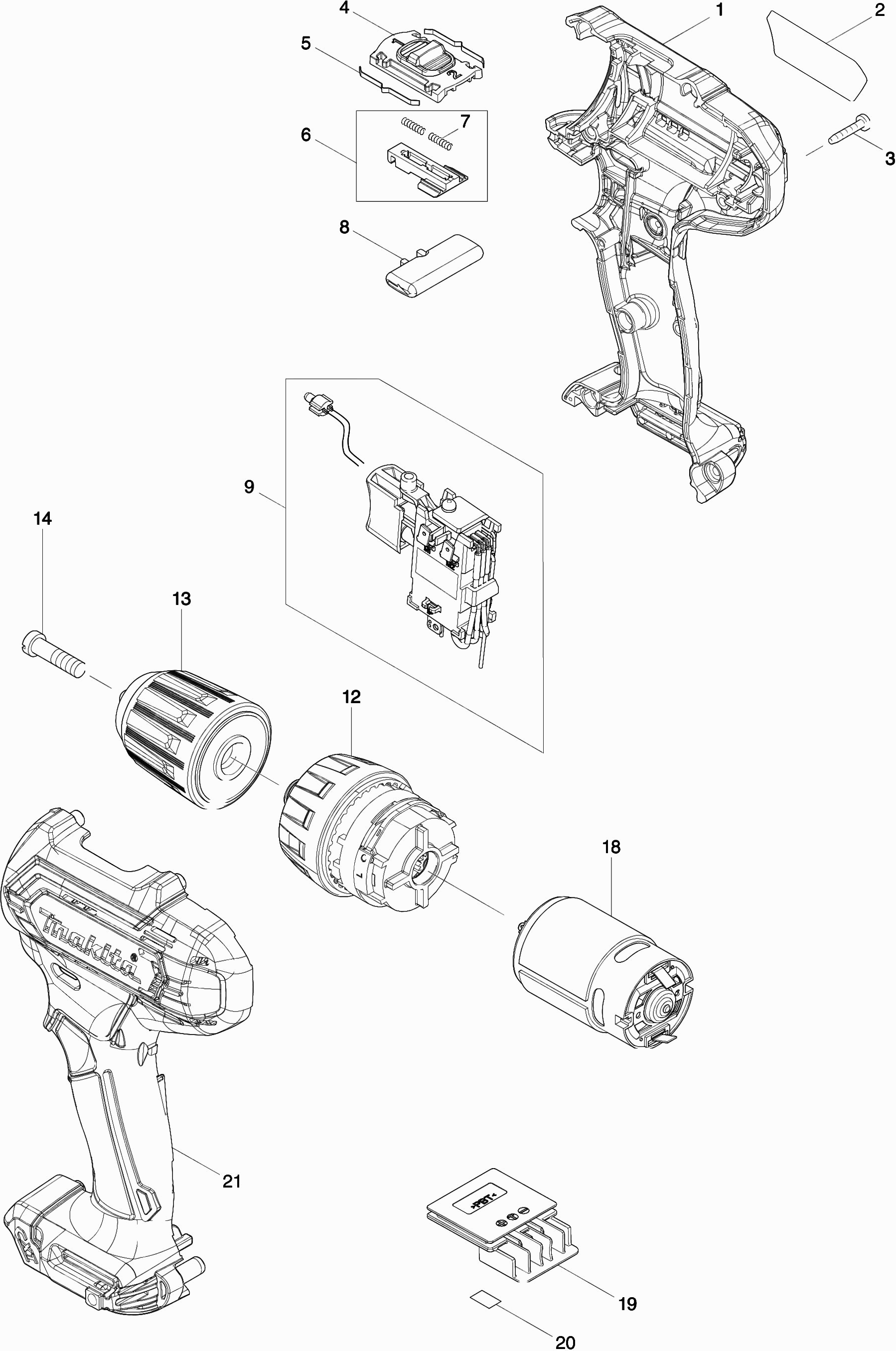

Technical drawing of model Makita DF333D
Spare parts list of model Makita DF333D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| DF333D Motor Housing | ||||
| 001 | 183K90-5 | 8.21 | 9.93 | |
| Lock Nut M4x7mm | ||||
| 001C10 | 252126-6 | 0.83 | 1.00 | |
| Nameplate DF333D | ||||
| 002 | 855E35-4 | 2.71 | 3.28 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 0.83 | 1.00 | |
| Speed Slide DF333D/DF033D | ||||
| 004 | 459026-3 | 0.98 | 1.19 | |
| No information available, not orderable | ||||
| 004-1 | 413F37-8 | |||
| Leaf spring DF333D | ||||
| 005 | 232493-5 | 0.83 | 1.00 | |
| Switch Knob DF333D | ||||
| 006 | 127127-2 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 006-1 | 122B84-1 | |||
| Pressure Spring 2 | ||||
| 007 | 233025-1 | 0.83 | 1.00 | |
| F/r switch button | ||||
| 008 | 456039-5 | 0.83 | 1.00 | |
| Switch Df/Hp331 A | ||||
| 009 | 632J76-5 | 25.36 | 30.69 | |
| Light circuit DF033D | ||||
| 009C10 | 620625-0 | 1.99 | 2.41 | |
| Line filter | ||||
| 009C20 | 688161-2 | 0.83 | 1.00 | |
| Gear Set DF333D | ||||
| 012 | 127125-6 | 21.08 | 25.51 | |
| No information available, not orderable | ||||
| 013 | 763238-5 | |||
| Drill Chuck Screw M6x22mm Li | ||||
| 014 | 251468-5 | 0.83 | 1.00 | |
| Dc Motor 10.8v | ||||
| 018 | 629395-8 | 9.24 | 11.18 | |
| Connection unit | ||||
| 019 | 644813-5 | 2.36 | 2.86 | |
| Serial number label DF333D | ||||
| 020 | 855E42-7 | 0.83 | 1.00 | |
| DF333D Motor Housing | ||||
| 021 | 183K90-5 | 8.21 | 9.93 | |
| Lock Nut M4x7mm | ||||
| 021C10 | 252126-6 | 0.83 | 1.00 | |
