Here you will find all available parts and drawings of the 'Makita DF332D'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

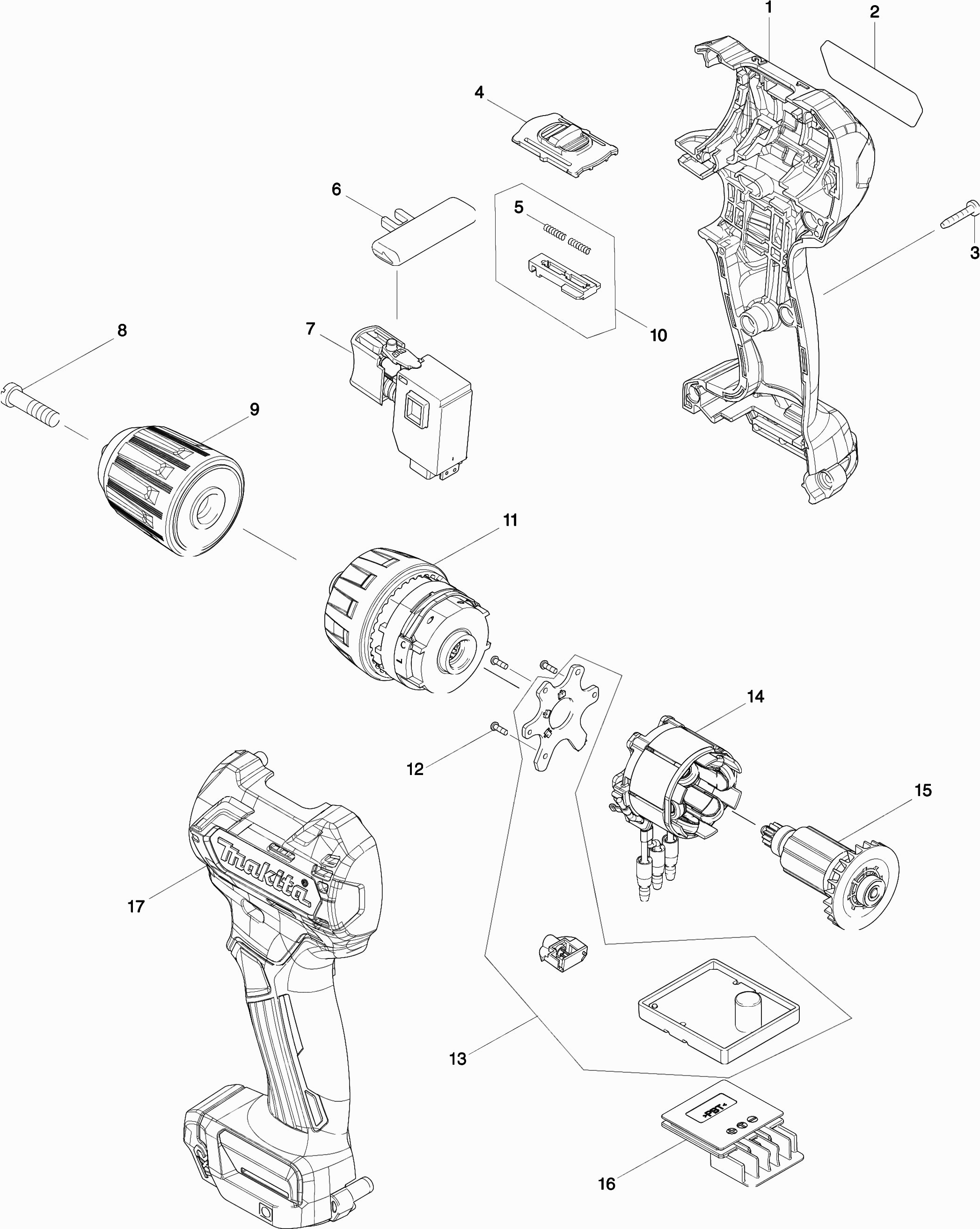

Technical drawing of model Makita DF332D
Spare parts list of model Makita DF332D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motorhuis set | ||||
| 001 | 183C34-7 | 12.22 | 14.79 | |
| No information available, not orderable | ||||
| 002 | 851T91-2 | |||
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 0.83 | 1.00 | |
| High/low speed slide | ||||
| 004 | 456532-9 | 1.39 | 1.68 | |
| Pressure Spring 2 | ||||
| 005 | 233025-1 | 0.83 | 1.00 | |
| L/R Switch Button | ||||
| 006 | 419041-9 | 0.98 | 1.19 | |
| Switch | ||||
| 007 | 650005-6 | 17.40 | 21.05 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 008 | 251468-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 009 | 763238-5 | |||
| Adjustable knob set | ||||
| 010 | 123587-6 | 1.00 | 1.21 | |
| Gear | ||||
| 011 | 123868-8 | 21.08 | 25.51 | |
| Parker Ck 2x6mm | ||||
| 012 | 266490-9 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 013 | 620487-6 | |||
| Light circuit | ||||
| 013A | 620553-9 | 5.06 | 6.12 | |
| Field | ||||
| 014 | 629178-6 | 16.17 | 19.57 | |
| Rotary Core | ||||
| 015 | 619393-0 | 27.63 | 33.43 | |
| Connection unit | ||||
| 016 | 644813-5 | 2.36 | 2.86 | |
| Motorhuis set | ||||
| 017 | 183C34-7 | 12.22 | 14.79 | |
