Here you will find all available parts and drawings of the 'Makita DF032D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

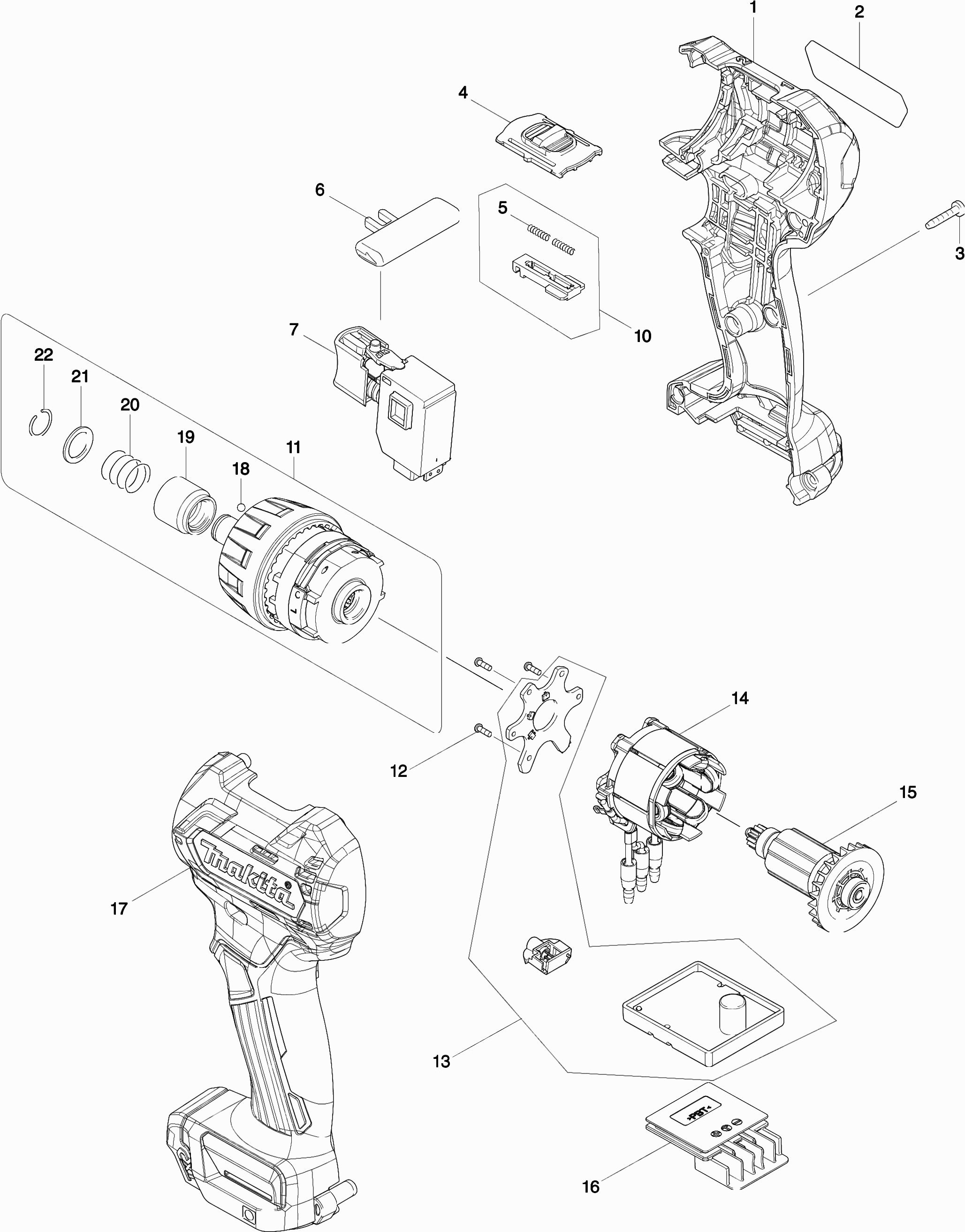

Technical drawing of model Makita DF032D
Spare parts list of model Makita DF032D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motorhuis set | ||||
| 001 | 183C34-7 | 13.20 | 15.97 | |
| Nameplate DF032D 12Vmax A | ||||
| 002 | 851U09-9 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 1.00 | 1.21 | |
| High/low speed slide | ||||
| 004 | 456532-9 | 2.40 | 2.90 | |
| Pressure Spring 2 | ||||
| 005 | 233025-1 | 1.00 | 1.21 | |
| L/R Switch Button | ||||
| 006 | 419041-9 | 1.20 | 1.45 | |
| Switch | ||||
| 007 | 650005-6 | 17.60 | 21.30 | |
| Adjustable knob set | ||||
| 010 | 123587-6 | 1.20 | 1.45 | |
| Gear set DDF083 A | ||||
| 011 | 127599-1 | 22.00 | 26.62 | |
| Parker Ck 2x6mm | ||||
| 012 | 266490-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 013 | 620487-6 | |||
| Light circuit | ||||
| 013A | 620553-9 | 6.00 | 7.26 | |
| Field | ||||
| 014 | 629178-6 | 16.50 | 19.96 | |
| Rotary Core | ||||
| 015 | 619393-0 | 28.60 | 34.61 | |
| Connection unit | ||||
| 016 | 644813-5 | 2.40 | 2.90 | |
| Motorhuis set | ||||
| 017 | 183C34-7 | 13.20 | 15.97 | |
| Steel ball 3 | ||||
| 018 | 216019-1 | 1.00 | 1.21 | |
| Bit Holder | ||||
| 019 | 326677-6 | 3.60 | 4.36 | |
| Compression Spring 13 | ||||
| 020 | 233005-7 | 1.00 | 1.21 | |
| Rivet | ||||
| 021 | 347004-4 | 1.00 | 1.21 | |
| Spring Washer 10 | ||||
| 022 | 231965-7 | 1.00 | 1.21 | |
